AFE59-T 930E-4 S/N A30545 - A30547 LOS PELAMBRES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TH7965	BALL, STEEL - 1/4"	1
?	VE3571	FLANGE	1
?	VE3588	DOWEL	10
?	VE7795	PLATE, GEAR	2
?	WA0262	O-RING (1)/(2)	5
?	VE3572	PLATE, CONNECTOR	1
?	VE3593	O-RING (2)	24
?	VE3574	PLATE, BEARING	1
?	VE3573	PLATE, CONNECTOR	1
?	VE3592	WASHER	8
?	25632R1	NUT	8
?	BF2675	STUD	4
?	VE7797	GEAR, IDLER	2
?	BF0065	CAPSCREW	8
?	VE3575	PLATE, BEARING	1
?	VS0629	DOWEL	4
?	VE8967	PLATE, TRANSITION (3)	1
?	WA0158	O-RING (2)/(3)	1
?		(NOT USED THIS APPLICATION)	-1
?	VE8966	COUPLING, SPLINE (3)	1
?	BF2674	GEAR, DRIVE	1
?	SL8698	SNAP RING	1
?	VE3589	COUPLING	1
?	VE3738	RING, STEEL	8
?	VE3583	RING, BACKUP (2)	4
?	VE3584	O-RING (2)	4
?	VE3580	PLATE, PRESSURE	4
?	VE1783	PLUG (1)/(2)	1
?	BF2673	GEAR, DRIVE	1
?	VE3586	SEAL (1)/(2)	2
?	TG3789	SNAP RING (1)/(2)	1
?	VE3581	PLATE, ISOLATION	4
?	VE3582	RING, RETAINING (2)	4
?	BF2676	STUD	4
?	VE5201	STUD	4
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	4
?	25527R1	NUT	4
?	WA0155	O-RING (2)/(3)	1
?	WA0098	O-RING	1
?	VE3594	NOTE: (1) INCLUDED IN VE3594 SHAFT SEAL KIT.	-1
?	BF0033	(2) INCLUDED IN BF0033 SOFT GOODS SERVICE KIT.	-1
?	PB8769	(3) INCLUDED IN PB8769 PUMP REWORK KIT.	-1

Komatsu AFE59-T 930E-4 S/N A30545 - A30547 LOS PELAMBRES parts catalog PDF

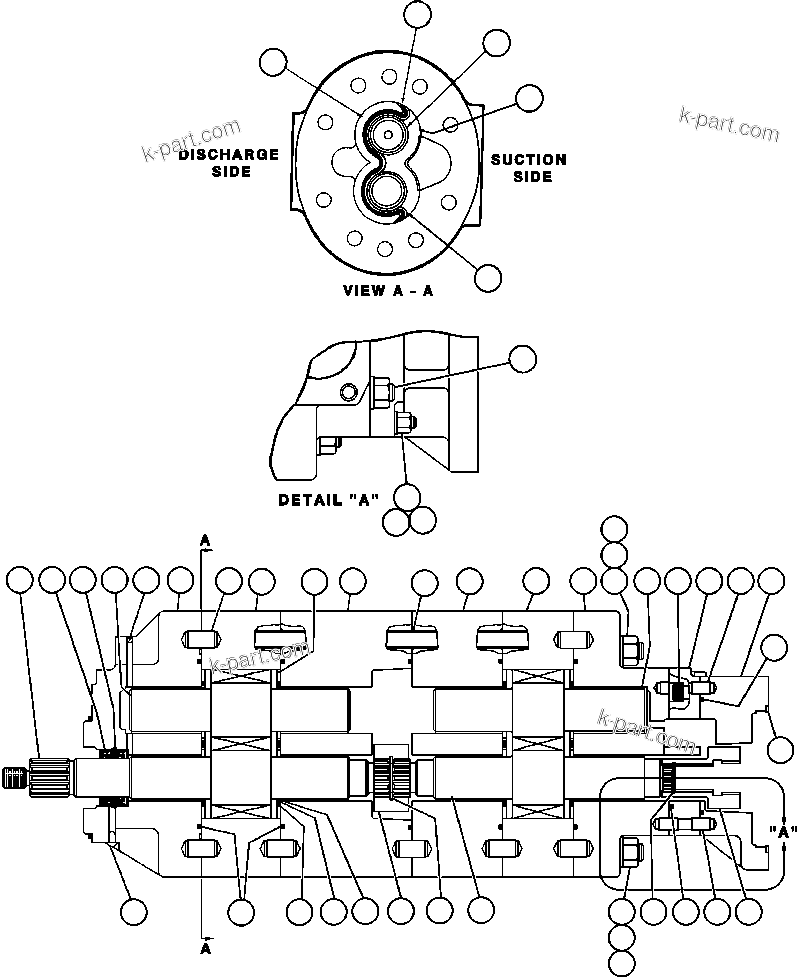

HOIST PUMP ASSEMBLY (PB9008) (60246) in AFE59-T 930E-4 S/N A30545 - A30547 LOS PELAMBRES. Diagram image and parts list.
