AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE

11 12 13 12 21 22 15 16 20 14 15 16 17 46 27 28 29 24 25 23 47 45 39 26 42 44 43 44 43 42 41 40 30 31 33 32 19 18 9 10 9 34 8 8 36 35 6 38 37 1 2 3 3 2 5 6 6 7 5 6 4 6

#	Part Number	Partname	Quantity	Reference
1	EJ9909	CLAMP	7
2	TL8151	JAM NUT - 1/2" - 20NF	14
3	PC1247	ROD END, FEMALE	14
4	VC4898	CAPSCREW - 1/2" - 13NC X 2 1/2"	7
5	DF3500	LOCKNUT - 1/2" - 13NC	13
6	WA4728	FLAT WASHER, HARDENED - 1/2"	27
7	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	6
8	58F-02-00160	AIR CLEANER ASSEMBLY, DUAL (SEE INDEX)	1	43406
9	WB1177	CLAMP, T-BOLT	12
10	VW7882	HOSE	1
11	58F-09-00450	CAPSCREW - 5/8" - 11NC X 4 1/2"	13
12	VC1390	LOCKWASHER - 5/8"	17
13	WA4729	FLAT WASHER, HARDENED - 5/8"	13
14	58E-54-30540	BRACKET	1
15	MM0616	CAPSCREW - M12 X 1.75 X 20	4
16	MM0714	FLAT WASHER, HARDENED - M12	4
17	EJ9917	ROD, THREADED	1
18	WB1179	CLAMP, T-BOLT	4
19	TX6040	ELBOW, RUBBER - 45 DEG	1
20	58E-54-30550	BRACKET	1
21	TR2961	CAPSCREW - 5/8" - 11NC X 1"	4
22	TR9082	FLAT WASHER - 5/8"	4
23	TB1406	RAIN GUARD, FRONT	1
24	TB1018	RAIN GUARD, RH	1
25	TB1019	RAIN GUARD, LH	1
26	EK1649	THREADED ROD	1
27	58E-54-30530	BRACKET	1
28	MM0604	CAPSCREW - M10 X 1.50 X 20	2
29	MM0713	FLAT WASHER, HARDENED - M10	2
30	EG7576	CLAMP, DOUBLE	2
31	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	3
32	WA4726	FLAT WASHER, HARDENED - 3/8"	6
33	HE5611	LOCKNUT - 3/8" - 16NC	3
34	PC1115	HOSE, DOUBLE HUMP	2
35	58E-02-00600	TUBE, AIR INTAKE - LH OUTER FRONT	1
36	58E-02-00800	TUBE, AIR INTAKE - LH INNER FRONT	1
37	TR5445	LOCKWASHER - 1/2"	1
38	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	1
39	EK2341	ROD, THREADED	1
40	58E-02-00840	TUBE, AIR INTAKE - LH OUTER REAR	1
41	58E-02-00890	TUBE, AIR INTAKE - LH INNER REAR	1
42	WB1170	CLAMP, T-BOLT	4
43	PC0858	ELBOW, REDUCING - 90 DEG	2
44	WB1169	CLAMP, T-BOLT	2
45	EJ9910	ROD, THREADED	2
46	EK1726	ROD, THREADED	1
47	EK1727	ROD, THREADED	1

Komatsu AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE parts catalog PDF

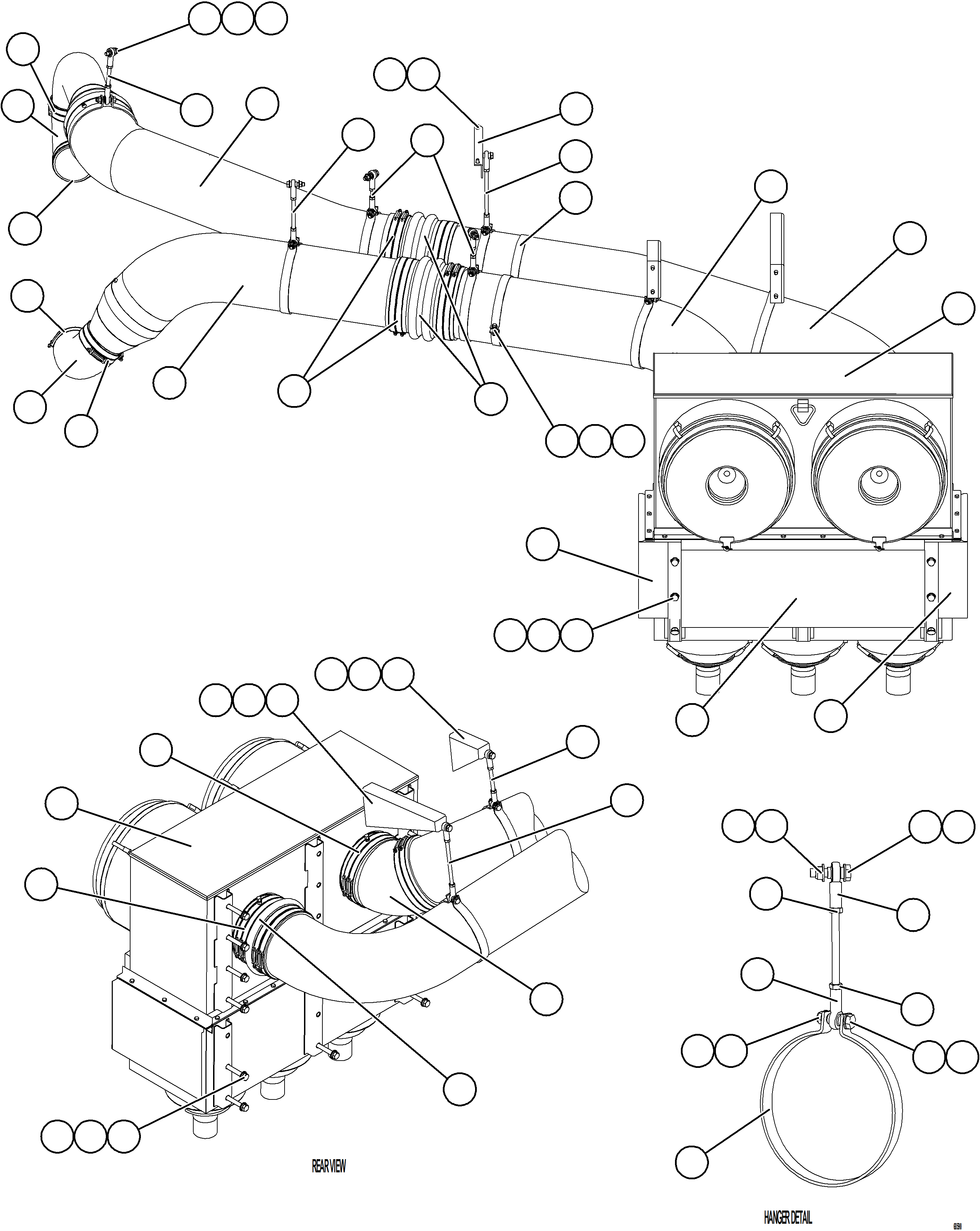

LH AIR CLEANER PIPING (68590) in AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE. Diagram image and parts list.
