AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE

11 12 13 12 23 22 20 14 15 16 15 16 21 17 17 26 24 25 29 30 10 19 9 9 9 18 37 38 41 41 42 42 40 40 35 39 36 36 31 32 33 34 27 1 2 2 3 3 5 6 4 6 5 6 6 7 8 8 5 6 28 5 28 6 5 6 28

#	Part Number	Partname	Quantity	Reference
1	EJ9909	CLAMP	8
2	TL8151	JAM NUT - 1/2" - 20NF	16
3	PC1247	ROD END, FEMALE	16
4	VC4898	CAPSCREW - 1/2" - 13NC X 2 1/2"	8
5	DF3500	LOCKNUT - 1/2" - 13NC	16
6	WA4728	FLAT WASHER, HARDENED - 1/2"	32
7	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	5
8	58F-02-00160	AIR CLEANER ASSEMBLY, DUAL (SEE INDEX)	1	43406
9	WB1177	CLAMP, T-BOLT	12
10	VW7882	HOSE	1
11	58F-09-00450	CAPSCREW - 5/8" - 11NC X 4 1/2"	13
12	VC1390	LOCKWASHER - 5/8"	17
13	WA4729	FLAT WASHER, HARDENED - 5/8"	13
14	EJ9919	BRACKET, MOUNTING	1
15	MM0616	CAPSCREW - M12 X 1.75 X 20	4
16	MM0714	FLAT WASHER, HARDENED - M12	4
17	EK2341	ROD, THREADED	3
18	WB1179	CLAMP, T-BOLT	4
19	TX6040	ELBOW, RUBBER - 45 DEG	1
20	EJ9920	BRACKET, MOUNTING	1
21	EK1647	ROD, THREADED	1
22	TR2961	CAPSCREW - 5/8" - 11NC X 1"	4
23	TR9082	FLAT WASHER - 5/8"	4
24	TB1406	RAIN GUARD, FRONT	1
25	TB1019	RAIN GUARD, LH	1
26	TB1018	RAIN GUARD, RH	1
27	EK1648	ROD, THREADED	2
28	VC6500	CAPSCREW - 1/2" - 13NC X 2"	3
29	EJ1974	TUBE, BENT OUTER FRONT - RH	1
30	EJ2403	TUBE STR INNER FRONT RH	1
31	EG7576	CLAMP, DOUBLE	2
32	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	3
33	WA4726	FLAT WASHER, HARDENED - 3/8"	6
34	HE5611	LOCKNUT - 3/8" - 16NC	3
35	EK1736	ROD, THREADED	1
36	PC1115	HOSE, DOUBLE HUMP	2
37	58E-02-00811	TUBE, AIR INTAKE - RH OUTER REAR	1
38	58E-02-00870	TUBE, AIR INTAKE - RH INNER REAR	1
39	EL8242	ROD, THREADED	1
40	WB1170	CLAMP, T-BOLT	4
41	PC0858	ELBOW, REDUCING - 90 DEG	2
42	WB1169	CLAMP, T-BOLT	2

Komatsu AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE parts catalog PDF

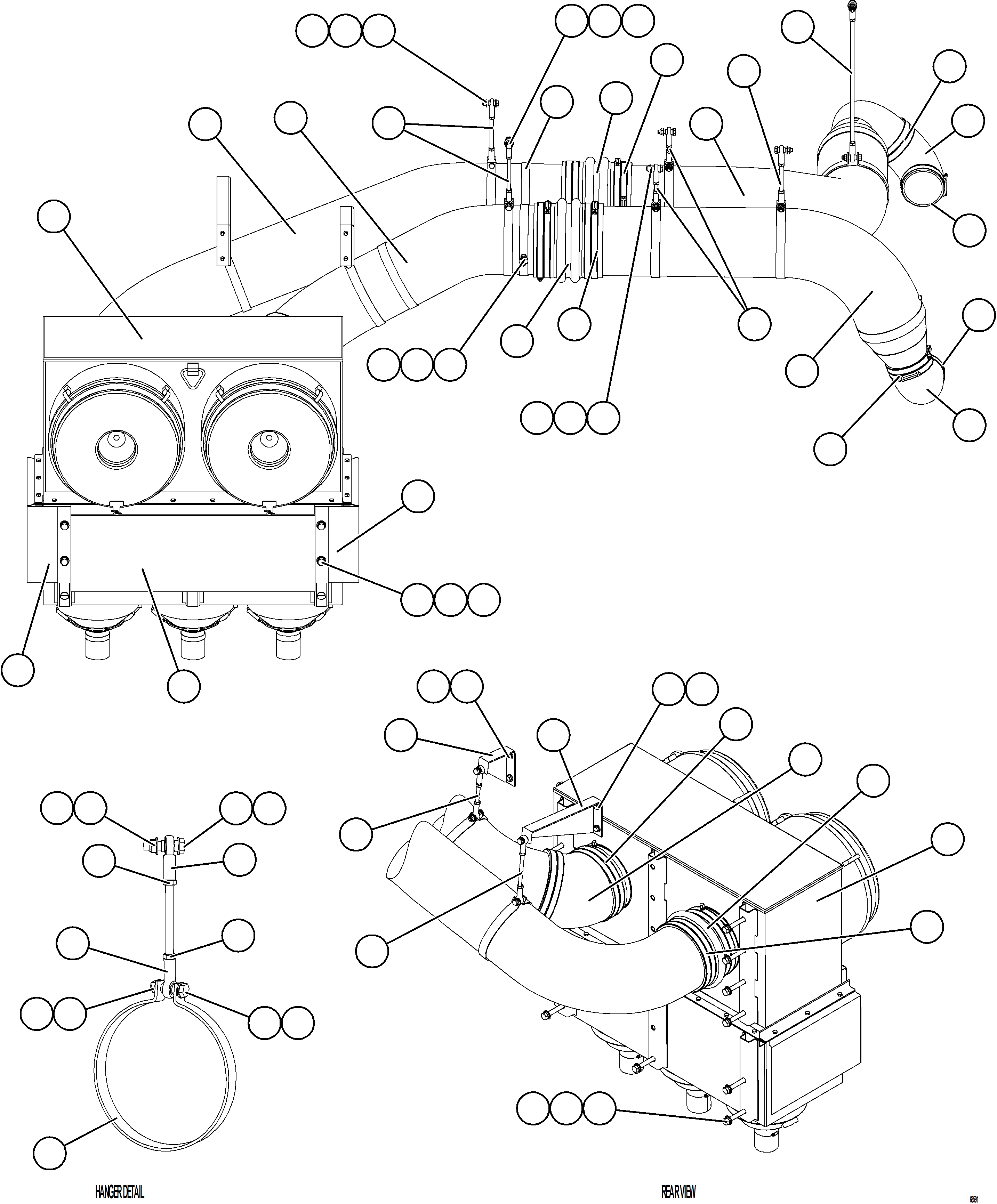

RH AIR CLEANER PIPING (S/N A50018) (68591) in AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE. Diagram image and parts list.
