AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-06-08591	ISOLATION BOX (1)	2
?	58E-06-08592	ISOLATION BOX (2)	2
?	58E-06-04751	CABLE, RED	1
?	58E-06-04761	CABLE, RED	1
?	58E-06-04771	CABLE, BLACK	1
?	58E-06-04781	CABLE, BLACK	1
?	58E-06-05870	CABLE, BLACK	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	6
?	MM0471	LOCKWASHER - M10	6
?	MM0461	FLAT WASHER - M10	17
?	MM0594	CAPSCREW - M8 X 1.25 X 25	5
?	MM0470	LOCKWASHER - M8	5
?	MM0460	FLAT WASHER - M8	5
?	WB3098	CLAMP, CUSHIONED - 3/8"	4
?	58B-06-20020	BRACKET	1
?	58E-06-11840	BOX, EMERGENCY ENGINE SHUTDOWN	1
?	58E-06-13190	BUTTON, PUSH-PULL	1
?	TH9117	GROMMET	1
?	58B-06-21270	HARNESS, WIRING - ENGINE SHUTDOWN	1
?	58F-06-40111	ISOLATION BOX (1)	1
?	58F-06-05350	ISOLATION BOX (2)	1
?		NOTE: NS=NOT SHOWN	-1
?	XB6860	SLEEVE, SHRINK	2
?		NOTE: (1) EFFECTIVE ON A50007	-1
?		(2) EFFECTIVE ON A50018	-1

Komatsu AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE parts catalog PDF

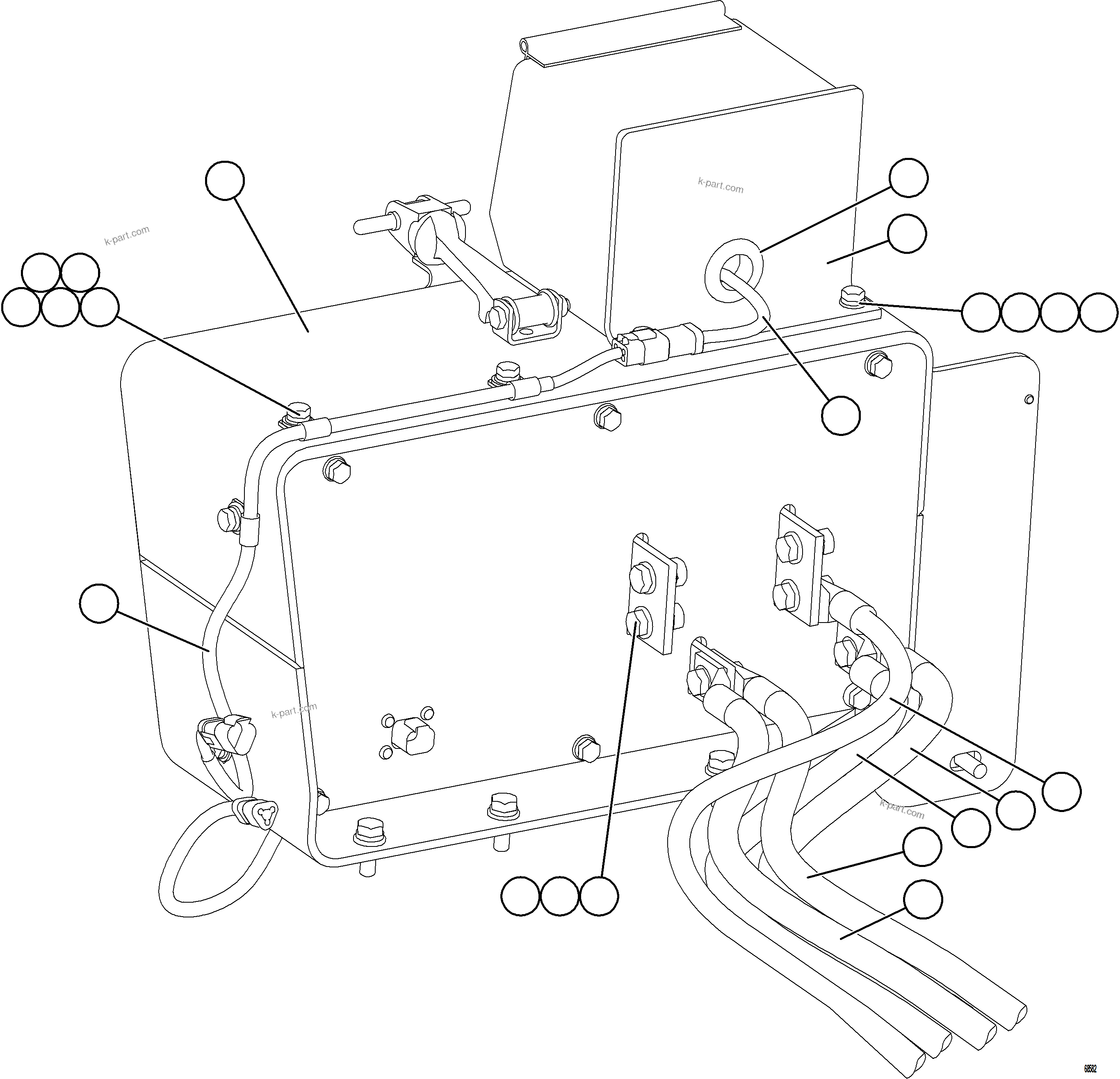

ISOLATION BOX WIRING 2/2 (68582) in AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE. Diagram image and parts list.
