AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-06-04471	CABLE, BLACK	1
?	08038-04030	CAP, TERMINAL	4
?	58E-06-04462	CABLE, PRELUBE POWER	1
?	TC1233	NUT - 3/8" - 16NC	1
?	58E-06-04623	CABLE, PRELUBE FUSE LINK	1
?	TC1231	LOCKWASHER - 3/8"	1
?	MM0461	FLAT WASHER - M10	18
?	MM0606	CAPSCREW - M10 X 1.50 X 30	5
?	WB3097	CLAMP, CUSHIONED - 1/2"	3
?	MM0471	LOCKWASHER - M10	16
?	MM0178	NUT - M10 X 1.50	12
?	MM0607	CAPSCREW - M10 X 1.50 X 35	1
?	WB3092	CLAMP, CUSHIONED - 7/8"	1
?	WB3855	CLAMP, CUSHIONED - 13/16"	2
?	EM1398	SPACER	1
?	EM3586	SPACER	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	4
?	08038-00519	CAP, TERMINAL	2
?	MM0581	CAPSCREW - M6 X 1.00 X 16	2
?	WB3098	CLAMP, CUSHIONED - 3/8"	1
?	MM0604	CAPSCREW - M10 X 1.50 X 20	3
?	08193-21012	CLIP	2
?	WB1308	CLAMP, CUSHIONED - 1 1/16"	1
?	PC2979	SWITCH, ENGINE OIL PRESSURE	1
?	58F-01-00170	ADAPTER, METRIC TO NPT	1
?	WB1304	CLAMP, CUSHIONED - 9/16"	6
?	58E-06-05344	HARNESS, WIRING - EXTERNAL TIER 4 ENGINE	1
?	MM0459	FLAT WASHER - M6	3
?	58F-06-03990	COVER	1
?	58E-06-02710	BRACKET	4
?	TR4436	FLAT WASHER, HARDENED - 3/8"	1
?	WB1303	CLAMP, CUSHIONED - 3/4"	1

Komatsu AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE parts catalog PDF

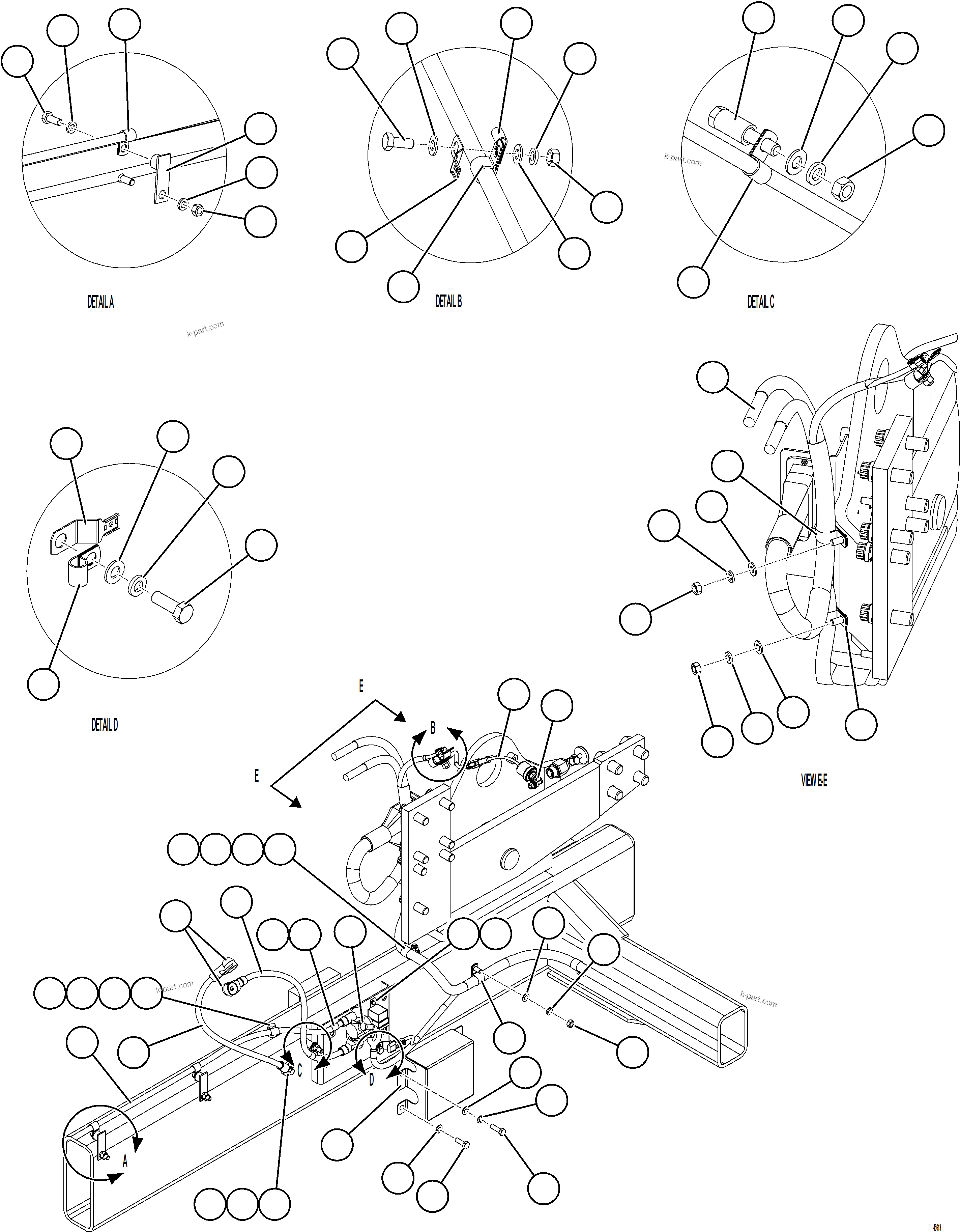

CHARGING SYSTEM WIRING 3/3 (45613) in AFE77-D 830E-5 S/N A50007 & A50018 UNITED TACONITE. Diagram image and parts list.
