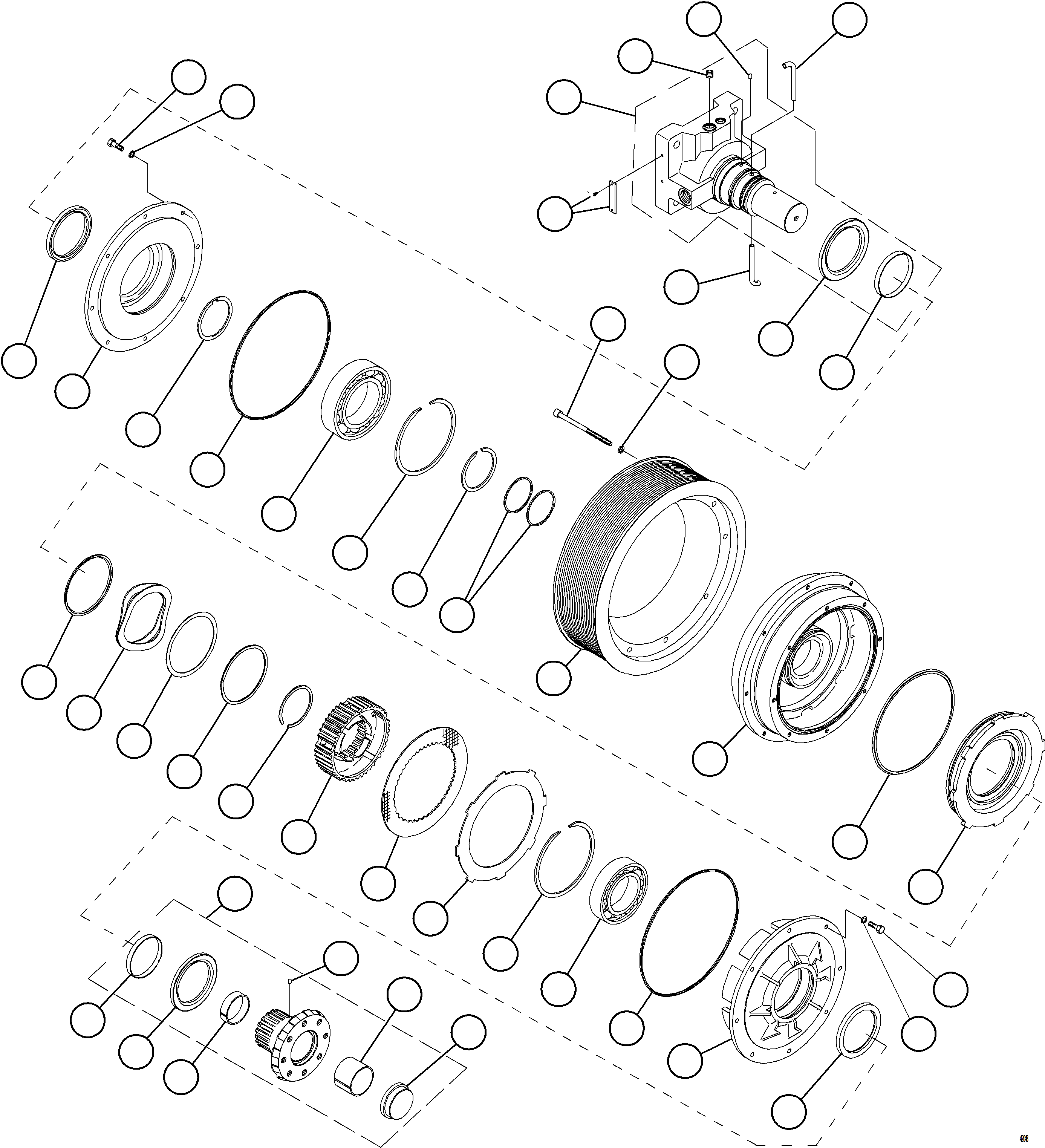

FAN CLUTCH ASSEMBLY 58F-03-00500 | AFE75-B 980E-5 S/N A50006 - A50007 TECK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE75-B 980E-5 S/N A50006 - A50007 TECK

7 7 11 2 12 3 13 13 6 14 15 4 16 5 17 8 8 18 20 9 9 19 10 21 22 31 32 33 23 24 34 25 35 26 37 27 38 28 39 30 40 29 41 42 1 36

#	Part Number	Partname	Quantity
1	XA2272	SHAFT & BRACKET	1
2	XA2279	PIN, DOWEL - REAR (3)	1
3	VE1297	FITTING, ORIFICE	1
4	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
5	BF0136	SLEEVE, WEAR (1)/(2)/(3)	1
6	BF0142	NAME PLATE (1)/(2)/(3)	1
7	BF0143	TUBE (1)/(2)/(3)	2
8	XA3505	CAPSCREW	16
9	BF2651	FLAT WASHER	16
10	BF0883	SEAL, OIL (2)/(3)	1
11	XA3504	RETAINER, BEARING	1
12	XA2277	SPACER, BEARING	1
13	BF0144	O-RING (1)/(2)/(3)	2
14	XA2273	BEARING, MAIN REAR (3)	1
15	BF0849	SNAP RING (3)	1
16	VE8122	SNAP RING, EXTERNAL (3)	1
17	BF0138	RING, SEAL (1)/(2)/(3)	2
18	XA2336	CAPSCREW	8
19	BF5366	LOCKWASHER	8
20	XA2334	PULLEY, FAN	1
21	XA3506	ADAPTER, PULLEY	1
22	BF0139	RING, SEAL (1)/(2)/(3)	1
23	BF4032	PISTON	1
24	BF0140	RING, SEAL (1)/(2)/(3)	1
25	BF0146	WASHER, SPRING (1)/(2)/(3)	1
26	BF0147	SHIM (1)/(2)/(3)	1
27	VE8128	SNAP RING, EXTERNAL (3)	1
28	VE8125	SNAP RING, EXTERNAL (3)	1
29	BF0885	HUB, SPLINED	1
30	VE1304	PLATE, CLUTCH (FACING) (3)	8
31	BF0887	PLATE, CLUTCH (1)/(3)	8
32	VE8127	SNAP RING, INTERNAL (3)	1
33	XA2275	BEARING, MAIN FRONT (3)	1
34	XA3507	RETAINER, BEARING	1
35	BF0883	SEAL, OIL (2)/(3)	1
36	XA2274	HUB, FAN MOUNTING	1
37	BF0141	SLEEVE, WEAR (1)/(2)/(3)	1
38	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
39	VE8123	BEARING, SLEEVE (3)	1
40	XA2278	PIN, DOWEL - FRONT (3)	1
41	VE8524	BEARING, SLEEVE (3)	1
42	BF4043	CAP, END	1
NS\|43		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|44	XA2271	(2) INCLUDED IN XA2271 SEAL KIT.	-1
NS\|45	EK2970	(3) INCLUDED IN EK2970 OVERHAUL KIT.	-1
NS\|46		(TO ORDER FAN CLUTCH ASSM LESS PULLEY, ORDER XA3503.)	-1
