AFE73-B 980E-4 S/N A40031 - A40032 ANTAMINA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58B-50-01000	HOIST CYLINDER ASSEMBLY W/BEARINGS	1
?	58B-50-01010	HOIST CYLINDER ASSEMBLY (1) (SEE INDEX)	1	62937
?	VN9350	RING, RETAINING (2)	2
?	VL4293	BUSHING, BALL (2)	1
?	VN9353	RING, RETAINING	2
?	PB8931	BUSHING, BALL	1
?	PC3201	LOCKNUT - 1 1/8" - 7NC (2)	1
?	WA0365	FLAT WASHER - 1 1/8" (HARDENED) (2)	1
?	EH7921	PIN, UPPER HOIST (2)	1
?	EH7816	SPACER, UPPER HOIST PIN (2)	2
?	EM8111	SHOULDER BOLT - 1 1/8" - 7NC X 6.34" (2)	1
?	58B-80-00060	SPACER, BEARING	1
?	58B-80-00040	PLATE, RETAINER	1
?	EF4837	PLATE, LOCKING	1
?	MM0021	CAPSCREW - M20 X 2.50 X 40	3
?	58B-80-00050	CLAMP	1
?	C1643	CAPSCREW - 3/4" - 10NC X 1 3/4"	2
?	C1542	LOCKWASHER - 3/4"	2
?	ED3070	SHAFT, HOIST BEARING	1
?		NOTE: (1) NOT SERVICED SEPARATELY. ORDER EM7775.	-1
?	58B-MP-AK070	(2) INCLUDED IN 58B-MP-AK070 UPPER HOIST CYLINDER	-1
?		PIN KIT.	-1
?		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1

Komatsu AFE73-B 980E-4 S/N A40031 - A40032 ANTAMINA parts catalog PDF

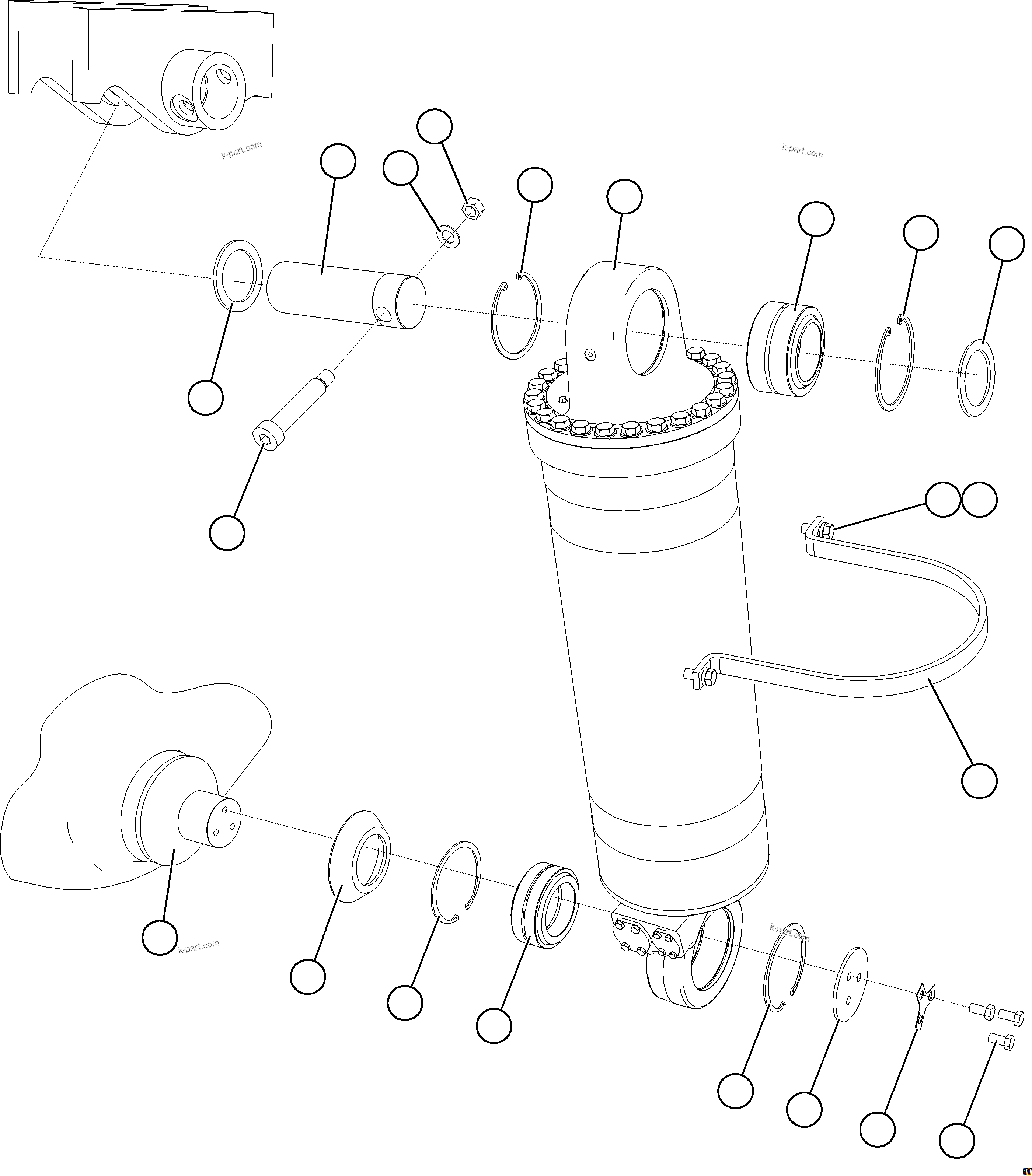

HOIST CYLINDER INSTALLATION (61707) in AFE73-B 980E-4 S/N A40031 - A40032 ANTAMINA. Diagram image and parts list.
