AFE69-F 730E-8 S/N A40018 - A40034 NATALKA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58B-06-10000	MODULE, PAYLOAD METER IV	1
?	58E-06-40530	NAME PLATE - PLM IV MODULE	1
?	EJ9089	INTERFACE MODULE (IM)	1
?	EK2723	NAME PLATE - INTERFACE MODULE	1
?	7826-17-3503	CONTROLLER, KOMTRAX PLUS	1
?	WB2838	NAME PLATE - KOMTRAX PLUS CONTROLLER	1
?	MM0401	CAPSCREW - M8 X 1.25 X 90	12
?	MM0470	LOCKWASHER - M8	8
?	MM0460	FLAT WASHER - M8	12
?	PC1110	CONVERTER, 24 VDC TO 12 VDC	1
?	WB3141	NAME PLATE - 24V - 12V CONVERTER	1
?	MM0176	NUT - M6 X 1.00	31
?	MM0469	LOCKWASHER - M6	26
?	MM0459	FLAT WASHER - M6	36
?	EK0731	ROD, THREADED	12
?	WB2303	NAME PLATE - GB31	1
?	PB7276	RELAY - 24V, 50 AMP	5
?	MM0373	NUT - M5 X 0.8	10
?	MM0379	LOCKWASHER - M5 (EXTERNAL TOOTH)	10
?	PC2644	TIMER, DELAY	1
?	WB3298	NAME PLATE - GRD LEVEL POWER RELAY	1
?	WB2836	NAME PLATE - 12V POWER RELAY	1
?	WB3731	NAME PLATE - HORN RELAY	1
?	WB3776	NAME PLATE - DUAL POWER RELAY	1
?	WB2835	NAME PLATE - KEY SWITCH POWER RELAY	1
?	WB3521	NAME PLATE - ENGINE SERVICE LIGHT TIMER	1
?	ED4418	BRACKET	1
?	PB8460	CIRCUIT BREAKER	1
?	SD5390	MACHINE SCREW - #10 - 32NC X 1"	2
?	DC3101	LOCKWASHER - #10	2
?	VC5344	FLAT WASHER - #10	2
?	WB3479	NAME PLATE - CB60	1
?	TA7409	INSULATOR, STAND-OFF	1
?	ED0913	ROD, THREADED	1
?	TD1549	NUT - 1/4" - 20NC	1
?	DC3584	LOCKWASHER - 1/4"	1
?	TR1307	FLAT WASHER - 1/4"	1
?	TZ7378	NAME PLATE - 12 VDC	1
?	PB7202	INSULATOR, GLASTIC	2
?	EG2305	BAR, BUS	1
?	ED7468	ROD, THREADED	2
?	TD1684	NUT - 5/16" - 18NC	2
?	SC4174	LOCKWASHER - 5/16"	4
?	TV0177	FLAT WASHER - 5/16"	4
?	MM0584	CAPSCREW - M6 X 1.00 X 30	5
?	TZ7377	NAME PLATE - 24 VDC	1
?	58E-06-20350	BOLT - M8 X 1.25 X 110	4
?	58E-06-08151	PLATE, COMM INTER	1
?	58B-06-10400	PAYLOAD METER, COMM INTER	1
?	MM0585	CAPSCREW - M6 X 1.00 X 35	4
?	01643-30623	WASHER - M6	4

Komatsu AFE69-F 730E-8 S/N A40018 - A40034 NATALKA parts catalog PDF

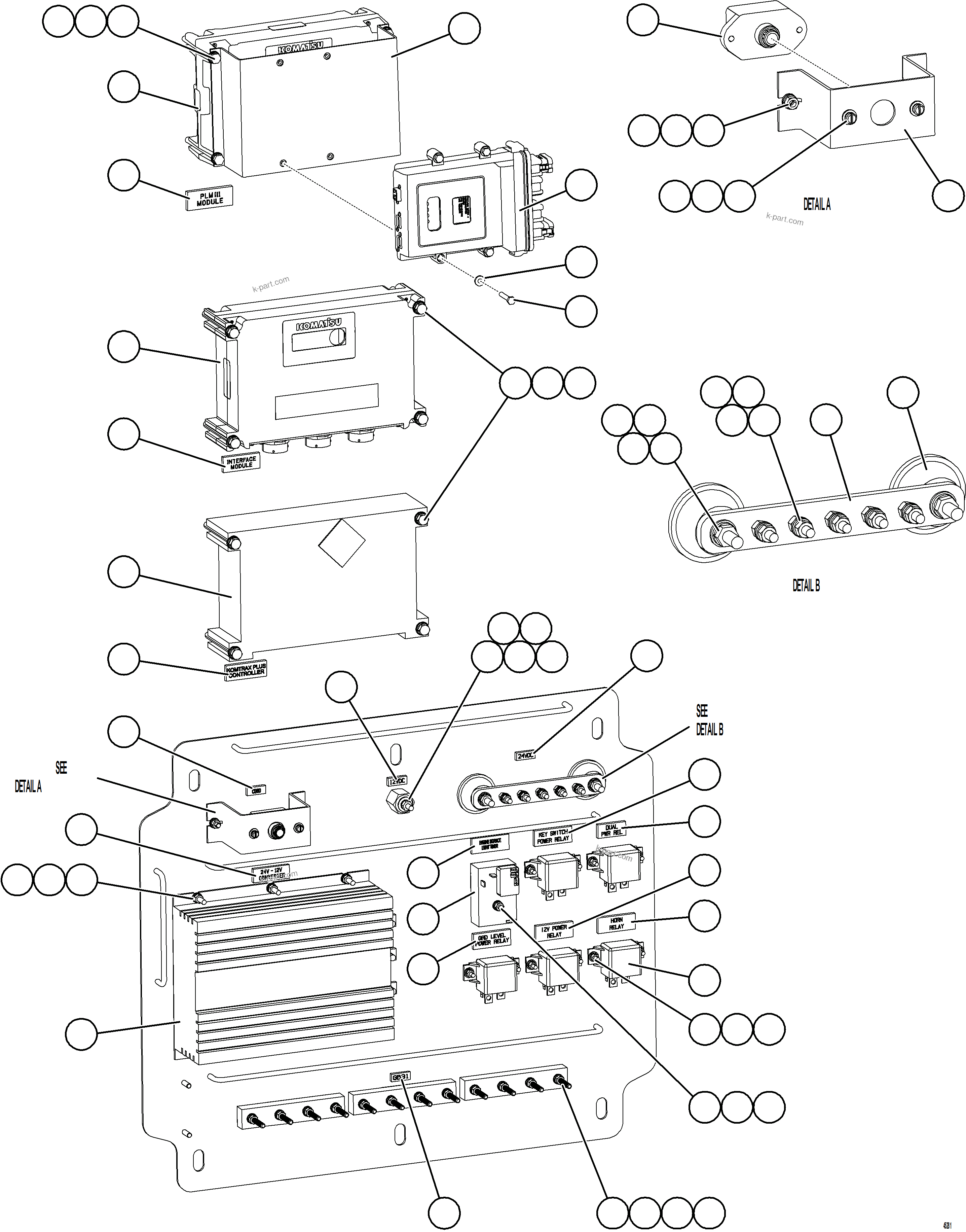

AUXILIARY CONTROL CABINET - LH WALL (45281) in AFE69-F 730E-8 S/N A40018 - A40034 NATALKA. Diagram image and parts list.
