AFE69-F 730E-8 S/N A40018 - A40034 NATALKA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58D-03-00240	TANK, TOP	1
?	58D-03-00250	TANK, CENTER	1
?	58D-03-00260	TANK, BOTTOM	1
?	58D-03-80160	TIE, TENSION	2
?	58D-03-10010	MEMBER, SIDE	1
?	58D-03-10020	MEMBER, SIDE	1
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	8
?	C1540	LOCKWASHER - 1/2"	32
?	VE3461	NUT - 1/2" - 13NC	8
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	8
?	XA5911	AIR BAFFLE, BOTTOM	4
?	XA5910	AIR BAFFLE, TOP	4
?	TD0794	CAPSCREW - 5/16" - 18NC X 3/4"	8
?	E3735	FLAT WASHER - 5/16"	8
?	58D-03-00220	ROD, X-BRACE	2
?	VE3460	CAPSCREW - 1/2" - 13NC X 1"	16
?	VC3040	JAM NUT - 3/4" - 16NC	12
?	VE1285	CLAMP, X-BRACE	1
?	XA5351	RIVET	4
?		NOTE: NS = NOT SHOWN	-1
?	58D-03-00300	TUBE	-1

Komatsu AFE69-F 730E-8 S/N A40018 - A40034 NATALKA parts catalog PDF

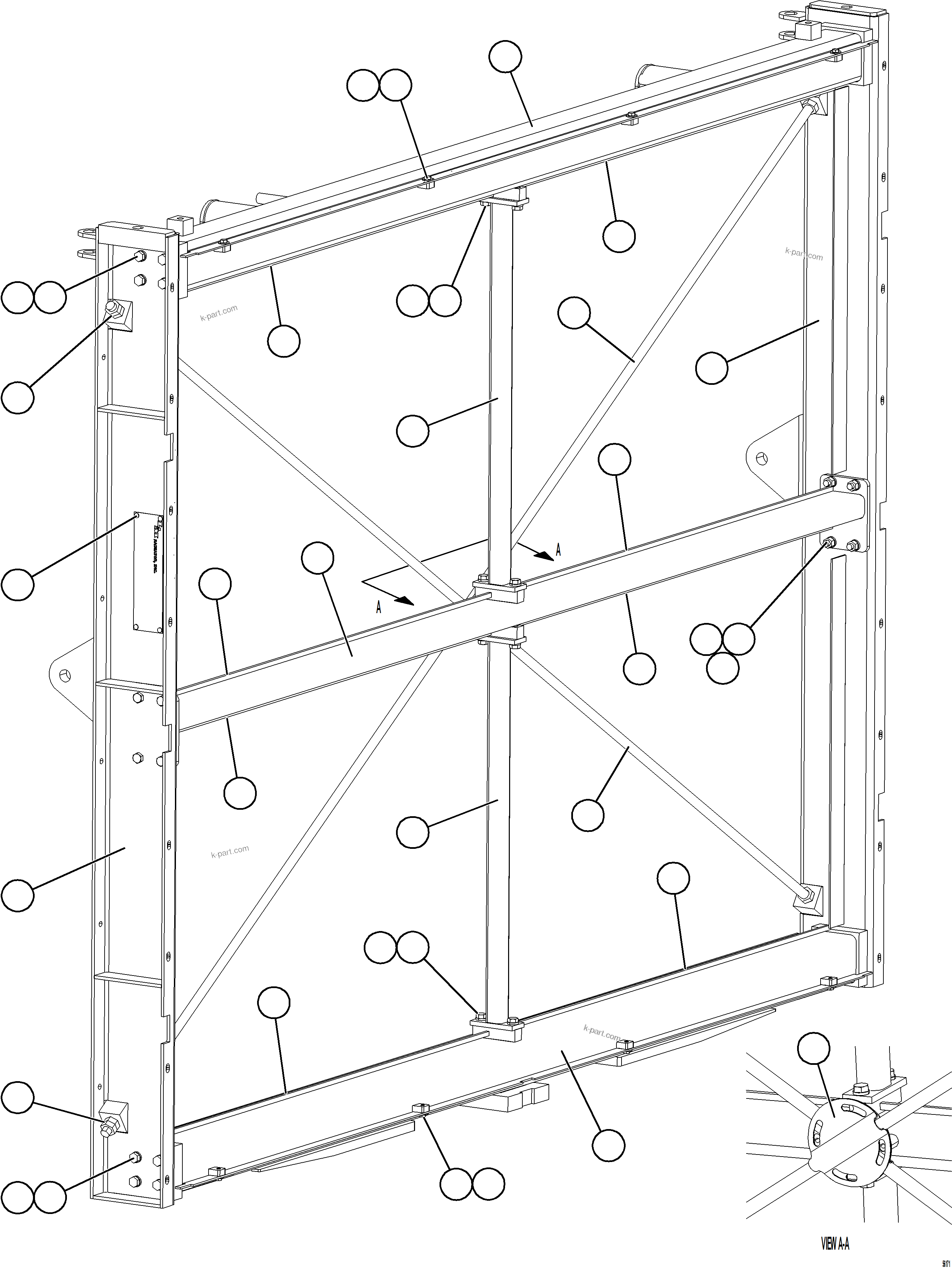

RADIATOR, WATER JACKET (HTC) 58D-03-10030 (56171) in AFE69-F 730E-8 S/N A40018 - A40034 NATALKA. Diagram image and parts list.
