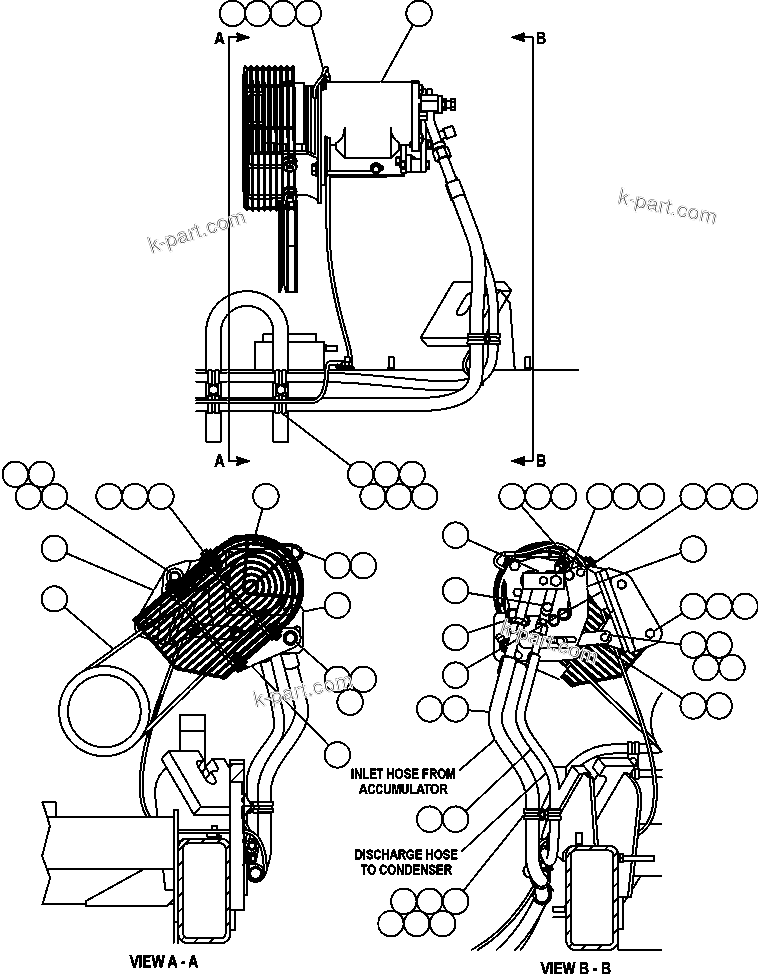

AIR CONDITIONER COMPRESSOR INSTALLATION | AFE47-DH 730E S/N A30375 ALCOA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-DH 730E S/N A30375 ALCOA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	MM0460	FLAT WASHER - M8	4
?	MM0590	CAPSCREW - M8 X 1.25 X 12	1
?	VY8331	CLAMP, VINYL - 1/4"	2
?	PC1848	COMPRESSOR	1
?	BF2948	LOCKNUT, SHAFT	1
?	XA3345	PULLEY W/BEARING	1
?	XA3343	CLUTCH DRIVE W/KEY	1
?	XA3093	DUST SHIELD KIT	1
?	BF2902	VALVE, HIGH PRESSURE RELIEF	1
?	TR4436	FLAT WASHER - 3/8" (ZINC)	16
?	C1602	CAPSCREW - 3/8" - 16NC X 1.00	8
?	WB3091	CLAMP, CUSHION - 11/16"	5
?	MM0461	FLAT WASHER - M10	8
?	MM0178	NUT - M10 X 1.50	5
?	MM0471	LOCKWASHER - M10	8
?	WB3093	CLAMP, CUSHION - 1"	4
?	WB1304	CLAMP, CUSHION - 9/16"	1
?	MM0607	CAPSCREW - M10 X 1.50 X 35 (ZINC)	3
?	C1603	CAPSCREW - 3/8" - 16NC X 1.25	5
?	C1521	NUT - 3/8" - 16NC	6
?	EF0317	BRACKET, REAR	1
?	PB1255	FLAT WASHER - 7/16"	3
?	C5775	LOCKWASHER - 7/16"	3
?	H0594	CAPSCREW - 7/16" - 14NC X 1.25	3
?	C1606	CAPSCREW - 3/8" - 16NC X 2.00	1
?	EF0321	LINK	1
?	EF0320	LINK (W/SPACER)	1
?	HA7185	HOSE	1
?	WA1732	O-RING - 7/16"	1
?	HA8071	HOSE	1
?	WA1733	O-RING - 9/16"	1
?	EF0314	PLATE, MOUNTING	1
?	PC1831	FITTING	1
?	PB9152	FITTING	1
?	EJ1087	ADJUSTABLE HOLD-DOWN ASSEMBLY (SEE INDEX)	1	50388
?	MM0593	CAPSCREW - M8 X 1.25 X 20 (ZINC)	3
?	C1547	FLAT WASHER - 3/8"	4
?	PC1119	WASHER, RUBBER	8
?	EJ7835	GUARD, A/C BELT	1
?	EL4304	HARNESS, AIR CONDITIONER	1
?	VZ4843	TYRAP	10
?	EF0316	BRACKET	1
?	C1523	NUT - 1/2" - 13NC	1
?	WA4728	FLAT WASHER - 1/2" (HARDENED) (ZINC)	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1.50	1
?	EK2839	GUARD	1
?	PC0556	V-BELT	1
?	EK2844	BRACKET	1
?	VJ9187	SLEEVE	1
?	MM0470	LOCKWASHER - M8	4
