AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN

1 2 12 16 17 13 2 14 11 4 9 9 28 9 4 9 27 27 21 22 23 24 6 7 28 29 10 18 25 26 5 21 20 19 3 7 6 5 19 15 8 21 24 23 22 5 21 20 19 6 31 28 7 6 7 6 7 9 7 30 31 27 6

#	Part Number	Partname	Quantity	Reference
1	PC1493	BLEEDDOWN MANIFOLD (SEE INDEX)	1	61573
2	58B-60-10480	HOSE (RETURN FROM BLEEDDOWN MANIFOLD)	1
3	WB3094	CLAMP, CUSHIONED - 1 3/4"	2
4	TY8375	SPACER	5
5	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	12
6	MM0461	FLAT WASHER - M10	10
7	MM0178	NUT - M10 X 1.50	8
8	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	2
9	WB3855	CLAMP, CUSHIONED - 13/16"	10
10	VG9097	O-RING	1
11	58B-60-02380	HOSE	1
12	HA8703	HOSE (SUPPLY TO BLEEDDOWN MANIFOLD)	1
13	HA7687	HOSE	1
14	HA8218	HOSE (STEERING PUMP SUPPLY PORT)	1
15	WA0232	O-RING	1
16	58B-60-02580	HOSE (HOIST VALVE POWER UP)	1
17	58B-60-02560	HOSE (HOIST VALVE POWER DOWN)	1
18	TF8077	CLAMP, SPLIT FLANGE - 1"	2
19	TR5445	LOCKWASHER - 1/2"	12
20	WA5630	CLAMP, SPLIT FLANGE - 1 1/4"	4
21	VG9096	O-RING	4
22	TR4090	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
23	TD0795	LOCKWASHER - 7/16"	8
24	TF3237	CLAMP, SPLIT FLANGE - 1 1/4"	4
25	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
26	TC1231	LOCKWASHER - 3/8"	4
27	WB3092	CLAMP, CUSHIONED - 7/8"	5
28	WB1300	CLAMP, CUSHIONED - 5/8"	3
29	WB1306	CLAMP, CUSHIONED - 2"	1
30	EK9920	BRACKET	1
31	MM0605	CAPSCREW - M10 X 1.50 X 25	2

Komatsu AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN parts catalog PDF

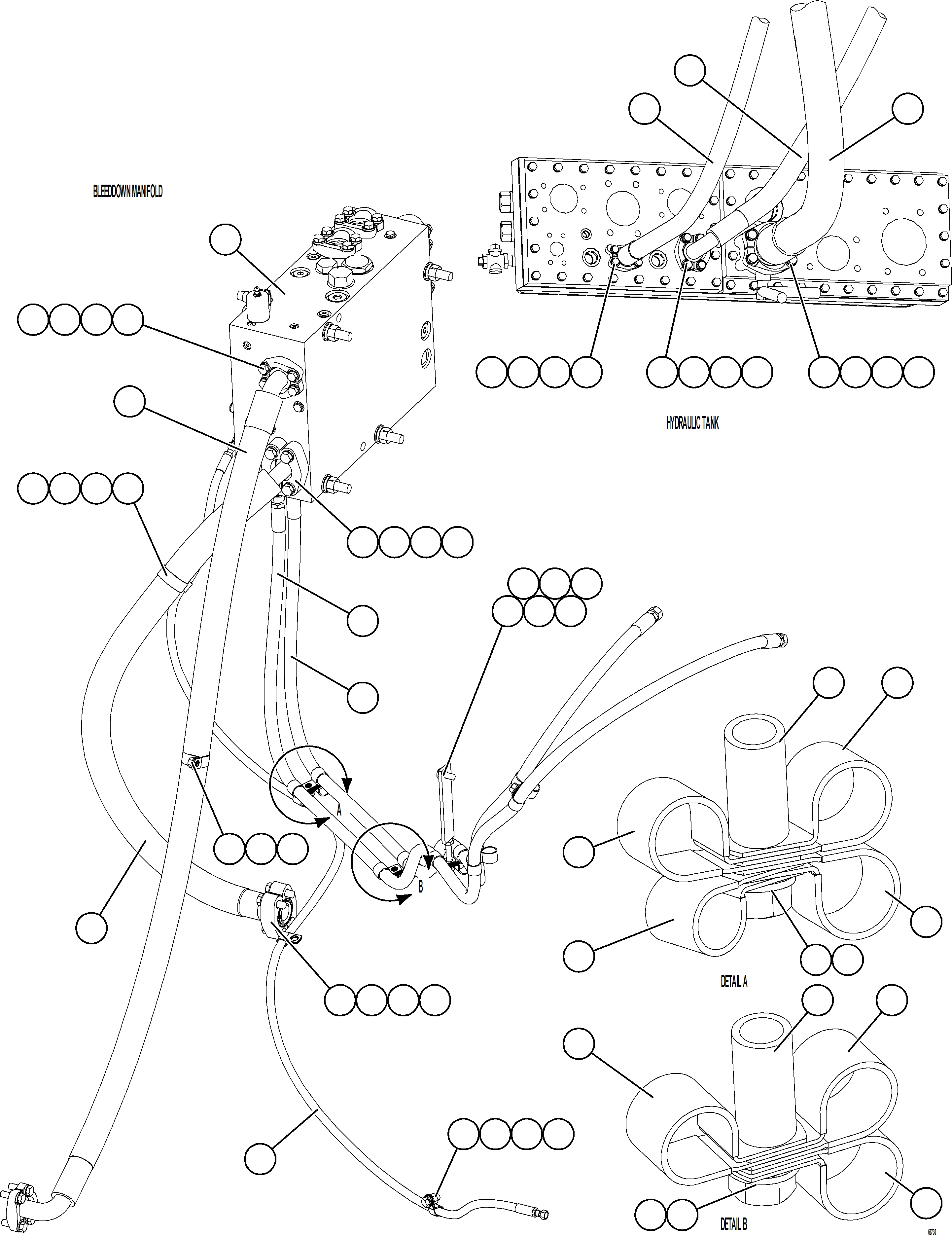

STEERING BLEEDDOWN MANIFOLD PIPING 3/3 (68730) in AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN. Diagram image and parts list.
