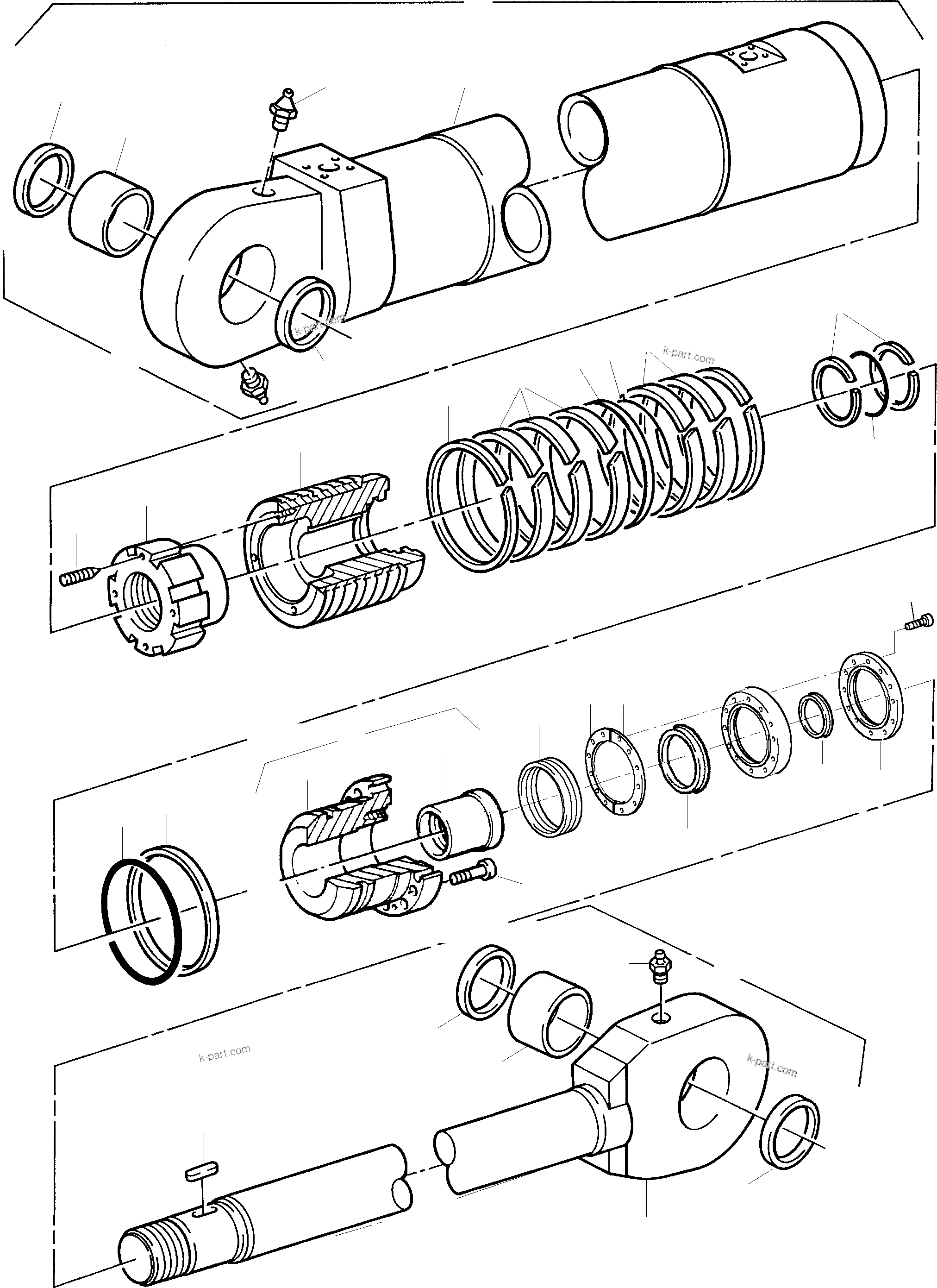

HYDRAULIC CYLINDER | PC3000-1 S/N 06194 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-1 S/N 06194

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	909 355 40	Hydraulic cylinder assy. (Standard) fig-nos. 02-32	1
?	909 365 40	Hydraulic cylinder assy. (Cold weather design) fig-nos. 02-32	1
?	767 957 73	Cylinder barrel assy. consist. of fig-nos: 03-05, 29	1
?		Cylinder barrel These parts are not sold separately	1
?	636 501 40	Freeze-in bushing	2
?	004 860 98	Grease nipple	3
?	501 025 98	Threaded pin	1
?	290 798 40	Groove nut	1
?	430 846 40	Piston	1
?	304 103 40	Piston guide strap 853 lg	2
?	324 478 40	Piston guide ring	4
?	502 112 98	O-ring	1
?	256 911 40	Sealing element	1
?	270 355 40	Support ring	2
?	501 900 98	O-ring	1
?	502 119 98	O-ring	1
?	270 357 40	Support ring	1
?	905 927 40	Sealing flange incl. fig. nos. 18 + 19 (finish work after bush is installed)	1
?		Flanged bush These parts are not sold separately	1
?	430 845 40	Bearing bush ( No fild repair item )	1
?	906 585 40	Support ring	1
?	514 626 98	Bolt (Standard)	18
?	514 625 98	Bolt (Cold weather design)	18
?	354 389 99	Feather key	1
?	905 511 40	Cover	1
?	319 289 99	Bolt (Standard)	12
?	501 084 98	Bolt (Cold weather design)	12
?	502 120 98	Seal kit	1
?	906 537 40	Scraper	1
?	767 958 73	Piston rod assy. fig-nos: 04,05,28,29	1
?		Piston rod These parts are not sold separately	1
?	575 786 40	Seal ring	4
?	430 922 40	Half shim	8
?	909 512 40	Cover ring	1
?	780 446 73	Seal kit - piston fig-nos: 09-14	1
?	768 694 73	Seal kit - sealing flange fig-nos: 15,16,25,26	1
