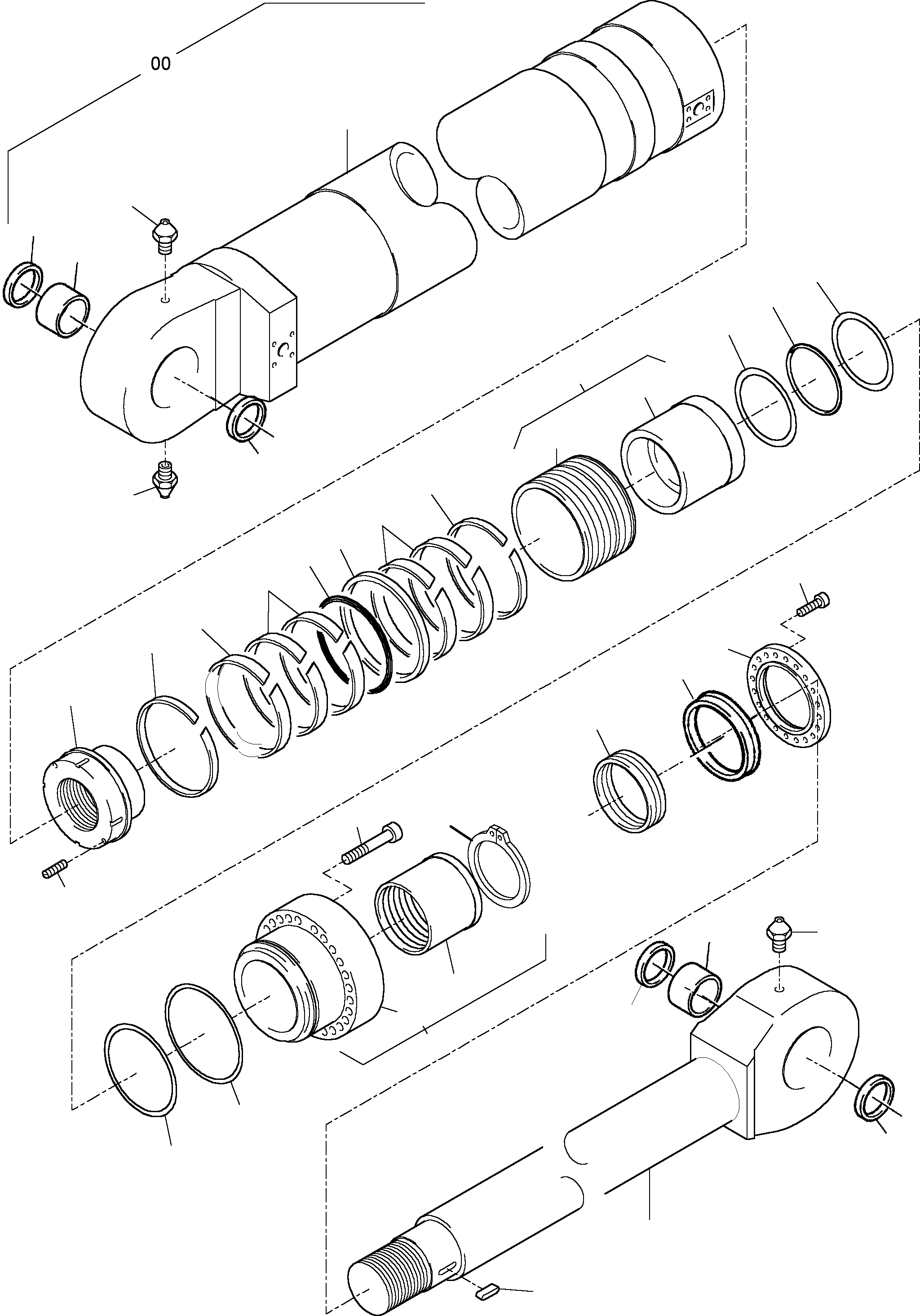

HYDRAULIC CYLINDER | PC3000-1 S/N 06194 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
00	913 980 40	Hydraulic cylinder assy. consist. fig nos. 01-25 (Standard)	1
00	913 970 40	Hydraulic cylinder assy. consist. fig nos. 01-25 (Cold weather design)	1
01	765 024 73	Cylinder barrel incl. fig-nos: 06, 19, 21	1
02	770 477 73	Piston rod incl. fig-nos: 06, 19, 21	1
03	445 391 40	Piston assy. fig-nos. 26 and 27 (finish work after bush is (installed)	1
04	913 938 40	Sealing flange incl. fig-nos: 30, 31, 32 (finish work after bush is installed)	1
05	445 398 40	Groove nut	1
06	627 572 40	Freeze-in bushing	2
08	269 785 40	Piston guide strap	2
09	256 245 40	Piston guide ring	5
10	269 475 40	Sealing element	1
11	256 248 40	O-ring	1
12	256 249 40	O-ring	1
13	256 250 40	Support ring	2
14	906 541 40	Scraper	1
15	500 990 98	O-ring	1
16	256 561 40	Sealing element	1
17	318 782 99	Bolt (Standard)	18
17	502 095 98	Bolt (Cold weather design)	18
18	354 507 99	Feather key	1
19	004 860 98	Grease nipple	3
20	347 449 99	Threaded pin	1
21	575 794 40	Gasket	4
22	440 710 40	Rod Seal	1
23	906 729 40	Support ring	1
24	909 518 40	Cover ring	1
25	319 285 99	Bolt	8
26		Piston These parts are not sold separately	1
27	445 393 40	Piston bush (No field repair item)	1
30		Bush These parts are not sold separately	1
31	445 397 40	Bearing bush (No field repair item)	1
32	342 703 99	Circlip	1
\|$$33	780 448 73	Seal kit - piston consist. of fig-nos: 08-13	1
\|$$34	770 479 73	Seal kit - piston rod consist. of fig-nos: 14-16, 22,23	1
