#	Part Number	Partname	Quantity
?		see page Switch cabinet	1
?		see page Operation panel	1
?		see page Lighting equipment	1
?		see page Battery arr.	1
?		see page Electric in cab support	1
?		see page Cables - oil tank	1
?		see page Cables - control frame	1
?		see page Cables - motor	1
?		see page Warning system	1
?	899 365 40	Harness - engine housing assy.	1
?	635 143 40	Emergency switch-off	2
?	891 184 40	Harness X2 - hydraulic tank assy.	1
?	894 000 40	Harness X2 - engine front assy.	1
?	894 001 40	Harness X2 - engine rear 1 assy.	1
?	894 002 40	Harness X2 - engine rear 2 assy.	1
?	903 341 40	Harness X2 - control frame - pedestal assy.	1
?	894 006 40	Harness X2 - lube arr. assy.	1
?	894 007 40	Harness X2 - refueling assy.	1
?	903 342 40	Harness X2 - control- and filter plate assy.	1
?	891 052 40	Harness X2 - control panel X1 assy.	1
?	891 053 40	Harness X2 - pedestal 1 assy.	1
?	891 054 40	Harness X2 - battery box assy.	1
?	891 055 40	Harness X2 - tank sensor assy.	1
?	899 396 40	Harness X2 - ladder assy.	1
?	891 057 40	Harness X2 - boom assy.	1
?	891 058 40	Harness X2 - stick assy.	1
?	891 086 40	Harness X2 - pedestel 2 assy.	1
?	655 628 40	T-Distributor DN 10	2
?	655 625 40	Connector distributor DN 12/10	2
?	655 622 40	Cable union, straight DN 12	1
?	655 626 40	Connector distributor DN 17/12	1
?	655 621 40	Cable union, straight DN 10	2
?	891 031 40	Plug with bushings assy. 2-pol.	2
?	891 051 40	Plug with bushings assy. 2-pol.	1
?	461 933 40	Ground strap 70 qmm x 300	1
?	600 790 99	Reducing 11-9	2
?	600 812 99	Reducing 13,5-11	3
?	600 813 99	Reducing 16-13,5	2
?	655 805 40	Fitting PG 9	5
?	655 798 40	Cable union PG 9	3
?	655 799 40	Cable union PG 9	2
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	515 189 40	Cable 1 qmm2 Bulk ware, state length required	-2
?	515 194 40	Cable 2,5 qmm2 Bulk ware, state length required	-2
?	006 339 79	Plug	2
?	006 345 79	Rear holder 2-poles	2
?	006 350 79	Bushing	2
?	006 352 79	Spout	2
?	006 351 79	Bushing	2
?	006 353 79	Spout	2
?	891 082 40	Plug - cold-start valve	1
?	891 079 40	Plug with pins assy. 2-poles	1
?	006 338 79	Plug	2
?	006 345 79	Rear holder 2-poles	2
?	006 349 79	Pin	2
?	006 353 79	Spout	2
?	891 194 40	Plug for pressure switch	2
?	651 461 40	Housing assy.	1
?	635 043 40	Name plate	-2
?	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
?	515 189 40	Cable 1 qmm2 Bulk ware, state length required	-2
?	891 039 40	Plug with pins assy. 2-poles	2
?	006 348 79	Pin	2
?	006 352 79	Spout	2
?	891 032 40	Plug with bushings assy. 3-polig	4
?	006 341 79	Plug	1
?	006 346 79	Rear holder 2-poles	1
?	891 059 40	Plug- limit switch	2
?	056 070 40	Cable sleeve 1-1,5	3
?	455 757 99	Insulating tube B 7x0,7 Bulk ware, state length required	-2
?	891 040 40	Plug with pins assy. 2-poles	1
?	006 340 79	Plug	1
?	891 067 40	Plug - tank sensor B63	1
?	655 653 40	Hose DN 48 Bulk ware, state length required	-2
?	899 366 40	Harness - oil filter	1
?	896 521 40	End pin	-2
?	896 520 40	End pin	-2
?	003 670 79	Clip	-2
?	350 762 99	Washer	-2
?	056 292 40	Cable strap	-2
?	655 547 40	Housing	1
?	655 548 40	Contact seal	2
?	655 549 40	Single seal	2
?	655 550 40	Rubber grommet	1
?	899 383 40	Warning system assy.	1
?	899 382 40	Harness - warning system	1
?	255 680 40	Pull switch	2
?	896 522 40	End pin	-2
?	655 632 40	Pipe adapter DN 17/10	1
?	655 636 40	Fitting PG 13,5	1
?	655 803 40	Cable union PG 13,5	1
?	903 340 40	Harness - check valve assy. for fire extinguishing equipment	1
?	600 849 99	Reducing 16-11	1

Komatsu PC3000-1 S/N 06184 parts catalog PDF

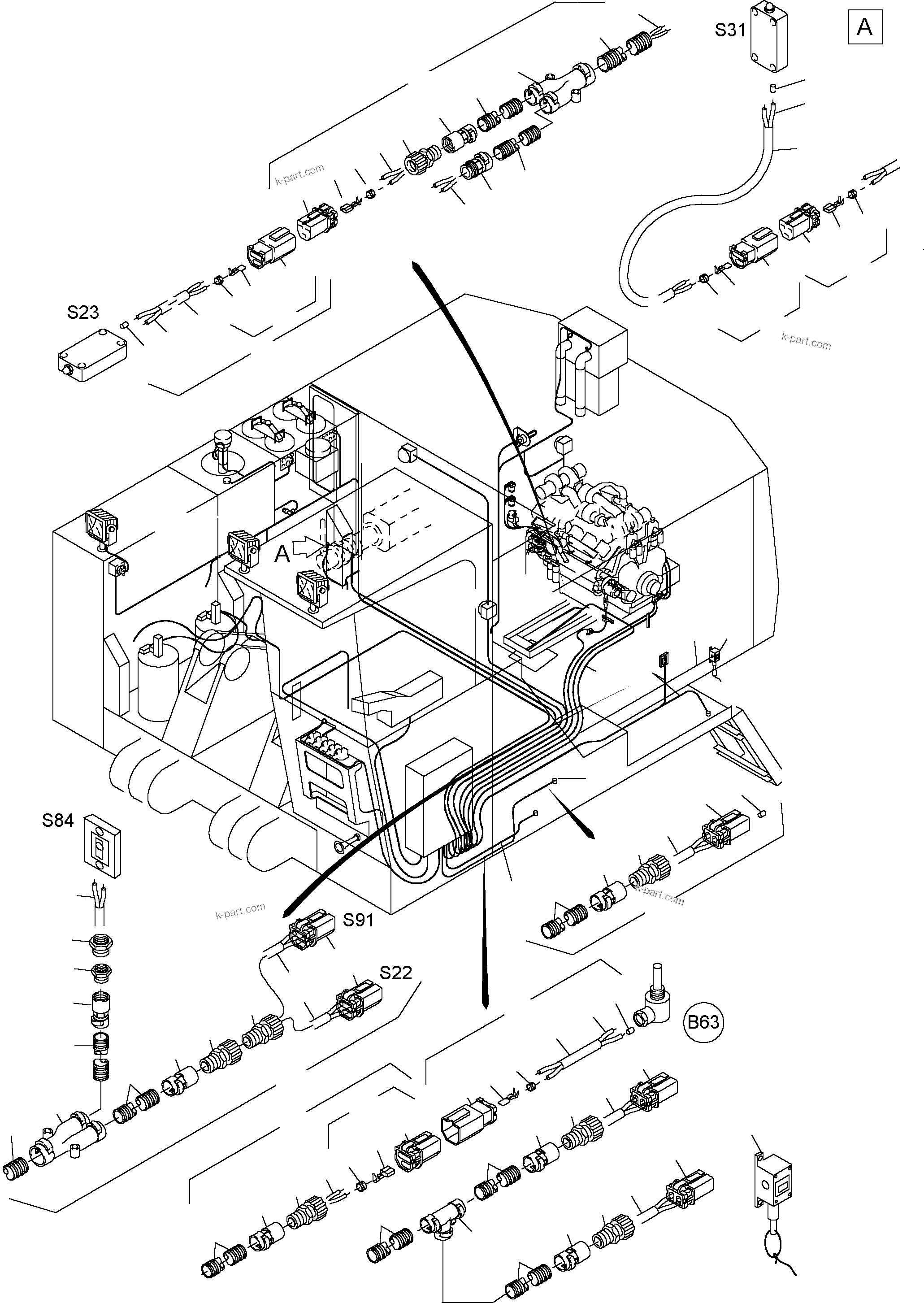

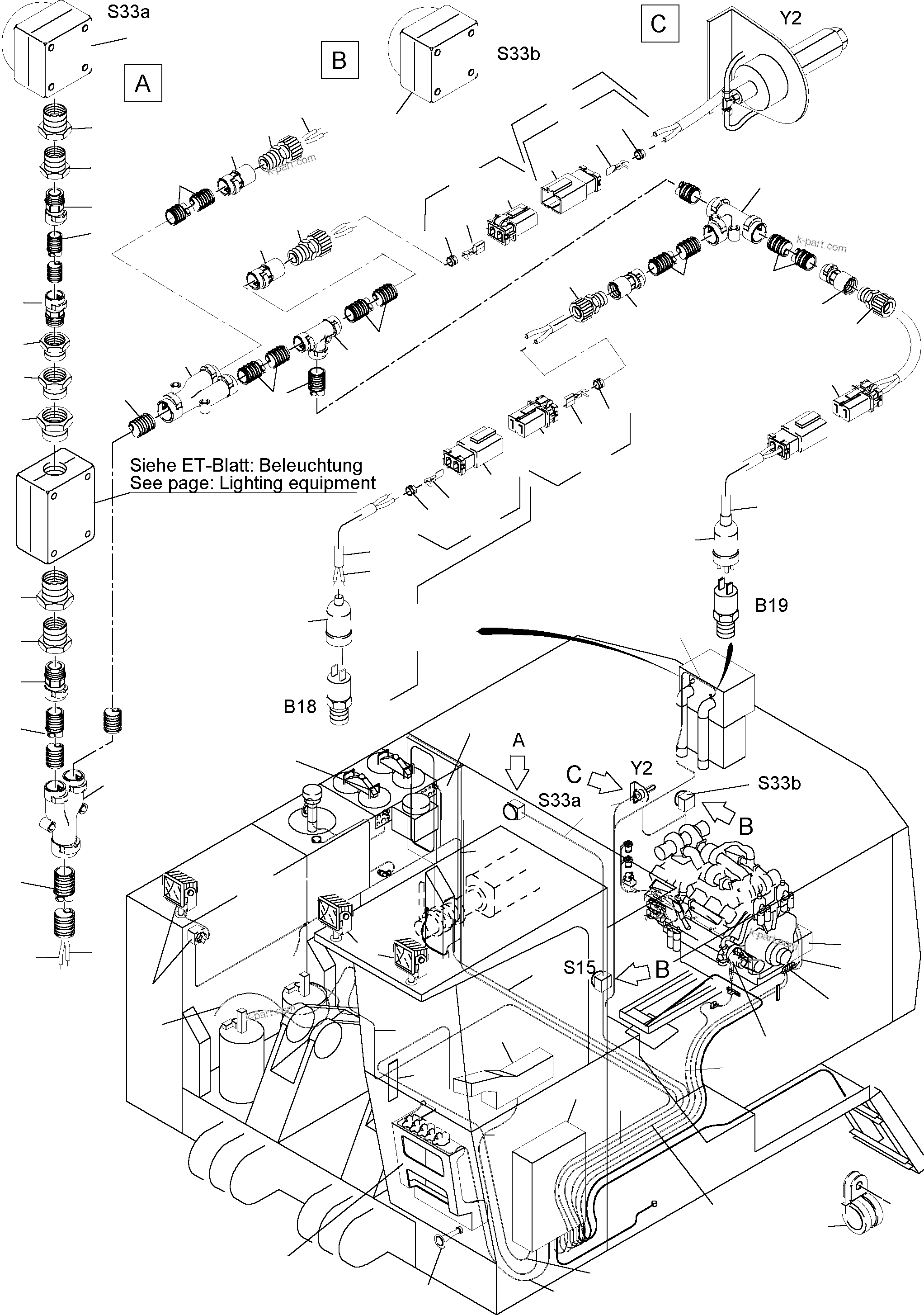

ELECTRIC EQUIPMENT (485-2100f) in PC3000-1 S/N 06184. Diagram image and parts list.
