Diagram image 1 of 5

PC3000-1 S/N 06209

01 100 101 101 101 101 101 101 102 102 103 103 104 105 105 105 106 106 106 107 108 109 110 37 38 39 40 41 42 43 44 45 46 50 50 50 57 57 57 58 58

PC3000-1 S/N 06209

1 1 27 28 28 28 28 29 29 29 29 30 30 31 33 35 36 39 41 44 46 48 48 71 72 73 74 75 76 77 78 79 79 80 80 86 86 87 87 89 89 90 90

PC3000-1 S/N 06209

28 29 30 32 41 41 47 51 54 54 54 54 55 55 60 63 64 66 67 68 70 70 71 72 73 74 91

PC3000-1 S/N 06209

1 1 1 1 1 1 1 1 1 1 1 1 1 17 27 27 28 28 29 29 30 34 35 35 37 37 38 38 39 39 40 41 41 41 42 43 44 44 45 46 46 46 49 52 52 52 52 53 53 53 53 56 59 69 70 71 72 73 75 76 77 78 81 81 81 82 82 82 84 84 84 85 85 85 92

PC3000-1 S/N 06209

04 04 05 05 06 06 09 09 09 09 12 12 13 13 13 13 18 18 19 19 20 20 20 20 23 23 24 24 24 24 25 25 25 25 26 26 26 26 95 95 96 96 97 97 98 98

#	Part Number	Partname	Quantity
01	908 650 40	Boom assy.	1
04	908 649 40	Pin with plate	2
05	908 653 40	Pin with plate	2
06	908 657 40	Pin with plate	2
09	636 151 40	Freeze-in bushing	4
12	900 690 40	Freeze-in bushing	2
13	907 020 40	Seal ring	4
17	922 168 40	Angle	1
18	307 845 99	Bolt	4
19	517 124 98	Washer	4
20	924 549 40	Plate	4
23	924 551 40	Plate	2
24	307 886 99	Bolt	8
25	517 346 98	Washer	8
26	907 022 40	Seal ring	4
27	504 445 98	Half clamp	8
28	534 008 99	Plate	30
29	510 151 98	Bolt	60
30	332 353 99	Nut	60
31	504 446 98	Half clamp	4
32	350 768 99	Washer	25
33	886 594 40	Manifold	1
34	922 167 40	Weld on plate	2
35	502 976 98	Half clamp	12
36	502 977 98	Half clamp	8
37	319 292 99	Bolt	32
38	332 355 99	Nut	32
39	500 127 98	Flange	12
40	500 203 98	Ring	6
41	356 209 40	Flange seal	32
42	319 313 99	Bolt	16
43	332 338 99	Nut	16
44	504 448 98	Flange	8
45	504 449 98	Ring	4
46	385 243 40	Flange seal	14
47	561 548 40	Angle	4
48	890 939 40	Angle	6
49	922 169 40	Plate	1
50	900 674 40	Distribution block assy.	2
51	908 648 40	Angle	1
52	512 486 98	Hose assy. DN 40x1950	2
53	513 247 98	Hose assy. DN 50x1980	2
54	517 276 98	Hose assy. DN 40x3900	4
55	623 359 40	Hose protection	1
56	510 736 98	Resilient sleeve	4
57	513 207 98	Hose assy. DN 50x2750	2
58	515 843 98	Hose assy. DN 40x2600	4
59	502 390 98	Bolt	4
60	502 626 98	Insert	8
63	502 371 98	Half clamp	16
64	504 819 98	Half clamp	6
66	534 004 99	Plate	3
67	332 114 99	Nut	6
68	307 792 99	Bolt	6
69	319 305 99	Bolt	24
70	319 288 99	Bolt	72
71	319 209 99	Bolt	32
72	500 129 98	Flange	8
73	501 871 98	Ring	8
74	356 210 40	Seal	8
75	319 289 99	Bolt	24
76	501 898 98	Ring	6
77	319 323 99	Bolt	16
78	504 461 98	Ring	4
79	792 454 73	Pipe assy. Ш 65	1
80	792 455 73	Pipe assy. Ш 65	1
81	792 456 73	Pipe assy. Ш 65	1
82	792 457 73	Pipe assy. Ш 65	1
84	792 458 73	Pipe assy. Ш 50	1
85	792 459 73	Pipe assy. Ш 50	1
86	792 460 73	Pipe assy. Ш 50	2
87	792 461 73	Pipe assy. Ш 50	2
89	792 462 73	Pipe assy. Ш 38	1
90	792 463 73	Pipe assy. Ш 38	1
91	792 464 73	Pipe assy. Ш 38	1
92	768 138 73	Pipe assy. Ш 38	1
95	908 934 40	Pin with plate	2
96	905 749 40	Schackle	2
97	307 886 99	Bolt	4
98	340 471 99	Washer	4
100	901 456 40	Rail	1
101	504 853 98	Half clamp	12
102	505 212 98	Insert	2
103	502 618 98	Half clamp	2
104	504 926 98	Insert	1
105	308 643 99	Bolt	12
106	334 601 99	Nut	12
107	534 004 99	Cover plate	1
108	308 584 99	Bolt	2
109	507 037 98	Nut	2
110	515 846 98	Insert	4

Komatsu PC3000-1 S/N 06209 parts catalog PDF

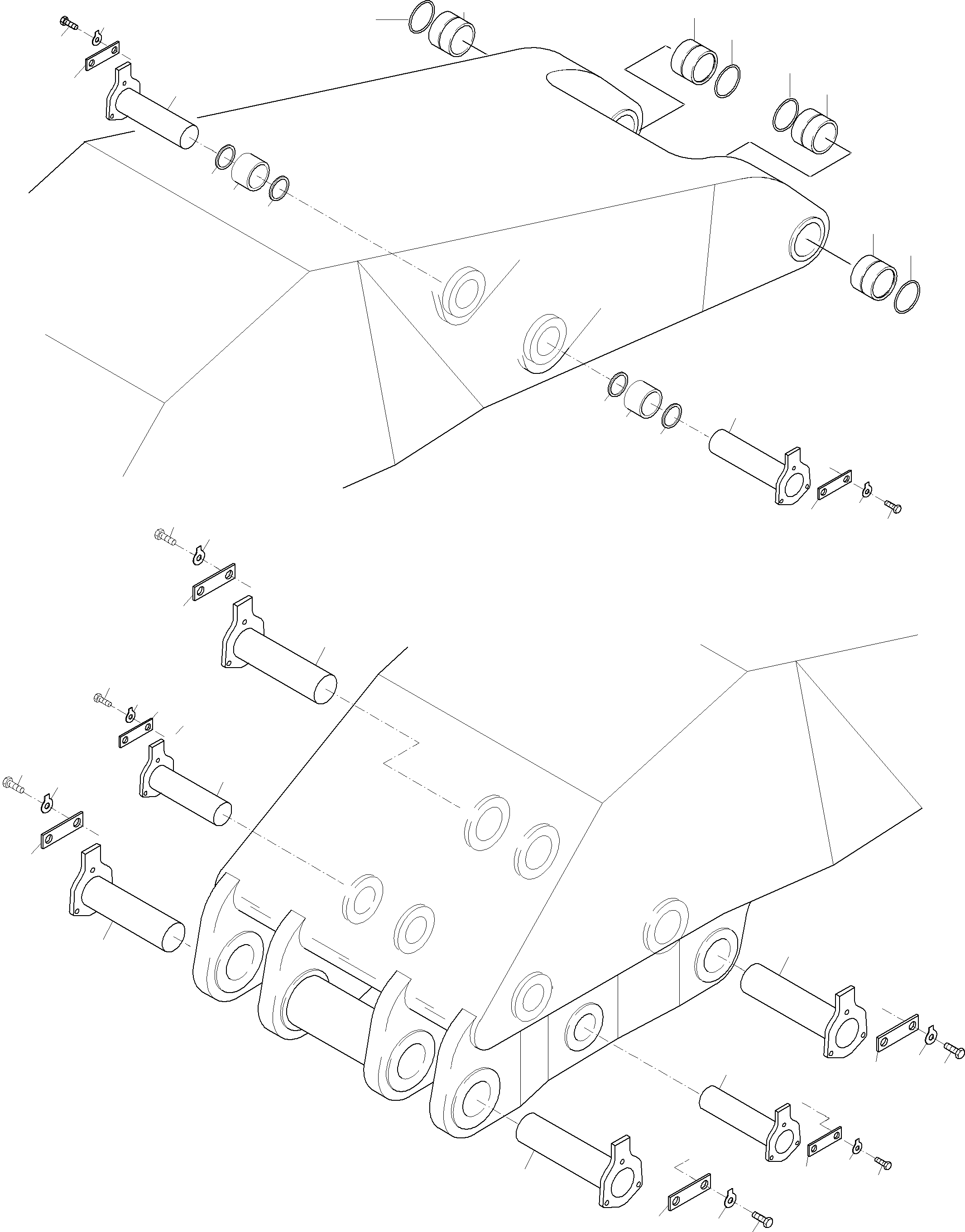

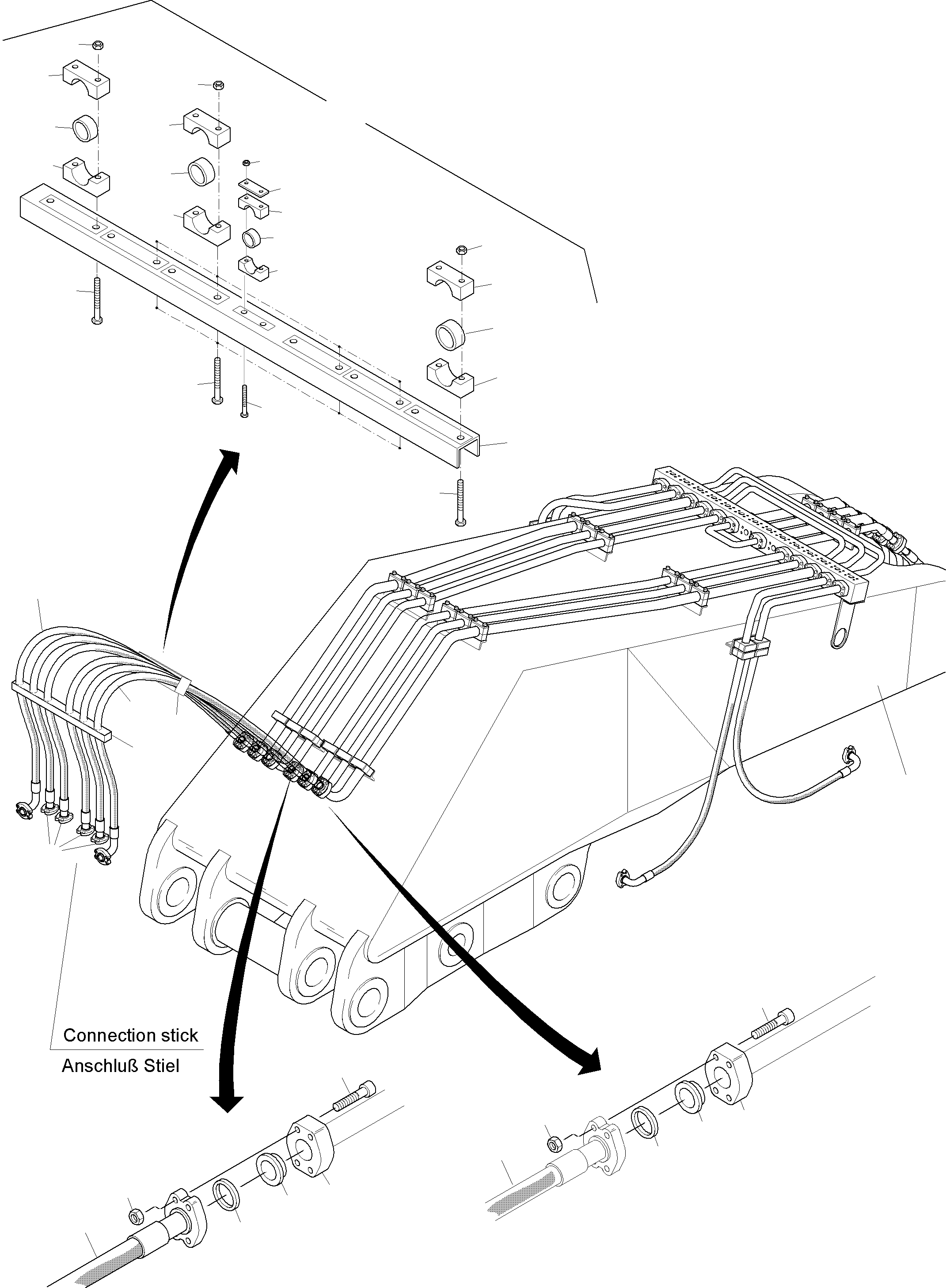

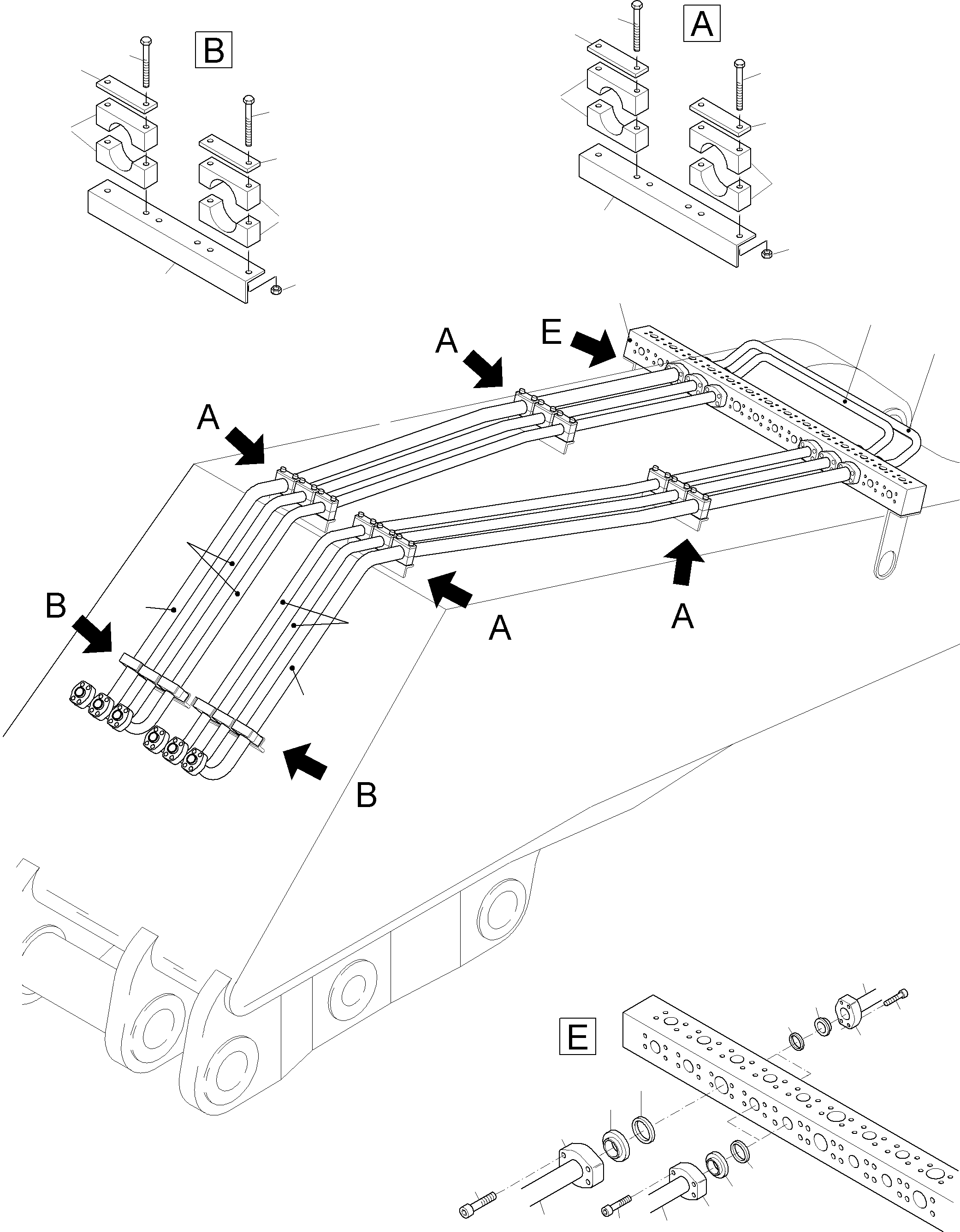

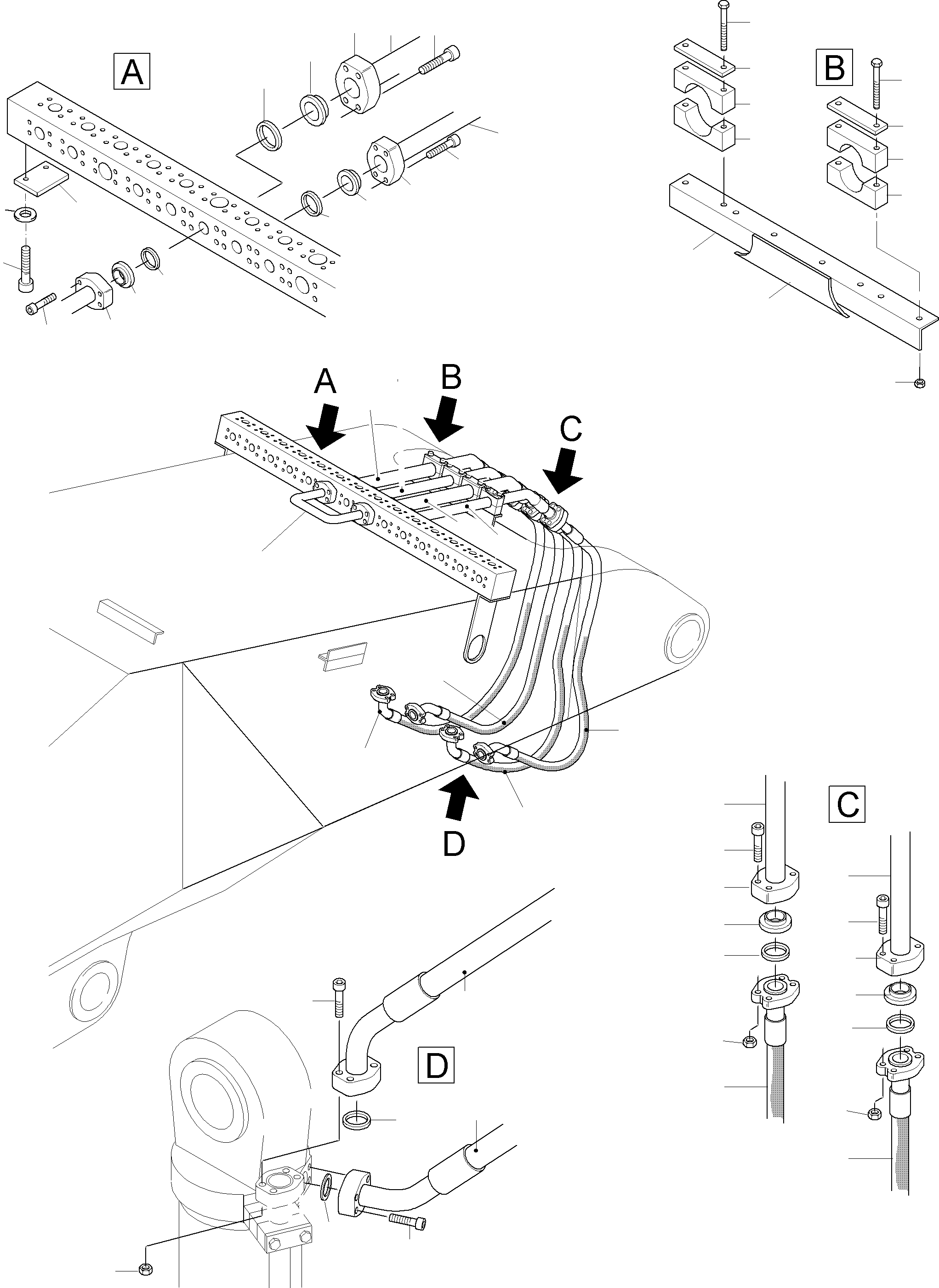

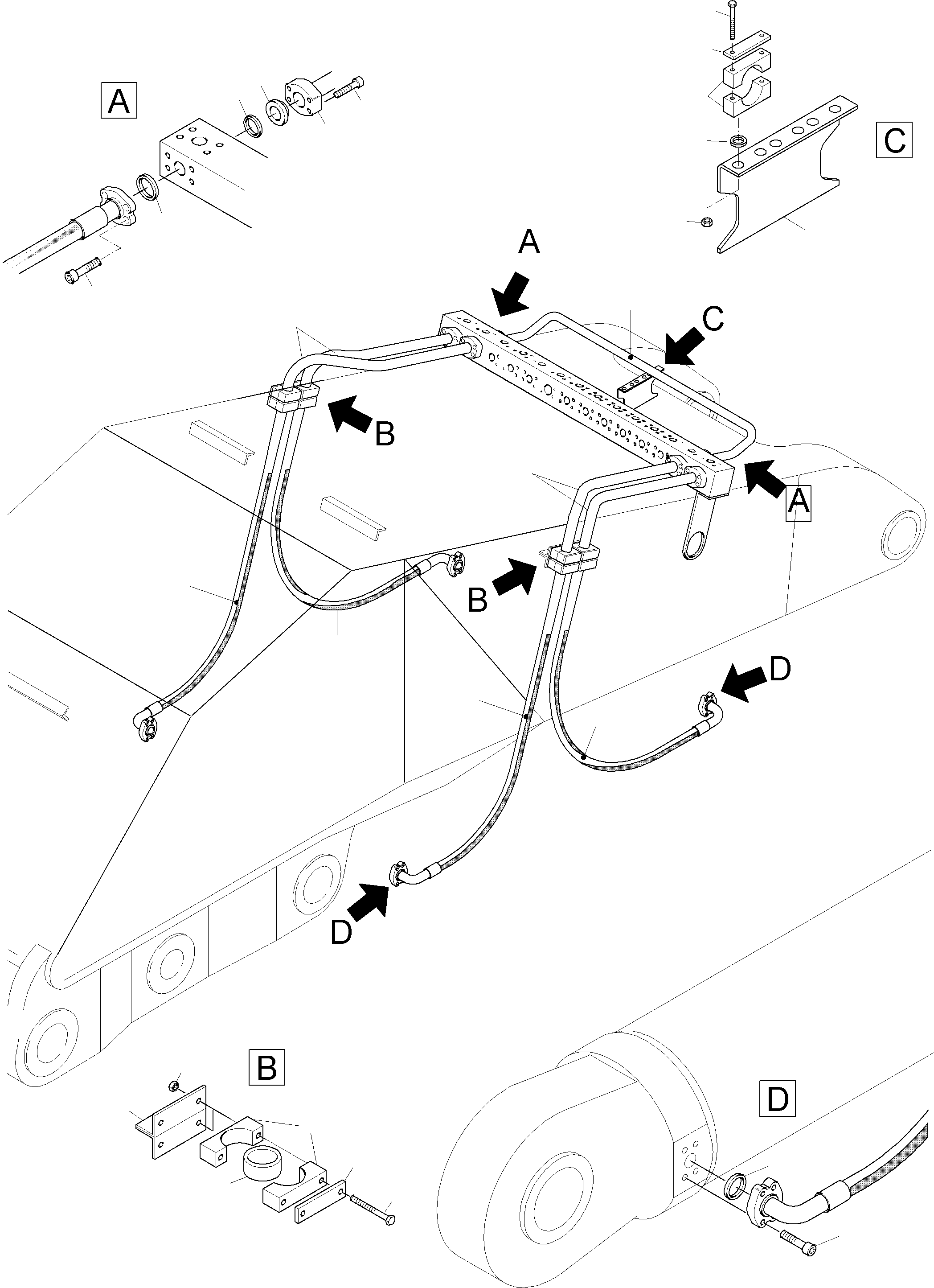

BULLCLAM BUCKET BOOM 6M (485-4000e) in PC3000-1 S/N 06209. Diagram image and parts list.
