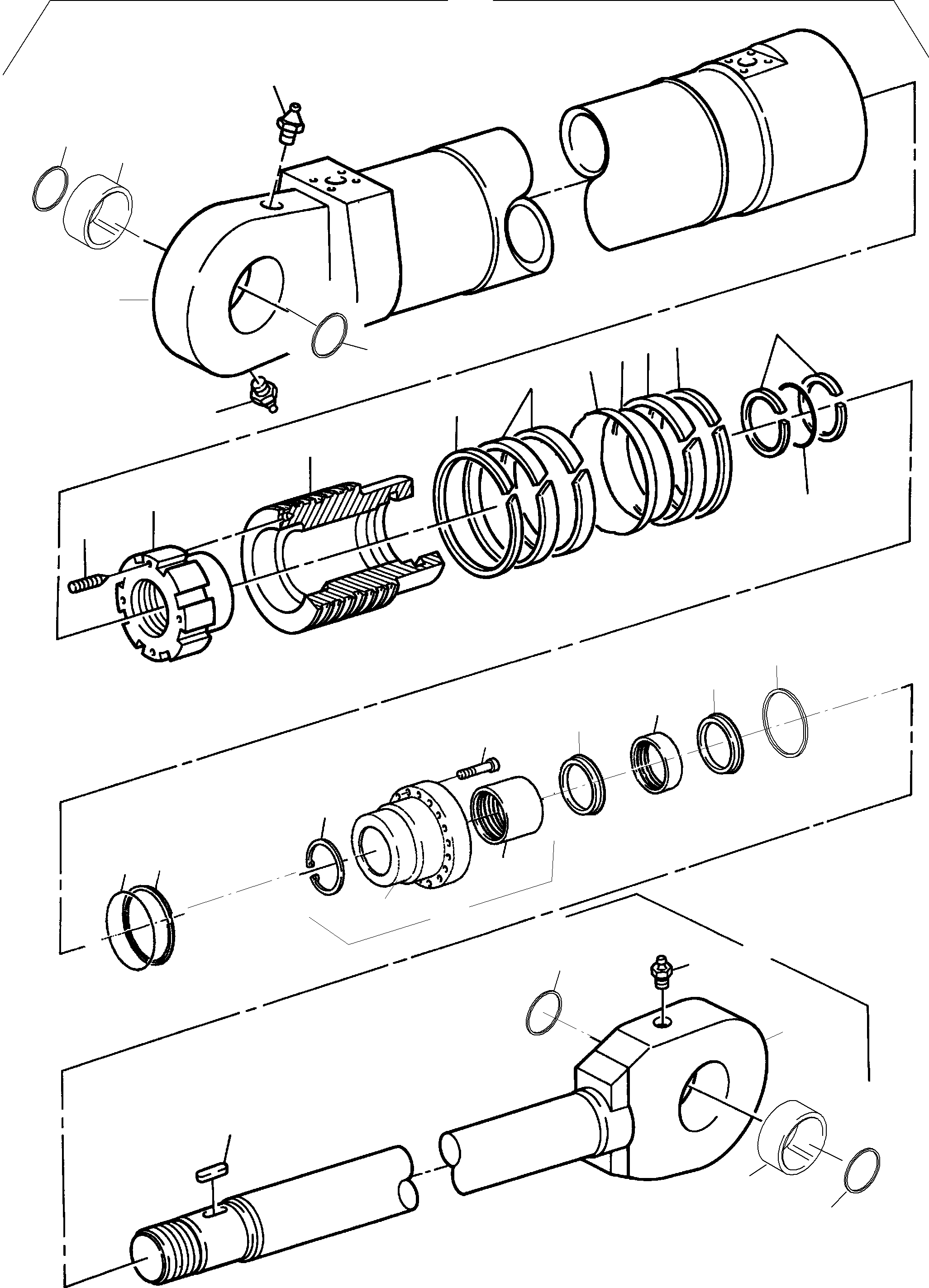

HYDR.-CYLINDER | PC3000-1 S/N 06209 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	924 915 40	Hydr. Cylinder (standard)	1
01	934 630 40	Hydr. Cylinder (cold weather design)	1
03		Cylinder barrel	1
04	627 597 40	Freeze-in bush	2
06	004 860 98	Grease nipple	3
07	792 115 73	Piston rod assy. incl. fig-nos. 04,06,08, 30	1
08		Piston rod	1
09	926 856 40	Sealing flange assy. incl. fig-nos. 10-12	1
10		Flanged bush	1
11	926 867 40	Bearing bush (no field repair item)	1
12	342 676 99	Circlip	1
13	481 006 40	Piston	1
14	429 353 40	Groove nut	1
16	324 910 40	Piston guide strap	2
17	323 255 40	Piston guide ring	3
18	200 299 40	O-ring (standard)	1
18	502 586 98	O-ring (cold weather design)	1
19	635 671 40	Seal ring	1
20	502 005 98	O-ring (standard)	1
20	932 670 40	O-ring (cold weather design)	1
21	270 354 40	Support ring	2
22	517 557 98	O-ring (standard)	1
22	516 409 98	O-ring (cold weather design)	1
23	907 658 40	Support ring	1
24	907 657 40	Rod seal (standard)	1
24	932 902 40	Rod seal (cold weather design)	1
25	011 616 79	Scraper	1
26	354 277 99	Feather key	1
27	319 309 99	Bolt (standard)	12
27	500 565 98	Bolt (cold weather design)	12
28	907 853 40	Buffer ring	1
29	347 403 99	Threaded pin	1
30	907 016 40	Seal ring	4
31	011 799 79	Snap ring	1
\|$$35	780 454 73	Seal kit - piston consist. of fig-nos: 16-21 (standard)	-2
\|$$36	793 474 73	Seal kit - piston rod consist. of fig-nos: 22-25,28 (standard)	-2
\|$$37	794 974 73	Seal kit - piston consist. of fig-nos: 16-21 (cold weather design)	-2
\|$$38	794 975 73	Seal kit - piston rod consist. of fig-nos: 22-25,28 (cold weather design)	-2
