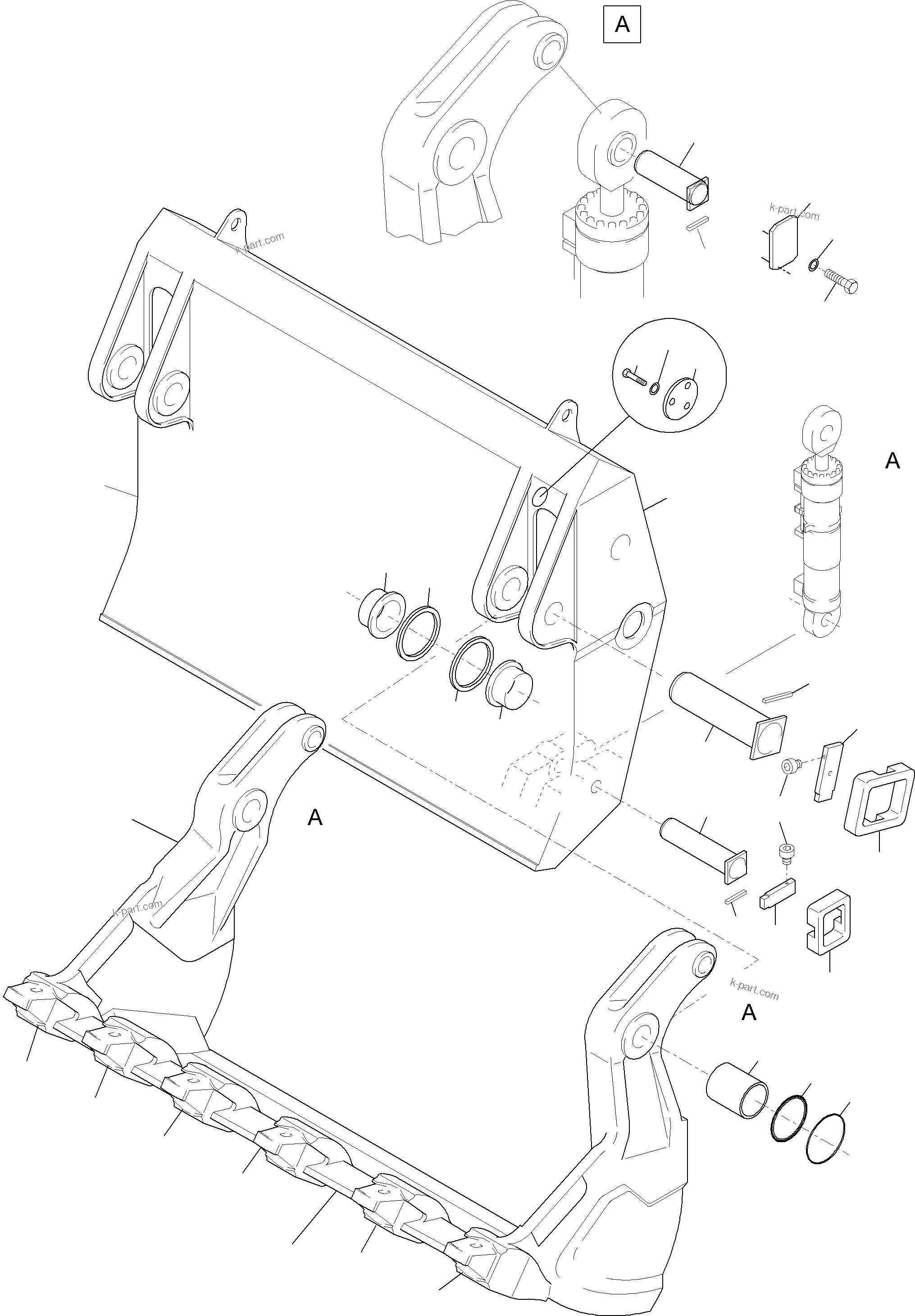

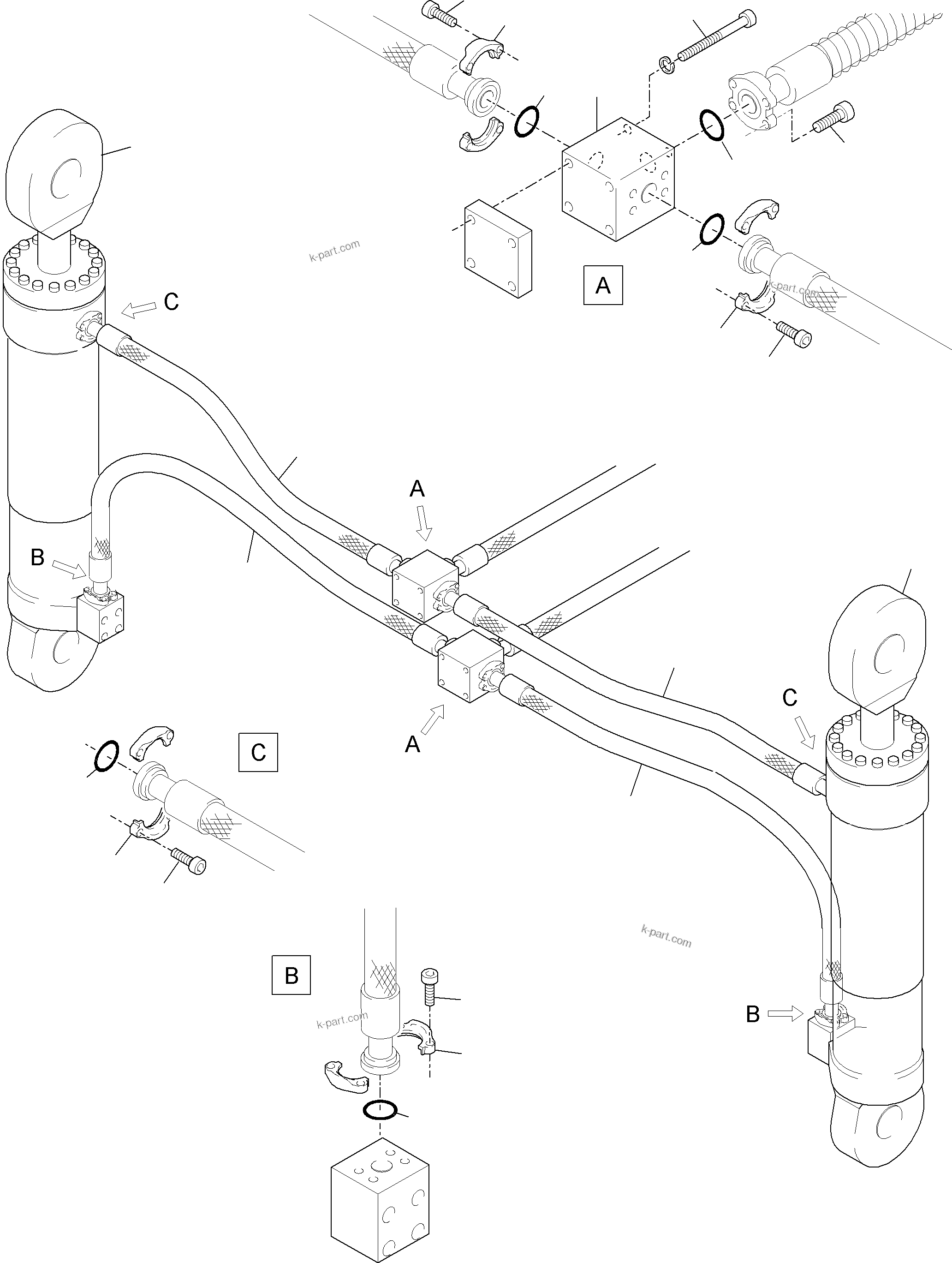

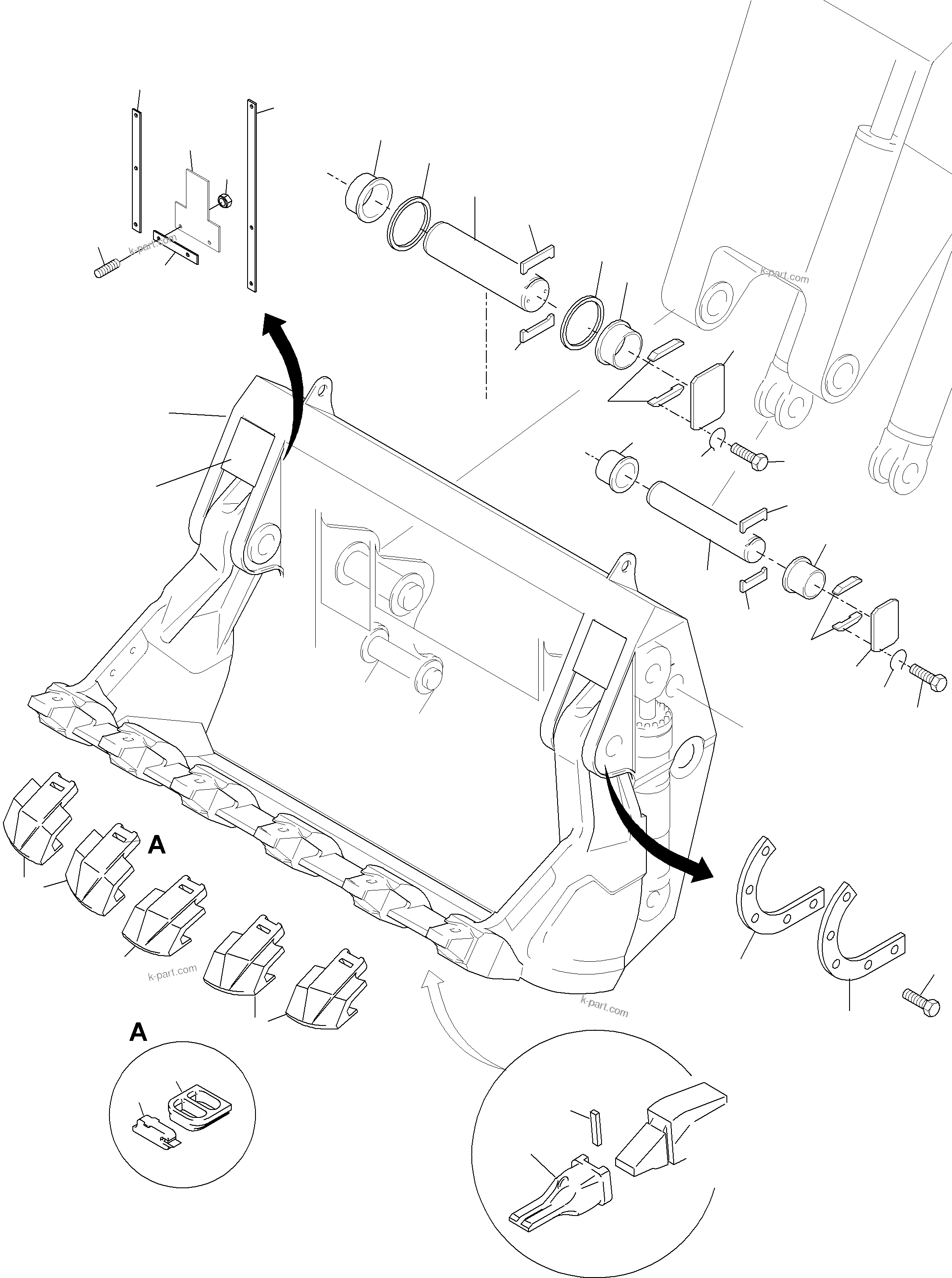

Diagram image 1 of 3

PC3000-1 S/N 06209

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06209

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06209

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Bullclam bucket	1
?		Back panel (Weldment)	1
?		Bucket clam (Weldment)	1
?	917 530 40	Pin with plate	2
?	919 256 40	Freeze-in bush	2
?	917 513 40	Pin with plate	2
?	919 259 40	Ring	4
?	890 896 40	Pin	2
?	908 735 40	Pin	2
?	917 511 40	Pin with plate	2
?	872 456 40	Flanged bush	4
?		Clamping cylinder	2	485-5035b
?	872 457 40	Flanged bush	4
?	908 743 40	Flanged bush	4
?	923 252 40	Ring	4
?	449 731 40	Catch	4
?	872 461 40	Catch	4
?	872 462 40	Axle stirrup	4
?	872 463 40	Axle stirrup	4
?	872 464 40	Shackle	2
?	872 465 40	Shackle	2
?	499 251 40	Manifold	2
?	577 368 40	Protective frame	4
?	506 179 40	Square	8
?	577 369 40	Catch	4
?	006 637 98	Half flange	16
?	324 524 40	Seal	8
?	319 274 99	Bolt	32
?	320 374 99	Bolt	4
?	307 826 99	Bolt	16
?	343 008 99	Washer	16
?	320 230 99	Bolt	8
?	319 288 99	Bolt	8
?	356 209 40	Seal	2
?	414 324 40	Hose assy. DN 25x2000	1
?	516 427 98	Hose assy. DN 25x1900	1
?	516 840 98	Hose assy. DN 25x1375	1
?	516 841 98	Hose assy. DN 25x1515	1
?	896 665 40	Plug	2
?	908 744 40	Cover	2
?	510 213 40	Thread pin	8
?	506 129 98	Washer	8
?	334 600 99	Nut	8
?	925 573 40	Cover	2
?	307 775 99	Bolt	6
?	517 122 98	Lock washer	6
?	913 754 40	Lip assy. incl. fig-nos. 71+72	1
?	660 398 40	Corner adapter	2
?	660 397 40	Tooth adapter	4
?	654 629 40	Toplok shroud	2
?	654 628 40	Toplok shroud	2
?	654 627 40	Toplok shroud	1
?	660 485 40	Boss	5
?	660 486 40	Pin	5
?	660 330 40	Tooth SYL	6
?	660 331 40	Tooth SD	6
?	660 383 40	Tooth RYL	6
?	660 384 40	Tooth VX	6
?	660 332 40	Key	6
?	896 225 40	Plate	2
?	923 636 40	Rail	2
?	507 037 40	Nut	14
?	511 263 98	Thread pin	14
?	896 219 40	Rail	2
?	919 257 40	Rubber	2
?	919 258 40	Rail	2
?	896 222 40	Rail l.h.	2
?	896 223 40	Rail r.h.	2
?	896 224 40	Rail	4
?	307 949 99	Bolt	20
?	517445 98	Bolt	10
?	307 587 99	Bolt	10
?	462 206 40	Catch	4
?	426 562 40	Shackle	2
?	307 806 99	Bolt	8
?	500 802 98	Lock washer	26
?	907 017 40	Pin seal ring	4
?	501 122 98	O-ring	4

Komatsu PC3000-1 S/N 06209 parts catalog PDF

BULLCLAM BUCKET 15 CBM (485-5004a) in PC3000-1 S/N 06209. Diagram image and parts list.
