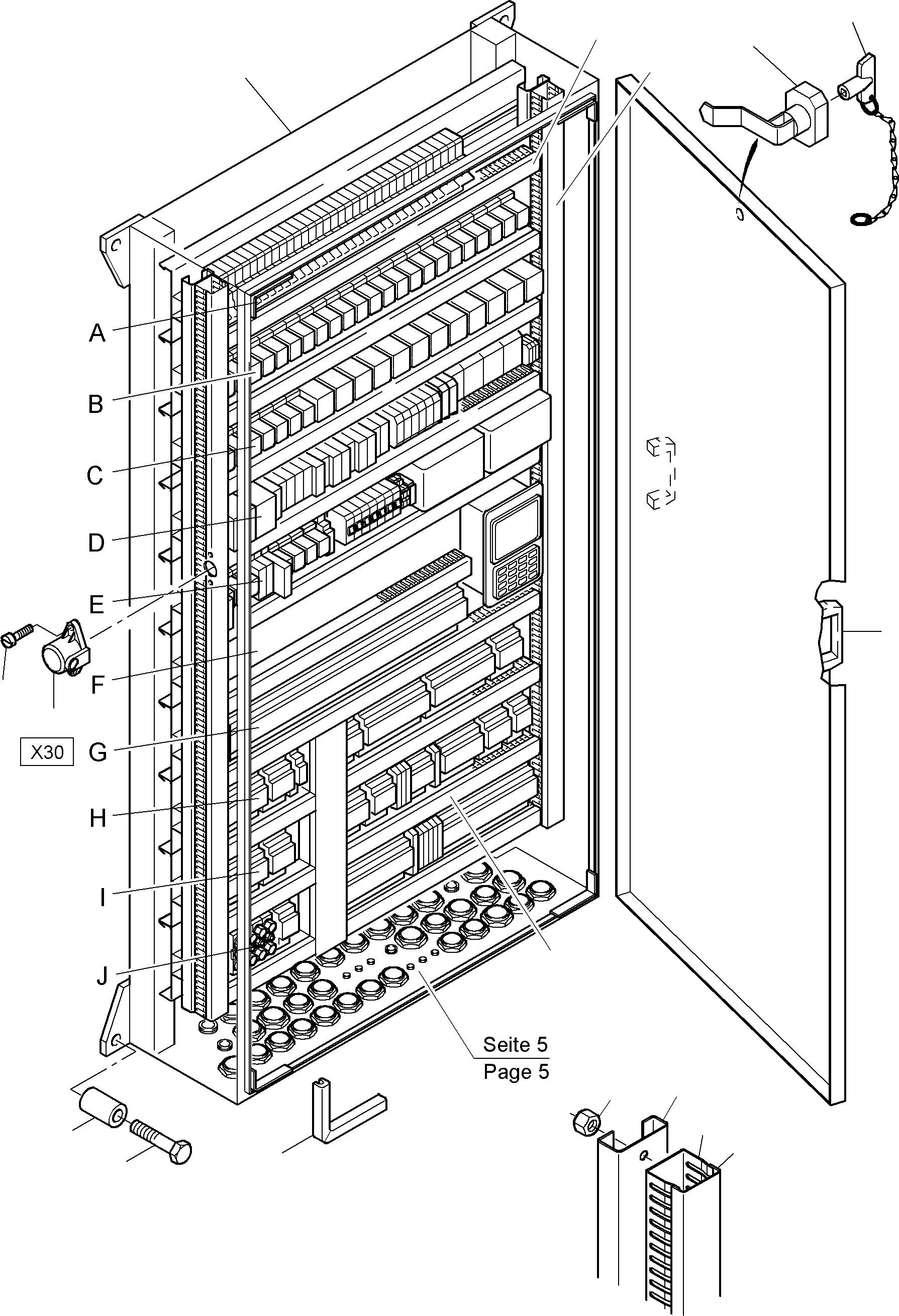

01 |
929 864 40
|
Switch cabinet w/o. electr. parts |
1 |
|
|
|
|
02 |
764 789 73
|
Key |
2 |
|
|
|
|
03 |
764 947 73
|
Locking bar |
10 |
|
|
|
|
04 |
764 949 73
|
Seal |
1 |
|
|
|
|
05 |
765 892 73
|
Handle |
2 |
|
|
|
|
06 |
057 278 40
|
Socket |
1 |
|
|
|
|
07 |
320 975 99
|
Screw |
2 |
|
|
|
|
08 |
322 378 40
|
Diode array |
4 |
|
|
|
|
09 |
891 034 40
|
Protection cap assy. |
2 |
|
|
|
|
10 |
490 929 40
|
Assembly rail |
2 |
|
|
|
|
11 |
655 416 40
|
Sectional plate |
10 |
|
|
|
|
12 |
323 237 40
|
Wiring terminal |
5 |
|
|
|
|
13 |
500 106 98
|
Bolt |
44 |
|
|
|
|
14 |
334 599 99
|
Nut |
48 |
|
|
|
|
15 |
907 821 40
|
Breaker 1 A |
1 |
|
|
|
|
16 |
907 951 40
|
Rail collector
Bulk ware, state length
required |
-2 |
|
|
|
|
17 |
356 265 40
|
Clamp |
27 |
|
|
|
|
18 |
270 288 40
|
Cable channel ca. 1400 lg.
Bulk ware, state length
required |
2 |
|
|
|
|
19 |
907 830 40
|
Breaker 25 A |
6 |
|
|
|
|
20 |
907 827 40
|
Breaker 16 A |
12 |
|
|
|
|
21 |
907 828 40
|
Breaker 6 A |
3 |
|
|
|
|
22 |
907 839 40
|
Breaker 50 A |
3 |
|
|
|
|
23 |
907 829 40
|
Breaker 10 A |
2 |
|
|
|
|
24 |
655 486 40
|
Pickup module unit |
1 |
|
|
|
|
25 |
655 487 40
|
Pickup module unit |
1 |
|
|
|
|
26 |
356 184 40
|
Relay |
14 |
|
|
|
|
27 |
323 910 40
|
Relay socket |
14 |
|
|
|
|
28 |
323 911 40
|
Retainer |
14 |
|
|
|
|
29 |
399 773 40
|
Relay |
38 |
|
|
|
|
30 |
592 338 40
|
Relay socket |
38 |
|
|
|
|
31 |
414 369 40
|
Spring retainer |
38 |
|
|
|
|
32 |
896 581 40
|
Power breaker |
2 |
|
|
|
|
33 |
323 590 40
|
Switch modul |
4 |
|
|
|
|
34 |
7835134002
|
Multimonitor |
1 |
|
|
|
|
35 |
494 086 40
|
Line divider EFD |
1 |
|
|
|
|
36 |
414 649 40
|
Fuel indication EFM |
1 |
|
|
|
|
37 |
899 301 40
|
Converter |
6 |
|
|
|
|
38 |
323 346 40
|
Touch contact |
1 |
|
|
|
|
39 |
635 318 40
|
Connection cable
to fig-nos. 24,25 |
1 |
|
|
|
|
40 |
894 594 40
|
Cable V 24 |
1 |
|
|
|
|
41 |
323 233 40
|
Wiring profile ca. 700mm
Bulk ware, state length
required |
12 |
|
|
|
|
42 |
323 234 40
|
Cover 25 BN
Bulk ware, state length
required |
-2 |
|
|
|
|
43 |
655 518 40
|
Cable channel ca. 800mm
Bulk ware, state length
required |
1 |
|
|
|
|
44 |
655 517 40
|
Cover 40 BN
Bulk ware, state length
required |
-2 |
|
|
|
|
45 |
490 889 40
|
Series terminal |
3 |
|
|
|
|
46 |
932 553 40
|
Breaker 63A |
1 |
|
|
|
|
47 |
907 823 40
|
Breaker 6A |
1 |
|
|
|
|
48 |
324 025 40
|
Resistor clamp |
3 |
|
|
|
|
49 |
603 346 40
|
Voltage measuring clamp |
1 |
|
|
|
|
50 |
907 481 40
|
Time lag relay |
4 |
|
|
|
|
51 |
896 546 40
|
Time lag relay |
5 |
|
|
|
|
52 |
907 482 40
|
Wiper relay |
4 |
|
|
|
|
53 |
655 898 40
|
Cycle relay |
1 |
|
|
|
|
54 |
906 613 40
|
Cover plate |
25 |
|
|
|
|
55 |
906 612 40
|
Through clamp 2,5 |
350 |
|
|
|
|
56 |
906 774 40
|
Cover plate 10,0 |
1 |
|
|
|
|
57 |
906 773 40
|
Cover plate 16,0 |
1 |
|
|
|
|
58 |
906 772 40
|
Cover plate 6,0 |
5 |
|
|
|
|
59 |
906 768 40
|
Through clamp 6,0 |
5 |
|
|
|
|
60 |
323 943 40
|
Sleeve marker |
50 |
|
|
|
|
61 |
323 942 40
|
Sleeve marker |
50 |
|
|
|
|
62 |
270 318 40
|
Sleeve marker |
50 |
|
|
|
|
63 |
323 944 40
|
Sleeve marker |
50 |
|
|
|
|
64 |
906 770 40
|
Through clamp 10,0 |
5 |
|
|
|
|
65 |
515 213 40
|
Cable 1mm2
Bulk ware, state length
required |
-2 |
|
|
|
|
66 |
655 675 40
|
Cable 6mm2
Bulk ware, state length
required |
-2 |
|
|
|
|
67 |
906 614 40
|
Bridging comb 2-fold 2,5 |
30 |
|
|
|
|
68 |
906 615 40
|
Bridging comb 3-fold 2,5 |
20 |
|
|
|
|
69 |
906 616 40
|
Bridging comb 4-fold 2,5 |
20 |
|
|
|
|
70 |
906 617 40
|
Bridging comb 5-fold 2,5 |
10 |
|
|
|
|
71 |
906 618 40
|
Bridging comb 10-fold 2,5 |
10 |
|
|
|
|
72 |
906 630 40
|
Protective wire clip 2,5 |
65 |
|
|
|
|
73 |
906 769 40
|
Through clamp 16,0 |
1 |
|
|
|
|
74 |
461 703 40
|
Terminal M150/35 |
4 |
|
|
|
|
75 |
0819114106
|
Socket |
4 |
|
|
|
|
76 |
907 477 40
|
Cable union DN 12 |
3 |
|
|
|
|
77 |
0818124106
|
Socket |
11 |
|
|
|
|
78 |
907 690 40
|
Cable union DN 23 |
1 |
|
|
|
|
79 |
907 691 40
|
Cable union DN 36 |
1 |
|
|
|
|
80 |
655 685 40
|
Dust cap |
1 |
|
|
|
|
81 |
551 867 40
|
Clasp |
2 |
|
|
|
|
82 |
515 218 40
|
Cable 16mm2
Bulk ware, state length
required |
-2 |
|
|
|
|
83 |
907 479 40
|
Cable union DN 29 |
2 |
|
|
|
|
84 |
058 190 40
|
Diode |
1 |
|
|
|
|
85 |
906 007 40
|
Pulse relay |
1 |
|
|
|
|
87 |
896 747 40
|
Cable channel 100x100
Bulk ware, state length
required |
-2 |
|
|
|
|
88 |
792 806 73
|
Marker set |
1 |
|
|
|
|
89 |
906 623 40
|
Marking strip |
8 |
|
|
|
|
90 |
308 436 99
|
Bolt |
4 |
|
|
|
|
91 |
510 741 98
|
Resilient sleeve |
4 |
|
|
|
|
92 |
896 716 40
|
Hour meter |
1 |
|
|
|
|
93 |
896 488 40
|
Camswitch |
2 |
|
|
|
|
94 |
0819164106
|
Socket |
2 |
|
|
|
|
95 |
0819174106
|
Socket |
3 |
|
|
|
|
96 |
0819184106
|
Socket |
3 |
|
|
|
|
97 |
0819194106
|
Socket |
9 |
|
|
|
|
98 |
931 333 40
|
Mounting plate |
1 |
|
|
|
|

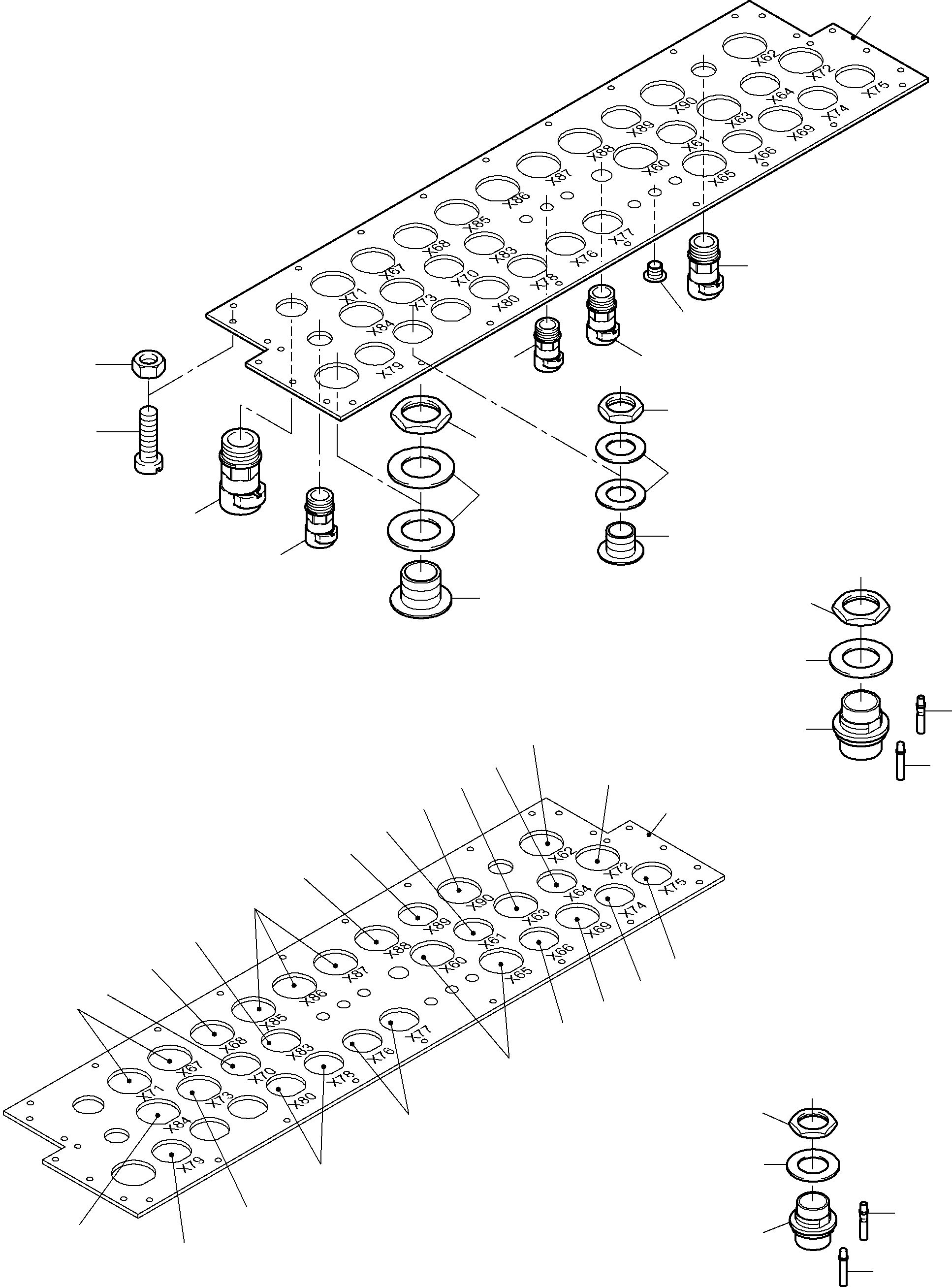

99 |
0819100770
|
Sealing plate |
100 |
|
|
|
|
100 |
0819105420
|
Busching |
530 |
|
|
|
|
101 |
0819105440
|
Bushing |
76 |
|
|
|
|
102 |
0819110808
|
Nut |
15 |
|
|
|
|
103 |
0819110809
|
Lock washer |
15 |
|
|
|
|
104 |
0819150808
|
Nut |
16 |
|
|
|
|
105 |
0819150809
|
Lock washer |
16 |
|
|
|
|
106 |
319 059 99
|
Bolt |
32 |
|
|
|
|
107 |
507 025 98
|
Nut |
32 |
|
|
|
|
108 |
517 335 98
|
Plug |
1 |
|
|
|
|
109 |
517 333 98
|
Plug |
1 |
|
|
|
|
110 |
517 332 98
|
Plug |
4 |
|
|
