BATTERIES WITH CABLES | PC3000-6 S/N 06217 | Komatsu parts book catalogue

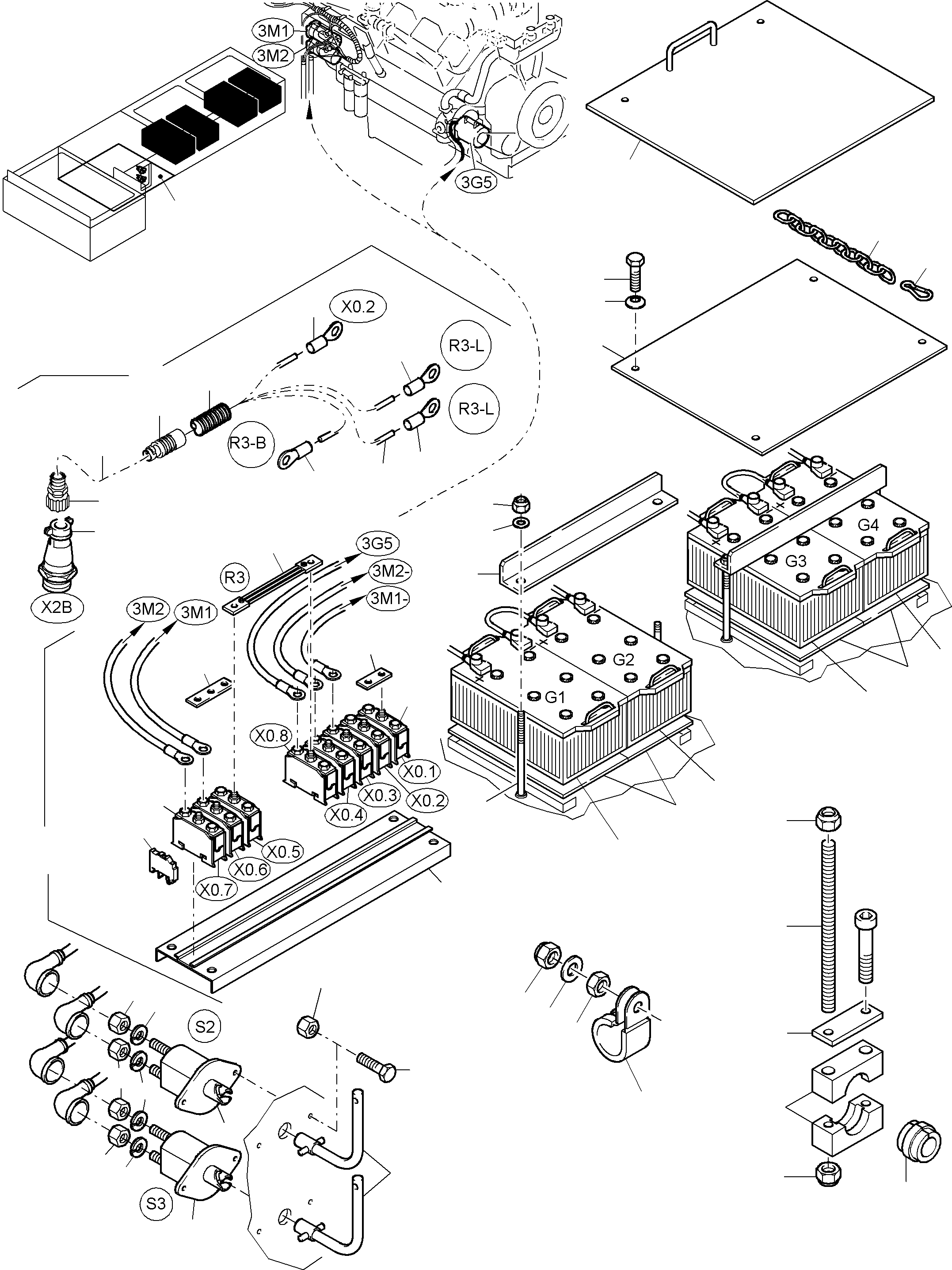

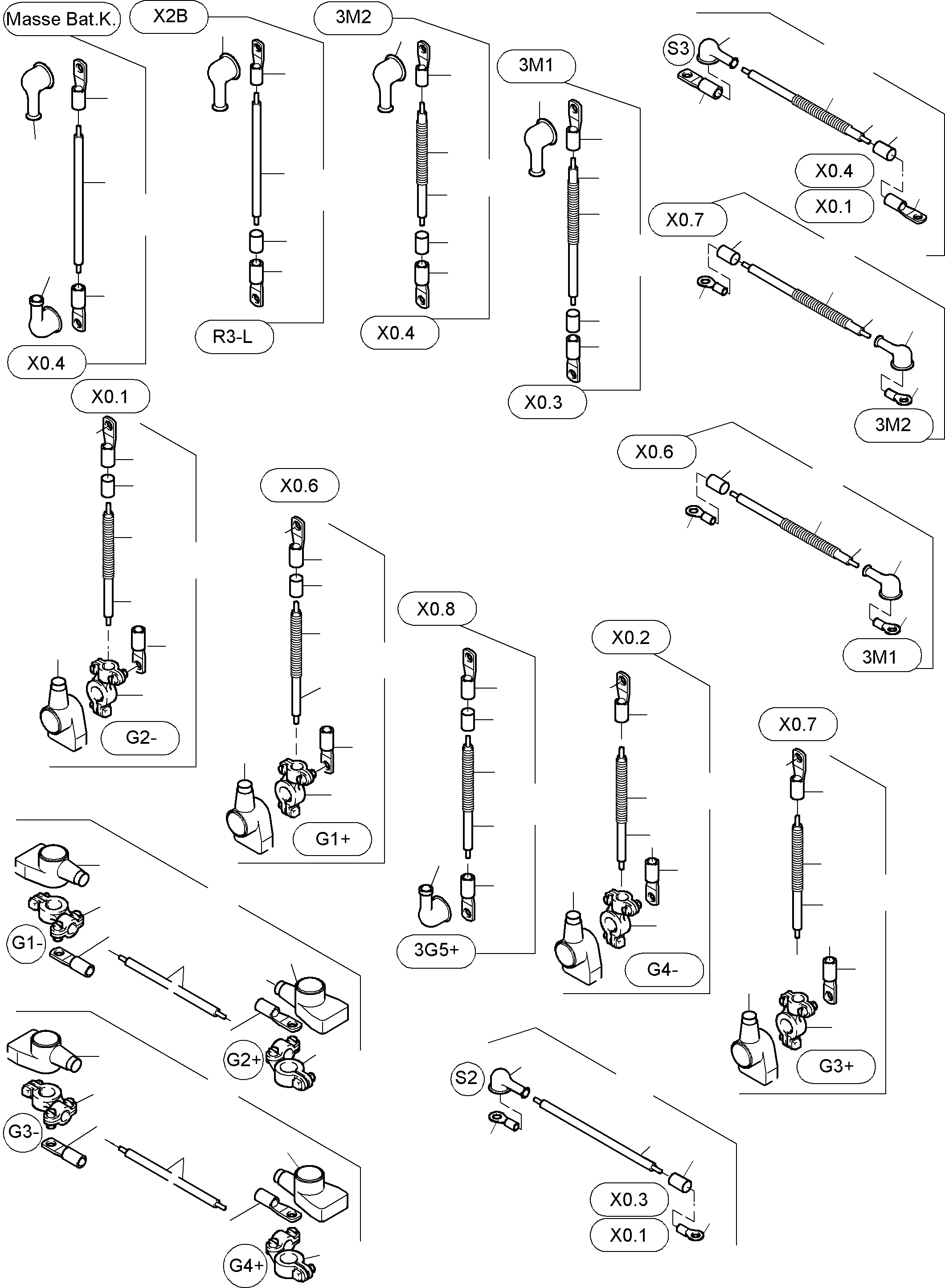

Diagram image 1 of 2

PC3000-6 S/N 06217

01 01 01 01 02 02 03 04 05 06 08 08 12 14 15 16 16 17 17 17 18 18 18 19 24 25 26 27 28 28 29 30 31 32 35 35 36 37 37 38 39 45 59 59 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78

PC3000-6 S/N 06217

07 07 07 07 07 07 07 07 07 07 07 07 07 07 09 09 10 10 10 10 10 10 10 10 10 10 11 11 11 11 11 11 12 13 13 13 13 13 13 13 13 13 13 13 13 13 13 20 21 22 22 22 22 23 23 23 23 23 23 23 23 23 23 33 33 33 33 34 34 34 34 34 34 34 34 34 34 34 34 34 34 34 40 41 41 41 41 41 41 42 43 44 44 44 44 46 47 48 49 50 51 52 53 54 55 56 57 58

#	Part Number	Partname	Quantity
01	309 691 40	Battery 12 V 200 Ah	4
02	159 984 40	Battery switch	2
03	321 014 99	Screw	4
04	966 673	Gear shift-lever	2
05	635 006 40	Sectional plate 120x660	1
06	365 265 40	Clamp	7
07	906 651 40	Cable 95 Bulk ware, state length required	-2
08	515 214 40	Cable 2,5 Bulk ware, state length required	-2
09	906 941 40	Terminal	2
10	655 652 40	Protection hose DN 23 Bulk ware, state length required	-2
11	906 940 40	Terminal	9
12	933 351 40	Auxiliary resistor assy.	1
13	600 212 99	Cable lug 12-95	15
14	385 287 40	Auxiliary resistor	1
15	910 022 40	Cross connection	1
16	461 703 40	Terminal	8
17	346 500 99	Lock washer	4
18	332 132 99	Nut	4
19	919 418 40	Cross connection	1
20	931 391 40	Cable-Batterie G1-G2	1
21	931 392 40	Cable-Batterie G3-G4	1
22	906 943 40	Pole end plate, black	4
23	056 076 40	Rubber cap	10
24	887 009 40	Angle	2
25	308 431 99	Bolt	4
26	340 652 99	Washer	4
27	334 600 99	Nut	4
28	655 516 40	Moulding material 10x270x495	2
29	933 376 40	Rubber plate	1
30	0443451610	Clip	1
31	507 025 98	Nut	4
32	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
33	906 942 40	Pole end plate, red	5
34	600 209 99	Cable lug 10-95	21
35	055 104 40	Cable lug 1,5	2
36	907 981 40	Fitting DN 29	1
37	932 518 40	Cable lug	1
38	907 877 40	Cable 2x0,75 Bulk ware, state length required	-2
39	655 810 40	Pipe adapter DN29/12	1
40	471 671 99	Cable 70 Bulk ware, state length required	-2
41	932 556 40	Heat Protection hose Bulk ware, state length required	-2
42	931 398 40	Cable- Ground-Batterybox	1
43	931 386 40	Cable-Generator 3G5-X0.8	1
44	932 557 40	Heat Protection hose Bulk ware, state length required	-2
45	931 390 40	Cable-Batterie-X2B	1
46	931 385 40	Cable-Starter 3M2-X0.4	1
47	931 384 40	Cable-Starter 3M1-X0.3	1
48	931 382 40	Cable-Starter 3M1-X0.6	1
49	931 383 40	Cable-Starter 3M2-X0.7	1
50	933 393 40	Cable-Batterie G2-X0.1	1
51	933 391 40	Cable-Batterie G1-X0.6	1
52	933 394 40	Cable-Batterie G4-X0.2	1
53	933 392 40	Cable-Batterie G3-X0.7	1
54	931 393 40	Cable-Switch S2-X0.1	1
55	931 395 40	Cable-Switch S3-X0.1	1
56	931 394 40	Cable-Switch S2-X0.3	1
57	931 396 40	Cable-Switch S3-X0.4	1
58	931 389 40	Cable-Auxiliary resistor R3-L-X2B.00	1
59	507 037 98	Nut	26
60	343 005 99	Washer	4
61	332 113 99	Nut	4
62	502 618 98	Half clamp	42
63	534 004 99	Cover plate	11
64	510 452 98	Grommet	7
65	515 628 98	Grommet	14
66	933 370 40	Thread rod M10x150	4
67	430 152 40	Thread rod M10x270	4
68	933 371 40	Thread rod M10x200	2
69	915 342 40	Battery cover	3
70	341 271 99	Trigger snap	3
71	472 511 99	Chain Bulk ware, state length required	-2
72	925 233 40	Cover	1
73	517 122 98	Lock washer	4
74	307 773 99	Bolt	4
75	0819171206	Plug	1
76	0819105320	Pin	3
77	0819105340	Pin	1
78	0819100770	Sealing plug	17
