Diagram image 1 of 2

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	931 309 40	Harness - engine	1
?	931 387 40	Harness - Generator-Ground	1
?	931 387 40	Harness - Enginefeet-Ground	1
?	896 579 40	Sensor	1
?	906 753 40	Pressure switch - engine-oil pressure	1
?	906 754 40	Pressure switch - engine-oil pressure	1
?	431 169 40	Temperature transmitter	1
?	515 562 40	Pressure transmitter 10 bar	1
?	414 899 40	RPM-sensor	1
?	793 258 73	Fuse with cable	1
?	766 379 73	RPM-sensor	1
?	659 892 40	Starter relay assy.	2
?	765 579 73	Time lag relay	1
?	635 965 40	Relay	1
?	655 642 40	Circular bearing	8
?	906 756 40	Pressure switch (cooling water HL)	1
?	931 317 40	Plate	1
?	931 316 40	Plate	1
?	255 745 40	Rubber grommet	11
?	055 104 40	Cable lug 1,5	1
?	896 521 40	End pin	1
?	907 692 40	Fitting PG 9	14
?	455 757 99	Insulating tube Bulk ware, state length required	-2
?	907 704 40	Cable union PG 9	3
?	907 703 40	Cable union PG 9	11
?	896 520 40	End pin	7
?	055 100 40	Cable lig	2
?	515 213 40	Cable 1,0 qmm Bulk ware, state length required	-2
?	515 214 40	Cable 2,5 qmm Bulk ware, state length required	-2
?	0819212020	Plug assy. 2-pole	2
?	906 420 40	T-Distributor DN 12	2
?	621 547 40	Plug	2
?	621 548 40	Socket	1
?	621 698 40	Contact plug 1-2 qmm	9
?	621 699 40	Female contact 1-2 qmm	9
?	634 404 40	Strain relief	2
?	655 626 40	Connector distributor DN 17/12	1
?	655 633 40	Pipe adapter DN 17/12	5
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	256 514 40	Name plate	15
?	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
?	907 877 40	Cable 2x0,75 Bulk ware, state length required	-2
?	907 733 40	T-Distributor DN 23	1
?	655 630 40	T-Distributor DN 29/23	2
?	907 947 40	Connector distributor DN 29/23	1
?	655 629 40	T-Distributor DN 17	2
?	655 634 40	Pipe adapter DN 23/17	2
?	655 810 40	Pipe adapter DN 29/12	2
?	896 558 40	Pipe adapter DN 29/23	1
?	907 971 40	Pipe adapter DN 23/12	1
?	323 961 40	Sleeve 6,3x0,8	7
?	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
?	256 721 40	Protection cap	1
?	055 108 40	Cable lug 2,5	8
?	907 132 40	Cable lug	4
?	906 922 40	Protection cap	3
?	056 292 40	Cable strap	21
?	931 381 40	Harness starter relay plate	1
?	055 112 40	Cable lug	2
?	933 388 40	Plug assy. 4-pole	3
?	933 389 40	Harness Engine relay	1
?	056 076 40	Protection cap	3
?	600 212 99	Cable lug 12-95	1
?	600 209 99	Cable lug 10-95	3
?	932 556 40	Insulating tube Bulk ware, state length required	-2
?	471 671 99	Cable 70 Bulk ware, state length required	-2
?	933 397 40	Plate	1
?	933 387 40	Plug assy.	1
?	517 853 98	Resilent sleeve 10,5/25x80	3
?	504 281 98	Bolt	3
?	340 611 99	Washer	4
?	507 037 98	Nut	24
?	340 465 99	Washer	15
?	307 792 99	Bolt	1
?	307 779 99	Bolt	15
?	307 661 99	Bolt	2
?	340 459 99	Washer	2
?	343 104 99	Lock washer	2
?	507 025 98	Nut	4
?	307 727 99	Bolt	4
?	350 762 99	Washer	4
?	517 120 98	Lock washer	4
?	0443551610	Clip	26
?	0443452110	Clip	2
?	0443452711	Clip	45
?	510 741 98	Resilent sleeve 13/25x50	8
?	517 122 98	Lock washer	13
?	516 092 98	Resilent sleeve 13/25x55	1
?	0443451210	Clip	2
?	511 869 98	Resilent sleeve 8,4/15x25	2
?	0819320010	Clip	5
?	307 761 99	Bolt	2
?	517 121 98	Lock washer	2
?	933 399 40	Relay plate	1
?	055 108 40	Cable lug	1
?	0818191206	Plug	1
?	0819111206	Plug	1
?	907 980 40	Fitting DN 23	1
?	0819105320	Pin	27
?	0819100770	Sealing plug	9
?	907 974 40	Fitting DN 12	1
?	0819105340	Pin	3

Komatsu PC3000-6 S/N 06217 parts catalog PDF

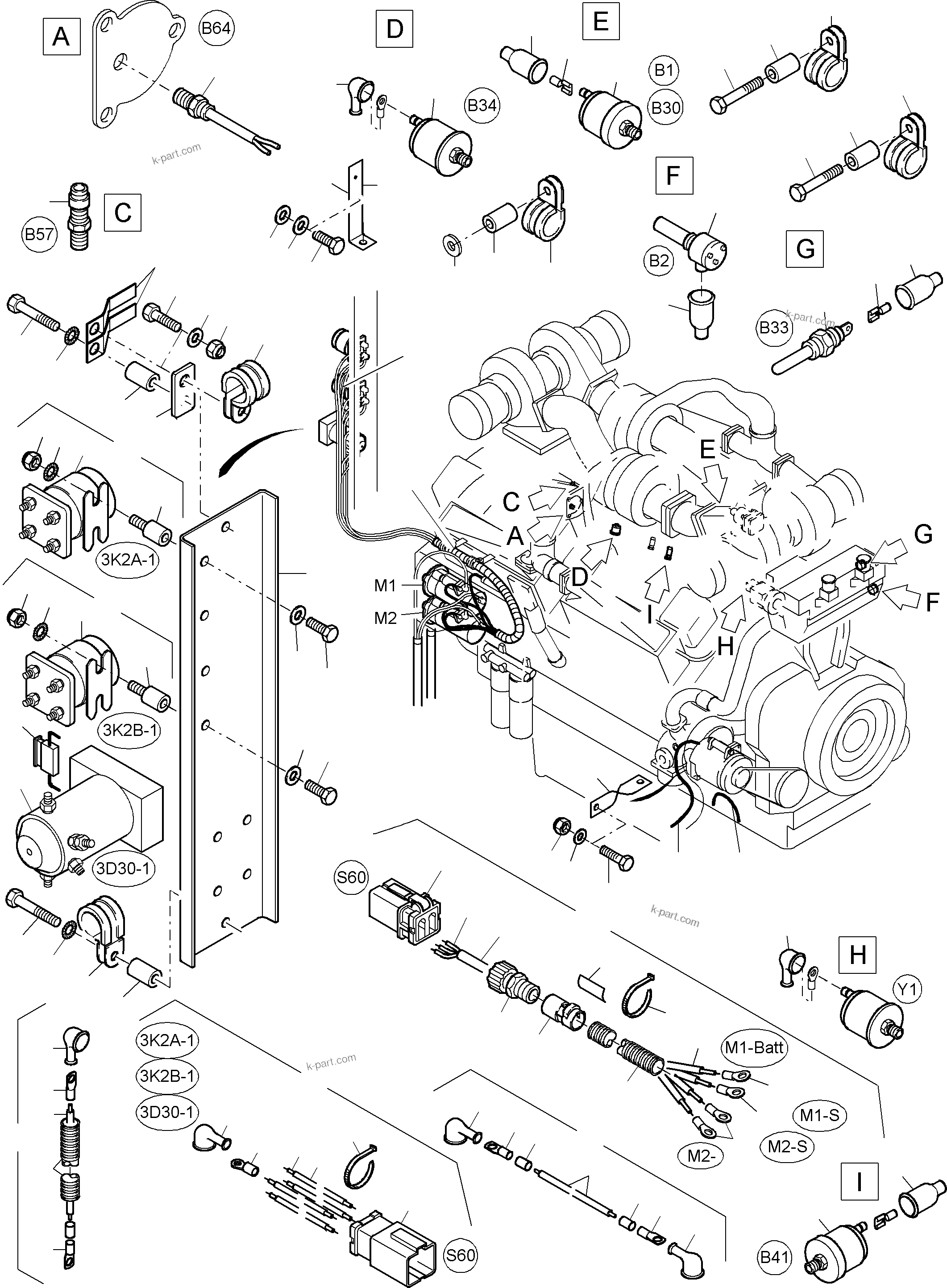

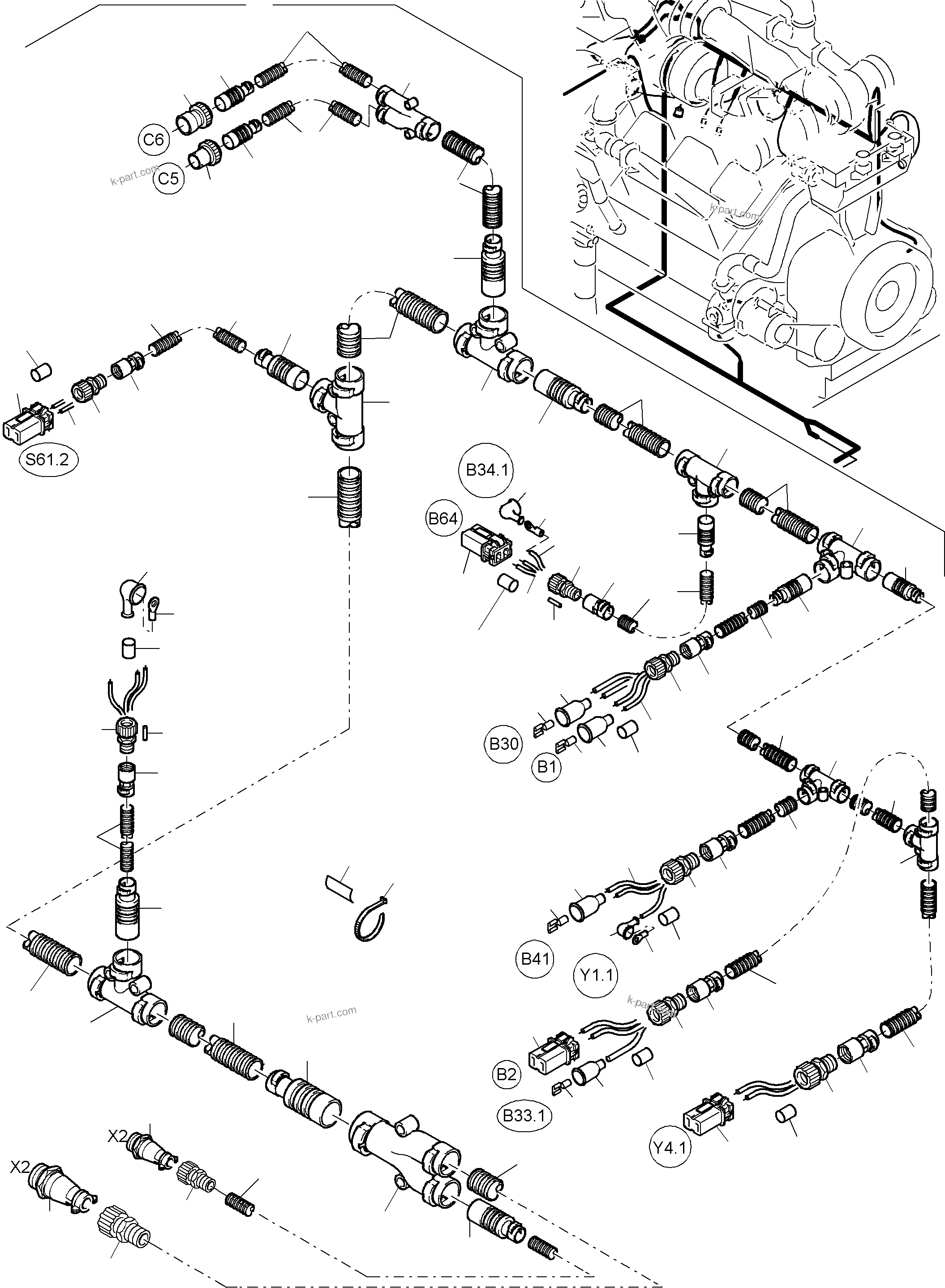

CABLES-ENGINE AND TRANSMITTER (485-2185b) in PC3000-6 S/N 06217. Diagram image and parts list.
