ELECTR. PARTS | PC3000-6 S/N 06217 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

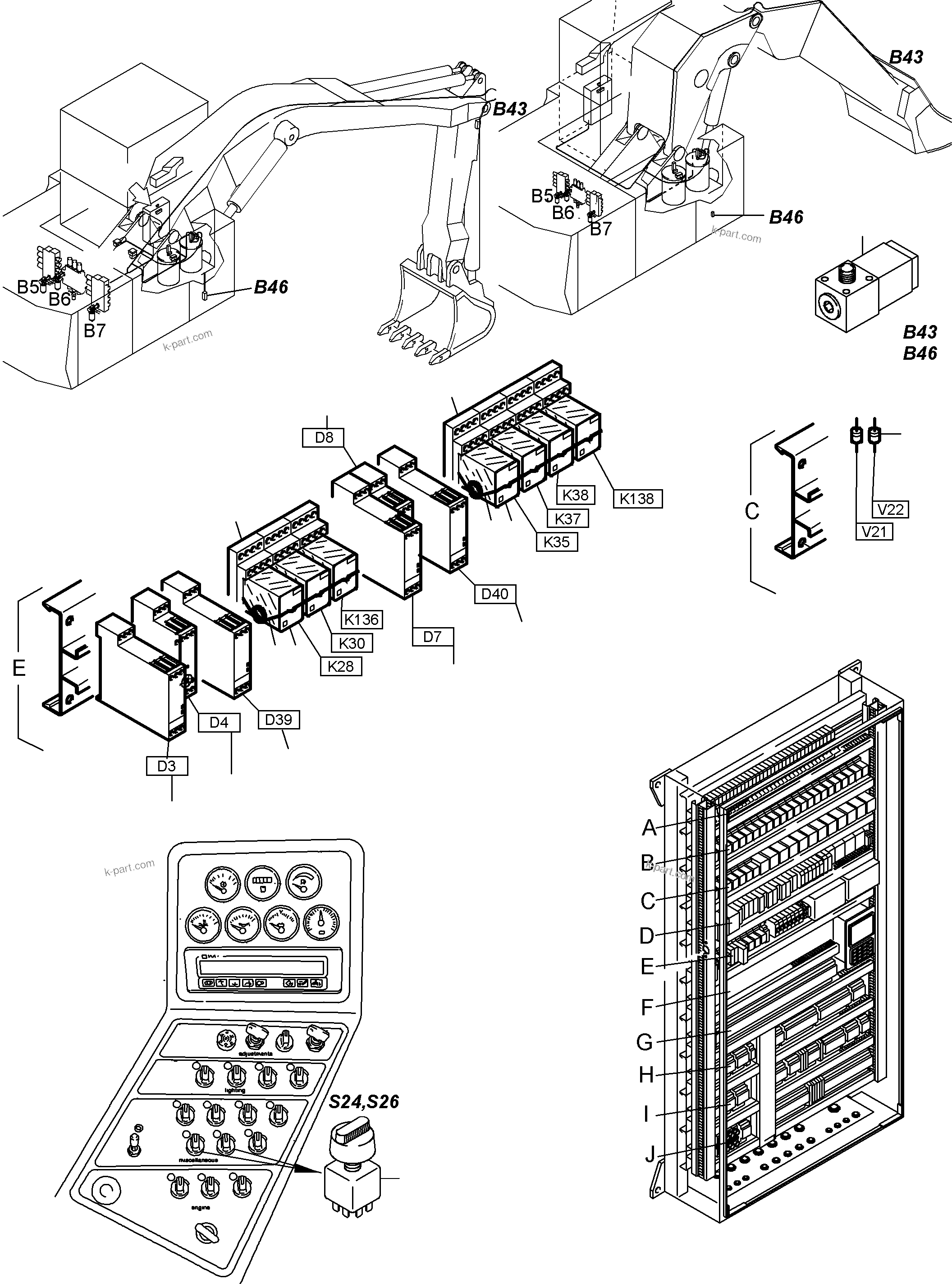

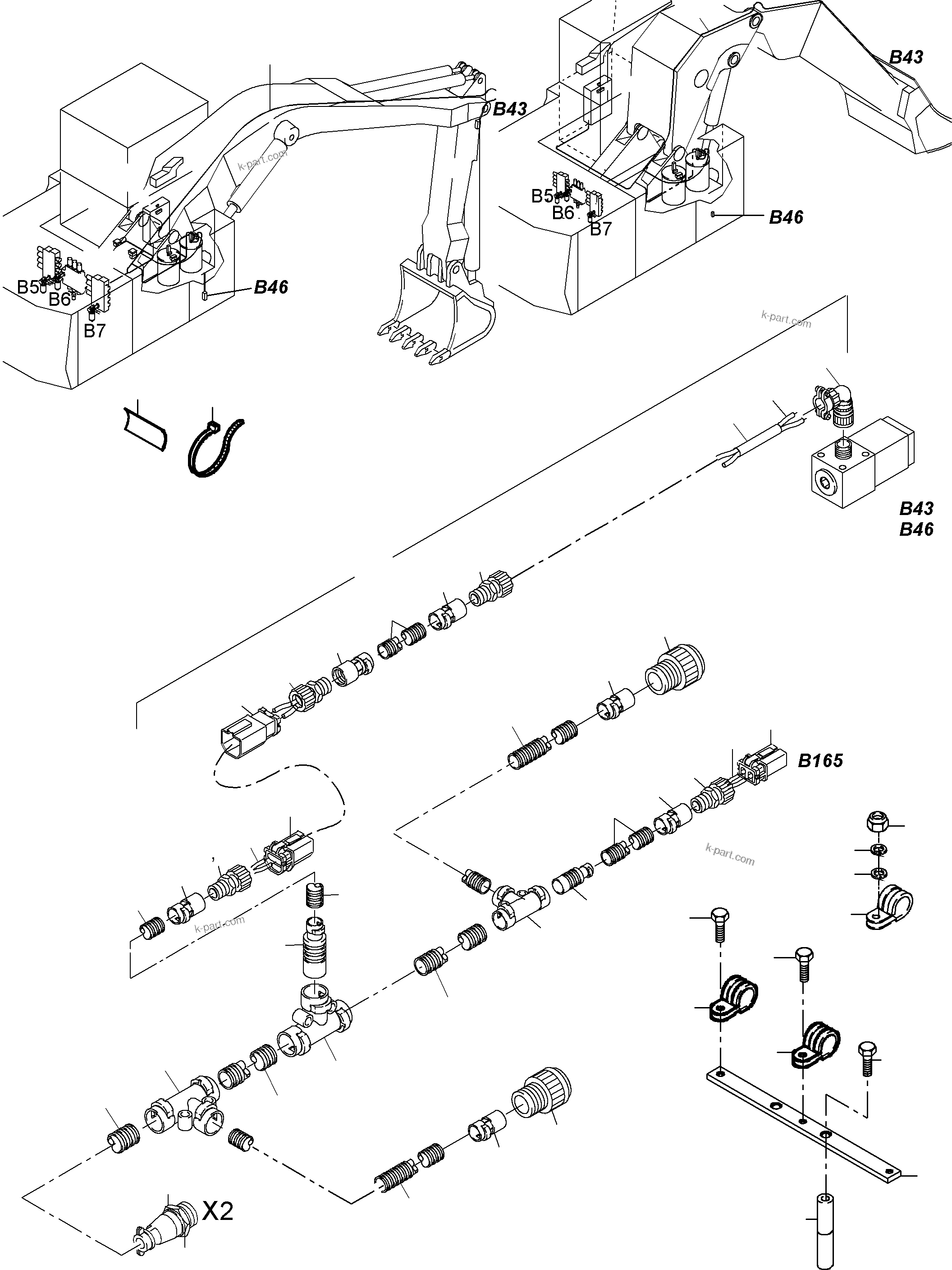

Diagram image 1 of 2

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	324 400 40	Turn switch	2
?	592 338 40	Socket	7
?	399 773 40	Relay	7
?	414 369 40	Spring retainer	7
?	907 481 40	Time lag relay	2
?	896 617 40	Cycle relay	4
?	906 377 40	Diode	2
?	341 754 40	Ultimate pressure control	-2
?	931 366 40	Harness - lube arr.	1
?	906 696 40	Protection cap	2
?	896 520 40	End pin	4
?	655 629 40	T-distributor DN 17	3
?	655 633 40	Pipe adapter DN 17/12	1
?	907 693 40	Fitting M20/DN17	2
?	907 703 40	Cable union	6
?	907 692 40	Fitting	6
?	0819181206	Plug	1
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	515 213 40	Cable Bulk ware, state length required	-2
?	0819212020	Plug assy. 2-pole	1
?	0819213920	Plug assy. 3-pole	2
?	929 844 40	Harness - boom/stick - backhoe equipment	1
?	256 514 40	Type plate	7
?	056 292 40	Cable strap	7
?	0443452110	Clip	40
?	0443451610	Clip	1
?	0443450810	Clip	1
?	929 843 40	Harness - boom/stick - bullclam bucket equipment	1
?	307 775 99	Bolt	2
?	308 587 99	Bolt	2
?	346 524 40	Elbow plug	1
?	455 757 99	Insulating tube B 7x0 Bulk ware, state length required	-2
?	621 547 40	Plug	2
?	896 765 40	Female contact	2
?	455 756 99	Insulating tube B6x0,6 Bulk ware, state length required	-2
?	510 741 98	Resilent sleeve	4
?	933 361 40	Retainer	1
?	507 037 98	Nut	4
?	517 122 98	Lock washer	4
?	340 611 99	Washer	4
?	0819105320	Pin	17
?	0819100770	Sealing plug	6
