Diagram image 1 of 2

PC3000-6 S/N 06217

01 01 02 03 04 04 05 05 06 06 07 08 09 09 10 100 108 109 11 12 13 14 15 16 16 17 18 19 20 21 22 23 23 24 24 25 26 27 27 28 28 28 28 28 28 29 29 29 29 30 30 31 32 32 33 33 33 33 33 33 33 34 35 36 37 38 39 40 40 40 41 42 43 44 45 46 47 48 49 50 50 51 51 52 52 53 53 54 54 55 55 56 57 57 57 58 58 59 61 62 63 64 65 66 67 68 69 70 71 76 80 85 85 85 86 86 86 89 90 96 97 98 99

PC3000-6 S/N 06217

01 01 01 01 106 107 108 108 109 109 28 28 28 29 29 30 31 32 33 33 33 40 40 50 51 52 53 54 55 55 55 55 56 57 57 57 57 57 58 58 59 59 60 60 62 63 68 69 70 72 73 74 75 77 78 79 8 80 81 82 83 84 87 88 90 91 92 93 94

#	Part Number	Partname	Quantity	Reference
01		Metering valve	10	991-0323a
02		Metering valve	1	991-0091
03		Metering valve	1	991-0091
04	654 130 40	Protection cap	6
05	308 555 99	Bolt	3
06	517 121 98	Lock washer	3
07	936 979 40	Thread plate	1
08	512 273 98	Socket	3
09	906 984 40	Union	1
10	324 672 40	Plug	1
11	516 741 98	Union	2
12	634 481 40	Union	1
13	516 834 98	Union	1
14	374 443 99	Union	1
15	551 456 40	Union	1
16	516 156 98	Socket	2
17	516 173 98	Socket	1
18	516 183 98	Socket	1
19	551 615 40	Union	1
20	371 861 99	Breech block	1
21	341 754 40	Ultimate pressure control	1
22	652 383 40	Shackle	2
23	511 773 98	Thread pin	8
24	507 037 98	Nut	8
25	516 678 98	Hose assy. DN 20x5500	1
26	923 391 40	Pipe assy. Ш 25	1
27	906 981 40	Union	6
28	515 028 40	Collet	32
29	515 029 40	Socket 90 ?	18
30	515 027 40	Socket, straight	14
31	517 291 98	Union	10
32	374 428 99	Union	6
33	576 160 40	Hose DN 4	-2
34	635 896 40	Tube protection	-2
35	913 645 40	Angle	4
36	923 356 40	Plate	1
37	931 890 40	Grease block	4
38	307 805 99	Bolt	4
39	634 546 40	Union	1
40	334 600 99	Nut	53
41	651 255 40	Clamp	4
42	634 978 40	Cover plate	8
43	512 055 98	Thread pin	8
44	502 618 98	Half clamp	6
45	534 005 99	Weld on plate	3
46	534 004 99	Cover plate	3
47	504 926 98	Grommet	3
48	308 581 99	Bolt	6
49	500 801 98	Lock washer	6
50	510 363 98	Clamp	2
51	006 339 98	Clamp	24
52	006 301 98	Clamp	40
53	323 945 40	Thread pin	66
54	507 025 98	Nut	66
55	654 496 40	Protection cap	10
56	517 560 98	Union	10
57	502 303 98	Socket	10
58	655 268 40	Union	4
59	428 861 40	Pipe assy. Ш 16	4
60	909 206 40	Cover tube	6
61	516 700 98	Union	1
62	634 775 40	Clamp	20
63	634 774 40	Cover plate	20
64	511 885 98	Thread pin	16
65	634 271 40	Union	1
66	936 978 40	Thread plate	1
67	931 896 40	Pipe	1
68	504 224 98	Half clamp	8
69	907 436 40	Hose assy. DN 16x1300	2
70	374 442 99	Union	2
71	907 378 40	Swivel union	1
72	517 561 98	Union	1
73	004 476 79	Clip	1
74	507 121 98	Thread pin	1
75	340 467 99	Washer	2
76	923 393 40	Guard plate	1
77	907 341 40	Straight swivel union	1
78	931 895 40	Pipe	1
79	517 148 98	Socket	1
80	907 377 40	Hose protection DN 16x1500	2
81	931 891 40	Plate	1
82	923 389 40	Plate	1
83	923 390 40	Plate	1
84	923 361 40	Thread pin	4
85	371 264 99	Union nut	6
86	906 868 40	Olive	6
87	307 454 99	Bolt	4
88	517 123 98	Lock washer	4
89	936 962 40	Pipe	1
90	534 001 99	Cover plate	2
91	534 002 99	Weld-on plate	2
92	308 579 99	Bolt	4
93	308 612 99	Bolt	24
94	517 255 98	Union	1
96	928 986 40	Pipe	2
97	928 987 40	Pipe	2
98	371 257 99	Union	16
99	907 080 40	Olive	33
100	371 271 99	Union	17
106	371 260 99	Union nut	2
107	906 351 40	Olive	2
108	371 263 99	Union nut	7
109	907 151 40	Olive	7
\|$$104			-2
\|$$105			-2

Komatsu PC3000-6 S/N 06217 parts catalog PDF

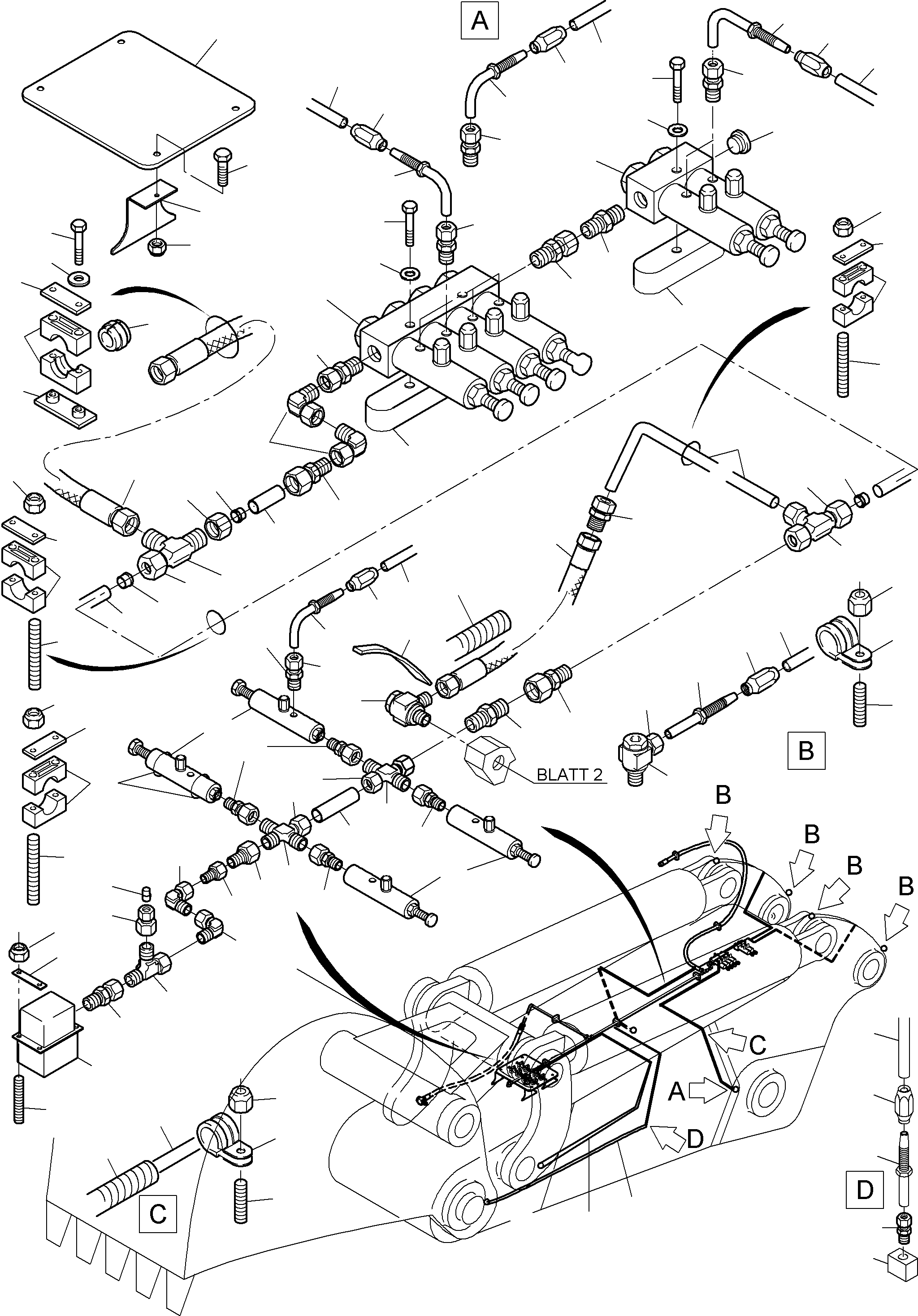

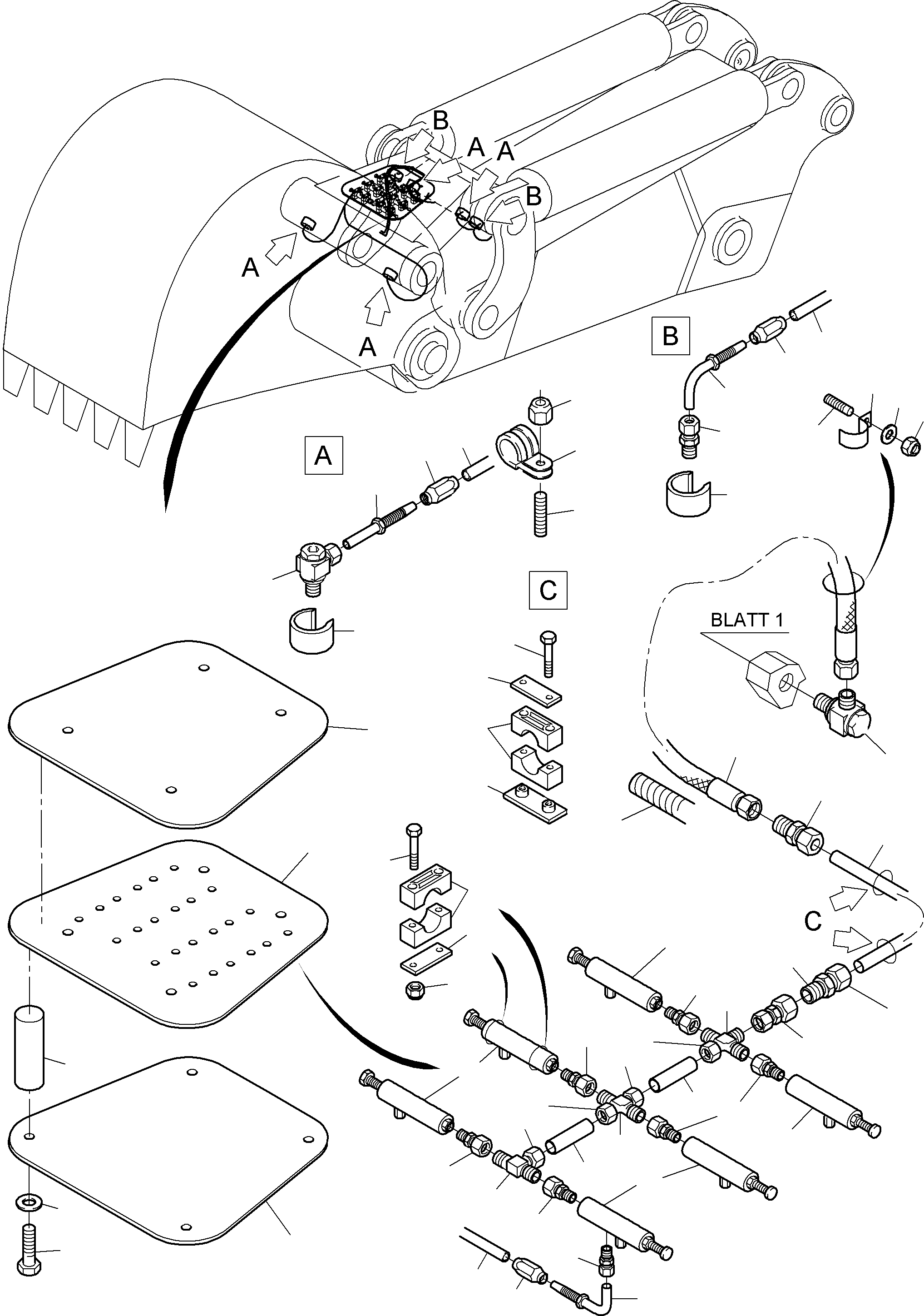

STICK - LUBRICATION 4,0 M (485-2372d) in PC3000-6 S/N 06217. Diagram image and parts list.
