Diagram image 1 of 4

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	517 747 98	Hose assy. DN 40x1370	2
?	517 778 98	Hose assy. DN 40x3780	1
?	930 836 40	Pipe	2
?	576 375 40	Hose assy. DN 20x420	1
?	517 772 98	Hose assy. DN 20x3000	1
?	514 361 98	Hose assy. DN 20x3000	1
?	517 779 98	Hose assy. DN 40x1430	1
?	514 114 98	Hose assy. DN 20x1700	1
?	907 045 40	Union	4
?	906 925 40	Union	4
?	516 281 98	Socket	1
?	642 359 40	Orifice	2
?	374 409 99	Union	3
?	512 087 98	Socket	2
?	374 415 99	Socket	4
?	516 163 98	Socket	2
?	506 371 98	Half Clamp	6
?	502 626 98	Grommet	6
?	534 008 99	Cover plate	11
?	308 459 99	Bolt	12
?	509 310 98	Locking Plate	5
?	517 731 98	Hose assy. DN 25x2100	1
?	517 732 98	Hose assy. DN 25x4100	1
?	374 431 99	Socket	3
?	517 776 98	Hose assy. DN 40x1400	1
?	517 742 98	Hose assy. DN 25x1200	1
?	643 817 40	Hose assy. DN 25x1100	1
?	929 142 40	Pipe	1
?	929 144 40	Pipe	1
?	371 280 99	Union nut	8
?	906 480 40	Olive	8
?	517 780 98	Hose assy. DN 40x1530	1
?	915 476 40	Angle	2
?	929 141 40	Console	1
?	930 840 40	Angle	1
?	915 498 40	Console	1
?	929 134 40	Angle	1
?	915 493 40	Sheet metal	1
?	500 345 98	Half Clamp	16
?	308 613 99	Bolt	6
?	334 600 99	Nut	16
?	509 996 98	Bolt	2
?	340 467 99	Washer	12
?	915 494 40	Block	1
?	319 161 99	Bolt	2
?	500 814 98	Bolt	10
?	308 608 99	Bolt	6
?	510 745 98	Resilient sleeve 13/25x40	16
?	514 921 98	Nut	8
?	340 467 99	Washer	7
?	0443452711	Clip	4
?	907 753 40	Hose protection Bulk ware, state length required	-2
?	907 804 40	Hose protection Bulk ware, state length required	-2
?	0443453411	Clip	2
?	307 775 99	Bolt	1
?	308 614 99	Bolt	4
?	173 495 40	Plug	2
?	360 873 40	Plug	1
?	517 582 98	O-Ring	4
?	334 601 99	Nut	6
?	371 278 99	Union nut	10
?	906 350 40	Olive	10
?	516 750 98	Socket	10
?	915 466 40	Pipe	1
?	915 469 40	Pipe	1
?	915 316 40	Header	1
?	896 710 40	Strainer	1
?	898 129 40	Pulsation shock absorber	1
?	907 725 40	Differential pressure switch	1
?	307 824 99	Bolt	8
?	517 192 98	Lock washer	8
?	307 828 99	Bolt	4
?	340 469 99	Washer	4
?	374 428 99	Union	2
?	907 080 40	Olive	2
?	371 257 99	Union nut	2
?	576 160 40	Hose assy. NW 4 Bulk ware, state length required	-2
?	515 027 40	Hose connection	1
?	515 029 40	Hose connection 90 ?	1
?	515 028 40	Protector	2
?	319 409 99	Bolt	4
?	308 610 99	Bolt	4
?	510 748 98	Resilient sleeve 13/25x20	4
?	502 687 98	Washer	4

Komatsu PC3000-6 S/N 06217 parts catalog PDF

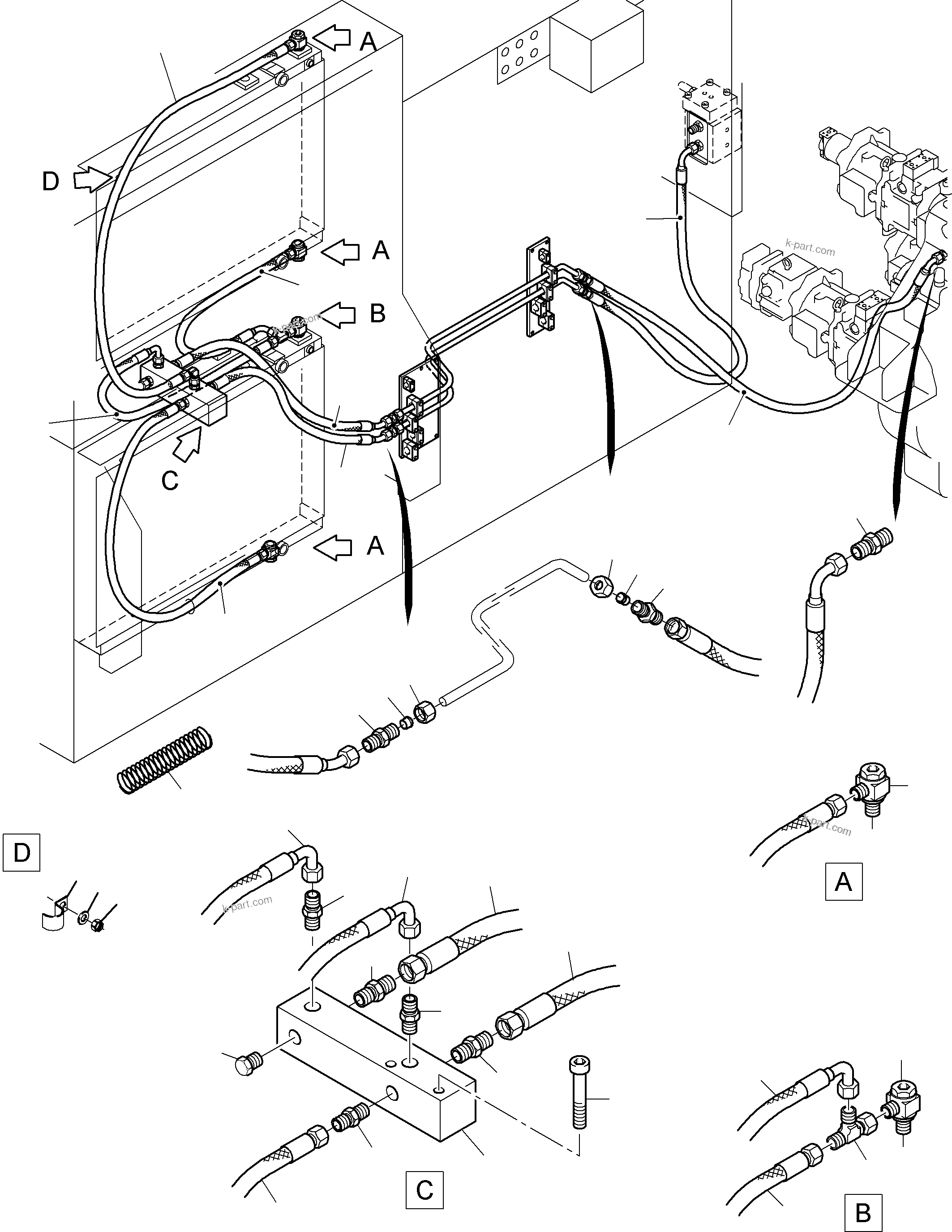

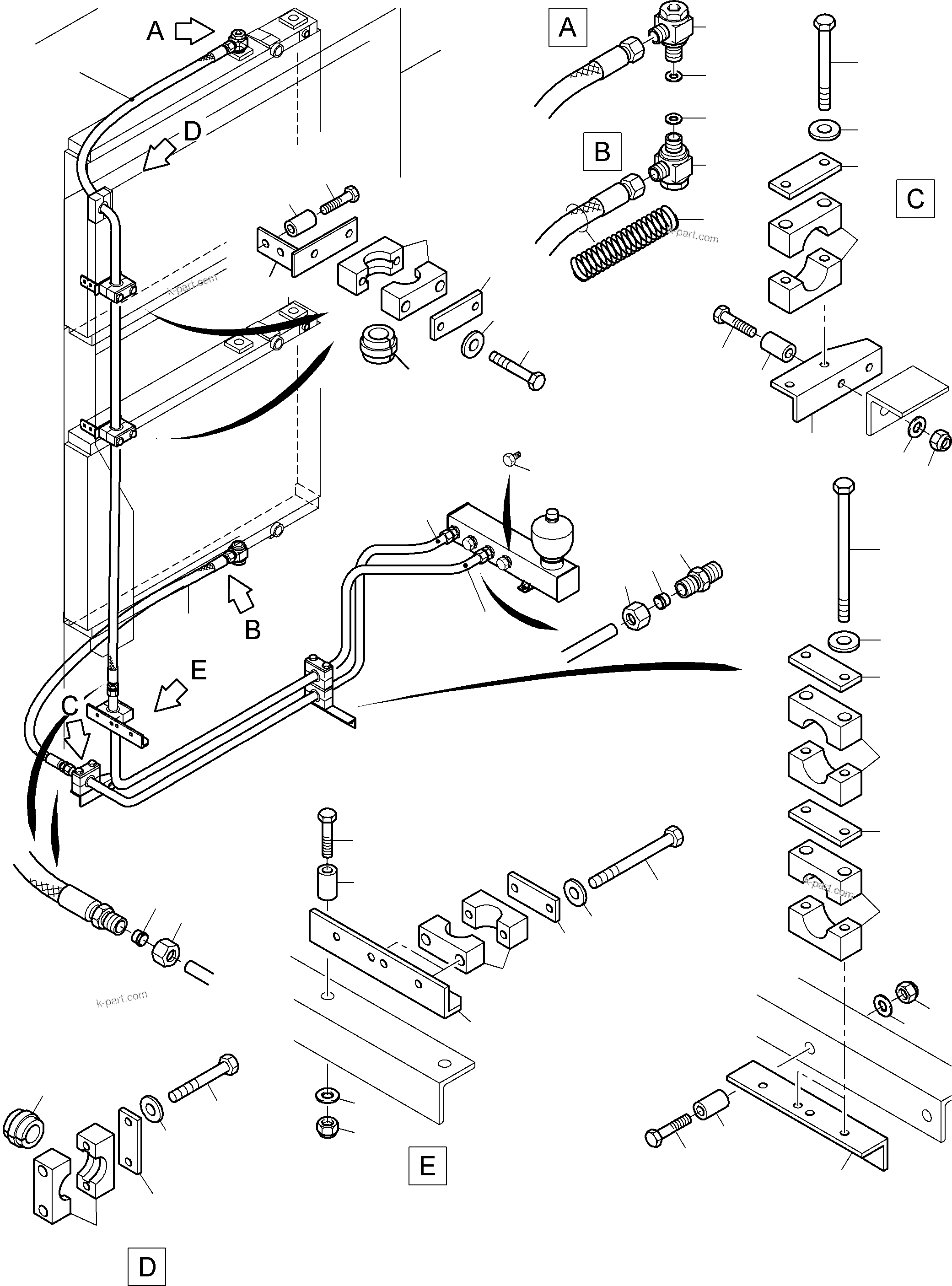

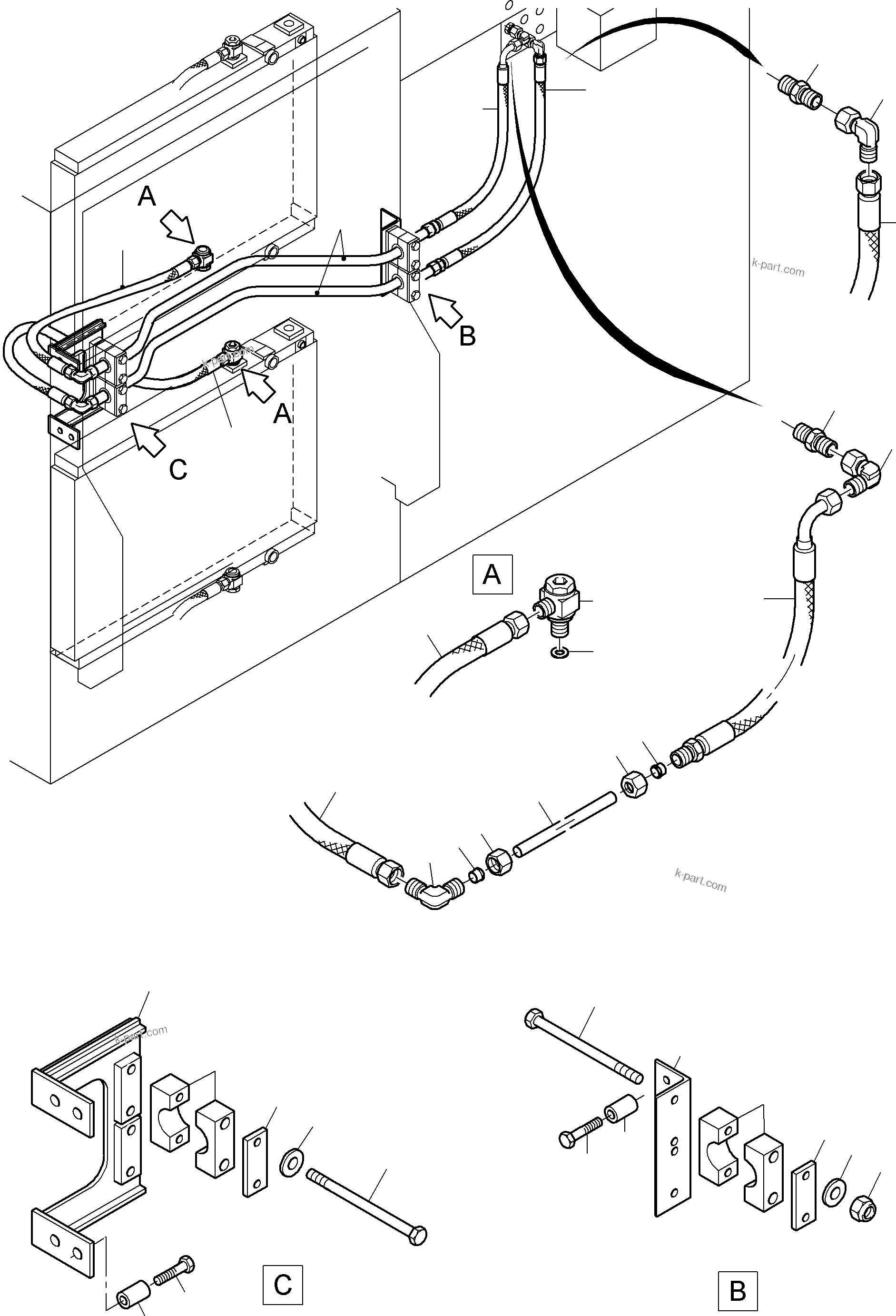

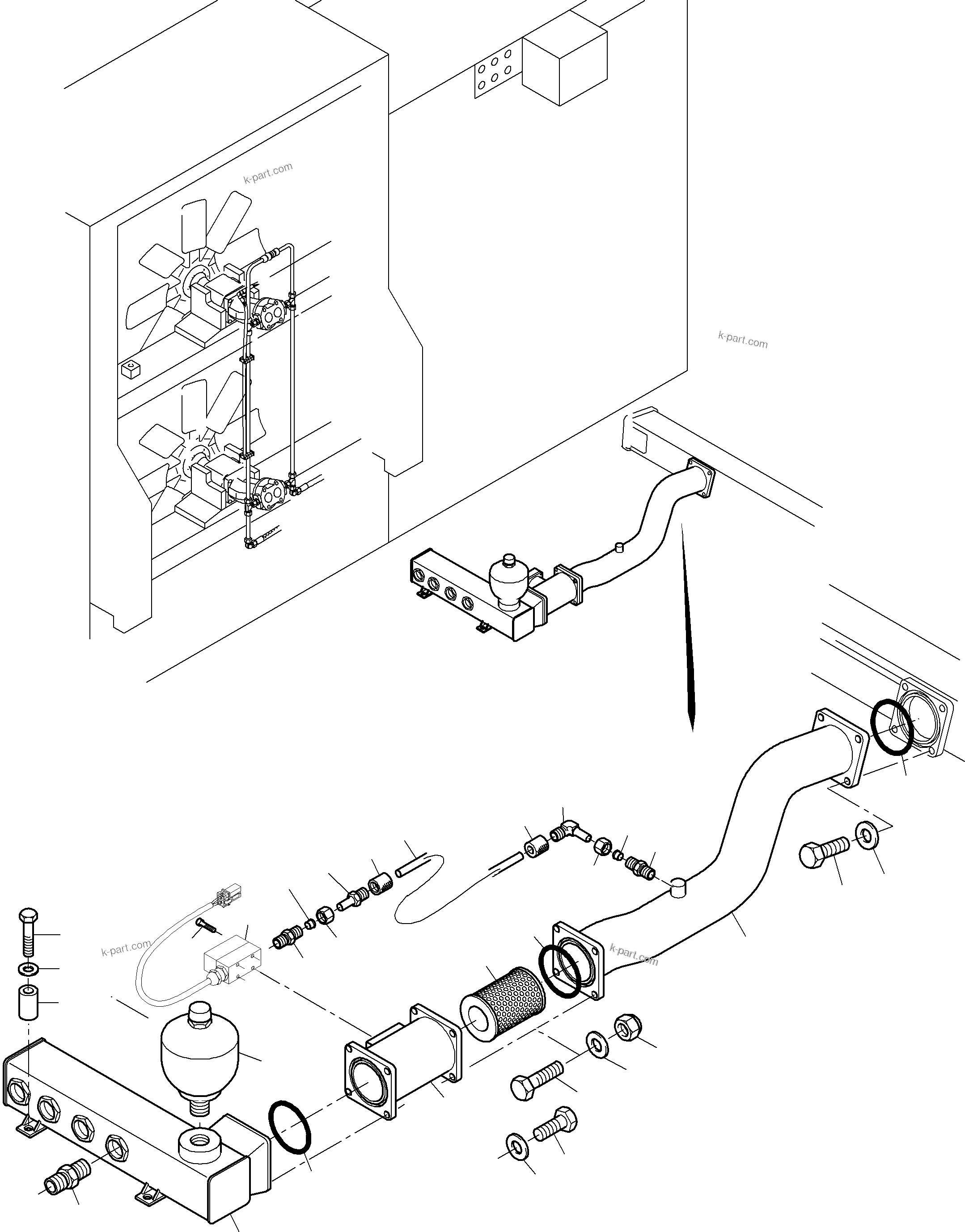

OIL COOLER - HOSES ASSY. (485-1816b) in PC3000-6 S/N 06217. Diagram image and parts list.
