CONTROL LINES CONTROL BLOCKS - PILOT CONTROL PLATE (BE) | PC3000-6 S/N 06217

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

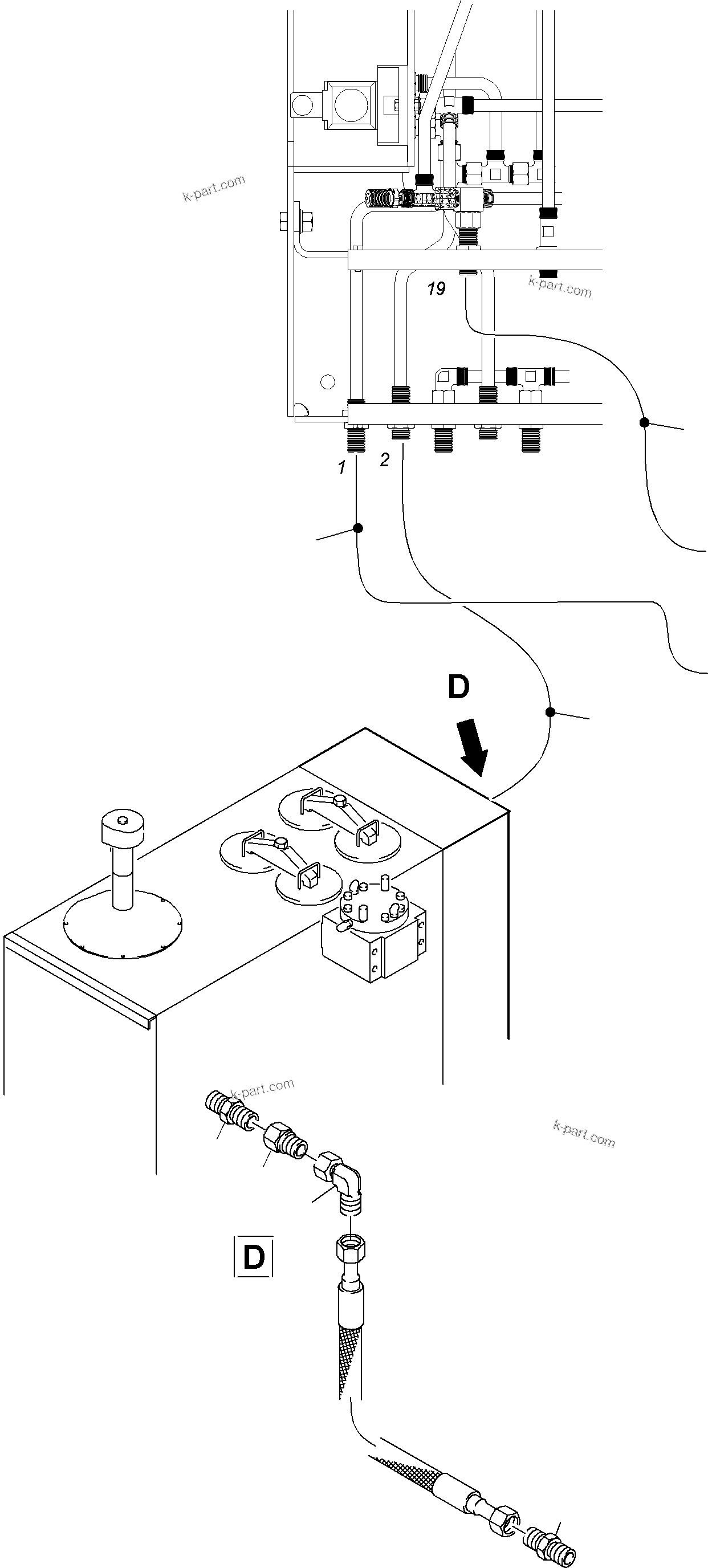

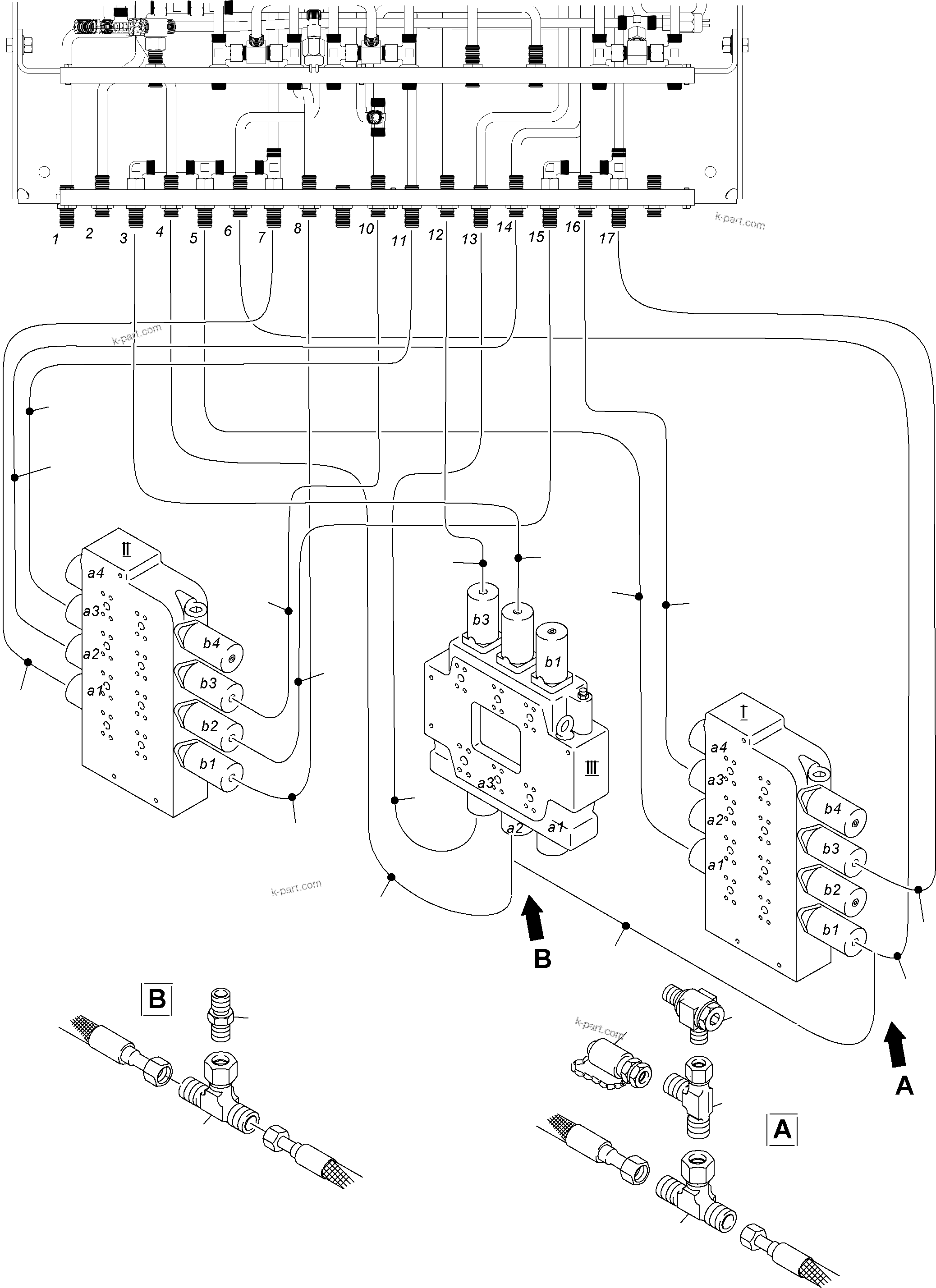

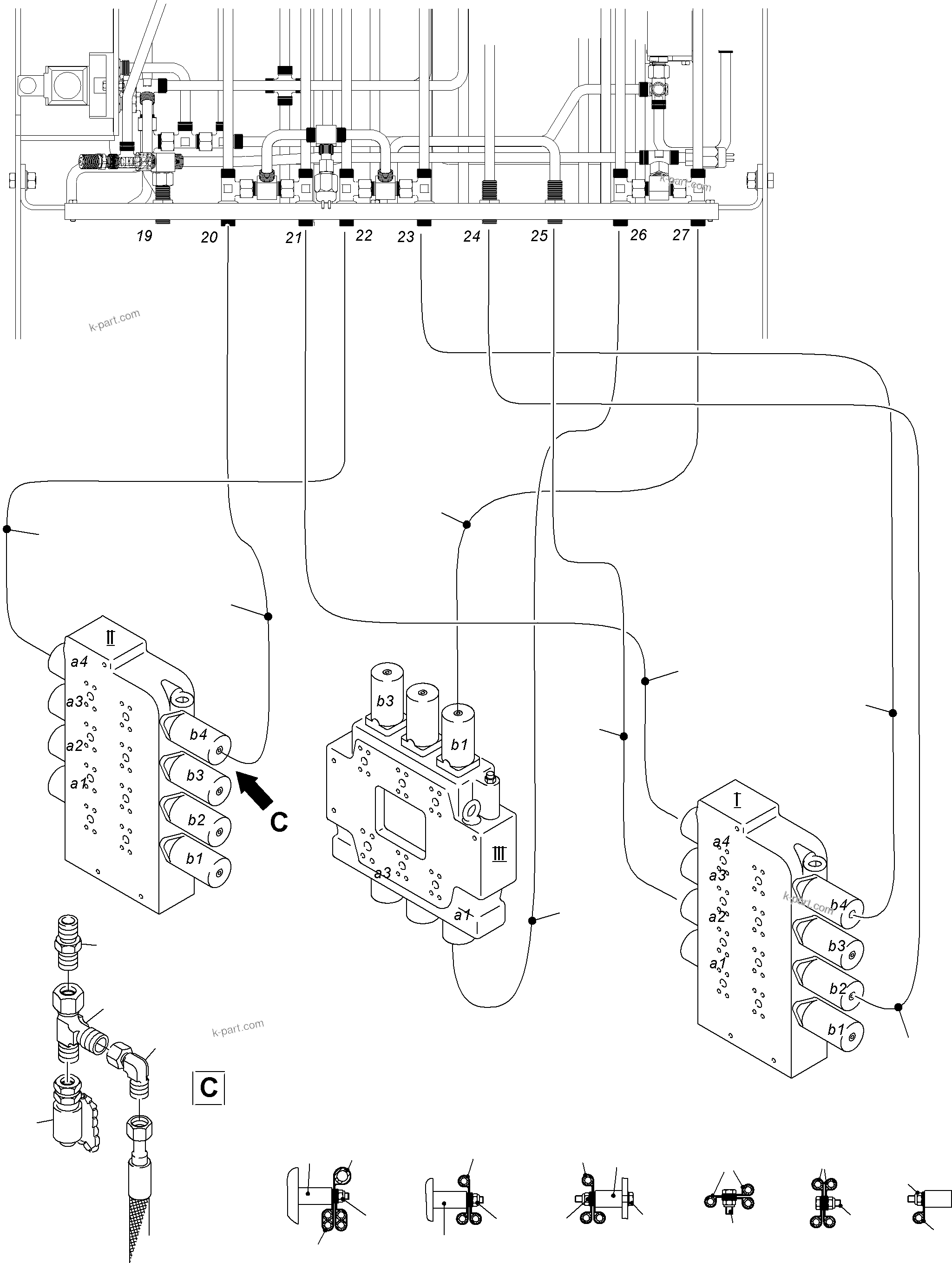

Diagram image 1 of 3

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	517 645 98	Hose assy. DN10x11400	1
?	517 761 98	Hose assy. DN16x11400	1
?	517 646 98	Hose assy. DN10x11400	1
?	517 651 98	Hose assy. DN10x7700	2
?	517 647 98	Hose assy. DN10x7200	3
?	517 648 98	Hose assy. DN10x7000	9
?	516 507 98	Hose assy. DN10x6700	1
?	517 650 98	Hose assy. DN10x7200	1
?	515 526 98	Hose assy. DN10x7500	2
?	515 525 98	Hose assy. DN10x8000	4
?	510 926 98	Hose assy. DN10x1200	1
?	516 167 98	Socket	2
?	909 101 40	Orifice	4
?	371 459 99	Union	3
?	517 117 98	Union	15
?	516 157 98	Socket	4
?	906 983 40	Union	1
?	604 499 40	Union	1
?	516 159 98	Union	1
?	515 865 98	Socket	1
?	516 174 98	Socket	1
?	502 752 98	Coupling	22
?	308 583 99	Bolt	1
?	340 467 99	Washer	1
?	443451610	Clip	1
?	307 779 99	Bolt	5
?	507 037 98	Nut	15
?	340 465 99	Washer	16
?	510 741 98	Resilient sleeve	3
?	510 745 98	Resilient sleeve	1
?	443451510	Clip	25
?	443452310	Clip	7
?	443551510	Clip	2
