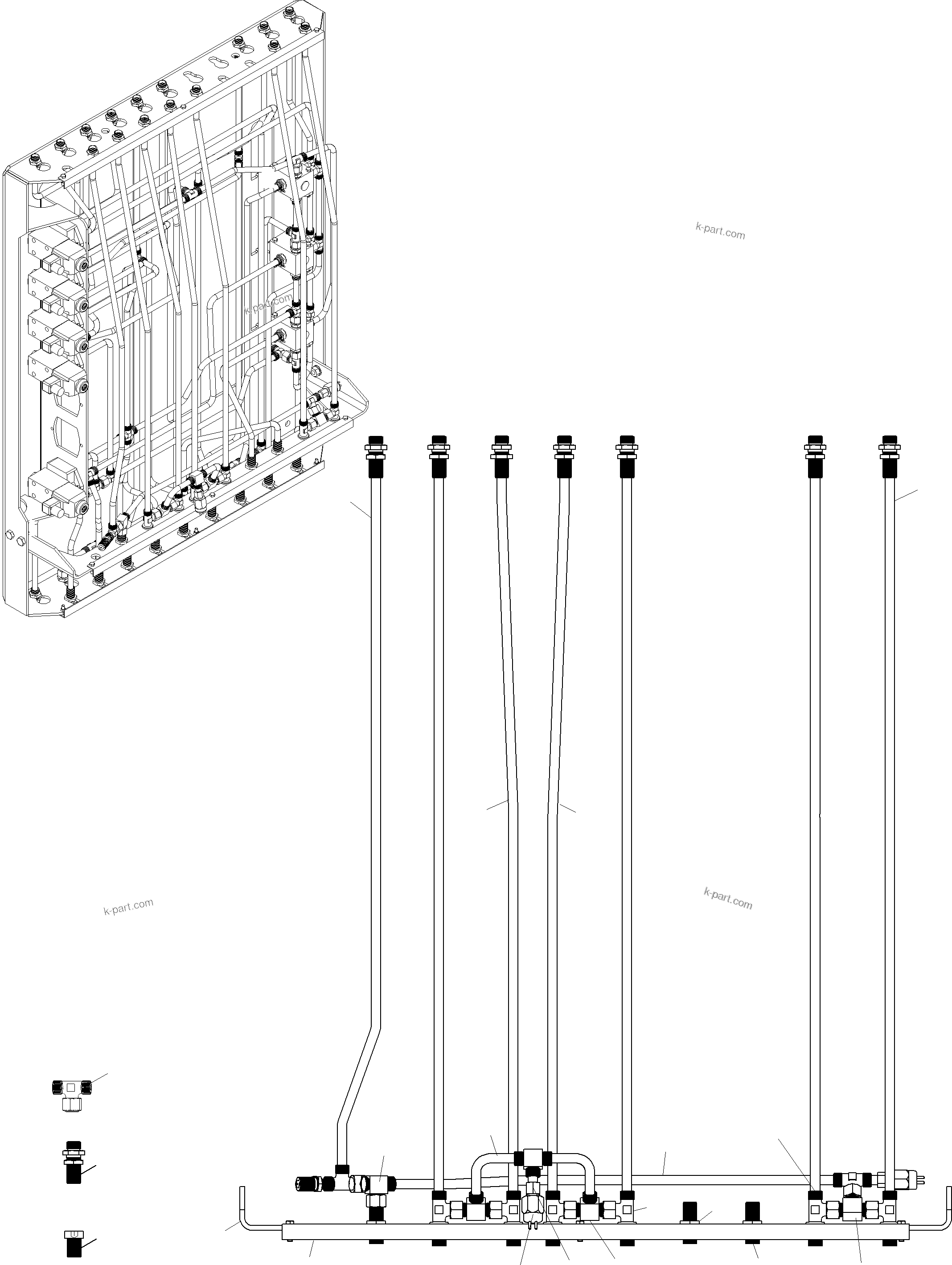

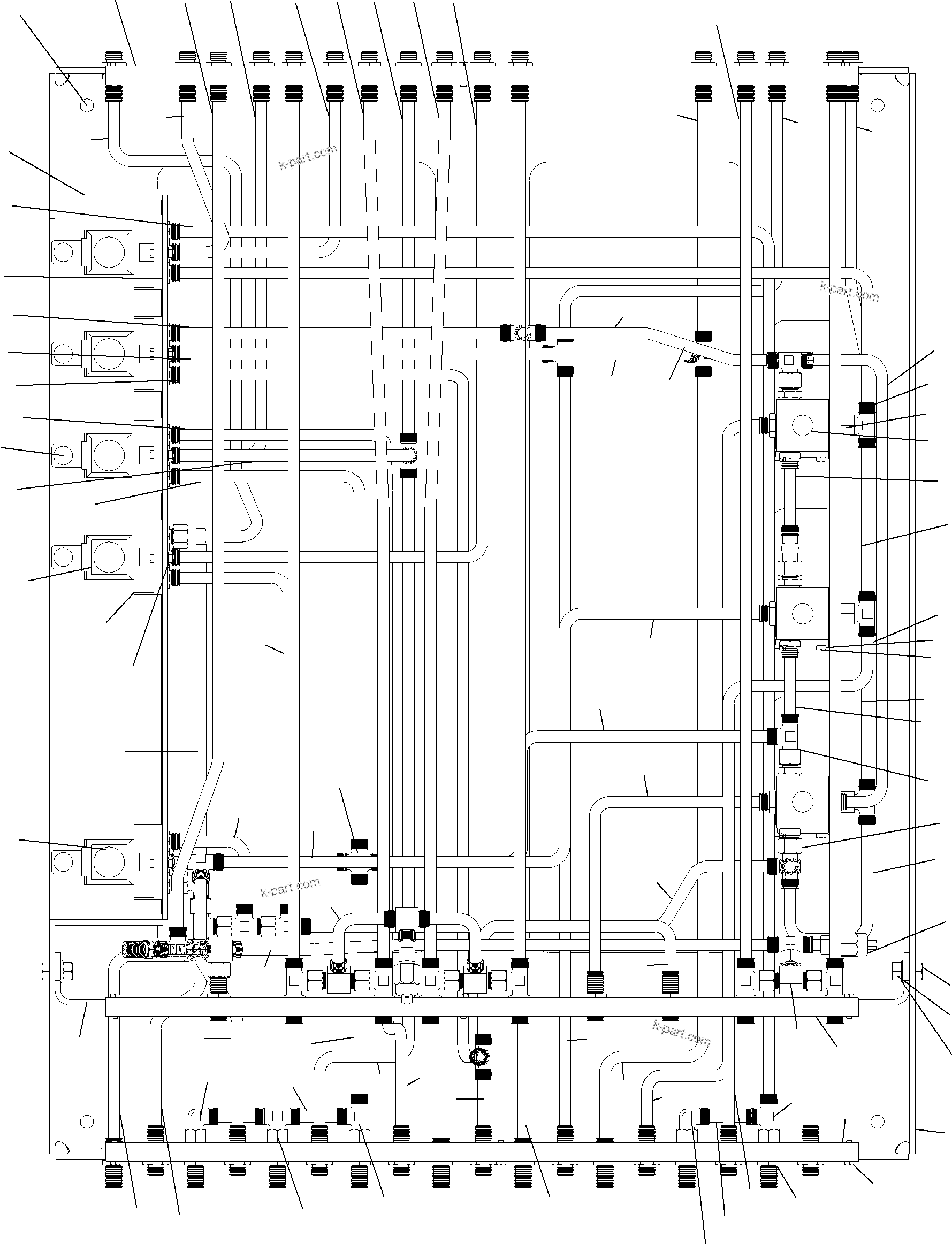

Diagram image 1 of 2

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	928 058 40	Pipe assy.	2
?	928 057 40	Pipe assy.	1
?	928 007 40	Pipe assy.	1
?	928 011 40	Pipe assy.	1
?	928 012 40	Pipe assy.	1
?	928 014 40	Pipe assy.	3
?	928 015 40	Pipe assy.	2
?	928 018 40	Pipe assy.	1
?	928 019 40	Pipe assy.	3
?	928 020 40	Pipe assy.	1
?	928 021 40	Pipe assy.	1
?	928 023 40	Pipe assy.	1
?	928 026 40	Pipe assy.	1
?	928 033 40	Pipe assy.	1
?	928 034 40	Pipe assy.	1
?	928 035 40	Pipe assy.	1
?	928 043 40	Pipe assy.	1
?	928 046 40	Pipe assy.	1
?	928 050 40	Pipe assy.	4
?	928 052 40	Pipe assy.	1
?	928 054 40	Pipe assy.	1
?	928 055 40	Pipe assy.	1
?	928 060 40	Pipe assy.	1
?	928 061 40	Pipe assy.	1
?	928 062 40	Pipe assy.	1
?	928 063 40	Pipe assy.	1
?	928 064 40	Pipe assy.	1
?	928 065 40	Pipe assy.	1
?	928 066 40	Pipe assy.	1
?	928 067 40	Pipe assy.	1
?	928 068 40	Pipe assy.	1
?	928 069 40	Pipe assy.	1
?	928 070 40	Pipe assy.	1
?	928 071 40	Pipe assy.	1
?	928 072 40	Pipe assy.	1
?	928 073 40	Pipe assy.	1
?	928 074 40	Pipe assy.	1
?	928 075 40	Pipe assy.	1
?	928 076 40	Pipe assy.	1
?	928 077 40	Pipe assy.	1
?	928 078 40	Pipe assy.	1
?	928 079 40	Pipe assy.	1
?	928 080 40	Pipe assy.	1
?	928 081 40	Pipe assy.	1
?	928 082 40	Pipe assy.	1
?	928 083 40	Pipe assy.	1
?	928 084 40	Pipe assy.	1
?	928 085 40	Pipe assy.	1
?	928 086 40	Pipe assy.	1
?	928 087 40	Pipe assy.	1
?	919 574 40	Pressure switch assy. consist. of fig-nos. 114+115	2
?	371 949 99	Union	2
?	358 286 40	Diaphragm type pressure switch	1
?	907 535 40	Bonded seal	1
?	907 819 40	Union	6
?	516 167 98	Socket	8
?	516 174 98	Socket	12
?	516 157 98	Socket	3
?	374 430 99	Union	15
?	371 459 99	Union	19
?	509 267 98	Nut	43
?	634 499 40	Union	1
?	511 015 98	Union	5
?	516 962 98	Union	37
?	502 752 98	Coupling	1
?	513 854 98	Bolt	4
?	307 732 99	Bolt	19
?	514 340 98	Screw	20
?	507 025 98	Nut	25
?	509 488 98	Nut	4
?	340 509 99	Washer	4
?	255 694 40	Plug	1
?	907 820 40	Shuttle valve	1
?	343 873 40	Shuttle valve	4
?	414 370 40	Valve	3
?	907 606 40	4/2-Directional spool valve	4
?	907 605 40	4/2-Directional spool valve	1
?	308 544 99	Bolt	6
?	371 274 99	Union nut	100
?	906 347 40	Olive	100
?	928 099 40	Marking strips, top	1
?	928 097 40	Marking strips, lower	1
?	928 098 40	Marking strips, center	1
?	928 002 40	Base plate	1
?	180 325 40	Base plate	5
?	928 004 40	Rib	2
?	928 003 40	Bridge	1
?	308 436 99	Bolt	4
?	510 741 98	Resilient sleeve	4
?			-2
?			-2
?			-2
?			-2
