PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	948 827 40	Harness - pump distributor gear consist of fig nos. 41-68	1	InternKon: 948 828 40 / 1
?	948 808 40	Retainer	1	InternKon: 948 828 40 / 2
?	931 330 40	Plate	1	InternBDB: 8X155X590 \| InternKon: 948 828 40 / 3
?	931 326 40	Plate	5	InternBDB: 8X40X127 \| InternKon: 948 828 40 / 4
?	931 327 40	Plate	1	InternBDB: 8X192X461 \| InternKon: 948 828 40 / 5
?	931 329 40	Plate	2	InternBDB: 8X40X100 \| InternKon: 948 828 40 / 6
?	931 352 40	Retainer	1	InternKon: 948 828 40 / 7
?	933 398 40	Plate	1	InternBDB: 8X40X250 \| InternKon: 948 828 40 / 8
?	307 777 99	Bolt	7	InternBDB: M10X25 8.8 DIN 00933 \| InternKon: 948 828 40 / 9
?	517 122 98	Lock washer	30	InternBDB: 10 STZN WN 65593840 2x 933 382 40 \| InternKon: 948 828 40 / 10
?	307 821 99	Hex screw	2	InternBDB: M16 X 25 8.8 DIN 00933 \| InternKon: 948 828 40 / 11
?	517 123 98	Lock washer	2	InternBDB: 16 STZN WN 65593840 \| InternKon: 948 828 40 / 12
?	308 425 99	Bolt	6	InternBDB: M16X 85 10.9 DIN 00931 \| InternKon: 948 828 40 / 13
?	507 037 98	Nut	20	InternBDB: M10 8 DIN 00985 \| InternKon: 948 828 40 / 14
?	307 842 99	Bolt	8	InternBDB: M20X35 8.8 DIN 00933 \| InternKon: 948 828 40 / 15
?	517 124 98	Lock washer	8	InternBDB: 20 STZN WN 65593840 \| InternKon: 948 828 40 / 16
?	0443453211	Clip NW 32	20	InternBDB: KES 04434 \| InternKon: 948 828 40 / 17
?	0443452711	Clip NW 27	2	InternBDB: 77 KES 04434 \| InternKon: 948 828 40 / 18
?	0443451910	Clip NW 19	4	InternBDB: 77 KES 04434 \| InternKon: 948 828 40 / 19
?	0443451510	Clip NW 15	14	InternBDB: 77 KES 04434 \| InternKon: 948 828 40 / 20
?	0819320010	Clip	6	InternBDB: KES 08193 \| InternKon: 948 828 40 / 21
?	940 480 40	Sensor	3	InternBDB: 420355 PT100 G1/2" * 1x 933 382 40 \| InternKon: 948 828 40 / 23
?	795 131 73	Plug assy.	2	InternBDB: 0819212820 KES 08192 \| InternKon: 948 828 40 / 24
?	307 773 99	Bolt	19	InternBDB: M10X16 8.8 DIN 00933 2x 933 382 40 \| InternKon: 948 828 40 / 25
?	307 775 99	Bolt	7	InternBDB: M10X20 8.8 DIN 00933 \| InternKon: 948 828 40 / 26
?	0443452110	Clip NW 21,5	3	InternBDB: 77 KES 04434 1x 933 382 40 \| InternKon: 948 828 40 / 28
?	340 465 99	Washer	18	InternBDB: B 10,5 140HV DIN 00125 \| InternKon: 948 828 40 / 29
?	906 079 40	T-Distributor DN 29	1	InternBDB: NW 29 BFTL-292929GGG \| InternKon: 948 827 40 / 1
?	655 810 40	Pipe adapter DN 29/12	2	InternBDB: NW 29/12 BAVR-29G12T \| InternKon: 948 827 40 / 2
?	655 650 40	Cable protection hose DN 12	3	InternBDB: NW 12 VCST-12B \| InternKon: 948 827 40 / 3
?	655 696 40	Cable protection hose DN 29	12	InternBDB: NW 29 VCSG-29B \| InternKon: 948 827 40 / 4
?	896 558 40	Pipe adapter DN 29/23	1	InternBDB: NW 29/23 BAVR-29G23G \| InternKon: 948 827 40 / 5
?	655 652 40	Cable protection hose DN 23	-2	InternBDB: NW 23 VCSG-23B \| InternKon: 948 827 40 / 6
?	655 630 40	T-Distributor DN 29/23	1	InternBDB: NW 29/23 BFTL-292323GGG \| InternKon: 948 827 40 / 7
?	655 627 40	Distributor DN 23/17	1	InternBDB: NW 23/17 BVYR-231717GGG \| InternKon: 948 827 40 / 8
?	655 629 40	T-Distributor DN 17	3	InternBDB: NW 17 BFTL-171717GGG \| InternKon: 948 827 40 / 9
?	655 633 40	Pipe adapter DN 17/12	4	InternBDB: NW 17/12 BAVR-17G12T \| InternKon: 948 827 40 / 10
?	256 514 40	Plate	10	InternBDB: 15X30X1,5 ALU \| InternKon: 948 827 40 / 11
?	655 651 40	Cable protection hose DN 17	1	InternBDB: NW 17 VCSG-17B \| InternKon: 948 827 40 / 12
?	907 692 40	Fitting PG 9	8	InternBDB: M16/NW12 BVIR-M162 \| InternKon: 948 827 40 / 13
?	907 703 40	Cable union	8	InternBDB: MEHRFACH 21650YNPM4X3 \| InternKon: 948 827 40 / 14
?	896 520 40	End pin	14	InternBDB: BO 3,0X25 \| InternKon: 948 827 40 / 15
?	795 132 73	Plug assy.	9	InternBDB: 0819212920 KES 08192 \| InternKon: 948 827 40 / 16
?	907 877 40	Cable 2x0,75	80	InternBDB: 2X0,75MM2 GRAU 21151 \| InternKon: 948 827 40 / 17
?	515 213 40	Cable 1,0	86	InternBDB: 1,0MM2 BLAU \| InternKon: 948 827 40 / 18
?	907 981 40	Fitting DN 29	1	InternBDB: NW 29 BVIVG-U359 \| InternKon: 948 827 40 / 19
?	795 129 73	Plug assy.	1	InternBDB: 0819191206 HD36-24-31PE-059 KES 08191 \| InternKon: 948 827 40 / 20
?	795 157 73	Plug assy.	24	InternBDB: 0819105320 0460-202-16141 KES 08191 \| InternKon: 948 827 40 / 21
?	940 852 40	Plug	7	InternBDB: #16 DVI 61103-20 \| InternKon: 948 827 40 / 22
?	056 292 40	Cable strap	10	InternBDB: TY 23 M \| InternKon: 948 827 40 / 23
?	940 461 40	Insulating tube B5x0,6	3	InternBDB: B 5X0,6 PUR 70 SHORE \| InternKon: 948 827 40 / 24
?	655 626 40	Distributor DN 17/12	1	InternBDB: NW 17/12 BVYR-171212GTT HOSEN- \| InternKon: 948 827 40 / 25
?	940 913 40	Warmth shrink hose	-2	InternBDB: BESTELLNR 91 F 170 6 M H1/ 4 V 6,4 N 3,2 W 0,6 \| InternKon: 948 827 40 / 26
?	940 909 40	Warmth shrink hose	1	InternBDB: BESTELLNR 91 F 162 10 M H1/16 V 1,6 N 0,8 W 0,4 \| InternKon: 948 827 40 / 27
?	940 629 40	Warmth shrink hose	-2	InternBDB: .05060 91F2570 \| InternKon: 948 827 40 / 28

Komatsu PC3000-6E S/N 06262 parts catalog PDF

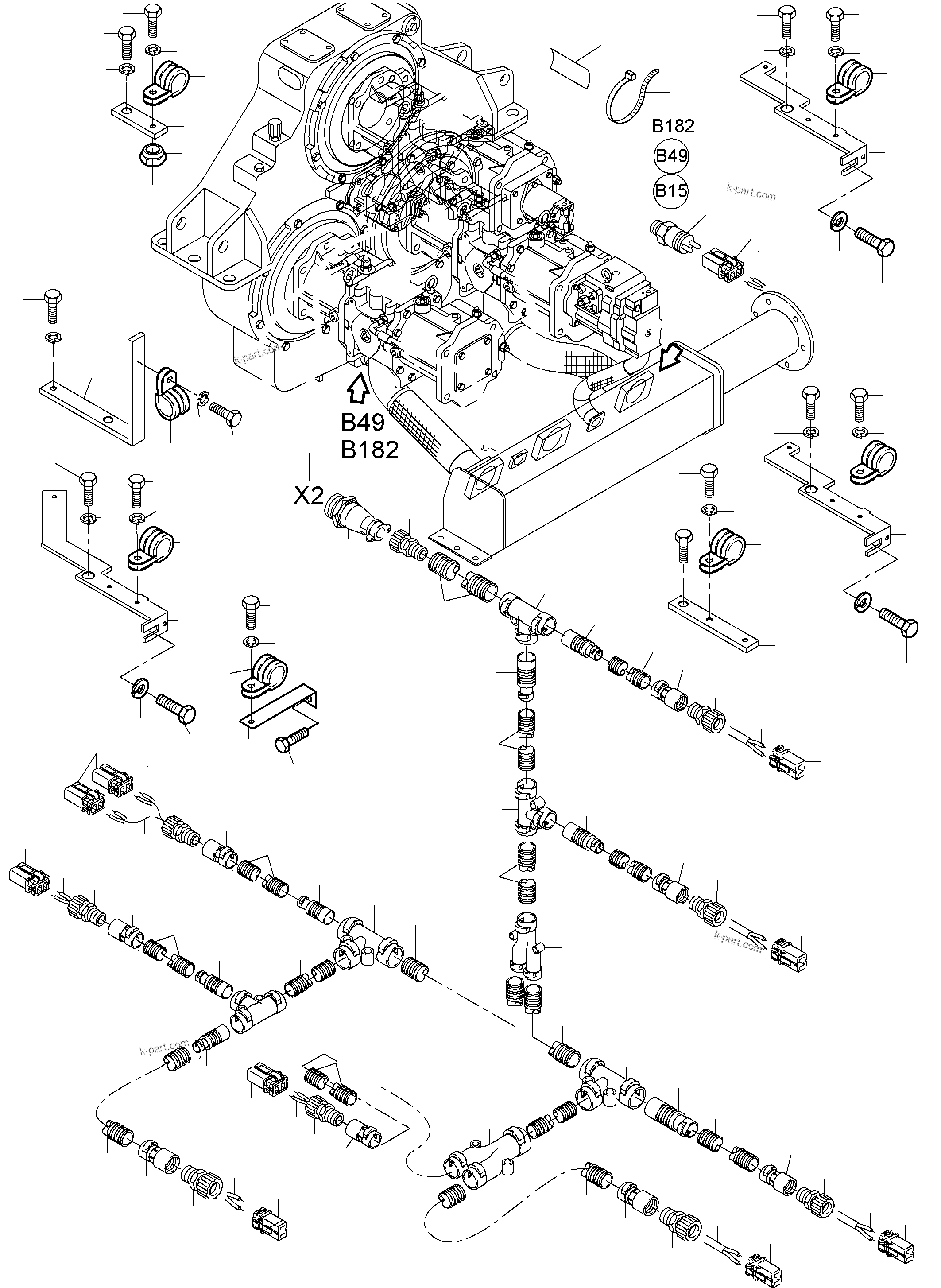

CABLES - PUMP DISTRIBUTOR GEAR (255-2148) in PC3000-6E S/N 06262. Diagram image and parts list.
