01 |
948 827 40
|

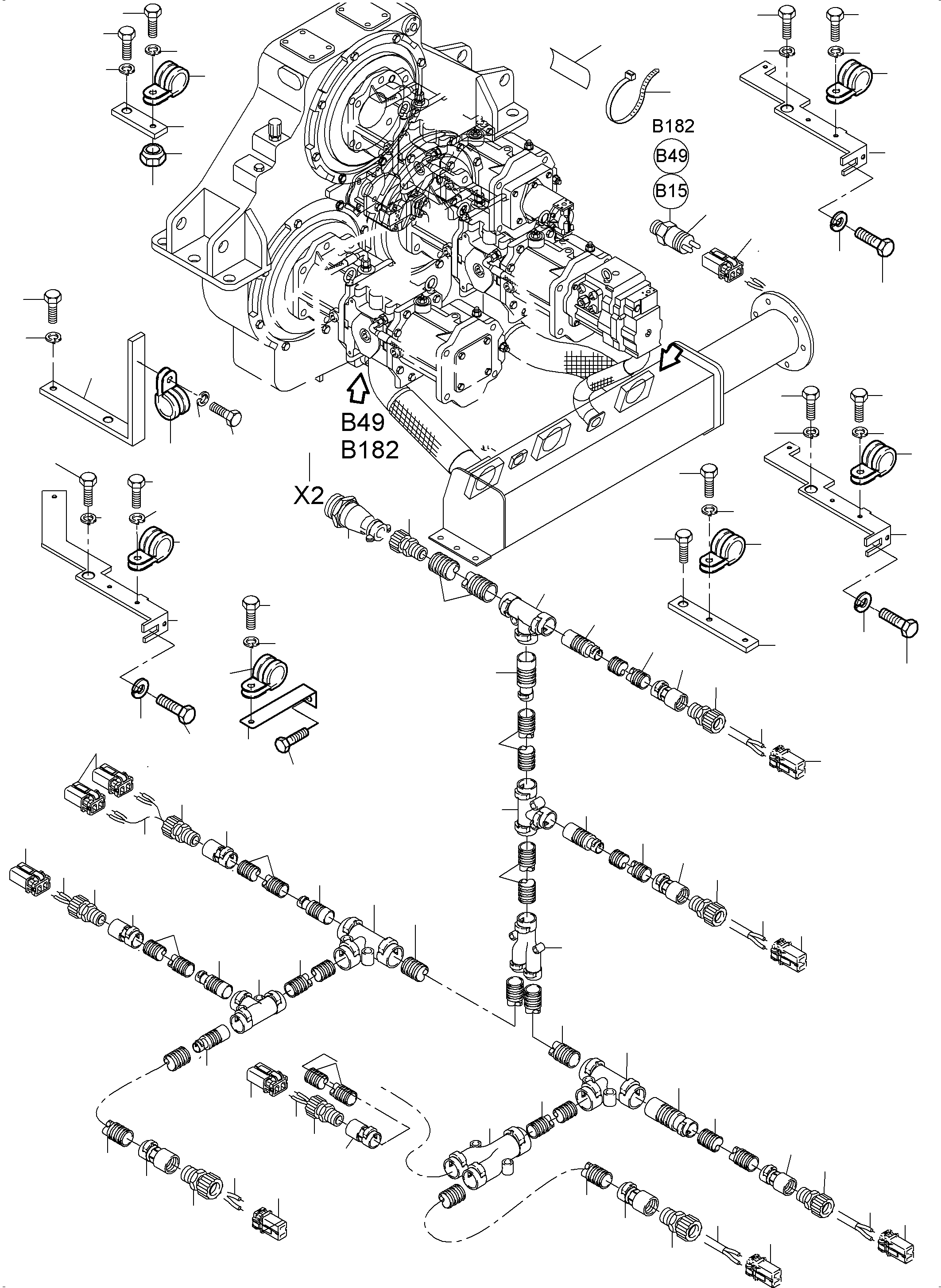

Harness - pump distributor gear consist of fig nos. 41-68 |
1 |
InternKon: 948 828 40 / 1
|
|
|
|
02 |
948 808 40
|
Retainer |
1 |
InternKon: 948 828 40 / 2
|
|
|
|
03 |
931 330 40
|
Plate |
1 |
InternBDB: 8X155X590 | InternKon: 948 828 40 / 3
|
|
|
|
04 |
931 326 40
|
Plate |
5 |
InternBDB: 8X40X127 | InternKon: 948 828 40 / 4
|
|
|
|
05 |
931 327 40
|
Plate |
1 |
InternBDB: 8X192X461 | InternKon: 948 828 40 / 5
|
|
|
|
06 |
931 329 40
|
Plate |
2 |
InternBDB: 8X40X100 | InternKon: 948 828 40 / 6
|
|
|
|
07 |
931 352 40
|
Retainer |
1 |
InternKon: 948 828 40 / 7
|
|
|
|
08 |
933 398 40
|
Plate |
1 |
InternBDB: 8X40X250 | InternKon: 948 828 40 / 8
|
|
|
|
09 |
307 777 99
|
Bolt |
7 |
InternBDB: M10X25 8.8 DIN 00933 | InternKon: 948 828 40 / 9
|
|
|
|
10 |
517 122 98
|
Lock washer |
30 |
InternBDB: 10 STZN WN 65593840 2x 933 382 40 | InternKon: 948 828 40 / 10
|
|
|
|
11 |
307 821 99
|
Hex screw |
2 |
InternBDB: M16 X 25 8.8 DIN 00933 | InternKon: 948 828 40 / 11
|
|
|
|
12 |
517 123 98
|
Lock washer |
2 |
InternBDB: 16 STZN WN 65593840 | InternKon: 948 828 40 / 12
|
|
|
|
13 |
308 425 99
|
Bolt |
6 |
InternBDB: M16X 85 10.9 DIN 00931 | InternKon: 948 828 40 / 13
|
|
|
|
14 |
507 037 98
|
Nut |
20 |
InternBDB: M10 8 DIN 00985 | InternKon: 948 828 40 / 14
|
|
|
|
15 |
307 842 99
|
Bolt |
8 |
InternBDB: M20X35 8.8 DIN 00933 | InternKon: 948 828 40 / 15
|
|
|
|
16 |
517 124 98
|
Lock washer |
8 |
InternBDB: 20 STZN WN 65593840 | InternKon: 948 828 40 / 16
|
|
|
|
17 |
0443453211
|
Clip NW 32 |
20 |
InternBDB: KES 04434 | InternKon: 948 828 40 / 17
|
|
|
|
18 |
0443452711
|
Clip NW 27 |
2 |
InternBDB: 77 KES 04434 | InternKon: 948 828 40 / 18
|
|
|
|
19 |
0443451910
|
Clip NW 19 |
4 |
InternBDB: 77 KES 04434 | InternKon: 948 828 40 / 19
|
|
|
|
20 |
0443451510
|
Clip NW 15 |
14 |
InternBDB: 77 KES 04434 | InternKon: 948 828 40 / 20
|
|
|
|
21 |
0819320010
|
Clip |
6 |
InternBDB: KES 08193 | InternKon: 948 828 40 / 21
|
|
|
|
23 |
940 480 40
|
Sensor |
3 |
InternBDB: 420355 PT100 G1/2" * 1x 933 382 40 | InternKon: 948 828 40 / 23
|
|
|
|
24 |
795 131 73
|
Plug assy. |
2 |
InternBDB: 0819212820 KES 08192 | InternKon: 948 828 40 / 24
|
|
|
|
25 |
307 773 99
|
Bolt |
19 |
InternBDB: M10X16 8.8 DIN 00933 2x 933 382 40 | InternKon: 948 828 40 / 25
|
|
|
|
26 |
307 775 99
|
Bolt |
7 |
InternBDB: M10X20 8.8 DIN 00933 | InternKon: 948 828 40 / 26
|
|
|
|
28 |
0443452110
|
Clip NW 21,5 |
3 |
InternBDB: 77 KES 04434 1x 933 382 40 | InternKon: 948 828 40 / 28
|
|
|
|
29 |
340 465 99
|
Washer |
18 |
InternBDB: B 10,5 140HV DIN 00125 | InternKon: 948 828 40 / 29
|
|
|
|
41 |
906 079 40
|
T-Distributor DN 29 |
1 |
InternBDB: NW 29 BFTL-292929GGG | InternKon: 948 827 40 / 1
|
|
|
|
42 |
655 810 40
|
Pipe adapter DN 29/12 |
2 |
InternBDB: NW 29/12 BAVR-29G12T | InternKon: 948 827 40 / 2
|
|
|
|
43 |
655 650 40
|
Cable protection hose DN 12 |
3 |
InternBDB: NW 12 VCST-12B | InternKon: 948 827 40 / 3
|
|
|
|
44 |
655 696 40
|
Cable protection hose DN 29 |
12 |
InternBDB: NW 29 VCSG-29B | InternKon: 948 827 40 / 4
|
|
|
|
45 |
896 558 40
|
Pipe adapter DN 29/23 |
1 |
InternBDB: NW 29/23 BAVR-29G23G | InternKon: 948 827 40 / 5
|
|
|
|
46 |
655 652 40
|
Cable protection hose DN 23 |
-2 |
InternBDB: NW 23 VCSG-23B | InternKon: 948 827 40 / 6
|
|
|
|
47 |
655 630 40
|
T-Distributor DN 29/23 |
1 |
InternBDB: NW 29/23 BFTL-292323GGG | InternKon: 948 827 40 / 7
|
|
|
|
48 |
655 627 40
|
Distributor DN 23/17 |
1 |
InternBDB: NW 23/17 BVYR-231717GGG | InternKon: 948 827 40 / 8
|
|
|
|
49 |
655 629 40
|
T-Distributor DN 17 |
3 |
InternBDB: NW 17 BFTL-171717GGG | InternKon: 948 827 40 / 9
|
|
|
|
50 |
655 633 40
|
Pipe adapter DN 17/12 |
4 |
InternBDB: NW 17/12 BAVR-17G12T | InternKon: 948 827 40 / 10
|
|
|
|
51 |
256 514 40
|
Plate |
10 |
InternBDB: 15X30X1,5 ALU | InternKon: 948 827 40 / 11
|
|
|
|
52 |
655 651 40
|
Cable protection hose DN 17 |
1 |
InternBDB: NW 17 VCSG-17B | InternKon: 948 827 40 / 12
|
|
|
|
53 |
907 692 40
|
Fitting PG 9 |
8 |
InternBDB: M16/NW12 BVIR-M162 | InternKon: 948 827 40 / 13
|
|
|
|
54 |
907 703 40
|
Cable union |
8 |
InternBDB: MEHRFACH 21650YNPM4X3 | InternKon: 948 827 40 / 14
|
|
|
|
55 |
896 520 40
|
End pin |
14 |
InternBDB: BO 3,0X25 | InternKon: 948 827 40 / 15
|
|
|
|
56 |
795 132 73
|
Plug assy. |
9 |
InternBDB: 0819212920 KES 08192 | InternKon: 948 827 40 / 16
|
|
|
|
57 |
907 877 40
|
Cable 2x0,75 |
80 |
InternBDB: 2X0,75MM2 GRAU 21151 | InternKon: 948 827 40 / 17
|
|
|
|
58 |
515 213 40
|
Cable 1,0 |
86 |
InternBDB: 1,0MM2 BLAU | InternKon: 948 827 40 / 18
|
|
|
|
59 |
907 981 40
|
Fitting DN 29 |
1 |
InternBDB: NW 29 BVIVG-U359 | InternKon: 948 827 40 / 19
|
|
|
|
60 |
795 129 73
|
Plug assy. |
1 |
InternBDB: 0819191206 HD36-24-31PE-059 KES 08191 | InternKon: 948 827 40 / 20
|
|
|
|
61 |
795 157 73
|
Plug assy. |
24 |
InternBDB: 0819105320 0460-202-16141 KES 08191 | InternKon: 948 827 40 / 21
|
|
|
|
62 |
940 852 40
|
Plug |
7 |
InternBDB: #16 DVI 61103-20 | InternKon: 948 827 40 / 22
|
|
|
|
63 |
056 292 40
|
Cable strap |
10 |
InternBDB: TY 23 M | InternKon: 948 827 40 / 23
|
|
|
|
64 |
940 461 40
|
Insulating tube B5x0,6 |
3 |
InternBDB: B 5X0,6 PUR 70 SHORE | InternKon: 948 827 40 / 24
|
|
|
|
65 |
655 626 40
|
Distributor DN 17/12 |
1 |
InternBDB: NW 17/12 BVYR-171212GTT HOSEN- | InternKon: 948 827 40 / 25
|
|
|
|
66 |
940 913 40
|
Warmth shrink hose |
-2 |
InternBDB: BESTELLNR 91 F 170 6 M H1/ 4 V 6,4 N 3,2 W 0,6 | InternKon: 948 827 40 / 26
|
|
|
|
67 |
940 909 40
|
Warmth shrink hose |
1 |
InternBDB: BESTELLNR 91 F 162 10 M H1/16 V 1,6 N 0,8 W 0,4 | InternKon: 948 827 40 / 27
|
|
|
|
68 |
940 629 40
|
Warmth shrink hose |
-2 |
InternBDB: .05060 91F2570 | InternKon: 948 827 40 / 28
|
|
