PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Metering valve	7	InternBDB: 551 969 40 \| InternKon: 934 381 40 / 2	991-0091
?	934 382 40	Mounting plate 6X365X1094	1	InternBDB: MONTAGEPLATTE ST52-3N \| InternKon: 934 381 40 / 1
?	516 741 98	Union	1	InternBDB: SWE-S 12 ST-NBR ISO 08434-4 \| InternKon: 934 381 40 / 9
?	516 838 98	Union	1	InternBDB: K-S 12 ST A3C ISO 08434 \| InternKon: 934 381 40 / 10
?	654 130 40	Protection cap	35	InternBDB: INJEKTORSCHUTZKAPPE PVC 83272 M O-RING \| InternKon: 934 381 40 / 3
?	906 984 40	Union	10	InternBDB: VERSHR GE12 S 3/8NPT/OMD ST A3C WN 65593340 \| InternKon: 934 381 40 / 8
?	324 672 40	Plug	3	InternBDB: VERSCHLSHR 3/8"NPT 67044 \| InternKon: 934 381 40 / 7
?	334 599 99	Nut	14	InternBDB: 6KTMU M 8 8 DIN 00985 \| InternKon: 934 381 40 / 6
?	308 556 99	Bolt	14	InternBDB: 6KTSHR M 8X 50 8.8 DIN 00931 \| InternKon: 934 381 40 / 4
?	340 507 99	Washer	14	InternBDB: SHB A 8,4 140HV DIN 00125 \| InternKon: 934 381 40 / 5
?	215 424 99	Pipe Ш 12	-2	InternBDB: 12x1,5 /2391 \| InternKon: 934 381 40 / 11
?	515 029 40	Hose connection	70	InternBDB: 532-30739-1 (SHL- 90' KURZ) \| InternKon: 943 630 40 / 11
?	515 028 40	Collet	70	InternBDB: 432-23031-1 \| InternKon: 943 630 40 / 12
?	517 899 98	Hose assy. DN 10x450	1	InternBDB: SHL350 10X 450 DOS 12 DOS 12 90 WN 34195140 \| InternKon: 943 630 40 / 15
?	514 781 98	Hose assy. DN 20x4310	1	InternBDB: SHL350 20X 4310 DOS 25 DOS 25 45 WN 34195140 \| InternKon: 943 630 40 / 10
?	516 834 98	Union	1	InternBDB: T-S 25 ST A3C ISO 08434 \| InternKon: 943 630 40 / 9
?	0443452511	Clip NW 25,5	3	InternBDB: CLIP 77 KES 04434 \| InternKon: 943 630 40 / 34
?	518 058 98	Pair of clamps	3	InternBDB: KLEMMHPAAR S-2-R-25 PA DIN 03015 \| InternKon: 943 630 40 / 16
?	534 001 99	Cover plate	3	InternBDB: D-PLATTE S-DP-A-2 W1 DIN 03015 \| InternKon: 943 630 40 / 17
?	308 579 99	Bolt	6	InternBDB: 6KTSHR M10X 60 8.8 DIN 00931 \| InternKon: 943 630 40 / 18
?	307 804 99	Bolt	4	InternBDB: 6KTSHR M12X30 8.8 DIN 00933 \| InternKon: 943 630 40 / 2
?	334 600 99	Nut	4	InternBDB: 6KTMU M12 8 DIN 00985 \| InternKon: 943 630 40 / 3
?	906 981 40	Union	35	InternBDB: VERSHR GE 6 L 1/8NPT/OMD ST A3C WN 65593340 \| InternKon: 943 630 40 / 5
?	374 428 99	Union	35	InternBDB: SDS-S 6XG 1/4A- TYPE E ST A3C ISO 08434 \| InternKon: 943 630 40 / 6
?	634 479 40	Union	1	InternBDB: VERSHR RED 20/12-PS/OMD ST A3C \| InternKon: 943 630 40 / 7
?	621 848 40	Union	1	InternBDB: VERSHR GR 25/20-S/OMD ST A3C WN 65593240 \| InternKon: 943 630 40 / 8
?	576 160 40	Plastic pipe	-2	InternBDB: 8,4x2,1 /504-36033-3 \| InternKon: 943 630 40 / 13
?	943 623 40	Pipe Ш 25	1	InternBDB: Ш 25x3018 \| InternKon: 943 630 40 / 14
?	507 037 98	Nut	24	InternBDB: 6KTMU M10 8 DIN 00985 \| InternKon: 943 630 40 / 33
?	517 292 98	Union	2	InternBDB: SWE-S 6 ST-NBR ISO 08434-4 \| InternKon: 943 630 40 / 22
?	906 347 40	Olive	4	InternBDB: SCHNEIDRG ES-4 S12 9SMNPB28K WN 65593940 \| InternKon: 943 630 40 / 23
?	371 259 99	Union nut	4	InternBDB: N-S 12 ST ZN ISO 08434 \| InternKon: 943 630 40 / 24
?	906 868 40	Olive	2	InternBDB: SCHNEIDRG ES-4 S25 9SMNPB28K WN 65593940 \| InternKon: 943 630 40 / 25
?	635 896 40	Tube protection	5	InternBDB: ROHRWENDEL 12X9X1,5 100 121 005 \| InternKon: 943 630 40 / 20
?	0443451210	Clip NW 12	8	InternBDB: CLIP 77 KES 04434 \| InternKon: 943 630 40 / 37
?	0443451510	Clip NW 15	10	InternBDB: CLIP 77 KES 04434 \| InternKon: 943 630 40 / 38
?	371 264 99	Union nut	2	InternBDB: N-S25 ISO 08434 \| InternKon: 943 630 40 / 26
?	371 257 99	Union nut	36	InternBDB: N-S 6 ST ZN ISO 08434 \| InternKon: 943 630 40 / 27
?	907 080 40	Olive	71	InternBDB: SCHNEIDRG ES-4 S 6 9SMNPB28K WN 65593940 \| InternKon: 943 630 40 / 28
?	371 271 99	Union nut	35	InternBDB: N-L 6 ST ZN ISO 08434 \| InternKon: 943 630 40 / 29
?	0443452711	Clip NW 27	2	InternBDB: CLIP 77 KES 04434 \| InternKon: 943 630 40 / 45
?	0443451610	Clip NW 16	2	InternBDB: CLIP KES 04434 \| InternKon: 943 630 40 / 46
?	307 777 99	Bolt	5	InternBDB: 6KTSHR M10 X 25 8.8 DIN 00933 \| InternKon: 943 630 40 / 39
?	340 465 99	Washer	27	InternBDB: SHB B 10,5 140HV DIN 00125 \| InternKon: 943 630 40 / 32
?	340 467 99	Washer	26	InternBDB: SHB B 13,0 140HV DIN 00125 \| InternKon: 943 630 40 / 35
?	510 741 98	Resilient sleeve 13/25X 50	6	InternBDB: 13 /25X 50 42CRMO4-TQ+T WN 34194840 \| InternKon: 943 630 40 / 31
?	343 005 99	Washer	6	InternBDB: SHB 10,5 ST1203 DIN 00093 \| InternKon: 943 630 40 / 36
?	343 006 99	Washer	4	InternBDB: SHB 13 ST1203 DIN 00093 \| InternKon: 943 630 40 / 30
?	308 612 99	Bolt	4	InternBDB: 6KTSHR M12X 100 8.8 DIN 00931 \| InternKon: 943 630 40 / 44
?	506 371 98	Pair of clamps	2	InternBDB: KLEMMHPAAR S-4-E PA DIN 03015 \| InternKon: 943 630 40 / 41
?	534 008 99	Cover plate	2	InternBDB: D-PLATTE S-DP-A-4 W1 DIN 03015 \| InternKon: 943 630 40 / 42
?	511 246 98	Grommet	2	InternBDB: ELASTOMEREINS S-4-43 GUMMI DIN 03015 \| InternKon: 943 630 40 / 43
?	655 652 40	Cable protection hose DN 23	-2	InternBDB: SCHUTZSHL NW 23 VCSG-23B \| InternKon: 943 630 40 / 47
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: SCHUTZSHL NW 12 VCST-12B \| InternKon: 943 630 40 / 48
?	170 427 40	Cable strap	30	InternBDB: KABELBAND TY 27 M 300X7,8 MM TEILE-NR 5326 \| InternKon: 943 630 40 / 49
?	930 626 40	Retainer r.h	1	InternBDB: HALTER RE PC 3000- 6 \| InternKon: 943 630 40 / 19
?	930 623 40	Retainer l.h	1	InternBDB: HALTER LI PC 3000- 6 \| InternKon: 943 630 40 / 21
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2

Komatsu PC3000-6E S/N 06262 parts catalog PDF

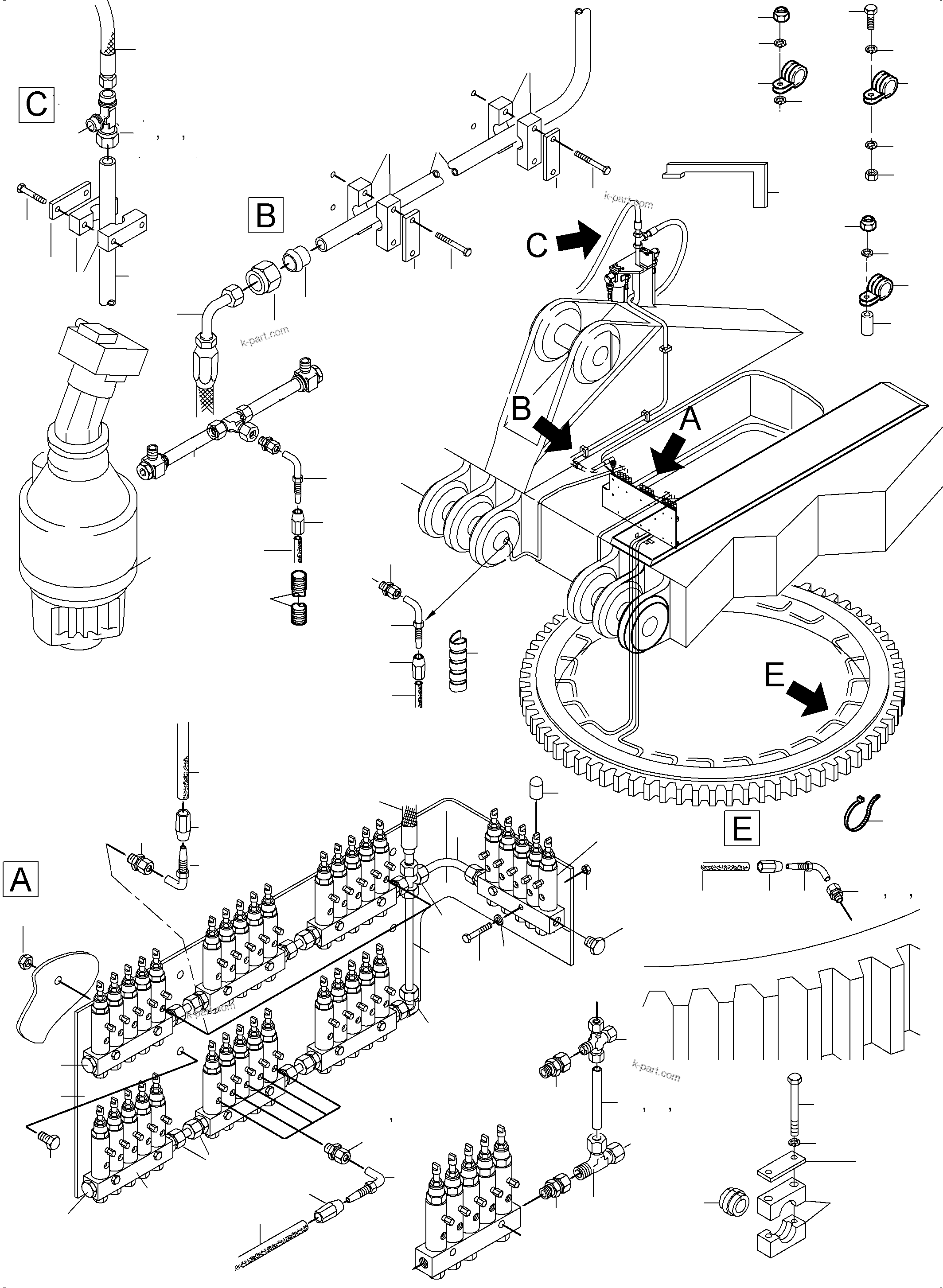

LUBE DISTRIBUTOR SWING RING (255-2323) in PC3000-6E S/N 06262. Diagram image and parts list.
