Diagram image 1 of 4

PC3000-6 S/N 46188

01 04 05 05 06 06 07 07 07 07 08 08 08 08 09 10 11 12 12 13 14 14 14 14 15 16 16 19 19 20 20 20 20 21 22 22 22 22 87 88 89 91

PC3000-6 S/N 46188

100 100 101 101 102 103 104 106 106 111 112 113 114 115 116 117 118 119 14 14 14 14 17 18 23 23 23 23 24 24 25 25 25 25 25 27 28 29 30 35 35 36 37 37 37 38 39 39 40 41 41 41 42 43 44 45 45 46 47 48 51 52 57 59 64 65 66 67 68 69 77 79 82 83 84 85 86 90 92 93 94 96 97 98 99 99 99

PC3000-6 S/N 46188

105 106 106 23 23 23 23 23 23 24 24 25 25 25 25 25 25 26 27 28 29 29 30 30 31 31 32 32 33 33 34 34 35 35 36 37 37 37 37 38 39 39 40 41 41 41 42 43 44 44 45 46 47 48 49 51 52 53 54 55 56 58 60 63 72 73 78 80 81 95 98

PC3000-6 S/N 46188

106 110 110 110 23 25 28 31 32 33 34 35 36 37 38 39 39 40 41 41 41 41 42 46 47 47 48 48 49 50 50 50 62 70 71 74 75 76

#	Part Number	Partname	Quantity
01	931 620 40	Boom assy.	1
04	911 801 40	Pin with plate (Standard)	1
04	938 698 40	Pin with plate (Cold weather design)	1
05	911 806 40	Pin with plate (Standard)	2
05	942 600 40	Pin with plate (Cold weather design)	2
06	911 804 40	Pin with plate (Standard)	2
06	942 602 40	Pin with plate (Cold weather design)	2
07	636 151 40	Bushing	4
08	907 022 40	Seal ring	4
09	905 206 40	Cap	1
10	332 361 99	Nut	1
11	500 117 98	O-ring	1
12	925 982 40	Stop	4
13	004 860 98	Grease nipple	1
14	517 123 98	Lock washer	33
15	926 840 40	Twist lock - cap	1
16	911 834 40	Shackle	2
17	933 003 40	Mainfold	1
18	911 825 40	Carrier	1
19	905 271 40	Shackle	4
20	462 208 40	Catch	8
21	332 338 99	Nut	1
22	307 826 99	Bolt	16
23	534 008 99	Cover plate	38
24	510 151 98	Bolt	40
25	332 334 99	Nut	98
26	894 924 40	Connecting block	1
27	512 885 98	Pair of clamps	6
28	505 440 98	Pair of clamps	14
29	504 445 98	Pair of clamps	9
30	502 976 98	Pair of clamps	9
31	500 129 98	Flange	4
32	501 871 98	Ring	4
33	356 210 40	Flange seal	4
34	319 209 99	Bolt	16
35	500 127 98	Flange	16
36	501 898 98	Ring	10
37	356 209 40	Flange seal	20
38	319 289 99	Bolt	40
39	504 448 98	Flange	18
40	504 461 98	Ring	8
41	385 243 40	Flange seal	26
42	319 323 99	Bolt	32
43	500 203 98	Ring	6
44	319 292 99	Bolt	40
45	332 355 99	Nut	46
46	504 449 98	Ring	10
47	319 313 99	Bolt	56
48	332 338 99	Nut	56
49	319 305 99	Bolt	16
50	940 366 40	Hose assy. DN 50x1810	2
51	933 086 40	Manifold	1
52	334 695 99	Nut	8
53	319 304 99	Bolt	4
54	319 291 99	Bolt	4
55	321 539 99	Bolt	4
56	940 318 40	Hose assy. DN 50x2100	2
57	940 321 40	Hose assy. DN 50x2400	2
58	515 911 98	Hose assy. DN 40x1600	2
59	386 162 40	Hose assy. DN 40x2400	2
60	768 266 73	Pipe assy. Ш 38 kpl.	1
62	767 972 73	Pipe assy. Ш 38 kpl.	1
63	793 165 73	Pipe assy. Ш 50 kpl.	1
64	793 166 73	Pipe assy. Ш 50 kpl.	1
65	793 167 73	Pipe assy. Ш 50 kpl.	1
66	795 039 73	Pipe assy. Ш 65 kpl.	1
67	793 169 73	Pipe assy. Ш 50 kpl.	1
68	793 170 73	Pipe assy. Ш 50 kpl.	1
69	793 171 73	Pipe assy. Ш 65 kpl.	1
70	794 774 73	Pipe assy. Ш 65 kpl.	1
71	767 981 73	Pipe assy. Ш 50 kpl.	1
72	793 173 73	Pipe assy. Ш 50 kpl.	1
73	793 174 73	Pipe assy. Ш 65 kpl.	1
74	794 775 73	Pipe assy. Ш 65 kpl.	2
75	794 776 73	Pipe assy. Ш 65 kpl.	1
76	794 777 73	Pipe assy. Ш 65 kpl.	1
77	793 178 73	Pipe assy. Ш 65 kpl.	1
78	793 179 73	Pipe assy. Ш 65 kpl.	1
79	793 152 73	Pipe assy. Ш 65 kpl.	1
80	173 494 40	Plug	1
81	693 228	Seal	1
82	319 290 99	Bolt	4
83	940 324 40	Hose assy. DN 50x2800	2
84	515 901 98	Hose assy. DN 40x2800	2
85	168 474 40	Plug	2
86	911 830 40	Pipe bridge	1
87	342 085 99	Cotter pin	1
88	319 442 99	Bolt	1
89	905 205 40	Catch	4
90	502 965 98	Cover plate	4
91	409 329 40	Cap	1
92	933 098 40	Bracket	1
93	308 640 99	Bolt	4
94	502 371 98	Pair of clamps	10
95	304 322 99	Bolt	4
96	502 626 98	Grommet	10
97	308 616 99	Bolt	22
98	517 118 98	Lock washer	26
99	509 064 98	Pair of clamps	8
100	500 398 98	Cover plate	8
101	516 024 98	Grommet	6
102	308 643 99	Bolt	6
103	307 825 99	Bolt	3
104	928 526 40	Guard plate	1
105	928 528 40	Guard plate	1
106	308 612 99	Bolt	32
110	940 314 40	Hose assy. DN 50x1600	2
111	500 399 98	Weld on plate	2
112	515 846 98	Insert	2
113	514 060 98	Bolt	4
114	534 005 99	Weld on plate	1
115	518 032 98	Pair of clamps	1
116	534 004 99	Cover plate	1
117	504 926 98	Grommet	1
118	308 581 99	Bolt	2
119	517 122 98	Lock washer	2

Komatsu PC3000-6 S/N 46188 parts catalog PDF

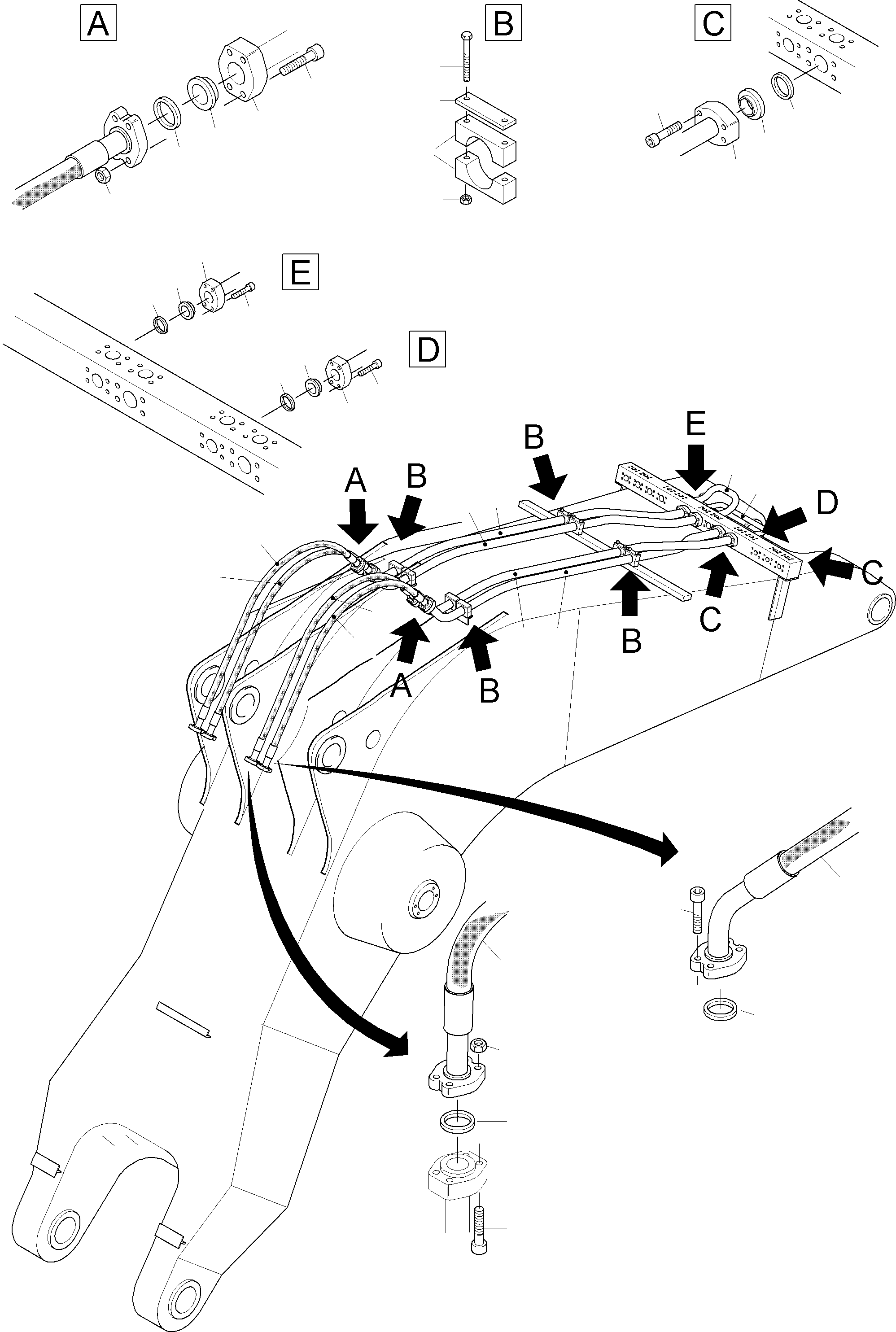

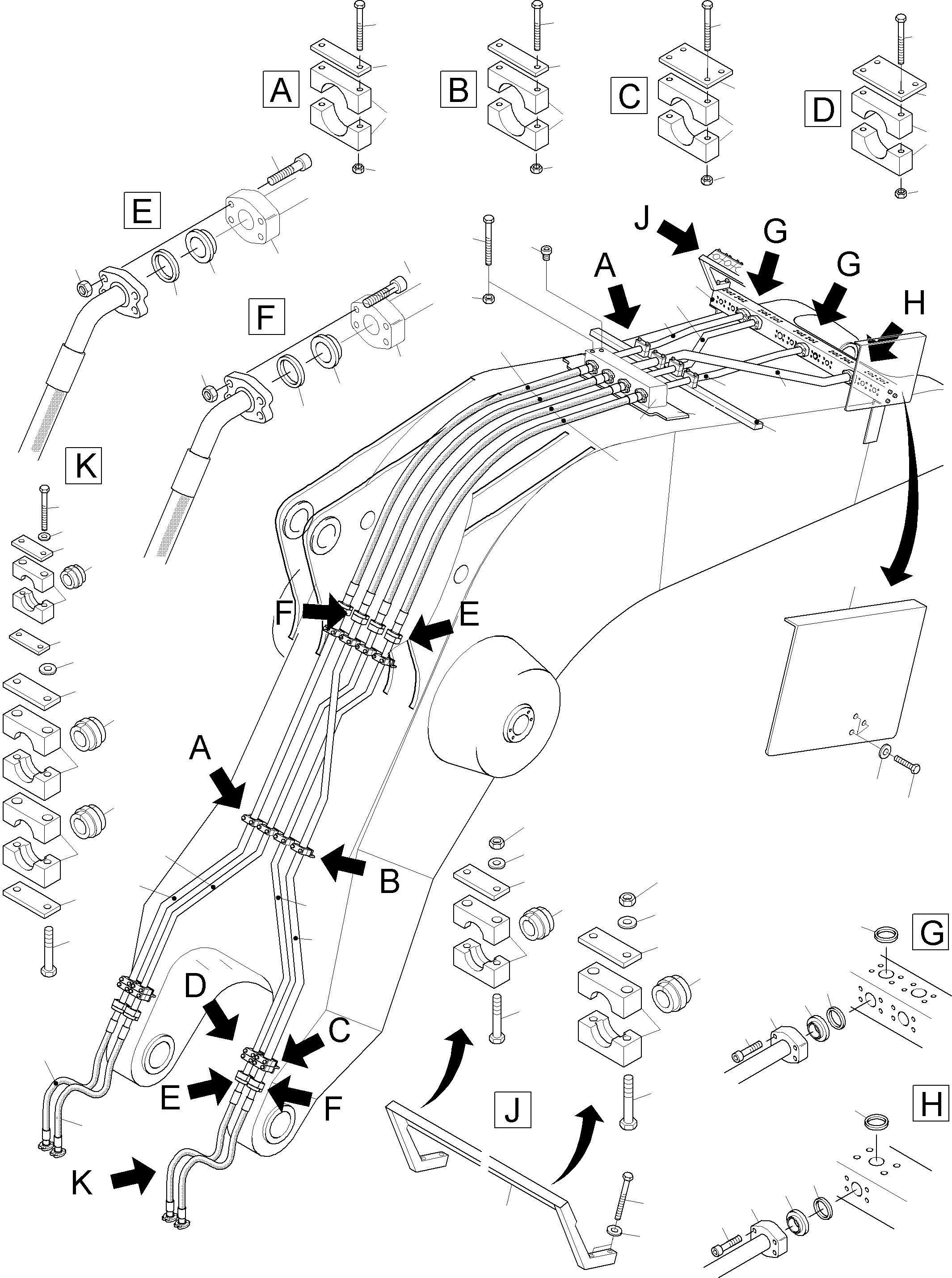

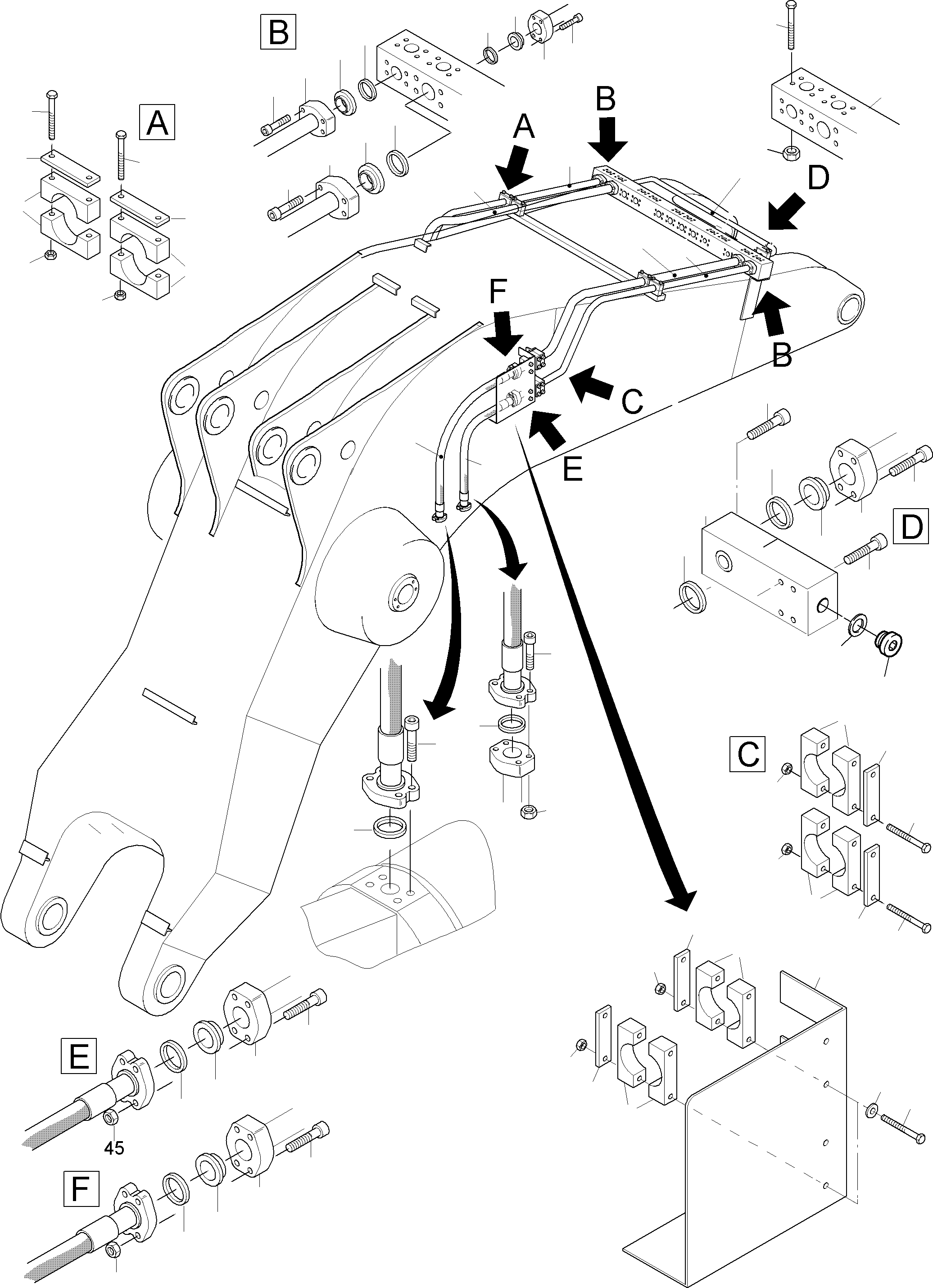

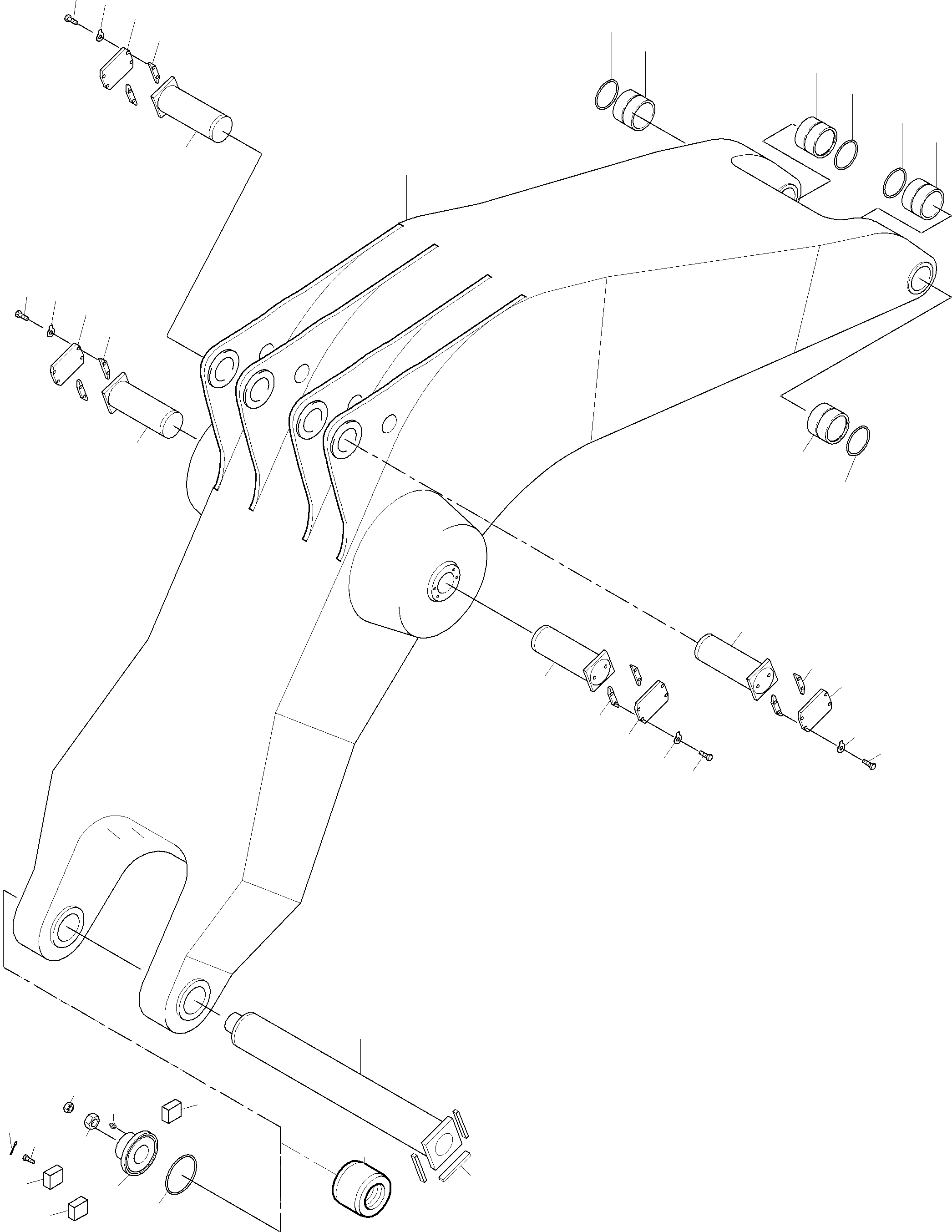

BACKHOE BOOM 8.6M (485-4011e) in PC3000-6 S/N 46188. Diagram image and parts list.
