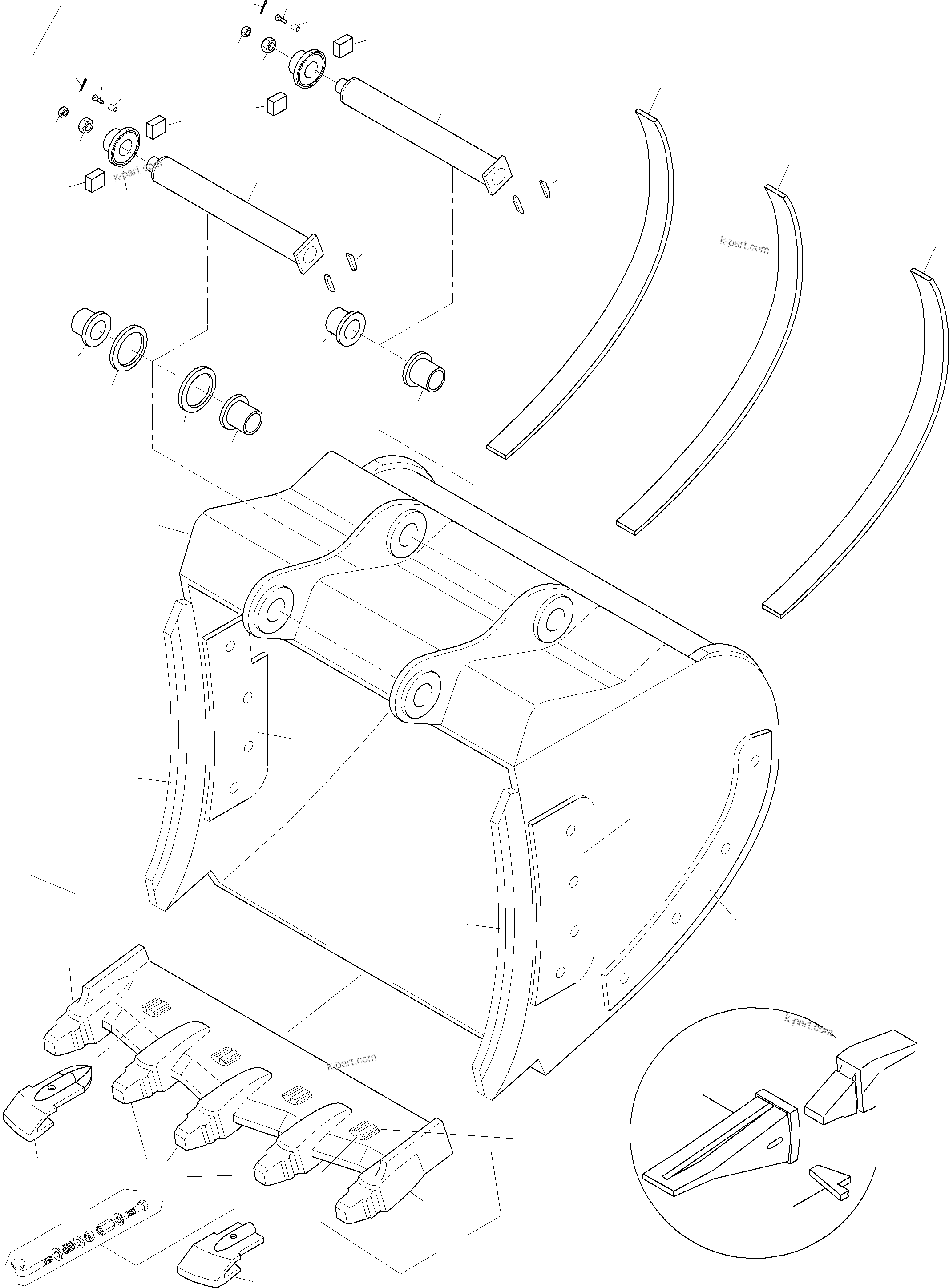

BACKHOE 15 CBM WITH WEAR AND TEAR PARTS (WP2) | PC3000-6 S/N 46188

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 46188

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		Backhoe w./o. lip and teeth, fig.-no.: 24-39	1
?	944 310 40	Lip with tooth adapters	1
?	907 805 40	Tooth adapter	3
?	940 625 40	Corner adapter lh.	1
?	940 622 40	Corner adapter rh.	1
?	940 626 40	Wedge assy.	5
?	907 810 40	Tooth	5
?	932 501 40	Shroud l.h.	2
?	932 502 40	Shroud r.h.	2
?	906 104 40	Base	4
?	940 026 40	J-Bolt Assembly	4
?	928 552 40	Shroud	2
?	928 553 40	Wear plate outside	2
?	928 554 40	Wear plate inside	2
?	933 543 40	Wear strip	1
?	933 544 40	Wear strip	2
?	925 591 40	Wear plate	2
?		Backhoe, weldment	1
?	904 493 40	Pin with plate (Standard)	1
?	942 608 40	Pin with plate (Cold weather design)	1
?	904 494 40	Pin with plate (Standard)	1
?	942 610 40	Pin with plate (Cold weather design)	1
?	904 495 40	Flanged bush	2
?	904 496 40	Flanged bush	2
?	913 032 40	Ring	2
?	926 850 40	Cap	1
?	926 855 40	Cap	1
?	925 982 40	Stop	8
?	904 498 40	Square	4
?	904 499 40	Catch	2
?	319 442 99	Bolt	2
?	342 085 99	Cotter pin	2
?	332 361 99	Nut	2
?	332 338 99	Nut	2
?	925 981 40	Safety sleeve	2
?	907 806 40	Wear Cap	4
?	940 623 40	Lower Wing Shroud	2
