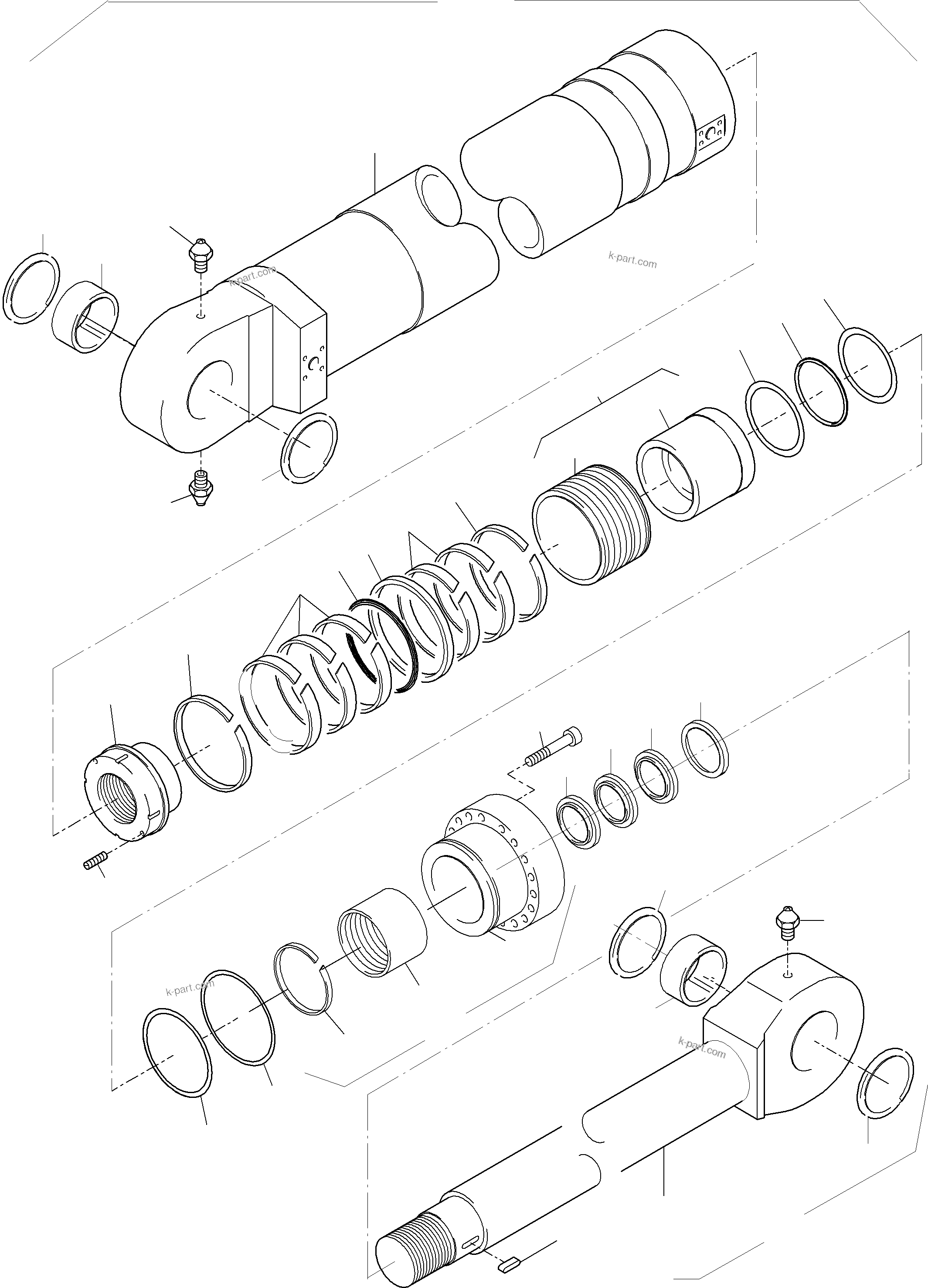

HYDRAULIC CYLINDER | PC3000-6 S/N 46188 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 46188

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	924 920 40	Hydraulic cylinder (Standard)	1
?	938 830 40	Hydraulic cylinder (Cold weather design)	1
?		Cylinder barrel	1
?	627 572 40	Freeze-in bushing	2
?	907 022 40	Gasket	4
?	004 860 98	Grease nipple	3
?	347 449 99	Threaded pin	1
?	659 099 40	Groove nut	1
?	430 964 40	Piston consist. of fig no. 30,31	1
?	269 785 40	Piston guide strap	2
?	256 245 40	Piston guide ring	5
?	256 248 40	O-ring	1
?	896 587 40	Sealing element	1
?	896 400 40	Support ring	2
?	269 217 40	O-ring	1
?	500 990 98	O-ring	1
?	256 561 40	Support ring	1
?	907 720 40	Support ring	1
?	926 860 40	Sealing flange consist. of fig-no: 20, 21 and 29	1
?	926 862 40	Bearing bush (No field repair item)	1
?		Flanged bush	1
?	514 626 98	Bolt (Standard)	18
?	514 625 98	Bolt (Cold weather design)	18
?	907 722 40	Gasket (Standard)	1
?	940 071 40	Gasket (Cold weather design)	1
?	907 724 40	Gasket	1
?	501 352 98	Feather key	1
?	793 190 73	Piston rod incl. fig-nos: 04-06, 27	1
?		Piston rod	1
?	517 596 98	Snap ring	1
?	515 858 98	Retainning ring	1
?		Piston	1
?	445 393 40	Piston bush (No field repair item)	1
?	768 261 73	Seal kit - piston consist. of fig-nos: 10-15	1
?	794 538 73	Seal kit - piston rod (Standard) consist. of fig-nos: 16,17,18,23, 24	1
?	795 455 73	Seal kit - piston rod (cold weather design) consist. of fig-nos: 16,17,18,23, 24	1
