|$$1 |
|

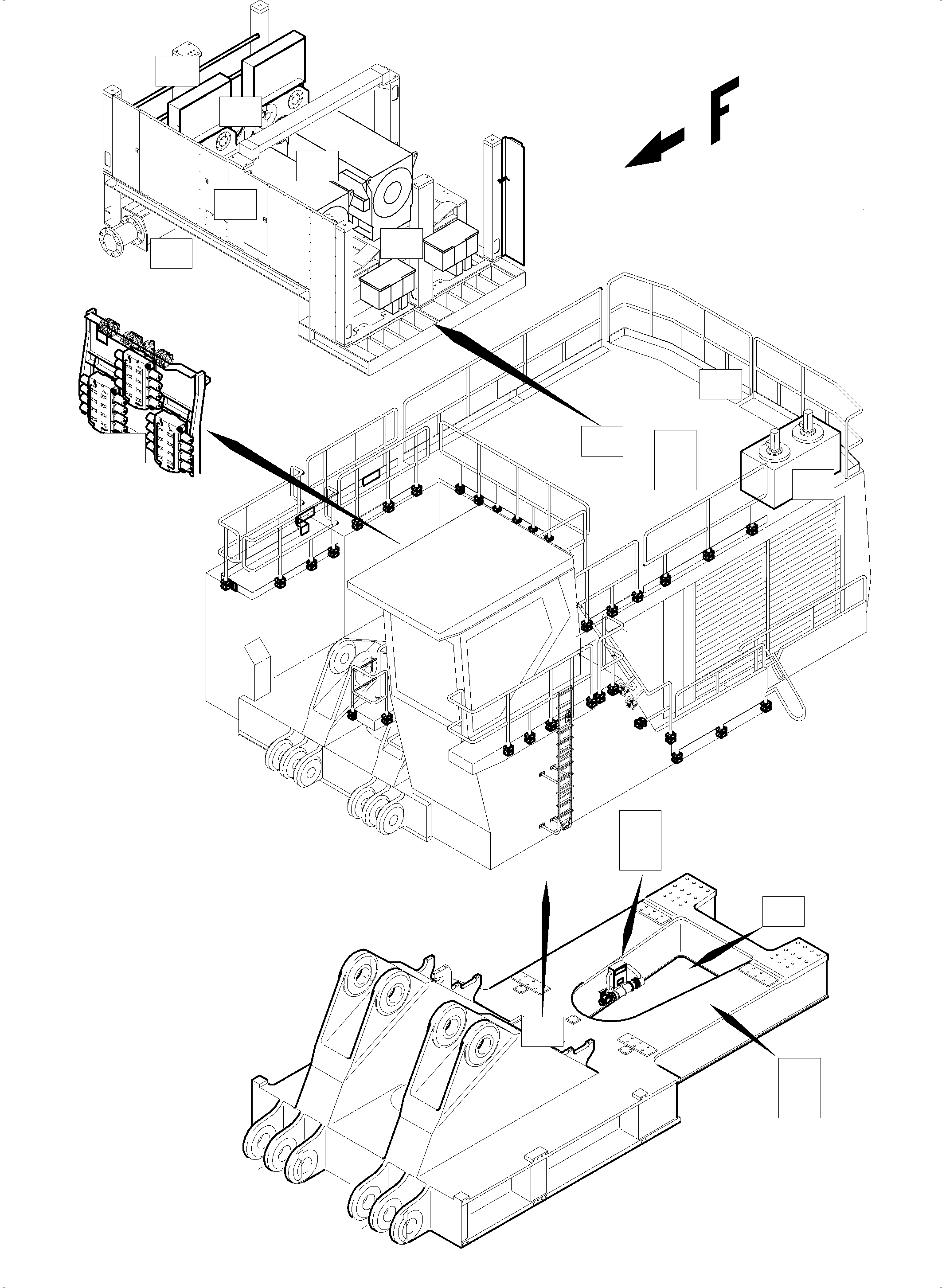

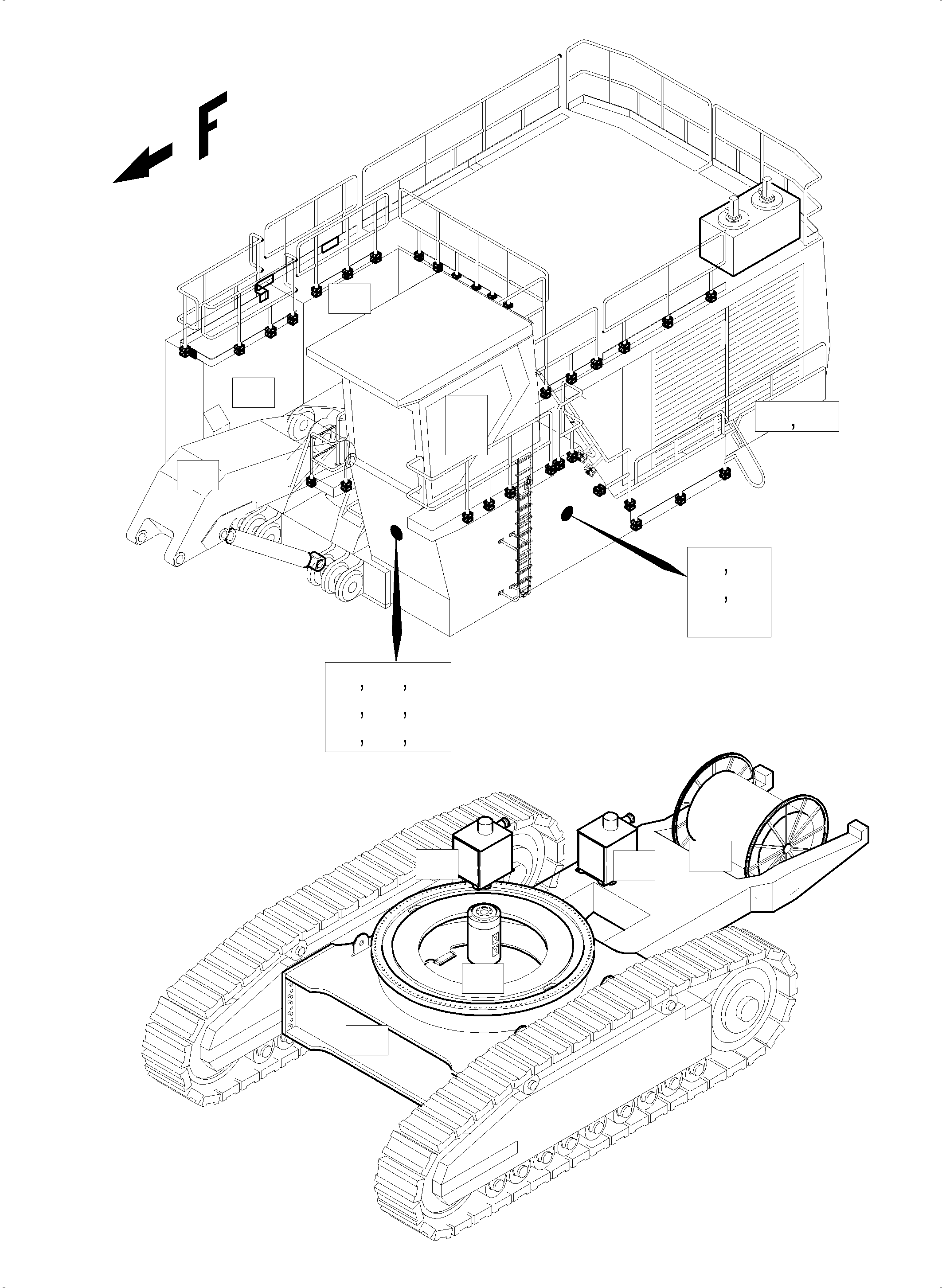

List of location identification |
-1 |
|
|
|
|
|$$2 |
|
Cabin support Low voltage cabinet; Location 10 |
-1 |
|
|
|
|
10 |
ORT-LOC
|
Electric - cab support 715-2210 |
-2 |
|
|
|
|
10 |
ORT-LOC
|
Cabin support harnesses 715-2214 |
-2 |
|
|
|
|
10 |
ORT-LOC
|
ORB-COMM 715-2215 |
-2 |
|
|
|
|
11 |
|
Cabin support - Small voltage board |
-2 |
|
|
|
|
11 |
ORT-LOC
|
Switch frame 715-2211 |
-2 |
|
|
|
|
11 |
ORT-LOC
|
Switch frame (cold weather condition) 715-2218 |
-2 |
|
|
|
|
12 |
|
Cabin support - Low voltage board |
-2 |
|
|
|
|
12 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
13 |
|
Cabin supprot floor bottom |
-2 |
|
|
|
|
15 |
|
Switch frame - Customer |
-2 |
|
|
|
|
16 |
|
Switch frame preheating hydraulic oil |
-2 |
|
|
|
|
17 |
|
Cabin support - Air conditioning unit |
-2 |
|
|
|
|
17 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
18 |
|
Cabin support - Switch board for Air condition unit - HV-Cabinet |
-2 |
|
|
|
|
18 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
19 |
|
Cabin support - Switch board for Air condition unit - LV-Cabinet |
-2 |
|
|
|
|
19 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
|$$20 |
|
Cabin; Location 20 |
-1 |
|
|
|
|
20 |
ORT-LOC
|
Cabin-operating elements 715-2220 |
-2 |
|
|
|
|
20 |
ORT-LOC
|
Cabin-Harnesses-Electric 715-2221 |
-2 |
|
|
|
|
20 |
|
Camera-Systems, only on customer request, see machine card |
-2 |
|
|
|
|
21 |
|
Switch frame cabin - Customer |
-2 |
|
|
|
|
30 |
|
Drive (Diesel or Electro) |
-2 |
|
|
|
|
31 |
|
Diesel tank |
-2 |
|
|
|
|
32 |
|
High voltage cabinet |
-2 |
|
|
|
|
32 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
32 |
ORT-LOC
|
Switch Cabinet - electric - outer 715-2232 |
-2 |
|
|
|
|
33 |
|
High voltage cabinet - Low voltage board |
-2 |
|
|
|
|
33 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
34 |
|
High voltage cabinet - Air conditioning unit |
-2 |
|
|
|
|
34 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
|$$34 |
|
Hydraulic tank; Location 40 |
-1 |
|
|
|
|
40 |
ORT-LOC
|
Switch cabinet Loc. 40 715-2240 |
-2 |
|
|
|
|
40 |
ORT-LOC
|
Oil tank, oil cooler and transfusing pump - electric parts 715-2241 |
-2 |
|
|
|
|
40 |
ORT-LOC
|
Oil tank, oil cooler and transfusing pump - harnesses 715-2242 |
-2 |
|
|
|
|
|$$38 |
|
Oil cooler; Location 41 |
-1 |
|
|
|
|
41 |
|
contains in previous pages |
-2 |
|
|
|
|
|$$40 |
|
Machinery house; Location 50 |
-1 |
|
|
|
|
50 |
ORT-LOC
|
Machinery house electric - roof and drive frame 715-2250 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Switch cabinet Loc. 51 715-2251 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Machine house - capacitor arr. - motor harnesses 715-2252 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
High voltage - harnesses 715-2253 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Switch cabinet Loc. 56 715-2256 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Control- and Filter Plates and Pump ditributor gear, electrics 715-2257 |
-2 |
|
|
|
|
51 |
|
Motorroom |
-2 |
|
|
|
|
51 |
|
contains in previous pages |
-2 |
|
|
|
|
52 |
|
Motor |
-2 |
|
|
|
|
52 |
|
contains in previous pages |
-2 |
|
|
|
|
54 |
|
Counterweight |
-2 |
|
|
|
|
54 |
|
contains in previous pages |
-2 |
|
|
|
|
55 |
|
Refueling equipment |
-2 |
|
|
|
|
56 |
|
Pump room |
-2 |
|
|
|
|
56 |
|
contains in previous pages |
-2 |
|
|
|
|
57 |
|
Control and filter plate 1+2, Pump Distributor Gear 1+2 |
-2 |
|
|
|
|
59 |
|
Suction oil tank |
-2 |
|
|
|
|
59 |
|
contains in previous pages |
-2 |
|
|
|
|
|$$59 |
|
Superstructure; Location 60 |
-1 |
|
|
|
|
60 |
ORT-LOC
|
Control blocks - HP-Filter - Location 61 715-2261 |
-2 |
|
|
|
|
60 |
ORT-LOC
|
Electr. Parts 2 and 3 barrel lubrication 715-2262 |
-2 |
|
|
|
|
60 |
ORT-LOC
|
Elect. Parts - superstructure-platform 715-2264 |
-2 |
|
|
|
|
61 |
|
Control blocks, remote control plates |
-2 |
|
|
|
|
61 |
|
contains in previous pages |
-2 |
|
|
|
|
62 |
|
Lubrication arrangement |
-2 |
|
|
|
|
62 |
|
contains in previous pages |
-2 |
|
|
|
|
63 |
|
Reserve oil tank motor 1 |
-2 |
|
|
|
|
63 |
|
only Diesel shovels |
-2 |
|
|
|
|
64 |
|
Reserve oil tank motor 2 |
-2 |
|
|
|
|
64 |
|
only Diesel shovels |
-2 |
|
|
|
|
65 |
|
Preheating cooling water motor 1 |
-2 |
|
|
|
|
65 |
|
only Diesel shovels |
-2 |
|
|
|
|
66 |
|
Preheating cooling water motor 2 |
-2 |
|
|
|
|
66 |
|
only Diesel shovels |
-2 |
|
|
|
|
67 |
|
Crane |
-2 |
|
|
|
|
68 |
|
Compressor |
-2 |
|
|
|
|
|$$77 |
|
Ascent and ladder; Location 70 |
-1 |
|
|
|
|
70 |
ORT-LOC
|
Ascent and ladder electric 715-2270 |
-2 |
|
|
|
|
|$$79 |
|
Battery box; Location 71 |
-1 |
|
|
|
|
71 |
ORT-LOC
|
Batteries - Harnesses 715-2271 |
-2 |
|
|
|
|
|$$81 |
|
Loading device; Location 80 |
-1 |
|
|
|
|
80 |
|
without parts page |
-2 |
|
|
|
|
|$$83 |
|
Undercarriage |
-1 |
|
|
|
|
90 |
|
without parts page |
-2 |
|
|
|
|
91 |
|
Cable drum (cable duct) |
-2 |
|
|
|
|
91 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
92 |
|
Rotary joint |
-2 |
|
|
|
|
93 |
|
Slip ring body |
-2 |
|
|
|
|
93 |
ORT-LOC
|
Slip ring body arrangement 715-2293 |
-2 |
|
|
|
|
93 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
|
|
94 |
|
Junction box cable drum (cable duct) |
-2 |
|
|
|
|
94 |
|
only Electro shovels, changing pages, see machine-card |
-2 |
|
|
