Diagram image 1 of 3

PC5500-6E S/N 15089

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6E S/N 15089

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6E S/N 15089

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Switch framing	1	715-2218
?		Air-conditioning-control	-2	991-0729a
?	941 724 40	Cable	1
?	941 727 40	Lead in duct	1
?	941 728 40	Protective cap	1
?		Horn	1	113-2150
?	907 989 40	Thread pin	10
?	507 037 98	Nut	23
?	517 122 98	Lock washer	8
?	334 599 99	Nut	42
?	958 923 40	Cover	1
?	0443451210	Clamp DN 10	7
?	952 666 40	Retainer	1
?	307 732 99	Bolt	4
?	0443452110	Clamp DN 17	3
?	7826 185 500	VHMS-controller	1
?	343 606 99	Lock washer	4
?	0443452711	Clamp DN 23	9
?	906 231 40	Circular bearing	4
?	944 720 40	Load limitation valve, incl. Plug	1
?	307 631 99	Bolt	4
?	350 762 99	Washer	4
?	517 121 98	Lock washer	42
?	941 786 40	Temperature sensor assy.	1
?	125 270 99	Bolt	6
?	307 777 99	Bolt	4
?	340 465 99	Washer	10
?	952 689 40	Retainer	1
?	504 853 98	Clamp set	2
?	504 854 98	Grommet	2
?	500 398 98	Cover plate	2
?	514 875 98	Bolt	4
?	517 123 98	Lock washer	4
?	907 371 40	Sealing profile 9 - 12 mm	-2
?	959 409 40	Cover	2
?	959 410 40	Washer	2
?	307 727 99	Bolt	2
?	340 463 99	Washer	2
?	517 322 98	Nut M 20x1,5	-2
?	517 323 98	Nut M 25x1,5	-2
?	517 324 98	Nut M 32x1,5	-2
?	0443453412	Clamp DN 29	2
?	517 333 98	Plug M 20	5
?	940 661 40	Seal	5
?	517 334 98	Plug M 25	2
?	940 662 40	Seal	3
?	517 335 98	Plug M 32	2
?	940 663 40	Seal	3
?	0819320010	Clip	1
?	958 925 40	Assembly box	1
?	635 857 40	Sealing compound to fig no. 70 310 ml	1
?	307 598 99	Bolt	4
?	507 596 98	Washer	7
?	955 913 40	Cap 18	6
?	955 914 40	Cap 24	4
?	946 224 40	Cap 24	4
?	946 218 40	Cap 18	6
?	307 727 99	Bolt	10
?	340 463 99	Washer	10
?	655 530 40	Strab	4
?	906 758 40	Key seal kit	3
?	906 759 40	Rubber clamp 60	4
?	906 760 40	Rubber clamp 40	7
?	906 761 40	Rubber clamp 30	24
?	906 762 40	Shim	2
?	959 420 40	Retainer assy.	2
?	307 777 99	Bolt	4
?	350 768 99	Washer	4
?	945 761 40	Flange plate	1
?		ORB-COMM Controller	-2	715-2215
?	948 328 40	Plate	1
?	948 329 40	Retainer	1
?	0443451910	Clamp D=19,0	1
?	307 661 99	Bolt	2
?	343 641 99	Tooth lock washer	2
?	518 547 98	Lock washer	2
?	507 037 98	Nut	2
?	307 445 99	Bolt	2
?	932 860 40	Seal kit	-2
?	907 104 40	Rubber clamp 20	11
?		Flange plate	-2
?	081 480 40	Hinge pin	1
?	081 320 40	Hinge	1
?	955 627 40	Plug assy. with rubber grommet	1
?		Mounting plate - measuring devices	1	991-0968
?	796 766 73	Heater 2 kW	2
?	941 560 40	LED-light	2
?	765 736 73	Sensor	1
?	896 781 40	Battery charger	3
?	940 726 40	Light switch	1
?	796 788 73	Temperature sensor	2
?	765 688 73	Pressure switch	1
?	321 010 99	Bolt	4
?	903 969 40	Plate	1
?		Mounting plate - low voltage	-2	991-1027
?	957 905 40	Harness lightning intermediate landing	1
?	950 158 40	Head light assy.	4
?	952 071 40	Lamp retainer 6X280X250	2
?	307 779 99	Bolt	12
?	340 465 99	Washer	34
?	507 037 98	Nut	34
?	0819320010	Clip	4
?	507 596 98	Washer	22
?	0443451210	Clamp DN 10	22
?		Bulb	1
?	941 841 40	Protective hose DN 17	1
?	655 649 40	Cable protection hose DN 10	7
?	941 777 40	Plate	5
?	174 411 40	Cable strap	2
?	907 703 40	Cable union 4x3	2
?	940 471 40	Fitting M16/DN10	2
?	940 462 40	Insulating tube	2
?	952 675 40	Plug assy. with rubber grommet 2 pole	4
?	655 629 40	T-Distributor DN 17	1
?	655 632 40	Pipe adapter DN 17/10	2
?	907 975 40	Fitting DN17	1
?	056 292 40	Cable strap	8
?	950 136 40	Plug	1
?	0819105320	Pin contact	8
?	940 852 40	Plug	6
?	950 131 40	Protection cap	1
?	515 213 40	Cable 1,0	42
?			-2

Komatsu PC5500-6E S/N 15089 parts catalog PDF

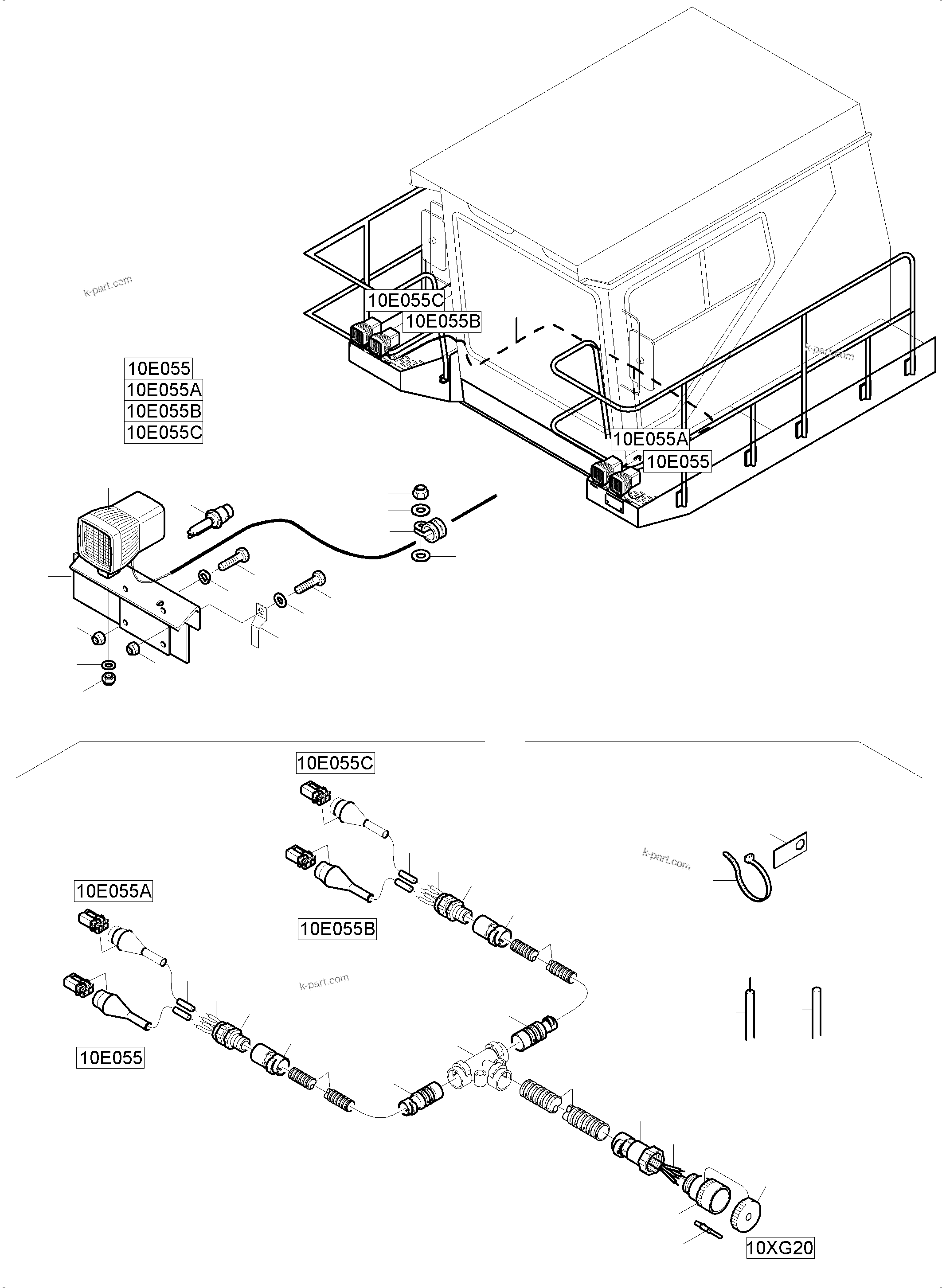

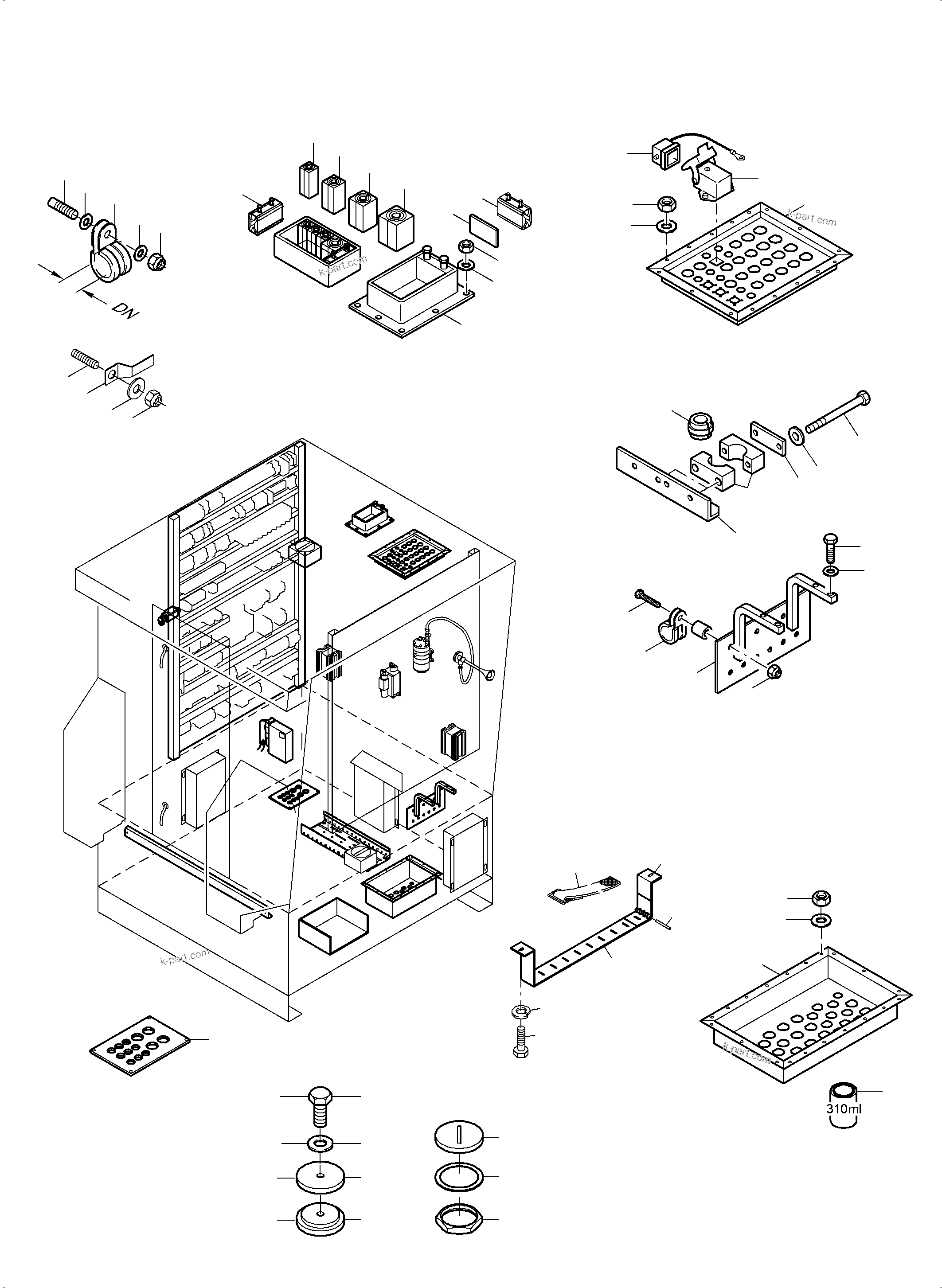

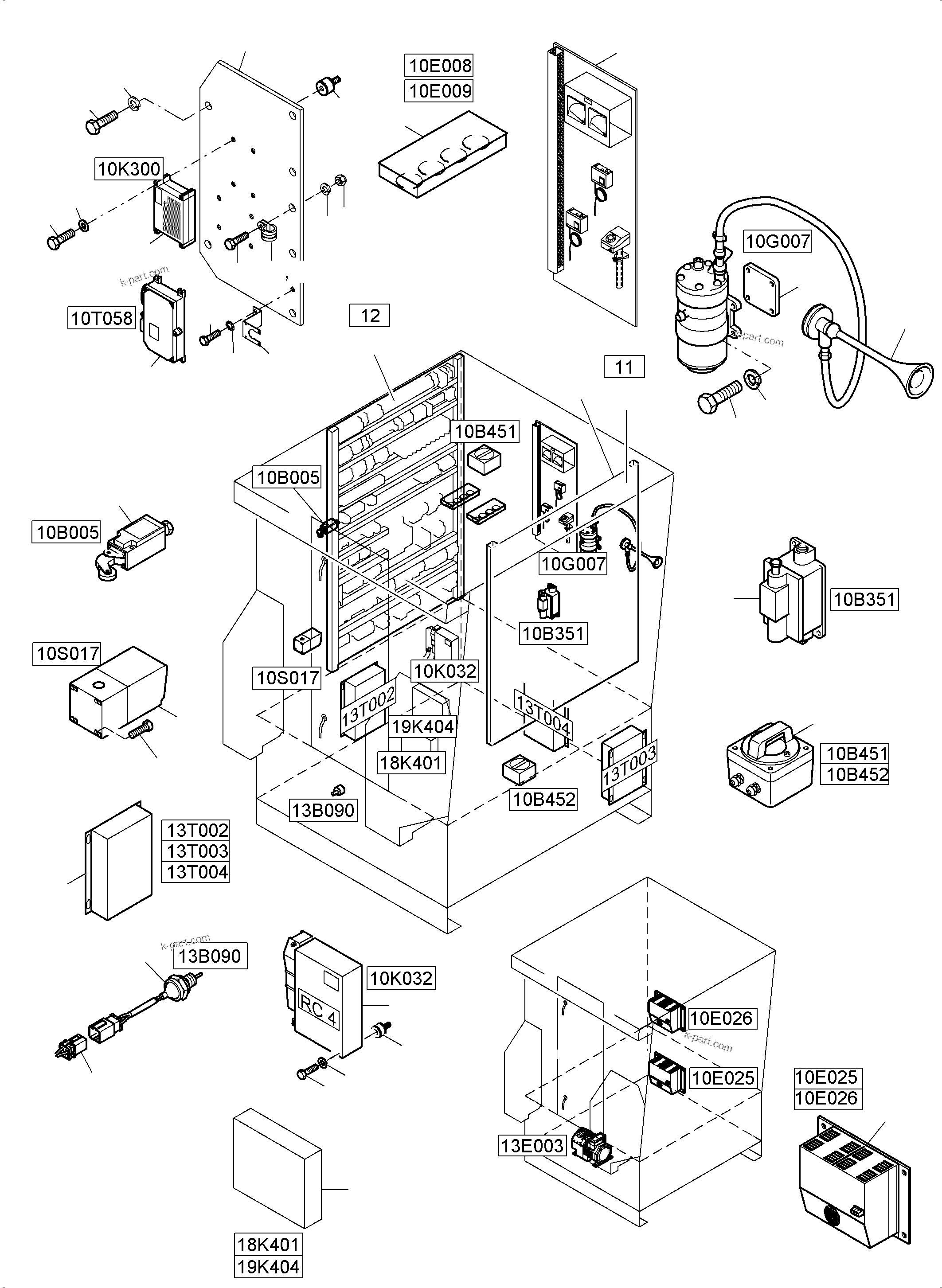

ELECTRIC - CAB SUPPORT AND INTERMEDIATE LANDING (715-2210a) in PC5500-6E S/N 15089. Diagram image and parts list.
