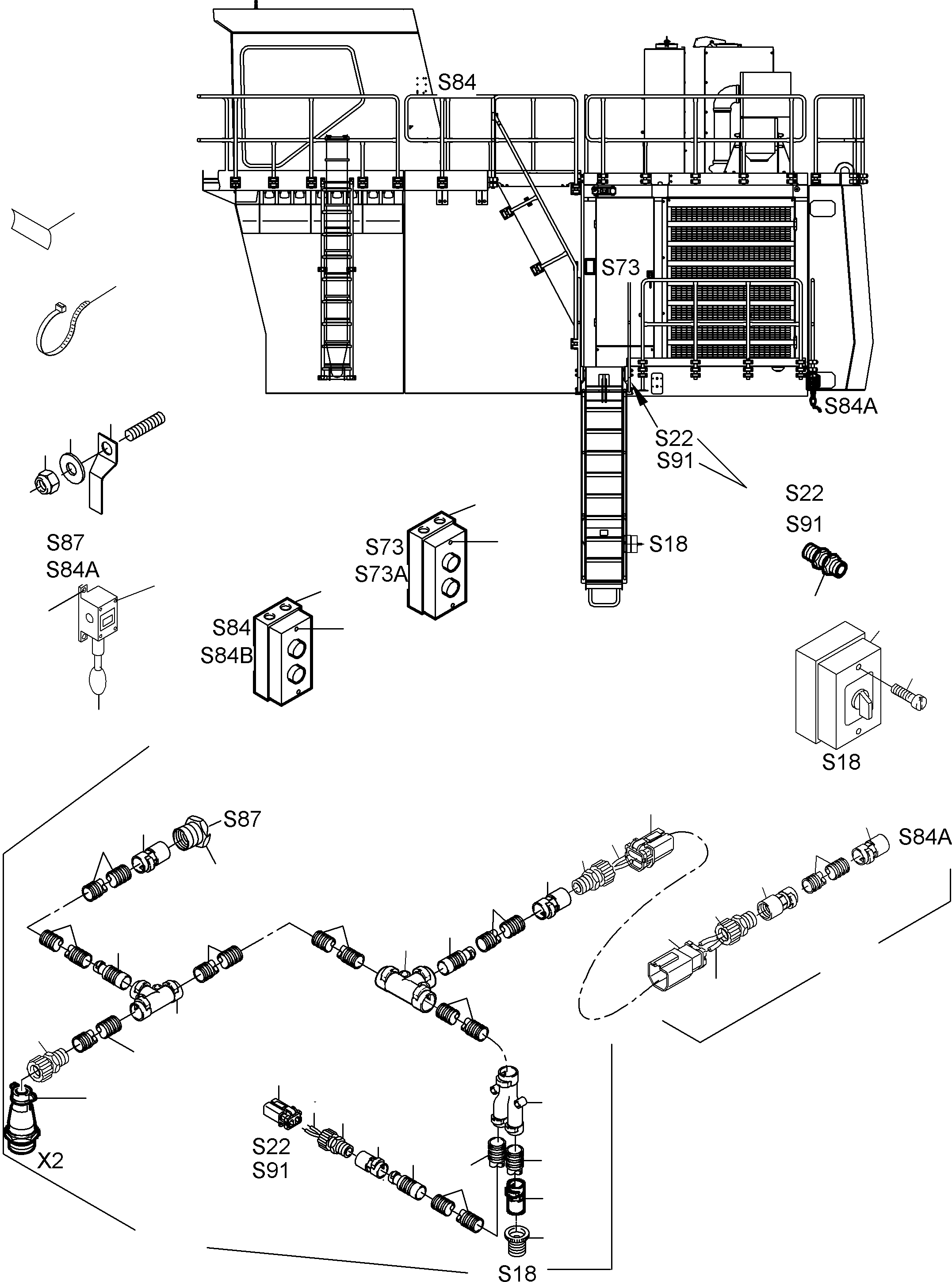

ELECTRIC PARTS - LADDER | PC3000-6 S/N 46174 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	907 665 40	Double press button	2	InternBDB: Kцckner-Mцller M22-I2-M1 216529 \| InternKon: 931 367 40 / 18
02	461 808 40	Switch	2	InternBDB: IG 5221 \| InternKon: 933 368 40 / 2
03	551 362 40	Camswitch	1	InternBDB: Klцckner-Mцller T0-1-8220/I \| InternKon: 933 368 40 / 3
04	795 134 73	Plug assy.	2	InternBDB: KES 0819213920 \| InternKon: 931 356 40 / 1
05	655 626 40	Distributor DN 17/12	1	InternBDB: BVYR - 17 12 12 GTT \| InternKon: 931 356 40 / 10
06	655 633 40	Pipe adapter DN 17/12	2	InternBDB: BAVR - 17 G 12 T \| InternKon: 931 356 40 / 11
07	655 629 40	T-Distributor DN 17	2	InternBDB: BFTL - 17 17 17 GGG \| InternKon: 931 356 40 / 9
08	907 623 40	Cable union NW 12	2	InternBDB: VERSHR NW 12 GERADE M20 BVNV-M202 \| InternKon: 931 356 40 / 6
09	907 708 40	Cable union	1	InternBDB: Pflitsch 22052 YNPM 6x2,5 \| InternKon: 931 356 40 / 3
10	655 650 40	Cable protection hose DN 12	-2	InternBDB: VCST-12 B \| InternKon: 931 356 40 / 12
11	515 214 40	Cable 2,5	-2	InternKon: 931 356 40 / 16
12	515 213 40	Cable 1,0	-2	InternKon: 931 356 40 / 17
13	907 703 40	Cable union	2	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 931 356 40 / 8
14	517 322 98	Cable nut	2	InternBDB: MU M20x1,5 CUZN39PB3 DINEN 50262 \| InternKon: 931 356 40 / 7
15	056 070 40	Cable sleeve 1,0-1,5	12	InternKon: 931 356 40 / 24
16	907 693 40	Fitting PG 16	2	InternBDB: BVIR - M 207 \| InternKon: 931 356 40 / 25
17	256 514 40	Name plate	8	InternKon: 931 356 40 / 4
18	056 292 40	Cable strap	8	InternBDB: TY 23 M \| InternKon: 931 356 40 / 5
19	940 520 40	Fitting	1	InternBDB: ANSCHLUSSARMATUR M20/NW12 BVIR-M202 \| InternKon: 931 356 40 / 2
20	795 132 73	Plug assy. 2-pole	1	InternBDB: KES 0819212920 \| InternKon: 931 356 40 / 20
21	655 651 40	Cable protection hose DN 17	-2	InternBDB: VCST-17G \| InternKon: 931 356 40 / 13
22	255 680 40	Pull switch	2	InternBDB: ES 61 WZ 10E/1S \| InternKon: 931 397 40 / 1
23	319 414 99	Bolt	4	InternBDB: M5x20/912 \| InternKon: 933 366 40 / 13
24	098 955 40	Ring	1
25	472 688 99	Chain	-2
26	343 105 99	Lock washer	6	InternBDB: 5/127 \| InternKon: 933 366 40 / 14
27	340 404 99	Washer	6	InternBDB: 5,3/433 \| InternKon: 933 366 40 / 15
28	320 142 99	Bolt	2	InternBDB: M5x12/912 10.9 \| InternKon: 933 366 40 / 12
29	512 181 98	Bolt	2	InternBDB: M4x16/84
30	343 104 99	Lock washer	2	InternBDB: 4/127
31	340 459 99	Washer	2	InternBDB: 4,3/125
32	940 462 40	Insulating tube	-2	InternBDB: IS-SCHLAUCH B 6 X0,6 PUR 70 SHORE \| InternKon: 931 356 40 / 18
33	931 356 40	Harness - ladder	1	InternKon: 933 368 40 / 4
34	0443451610	Clip	27	InternKon: 933 368 40 / 8
35	340 611 99	Washer	30	InternBDB: 14/1440 \| InternKon: 933 368 40 / 6
36	507 037 98	Nut	30	InternBDB: M 10 /985 \| InternKon: 933 368 40 / 5
37	0443452110	Clip	3	InternKon: 933 368 40 / 9
38	0819320010	Clip	2	InternKon: 933 368 40 / 1
39	517 122 98	Lock washer	30	InternBDB: 10 WN 655 938 40 \| InternKon: 933 368 40 / 7
40	320 978 99	Bolt	4	InternBDB: M4x30/84 \| InternKon: 933 350 40 / 14
41	340 904 99	Washer	4	InternBDB: 4,3/125 \| InternKon: 933 350 40 / 15
42	346 508 99	Lock washer	4	InternBDB: 4/128 \| InternKon: 933 350 40 / 16
43	907 478 40	Cable union DN 17	1	InternBDB: BVNV-M207 \| InternKon: 931 397 40 / 4
44	896 520 40	Plug pin	1	InternBDB: BO 3,0x25 \| InternKon: 931 397 40 / 8
45	455 757 99	Insulating tube B7x0,7	-2	InternBDB: B7x0,7/40621 \| InternKon: 931 397 40 / 9
46	795 134 73	Plug assy.	1	InternBDB: KES 0819213920 \| InternKon: 931 397 40 / 11
47	931 397 40	Harness-Pull switch S84A	1	InternKon: 933 379 40 / 21
48	907 975 40	Fitting DN 17	1	InternBDB: BVIVG-U297 \| InternKon: 931 356 40 / 30
49	795 127 73	Plug	1	InternBDB: Deutsch HD36-24-21-PE-059 KES 0819171206 \| InternKon: 931 356 40 / 26
50	795 124 73	Pin	3	InternBDB: Deutsch 0462-204-12141 KES 0819105340 \| InternKon: 931 356 40 / 27
51	795 123 73	Pin	12	InternBDB: Deutsch 0462-204-16141 KES 0819105320 \| InternKon: 931 356 40 / 28
52	795 122 73	Sealing plug	6	InternBDB: 114 017 KES 0819100770 \| InternKon: 931 356 40 / 29
53	896 520 40	End pin	2	InternBDB: VERSCHL BOLZEN BO 3,0X25 \| InternKon: 931 356 40 / 14
