PC3000-6 S/N 46174

01 02 03 04 05 05 06 06 08 09 10 11 12 12 13 14 14 15 16 17 18 19 22 22 23 23 24 25 26 27 27 28 30 30 30 31 31 31 32 33 34 34 35 37 38 39 39 40 41 42 43 44 45 46 47 47 48 48 49 49 50 51 53 53 54 55 56 57 58 59 60 60 61 61 61 61 62 62 62 63 64 64 65 66 67 68 68 69 70 71 72 73 75 76 77 78 79 80 80 81 81 82 83 84

#	Part Number	Partname	Quantity	Options	Reference
01		Switch box	1	InternBDB: 927 549 40 \| InternKon: 931 328 40 / 20	485-2167d
02	634 009 40	Spotlight	1	InternBDB: AB-05-03 ABL \| InternKon: 926 550 40 / 1
03	440 373 40	Camswitch	1	InternBDB: T0-2-1/I20A \| InternKon: 931 328 40 / 41
04		Horn	1	InternBDB: 256 886 40 \| InternKon: 931 328 40 / 6	113-2150
05	931 380 40	Harness-Lighting	1	InternKon: 931 328 40 / 14
06		Cables - pilot control frame	-2	InternBDB: 931 361 40 \| InternKon: 931 328 40 / 48	485-2186c
08	343 108 99	Lock washer	1	InternBDB: 8 /127 \| InternKon: 931 328 40 / 40
09	319 143 99	Screw	1	InternBDB: M8x40 /912 \| InternKon: 931 328 40 / 39
10	512 181 98	Screw	2	InternBDB: M4x16 /84 \| InternKon: 931 328 40 / 44
11	340 459 99	Washer	2	InternBDB: 4,3/125 \| InternKon: 931 328 40 / 42
12	343 104 99	Lock washer	2	InternBDB: 4/127 \| InternKon: 931 328 40 / 43
13	506 729 98	Bolt	4	InternBDB: M6x20 /601 \| InternKon: 931 328 40 / 7
14	517 120 98	Lock washer	8	InternBDB: 6 WN 655 938 40 \| InternKon: 931 328 40 / 4
15	2080619170	Clip	2	InternKon: 931 328 40 / 17
16	0443452711	Clip	1	InternKon: 931 328 40 / 19
17	0443451610	Clip	10	InternKon: 931 328 40 / 18
18	317 319 40	Threaded block	1
19	308 544 99	Bolt	4	InternBDB: M6x80/931 \| InternKon: 931 328 40 / 3
22	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12 B \| InternKon: 931 380 40 / 7
23	907 692 40	Fitting	2	InternBDB: PMA BVIR-M162 \| InternKon: 931 380 40 / 2
24	907 703 40	Cable union	1	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 931 380 40 / 3
25	896 521 40	End pin	1	InternBDB: Pflitsch 4,0x25 \| InternKon: 931 362 40 / 5
26	515 214 40	Cable 2,5	-2	InternKon: 931 362 40 / 4
27	056 070 40	Cable sleeve 1,0 - 1,5	38	InternKon: 931 380 40 / 8
28	515 213 40	Cable 1,0	-2	InternKon: 931 380 40 / 9
30	056 292 40	Cable strap	6	InternBDB: Ty 23 11 \| InternKon: 931 380 40 / 5
31	256 514 40	Name plate	6	InternKon: 931 380 40 / 4
32	769 155 73	Seal	1	InternBDB: ABL 18-1 401
33	769 156 73	Glass, white	1	InternBDB: ABL 18-10201
34	931 362 40	Harness-Compressor	1	InternKon: 931 328 40 / 16
35	507 383 99	Halogen lamp 24V /70W	1	InternBDB: H1 24V /70W \| InternKon: 926 550 40 / 2
37	906 231 40	Circular bearing	4	InternBDB: 521 8062 11MN45 \| InternKon: 931 328 40 / 2
38	350 762 99	Washer	4	InternBDB: R 6,6 /440 \| InternKon: 931 328 40 / 5
39	795 136 73	Controller	1	InternBDB: KLTD CR 700 \| InternKon: 931 328 40 / 1
40	906 761 40	Rubber clamp	12	InternBDB: Roxtec 30/0 +12 -22 0130
41	906 760 40	Rubber clamp	3	InternBDB: Roxtec 40/0 +22 -32 0140
42	907 223 40	Rubber clamp	3	InternBDB: Roxtec 15 W 40 /3x0 +3,5 -10,5 0615
43	907 104 40	Rubber clamp	6	InternBDB: Roxtec 20/0 +4 -13,5 0120
44	907 105 40	Rail	2	InternBDB: Roxtec 0503
45	906 762 40	Compensating disc	1	InternBDB: Roxtec 10/0x12 0310
46	906 758 40	Seal	1	InternBDB: Roxtec 0500
47	931 363 40	Harness-Controller	1	InternKon: 931 328 40 / 15
48	455 756 99	Insulating tube	-2	InternBDB: B6x0,6 DIN 40621 \| InternKon: 931 380 40 / 6
49	903 422 40	Plug assy.	2	InternKon: 931 380 40 / 1
50	907 704 40	Cable union	1	InternBDB: Pflitsch 21650YNPM 3x3,5 \| InternKon: 931 362 40 / 2
51	932 530 40	Cable shoe 2,5	2	InternKon: 931 362 40 / 9
53	056 071 40	Cable sleeve 2,5	7	InternKon: 931 362 40 / 10
54	907 864 40	Plug assy.	1	InternBDB: Deutsch DRC 26-24 SA \| InternKon: 931 363 40 / 1
55	907 865 40	Plug assy.	1	InternBDB: Deutsch DRC 26-40 SA \| InternKon: 931 363 40 / 2
56	907 866 40	Plug assy.	1	InternBDB: Deutsch DRC 26-40 SB \| InternKon: 931 363 40 / 3
57	932 517 40	Contacte	54	InternBDB: Deutsch 1062-16-0144-PS 0819107610 \| InternKon: 931 363 40 / 4
58	932 561 40	Contacte	42	InternBDB: Deutsch 0413-204-2005 \| InternKon: 931 363 40 / 10
59	655 834 40	Cable protection hose DN 36	-2	InternBDB: VCSG-36B \| InternKon: 931 363 40 / 11
60	906 647 40	T-Splitter	2	InternBDB: Deutsch DT-3P-P007 \| InternKon: 931 363 40 / 12
61	913 246 40	Bushing assy.	8	InternKon: 931 363 40 / 13
62	906 577 40	Cable	-2	InternBDB: H+S 552 039.12 \| InternKon: 931 363 40 / 14
63	795 139 73	Contact	3	InternBDB: AMP 173 681 -1 \| InternKon: 931 363 40 / 15
64	906 605 40	Plug	2	InternBDB: Deutsch DT04-3P-P006 \| InternKon: 931 363 40 / 16
65	907 877 40	Cable 2,5	-2	InternKon: 931 363 40 / 18
66	635 677 40	Cable 4x1	-2	InternKon: 931 363 40 / 17
67	906 577 40	Cable UIC	-2	InternBDB: H+S 552 039.12 \| InternKon: 931 363 40 / 19
68	635 896 40	Tube protection	-2	InternBDB: 100 121 005 \| InternKon: 931 363 40 / 7
69	509 064 98	Pair of clamps	3	InternBDB: S-5-E/3015 \| InternKon: 931 328 40 / 27
70	500 398 98	Cover	3	InternBDB: S-DP-A-5/3015 \| InternKon: 931 328 40 / 29
71	516 024 98	Grommet	3	InternBDB: S-5-70/3015 \| InternKon: 931 328 40 / 28
72	343 008 99	Washer	6	InternBDB: 17/93 \| InternKon: 931 328 40 / 30
73	302 178 99	Bolt	6	InternBDB: M16x130/601 \| InternKon: 931 328 40 / 31
75	308 611 99	Bolt	4	InternBDB: M12x90/931 \| InternKon: 931 328 40 / 21
76	340 467 99	Washer	4	InternBDB: 13,0/125
77	510 745 98	Resilent sleeve	4	InternBDB: 13/25x40 WN 341 948 40 \| InternKon: 931 328 40 / 23
78	334 600 99	Nut	4	InternBDB: M12/985
79	931 321 40	Retainer	2	InternKon: 931 328 40 / 39
80	307 777 99	Bolt	16	InternBDB: M10x25/933 \| InternKon: 931 328 40 / 34
81	517 122 98	Lock washer	25	InternBDB: 10 WN 655 938 40 \| InternKon: 931 328 40 / 35
82	346 500 99	Lock washer	25
83	655 530 40	Strab	2	InternKon: 931 328 40 / 33
84	0443452110	Clip	8	InternKon: 931 328 40 / 46

Komatsu PC3000-6 S/N 46174 parts catalog PDF

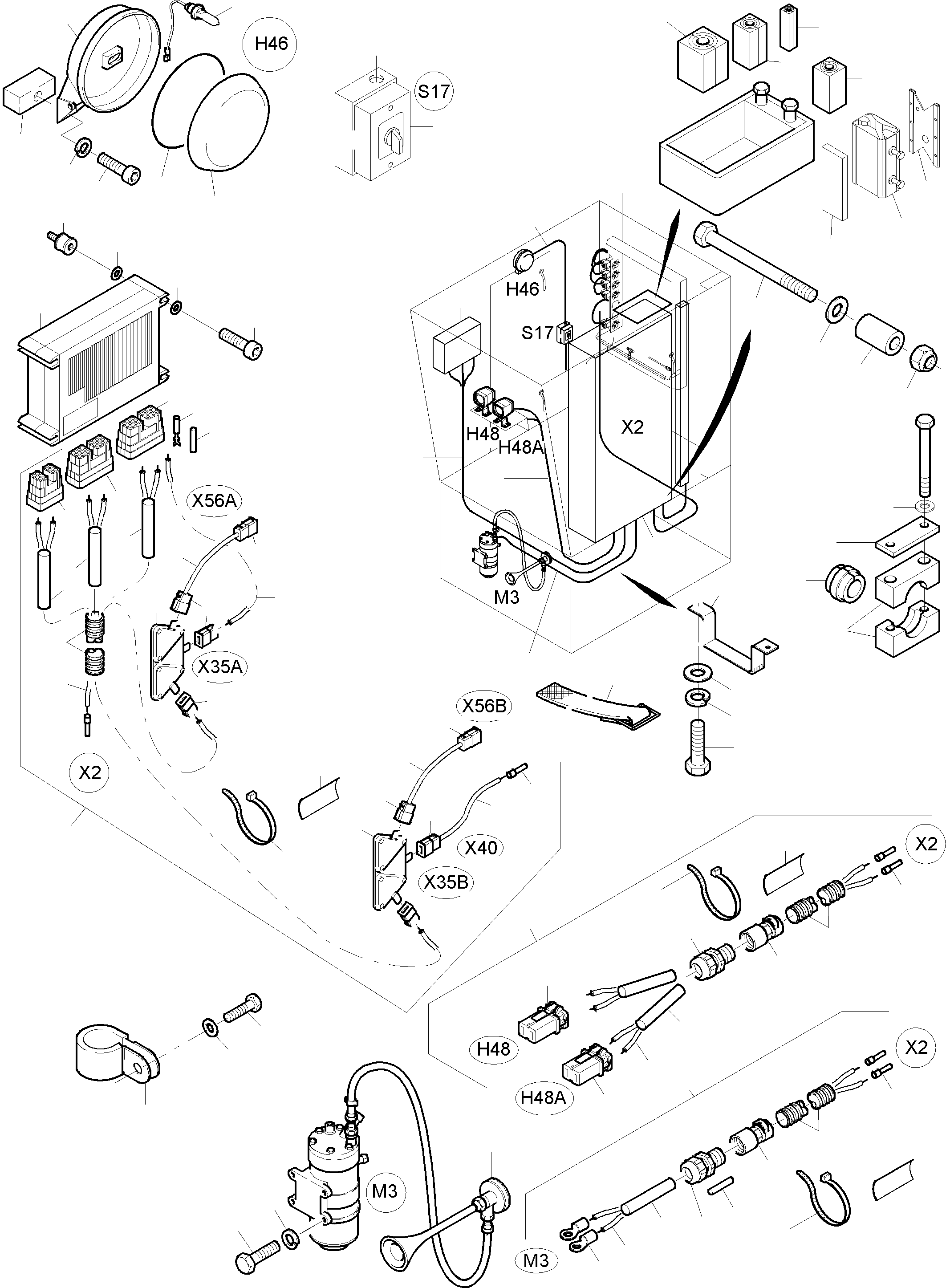

ELECTRIC - CAB SUPPORT (485-2136d) in PC3000-6 S/N 46174. Diagram image and parts list.
