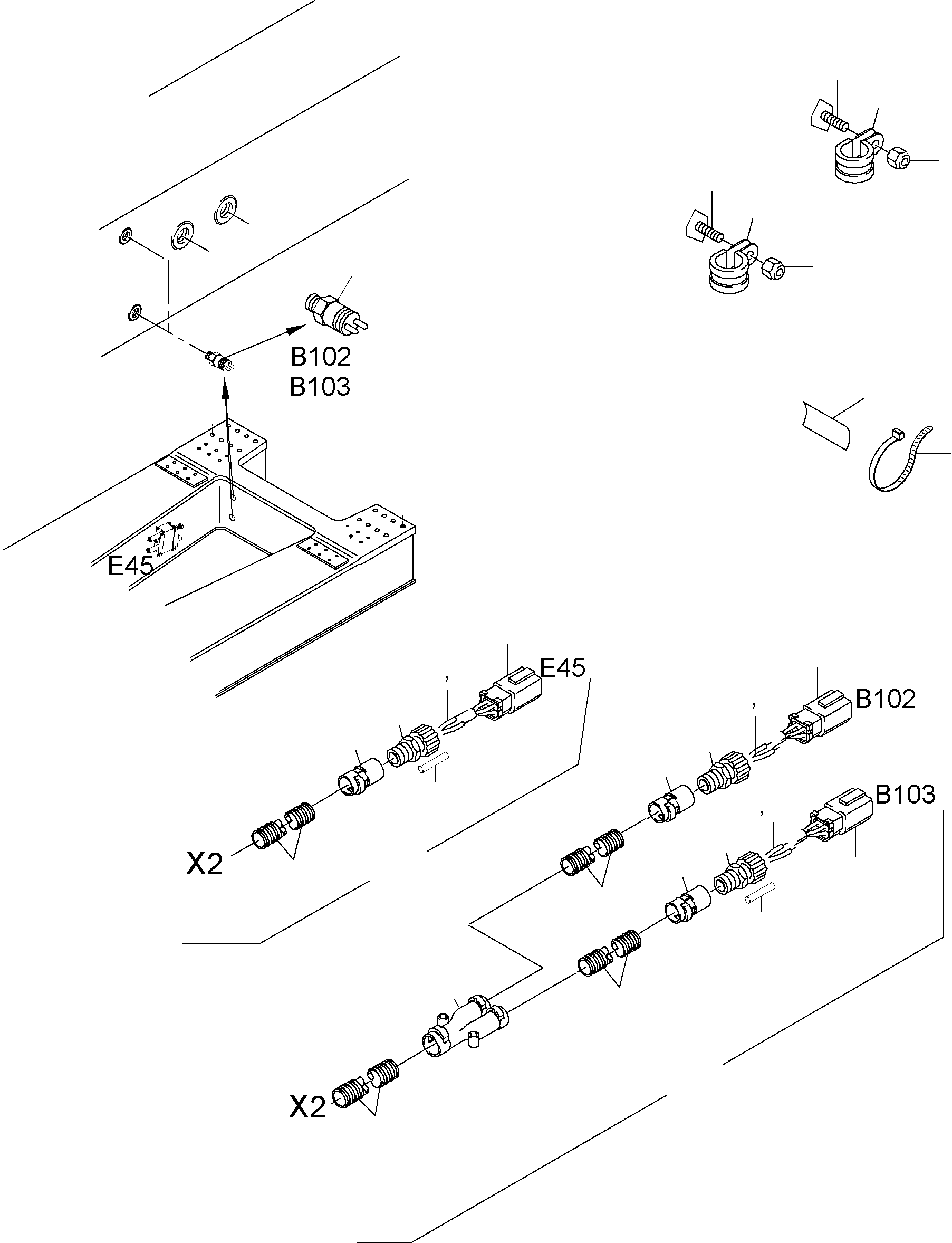

ELECTR. PARTS ENGINE OIL | PC3000-6 S/N 46174 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	929 858 40	Harness - engine oil tank	1
02	929 857 40	Harness - engine oil - refill	1
03	795 134 40	Plug assy.	3	InternBDB: KES 0819213920 \| InternKon: 929 858 40 / 1
04	655 649 40	Cable protection hose DN 10	-2	InternBDB: VCST-10 B \| InternKon: 929 858 40 / 10
05	655 650 40	Cable protection hose DN 12	-2	InternBDB: VCST-12 B \| InternKon: 929 858 40 / 9
06	907 692 40	Fitting PG 9	3	InternBDB: BVIR-M162 \| InternKon: 929 858 40 / 2
07	907 703 40	Cable union	3	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 929 858 40 / 3
08	515 213 40	Cable 1,0	-2	InternKon: 929 858 40 / 12
09	455 756 99	Insulating tube B6x0,6	-2	InternBDB: B6x0,6 /40621 \| InternKon: 929 858 40 / 7
10	896 520 40	End pin	3	InternBDB: Pflitsch BO 3,0x25 \| InternKon: 929 858 40 / 4
11	635 043 40	Type plate	3	InternBDB: BS5 Nr.55476 \| InternKon: 929 858 40 / 5
12	056 292 40	Cable strap	3	InternBDB: TY 23 M \| InternKon: 929 858 40 / 6
13	655 625 40	Distributor DN 12/10	1	InternBDB: BVYR 12 10 10 TTT \| InternKon: 929 858 40 / 8
14	056 070 40	Cable sleeve 1,0-1,5	9	InternKon: 929 858 40 / 11
16	896 669 40	Level probe	2	InternBDB: 425031 3/8 NPTF Bedia \| InternKon: 931 308 40 / 26
17	350 762 99	Washer	2	InternBDB: R6,6/440 \| InternKon: 929 898 40 / 4
18	510 210 98	Thread pin	8	InternBDB: M6x20 /32500 \| InternKon: 929 898 40 / 2
19	0819320010	Clip	2	InternKon: 929 898 40 / 1
20	507 025 98	Nut	8	InternBDB: M 6 /985 \| InternKon: 929 898 40 / 3
21	0443551610	Clip	6	InternKon: 931 308 40 / 6
22	517 120 98	Lock washer	6	InternBDB: 6 WN 655 938 40 \| InternKon: 931 308 40 / 9
