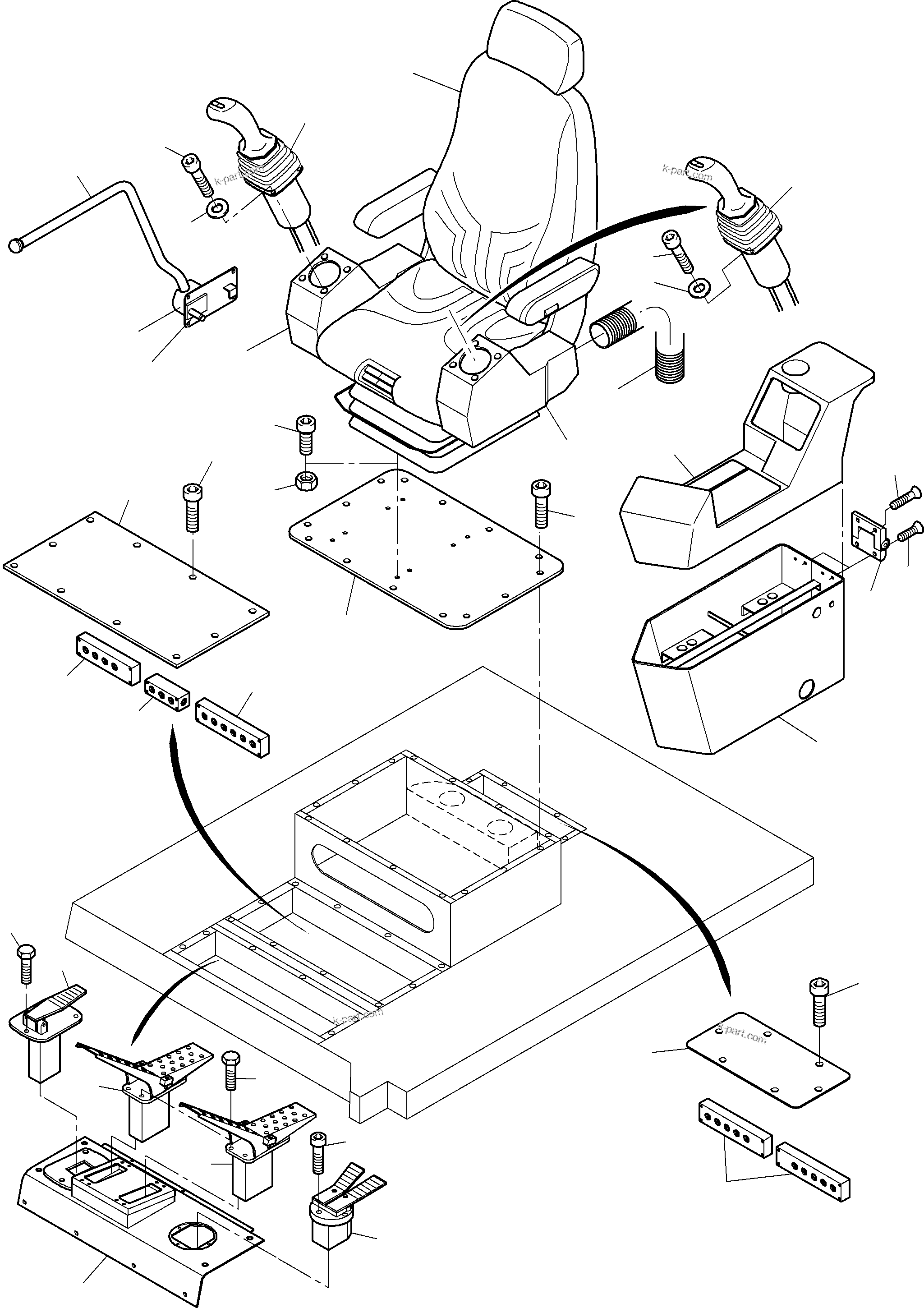

Diagram image 1 of 2

PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Pilot oil unit	1	InternBDB: 896 414 40 Drehen / Stiel \| InternKon: 942 025 40 / 2	991-0237
?		Pilot oil unit	1	InternBDB: 896 415 40 Schaufel / Ausleger \| InternKon: 942 025 40 / 1	991-0238
?		Pilot oil unit	1	InternBDB: 346 567 40 Drehbremse \| InternKon: 942 025 40 / 4	090-0441
?		Pilot oil unit	1	InternBDB: 604 750 40 Fahren rechts \| InternKon: 942 025 40 / 5	090-2863
?		Pilot oil unit	1	InternBDB: 627 291 40 Fahren links \| InternKon: 942 025 40 / 6	090-2863
?	320 214 99	Screw	8	InternBDB: M6x20 /912
?	340 506 99	Washer	8	InternBDB: A 6,4 / 125
?	377 750 99	Bolt	11	InternBDB: M8x16 /933
?		Pilot oil unit	1	InternBDB: 515 465 40 Klappschaufel \| InternKon: 942 025 40 / 3
?	319 417 99	Screw	3	InternBDB: M6x35 / 912 \| InternKon: 942 025 40 / 2
?		Operator's seat	1	InternKon: 922 492 40 / 23	991-0365
?	794 463 73	Retainer for pilot oil unit, l.h.	1	InternBDB: Eko 14023300 \| InternKon: 140 23000 / 26
?	794 464 73	Retainer for pilot oil unit, r.h.	-2	InternBDB: Eko 14023310 \| InternKon: 140 23000 / 27
?	794 465 73	Lever assy.	-2	InternBDB: 14023330 \| InternKon: 140 23000 / 33
?	794 466 73	Pedal cover	-2	InternBDB: 14023261 4x364x705 \| InternKon: 140 23000 / 10
?	794 467 73	Cover	1	InternBDB: 14023262 \| InternKon: 140 23000 / 11
?	794 468 73	Cover	1	InternBDB: 14023264 \| InternKon: 140 23000 / 13
?	794 469 73	Pedal cover	1	InternBDB: 14023240 \| InternKon: 140 23000 / 7
?	794 470 73	Connecting block	1	InternBDB: 14023266-1 \| InternKon: 140 23000 / 15
?	794 471 73	Connecting block	-2	InternBDB: 14023268 \| InternKon: 140 23000 / 17
?	794 472 73	Connecting block	-2	InternBDB: 14023267 \| InternKon: 140 23000 / 16
?	794 473 73	Connecting block	2	InternBDB: 140-23266-2 \| InternKon: 140 23000 / 15
?	794 474 73	Operation panel - base	1	InternBDB: 14023220 \| InternKon: 140 23000 / 5
?	794 475 73	Operation panel - upper	1	InternBDB: 14023317 \| InternKon: 140 23000 / 29
?	794 476 73	Hinge	-2	InternBDB: Dirak 218-9213 330702-2928494 \| InternKon: 14023220 / 13
?	321 212 99	Screw	6	InternBDB: M8x25 /7991 \| InternKon: 14023220 / 14
?	321 231 99	Screw	4	InternBDB: M8x40 /7991 \| InternKon: 14023220 / 15
?	332 332 99	Nut	10	InternBDB: M 8 /934 \| InternKon: 14023220 / 16
?	319 135 99	Screw	20	InternBDB: M6x45 /912 \| InternKon: 140 23000 / 89
?	504 136 98	Screw	10	InternBDB: M8x18 /912 \| InternKon: 140 23000 / 90
?	414 272 40	Flex. hose DN 80	2	InternBDB: LW80 K1H-PLI 711806080000 \| InternKon: 140 23000 / 102
?	793 758 73	Switch	1	InternBDB: 22U-06-22360 \| InternKon: 14023330 / 10
?	906 761 40	Grommet 30	12	InternBDB: 30/0 +12 -22 0130 Roxtec \| InternKon: 903 480 40 / 2
?	906 760 40	Grommet 40	3	InternBDB: 40/0 +22 -32 0140 Roxtec \| InternKon: 903 480 40 / 3
?	907 223 40	Grommet 15	3	InternBDB: 15 W 40 3x0 +3,5 -10,5 0615 Roxtec \| InternKon: 903 480 40 / 4
?	906 758 40	Seal	1	InternBDB: 0500 Roxtec \| InternKon: 903 480 40 / 1
?	906 762 40	Shim	1	InternBDB: 10/0x12 0310 Roxtec \| InternKon: 903 480 40 / 5
?	907 105 40	Rail	2	InternBDB: 0503 \| InternKon: 903 480 40 / 7
?	906 493 40	Cable union	6	InternBDB: M32x1,5 Hummel 1.209.3200.51
?	907 997 40	Fitting DN 29	6	InternBDB: PMA BVNZ-M329S
?	896 558 40	Pipe adapter DN 29/23	7	InternBDB: PMA BAVR-29G23G
?	655 652 40	Protecting hose DN 23	-2	InternBDB: PMA VCSG -23B
?	907 981 40	Fitting DN 29	5	InternBDB: PMA BVIVG-U359
?	795 129 73	Plug	5	InternBDB: 819 191 206 HD36-24-31PE-059 Deutsch
?	795 123 73	Solid Pin Contact	-2	InternBDB: 819 105 320 0460-202-16141 Deutsch
?	795 124 73	Solid Pin Contact	-2	InternBDB: 819 105 340 0462-204-12141 Deutsch
?	906 490 40	Cable union DN 16	2	InternBDB: M16x1,5 Hummel 1.209.1600.51
?	907 692 40	Fitting DN 12	2	InternBDB: PMA BVIR-M162
?	655 632 40	Pipe adapter DN 17/12	2	InternBDB: PMA BAVR-17G12T
?	655 650 40	Protecting hose DN 12	-2	InternBDB: PMA VCST-12T
?	600 209 99	Cable shoe 10-95	-2	InternBDB: Din 46234
?	921 523 40	Face	1
?	907 104 40	Grommet 20	6	InternBDB: 20/0 +4-13,5 0120 Roxtec \| InternKon: 903 480 40 / 6
?	515 213 40	Cable 1,0	-2
?	515 214 40	Cable 2,5	-2
?		Cable	-2
?		Cable	-2
?	796 750 73	Shaft	1	InternBDB: Eko 14023335 \| InternKon: 14023330 / 2

Komatsu PC3000-6 S/N 46174 parts catalog PDF

OPERATOR'S STAND (991-0580a) in PC3000-6 S/N 46174. Diagram image and parts list.
