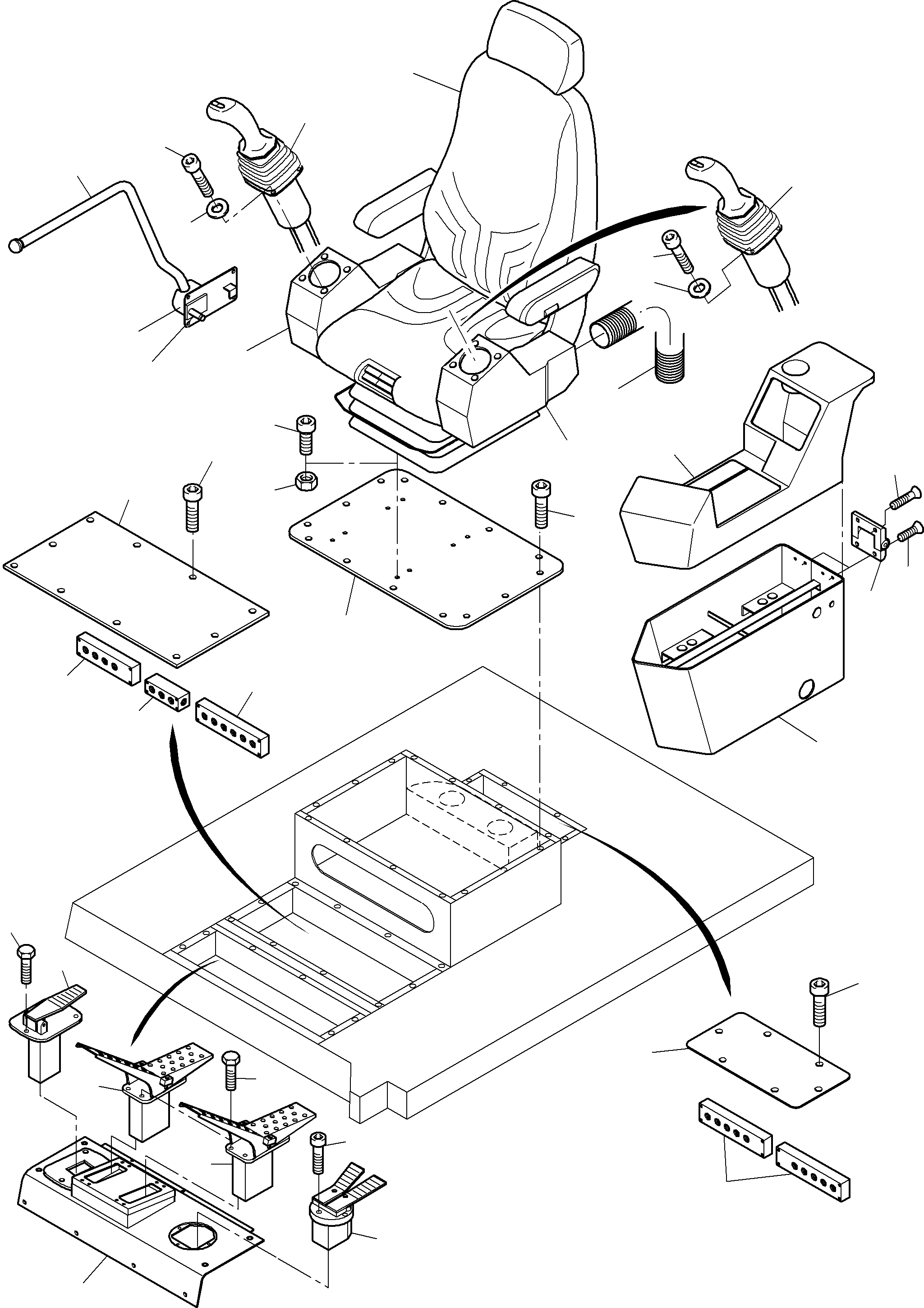

01 |
|
Pilot oil unit |
1 |
InternBDB: 896 414 40 Drehen / Stiel | InternKon: 942 025 40 / 2
|
991-0237 |
|
|
02 |
|
Pilot oil unit |
1 |
InternBDB: 896 415 40 Schaufel / Ausleger | InternKon: 942 025 40 / 1
|
991-0238 |
|
|
03 |
|
Pilot oil unit |
1 |
InternBDB: 346 567 40 Drehbremse | InternKon: 942 025 40 / 4
|
090-0441 |
|
|
04 |
|
Pilot oil unit |
1 |
InternBDB: 604 750 40 Fahren rechts | InternKon: 942 025 40 / 5
|
090-2863 |
|
|
05 |
|
Pilot oil unit |
1 |
InternBDB: 627 291 40 Fahren links | InternKon: 942 025 40 / 6
|
090-2863 |
|
|
06 |
320 214 99
|
Screw |
8 |
InternBDB: M6x20 /912
|
|
|
|
07 |
340 506 99
|
Washer |
8 |
InternBDB: A 6,4 / 125
|
|
|
|
08 |
377 750 99
|
Bolt |
11 |
InternBDB: M8x16 /933
|
|
|
|
10 |
|
Pilot oil unit |
1 |
InternBDB: 515 465 40 Klappschaufel | InternKon: 942 025 40 / 3
|
|
|
|
11 |
319 417 99
|
Screw |
3 |
InternBDB: M6x35 / 912 | InternKon: 942 025 40 / 2
|
|
|
|
12 |
|
Operator's seat |
1 |
InternKon: 922 492 40 / 23
|
991-0365 |
|
|
13 |
794 463 73
|
Retainer for pilot oil unit, l.h. |
1 |
InternBDB: Eko 14023300 | InternKon: 140 23000 / 26
|
|
|
|
14 |
794 464 73
|
Retainer for pilot oil unit, r.h. |
-2 |
InternBDB: Eko 14023310 | InternKon: 140 23000 / 27
|
|
|
|
15 |
794 465 73
|
Lever assy. |
-2 |
InternBDB: 14023330 | InternKon: 140 23000 / 33
|
|
|
|
16 |
794 466 73
|
Pedal cover |
-2 |
InternBDB: 14023261 4x364x705 | InternKon: 140 23000 / 10
|
|
|
|
17 |
794 467 73
|
Cover |
1 |
InternBDB: 14023262 | InternKon: 140 23000 / 11
|
|
|
|
18 |
794 468 73
|
Cover |
1 |
InternBDB: 14023264 | InternKon: 140 23000 / 13
|
|
|
|
19 |
794 469 73
|
Pedal cover |
1 |
InternBDB: 14023240 | InternKon: 140 23000 / 7
|
|
|
|
20 |
794 470 73
|
Connecting block |
1 |
InternBDB: 14023266-1 | InternKon: 140 23000 / 15
|
|
|
|
21 |
794 471 73
|
Connecting block |
-2 |
InternBDB: 14023268 | InternKon: 140 23000 / 17
|
|
|
|
22 |
794 472 73
|
Connecting block |
-2 |
InternBDB: 14023267 | InternKon: 140 23000 / 16
|
|
|
|
23 |
794 473 73
|
Connecting block |
2 |
InternBDB: 140-23266-2 | InternKon: 140 23000 / 15
|
|
|
|
24 |
794 474 73
|
Operation panel - base |
1 |
InternBDB: 14023220 | InternKon: 140 23000 / 5
|
|
|
|
25 |
794 475 73
|
Operation panel - upper |
1 |
InternBDB: 14023317 | InternKon: 140 23000 / 29
|
|
|
|
26 |
794 476 73
|
Hinge |
-2 |
InternBDB: Dirak 218-9213 330702-2928494 | InternKon: 14023220 / 13
|
|
|
|
27 |
321 212 99
|
Screw |
6 |
InternBDB: M8x25 /7991 | InternKon: 14023220 / 14
|
|
|
|
28 |
321 231 99
|
Screw |
4 |
InternBDB: M8x40 /7991 | InternKon: 14023220 / 15
|
|
|
|
29 |
332 332 99
|
Nut |
10 |
InternBDB: M 8 /934 | InternKon: 14023220 / 16
|
|
|
|
30 |
319 135 99
|
Screw |
20 |
InternBDB: M6x45 /912 | InternKon: 140 23000 / 89
|
|
|
|
31 |
504 136 98
|
Screw |
10 |
InternBDB: M8x18 /912 | InternKon: 140 23000 / 90
|
|
|
|
32 |
414 272 40
|
Flex. hose DN 80 |
2 |
InternBDB: LW80 K1H-PLI 711806080000 | InternKon: 140 23000 / 102
|
|
|
|

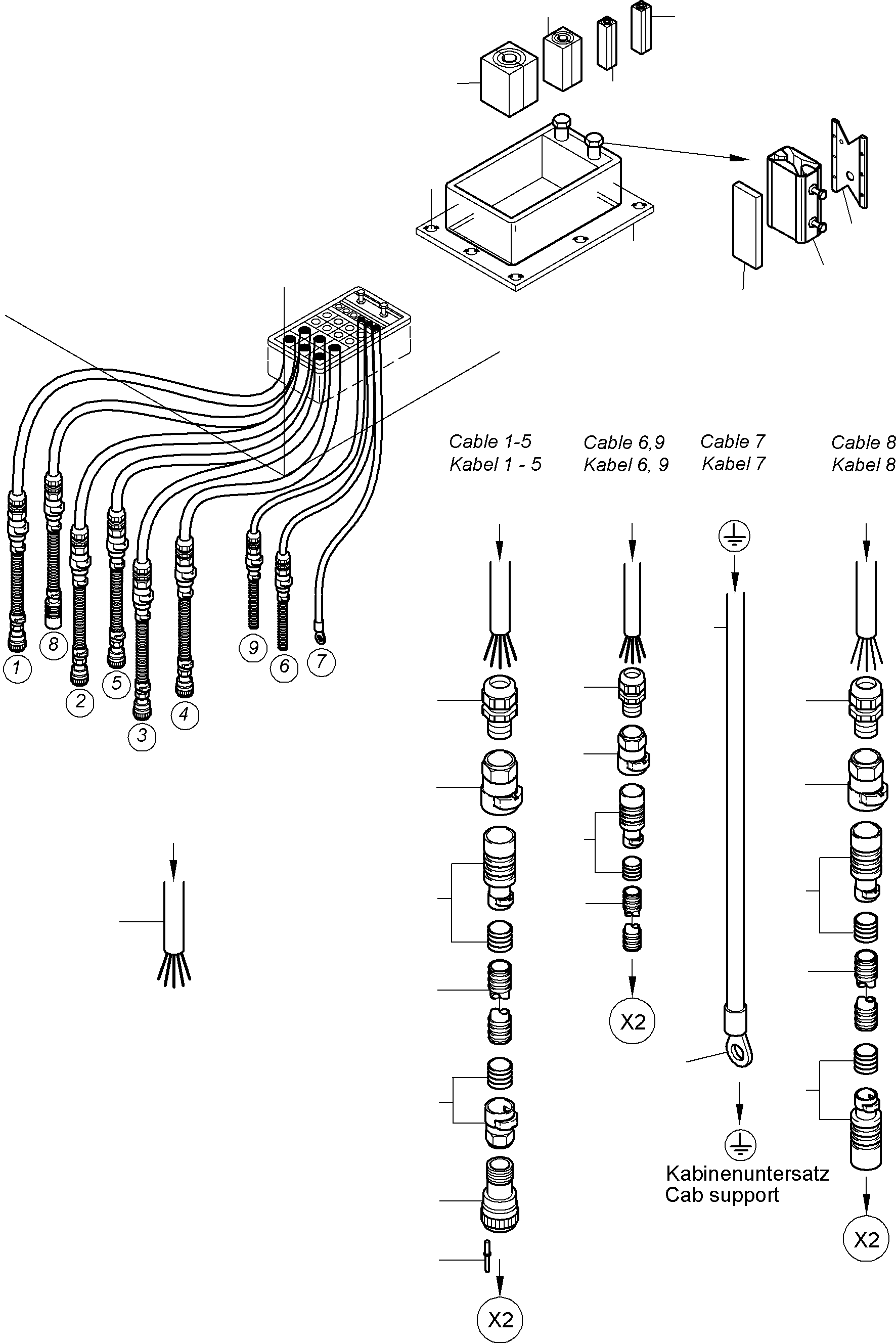

33 |
793 758 73
|
Switch |
1 |
InternBDB: 22U-06-22360 | InternKon: 14023330 / 10
|
|
|
|
34 |
906 761 40
|
Grommet 30 |
12 |
InternBDB: 30/0 +12 -22 0130 Roxtec | InternKon: 903 480 40 / 2
|
|
|
|
35 |
906 760 40
|
Grommet 40 |
3 |
InternBDB: 40/0 +22 -32 0140 Roxtec | InternKon: 903 480 40 / 3
|
|
|
|
36 |
907 223 40
|
Grommet 15 |
3 |
InternBDB: 15 W 40 3x0 +3,5 -10,5 0615 Roxtec | InternKon: 903 480 40 / 4
|
|
|
|
37 |
906 758 40
|
Seal |
1 |
InternBDB: 0500 Roxtec | InternKon: 903 480 40 / 1
|
|
|
|
38 |
906 762 40
|
Shim |
1 |
InternBDB: 10/0x12 0310 Roxtec | InternKon: 903 480 40 / 5
|
|
|
|
39 |
907 105 40
|
Rail |
2 |
InternBDB: 0503 | InternKon: 903 480 40 / 7
|
|
|
|
40 |
906 493 40
|
Cable union |
6 |
InternBDB: M32x1,5 Hummel 1.209.3200.51
|
|
|
|
41 |
907 997 40
|
Fitting DN 29 |
6 |
InternBDB: PMA BVNZ-M329S
|
|
|
|
42 |
896 558 40
|
Pipe adapter DN 29/23 |
7 |
InternBDB: PMA BAVR-29G23G
|
|
|
|
43 |
655 652 40
|
Protecting hose DN 23 |
-2 |
InternBDB: PMA VCSG -23B
|
|
|
|
44 |
907 981 40
|
Fitting DN 29 |
5 |
InternBDB: PMA BVIVG-U359
|
|
|
|
45 |
795 129 73
|
Plug |
5 |
InternBDB: 819 191 206 HD36-24-31PE-059 Deutsch
|
|
|
|
46 |
795 123 73
|
Solid Pin Contact |
-2 |
InternBDB: 819 105 320 0460-202-16141 Deutsch
|
|
|
|
47 |
795 124 73
|
Solid Pin Contact |
-2 |
InternBDB: 819 105 340 0462-204-12141 Deutsch
|
|
|
|
48 |
906 490 40
|
Cable union DN 16 |
2 |
InternBDB: M16x1,5 Hummel 1.209.1600.51
|
|
|
|
49 |
907 692 40
|
Fitting DN 12 |
2 |
InternBDB: PMA BVIR-M162
|
|
|
|
50 |
655 632 40
|
Pipe adapter DN 17/12 |
2 |
InternBDB: PMA BAVR-17G12T
|
|
|
|
51 |
655 650 40
|
Protecting hose DN 12 |
-2 |
InternBDB: PMA VCST-12T
|
|
|
|
52 |
600 209 99
|
Cable shoe 10-95 |
-2 |
InternBDB: Din 46234
|
|
|
|
53 |
921 523 40
|
Face |
1 |
|
|
|
|
54 |
907 104 40
|
Grommet 20 |
6 |
InternBDB: 20/0 +4-13,5 0120 Roxtec | InternKon: 903 480 40 / 6
|
|
|
|
55 |
515 213 40
|
Cable 1,0 |
-2 |
|
|
|
|
56 |
515 214 40
|
Cable 2,5 |
-2 |
|
|
|
|
57 |
|
Cable |
-2 |
|
|
|
|
57 |
|
Cable |
-2 |
|
|
|
|
60 |
796 750 73
|
Shaft |
1 |
InternBDB: Eko 14023335 | InternKon: 14023330 / 2
|
|
