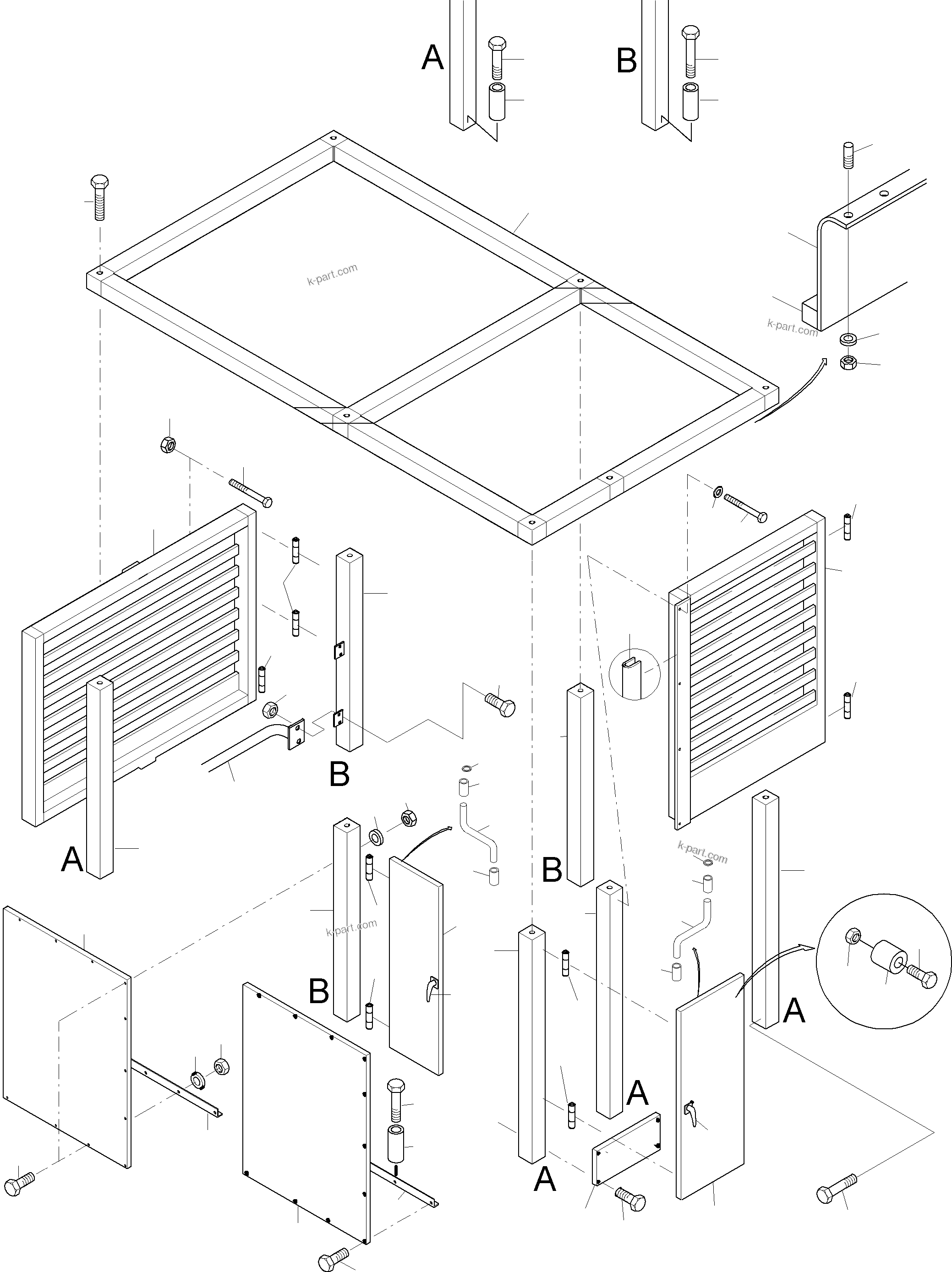

Diagram image 1 of 2

PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	927 227 40	Post 1	1	InternKon: 930 553 40 / 1
?	927 229 40	Post 2	1	InternKon: 930 553 40 / 2
?	930 571 40	Post 3	1	InternKon: 930 553 40 / 3
?	930 501 40	Post 4	1	InternKon: 930 553 40 / 7
?	929 114 40	Post 5	1	InternKon: 930 553 40 / 5
?	930 555 40	Post 6	1	InternKon: 930 553 40 / 6
?	891 714 40	Post 7	1	InternKon: 930 553 40 / 4
?	930 554 40	Wall	1	InternKon: 930 553 40 / 9
?	930 503 40	Door	1	InternKon: 930 553 40 / 50
?	906 709 40	Fastener with out lock pin	2	InternKon: 930 553 40 / 40
?	340 510 99	Washer	2	InternBDB: A17,0 140HV / DIN 125 \| InternKon: 930 553 40 / 41
?	930 550 40	Wall	1	InternKon: 930 553 40 / 10
?	927 204 40	Door, radiator	1	InternKon: 930 553 40 / 8
?	927 264 40	Wall	1	InternKon: 930 553 40 / 11
?	390 199 40	Hinge	5	InternKon: 930 553 40 / 14
?	621 983 40	Hinge	4	InternKon: 930 553 40 / 39
?	930 540 40	Door	1	InternKon: 930 553 40 / 15
?	927 212 40	Door	1	InternKon: 930 553 40 / 12
?	934 342 40	Angle	1	InternKon: 930 553 40 / 23
?	934 343 40	Angle	1	InternKon: 930 553 40 / 24
?	167 693 40	Flex. Header	-2	InternBDB: Happich 461 0031 schwarz \| InternKon: 930 553 40 / 44
?	510 741 98	Resilient sleeve	9	InternKon: 930 553 40 / 16
?	308 608 99	Bolt	9	InternBDB: M 12x70 /931 \| InternKon: 930 553 40 / 28
?	510 732 98	Resilient sleeve	28	InternKon: 930 553 40 / 18
?	308 885 99	Bolt to fig-nos. 02, 06-08	16	InternKon: 930 553 40 / 26
?	308 414 99	Bolt to fig-nos. 03, 04 + 05	12	InternKon: 930 553 40 / 19
?	927 230 40	Pipe	2	InternKon: 930 553 40 / 48
?	307 805 99	Bolt	8	InternBDB: M 12x35 /933 \| InternKon: 930 553 40 / 47
?	081 282 40	Round buffer	1	InternKon: 930 553 40 / 54
?	319 135 99	Screw	1	InternBDB: M6x45 / 912 \| InternKon: 930 553 40 / 55
?	507 025 98	Nut	1	InternBDB: M6 / 985 \| InternKon: 930 553 40 / 56
?	308 610 99	Bolt	28	InternBDB: M 12x80 /931 \| InternKon: 930 553 40 / 29
?	334 600 99	Nut	36	InternBDB: M 12 /985 \| InternKon: 930 553 40 / 31
?	340 467 99	Washer	28	InternBDB: B 13 /125 \| InternKon: 930 553 40 / 38
?	308 617 99	Bolt	4	InternBDB: M 12x150 / 931 \| InternKon: 930 553 40 / 46
?	307 802 99	Bolt	4	InternBDB: M 12x25 /933 \| InternKon: 930 553 40 / 51
?	346 498 99	Lock washer	4	InternKon: 930 553 40 / 52
?	332 334 99	Nut	4	InternBDB: M 12 / 934 \| InternKon: 930 553 40 / 53
?	887 961 40	Door catch	1	InternBDB: 279 \| InternKon: 930 553 40 / 27
?	539 761 40	Pipe	6	InternBDB: 25x4x20 \| InternKon: 930 553 40 / 13
?	512 545 98	Washer	2	InternBDB: 13,0 \| InternKon: 930 553 40 / 32
?	897 656 40	Door catch	1	InternBDB: 289 \| InternKon: 930 553 40 / 17
?	927 224 40	Plate	1	InternKon: 930 553 40 / 33
?	511 263 98	Thread pin	6	InternBDB: PM 10x25 \| InternKon: 930 553 40 / 34
?	507 037 98	Nut	6	InternBDB: M 10 / 985 \| InternKon: 930 553 40 / 35
?	507 596 98	Washer	6	InternBDB: A 11 \| InternKon: 930 553 40 / 36
?	440 821 40	Rubber	-2	InternBDB: 30x30 \| InternKon: 930 553 40 / 37
?	919 943 40	Roof section 1	1	InternKon: 925 752 40 / 1
?	925 753 40	Roof section 2	1	InternKon: 925 752 40 / 2
?	925 754 40	Roof section 3	1	InternKon: 925 752 40 / 3
?	925 755 40	Roof section 4	1	InternKon: 925 752 40 / 4
?	510 741 98	Resilient sleeve	45	InternKon: 925 752 40 / 5
?	308 608 99	Bolt	45	InternBDB: M 12x70 /931 \| InternKon: 925 752 40 / 6
?	307 949 99	Bolt	7	InternBDB: M 12x25 /933 \| InternKon: 925 752 40 / 7
?	517 118 98	Lock washer	7	InternBDB: 12 \| InternKon: 925 752 40 / 8
?	598 248 40	Threaded rail	2	InternKon: 925 752 40 / 9
?	598 250 40	Threaded rail	2	InternKon: 925 752 40 / 10
?	598 249 40	Threaded rail	2	InternKon: 925 752 40 / 11
?	598 240 40	Threaded rail	2	InternKon: 925 752 40 / 12
?	598 239 40	Threaded rail	4	InternKon: 925 752 40 / 13
?	180 894 40	Plug	10	InternBDB: F 10 - PE Weich \| InternKon: 925 752 40 / 14
?	919 949 40	Roof frame	1	InternKon: 925 751 40 / 8
?	180 889 40	Plug	4	InternBDB: F 211 PE Weich \| InternKon: 925 751 40 / 4
?	308 356 99	Bolt	14	InternBDB: M 36x200 / 931 \| InternKon: 919 904 40 / 52

Komatsu PC3000-6 S/N 46174 parts catalog PDF

COVERING - ENGINE HOUSING (485-1032b) in PC3000-6 S/N 46174. Diagram image and parts list.
