CAB SUPPORT | PC3000-6 S/N 46174 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

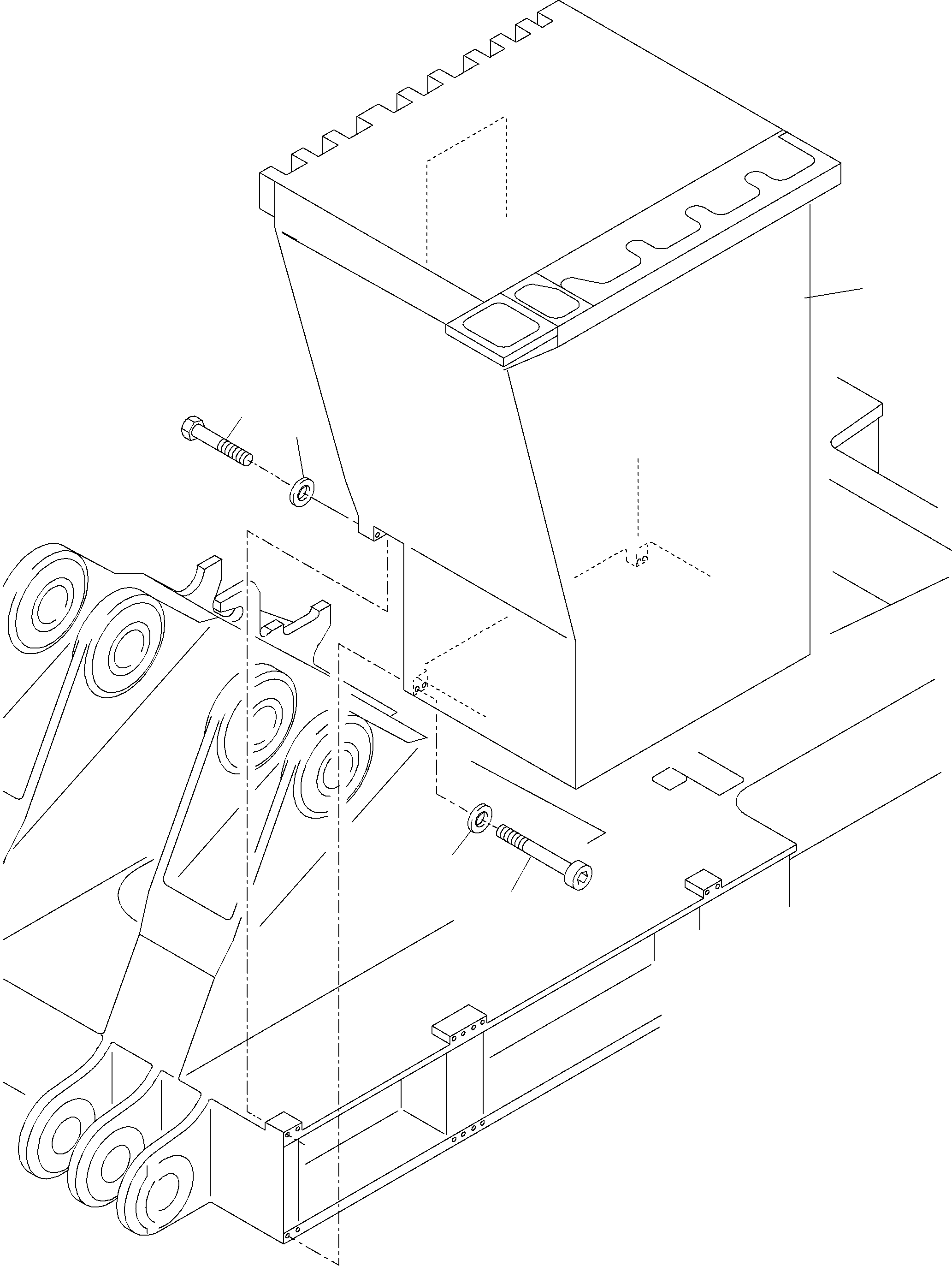

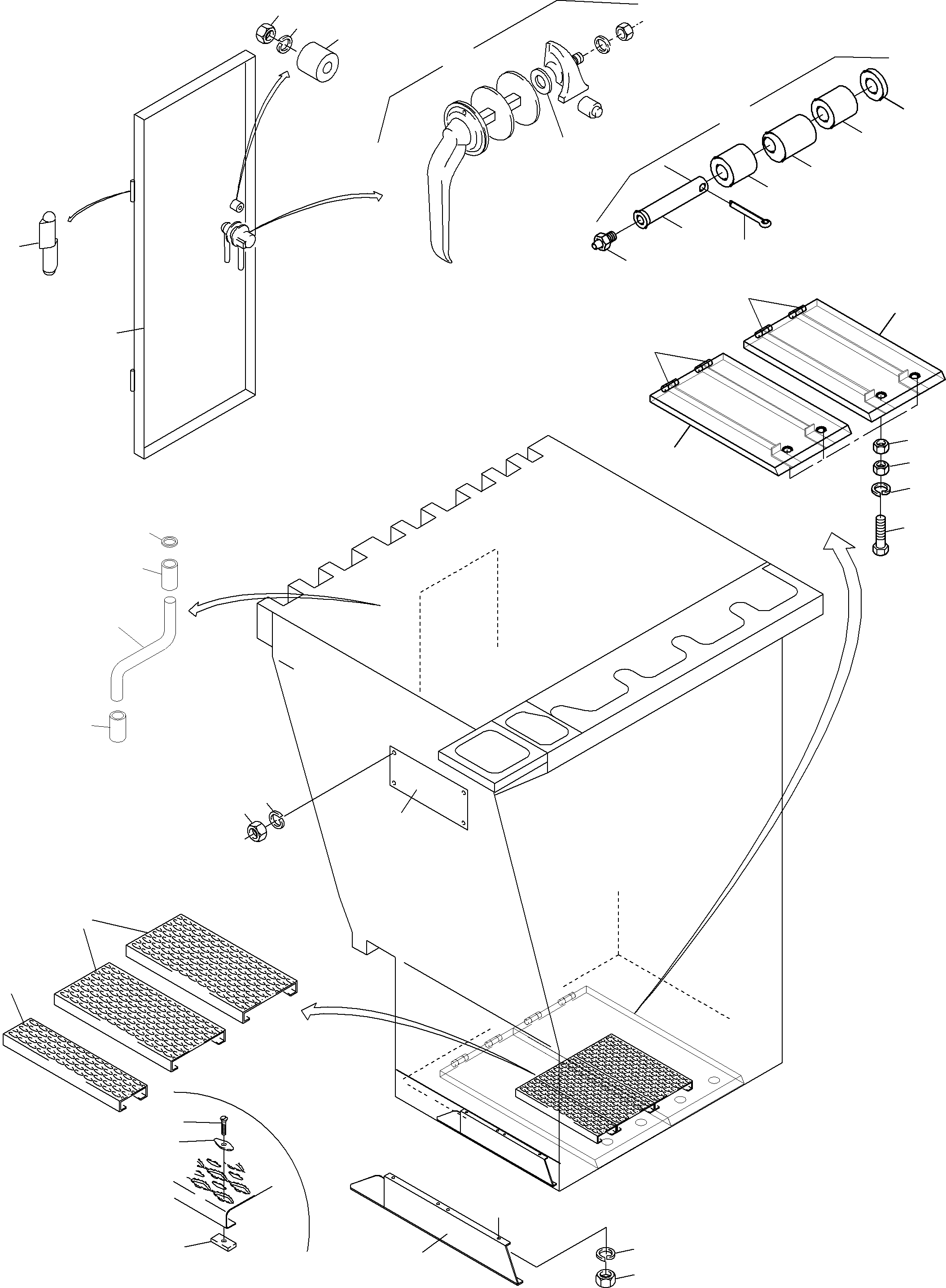

Diagram image 1 of 2

PC3000-6 S/N 46174

01 30 31 32 32

PC3000-6 S/N 46174

02 03 04 05 06 07 08 09 10 11 12 15 16 17 17 18 19 20 21 22 23 24 25 35 35 36 36 36 37 38 39 39 42 43 43 44 45 46 47

#	Part Number	Partname	Quantity	Options
01	922 810 40	Cab support	1	InternKon: 919 907 40 / 1
02	323 315 40	Grating	2	InternKon: 919 907 40 / 13
03	930 919 40	Grating	1	InternKon: 919 907 40 / 14
04	922 856 40	Cover	1	InternKon: 919 907 40 / 2
05	340 465 99	Washer	4	InternKon: 919 907 40 / 29
06	507 037 98	Nut	4	InternKon: 919 907 40 / 30
07	317 319 40	Threaded block	4	InternKon: 919 907 40 / 21
08	317 318 40	Wing nut, plastic	4	InternKon: 919 907 40 / 24
09	502 354 98	Bolt	4	InternBDB: M8x40 / DIN 963 \| InternKon: 919 907 40 / 28
10	924 450 40	Cover	1	InternKon: 919 907 40 / 8
11	334 599 99	Nut	8	InternBDB: M 8 \| InternKon: 919 907 40 / 26
12	340 507 99	Washer	8	InternBDB: 8,4 \| InternKon: 919 907 40 / 27
\|$$13	167 693 40	Flex. header	-2	InternBDB: Happich \| InternKon: 919 907 40 / 31
15	390 199 40	Hinge	2	InternKon: 927 463 40 / 12
16	887 962 40	Door catch	1	InternBDB: 240 \| InternKon: 927 463 40 / 15
17	539 761 40	Pipe	3	InternBDB: 25x4x20 \| InternKon: 927 463 40 / 7
18	512 545 98	Washer	1	InternBDB: 13,0 \| InternKon: 927 463 40 / 15
19	922 860 40	Door, incl. fig-nos: 20-25	1	InternKon: 927 463 40 / 3
20	922 861 40	Door	1	InternKon: 922 860 40 / 1
21	906 709 40	Fastener with out lock pin	1	InternBDB: Emka \| InternKon: 922 860 40 / 2
22	081 282 40	Silent block	1	InternBDB: Happich GHE 4700056 \| InternKon: 922 860 40 / 3
23	340 461 99	Washer	1	InternBDB: 5,3 \| InternKon: 922 860 40 / 4
24	507 036 98	Nut	1	InternBDB: M 5 / DIN 985 \| InternKon: 922 860 40 / 5
25	340 469 99	Washer	1	InternBDB: 17 \| InternKon: 922 860 40 / 6
30	308 354 99	Bolt (standard)	4	InternBDB: M 36 x 160 / DIN 931 \| InternKon: 919 903 40 / 20
30	501 128 98	Bolt (cold weather design)	4	InternBDB: 6KTSHR M36X 160 10.9 KALTZ DIN 00931 \| InternKon: 919 903 40 / 20
31	501 688 98	Bolt (standard)	4	InternBDB: M 36 x 210 / DIN 931 \| InternKon: 919 903 40 / 26
31	515 291 98	Bolt (cold weather design)	4	InternBDB: 6KTSHR M36X 210 10.9 KALTZ DIN 00931 \| InternKon: 919 903 40 / 26
32	255 056 40	Washer	8	InternBDB: Ш 37 / DIN 6916 \| InternKon: 919 903 40 / 12
35	930 075 40	Flap	2	InternBDB: KLAPPE PC 3000- 6 \| InternKon: 919 907 40 / 35
36	390 199 40	Hinge	4	InternBDB: SCHARNIER H 485 \| InternKon: 919 907 40 / 36
37	307 810 99	Bolt	4	InternBDB: 6KTSHR M12 X 60 8.8 DIN 00933 \| InternKon: 919 907 40 / 37
38	346 498 99	Lock washer	4	InternBDB: FED-RG A 12 FST DIN 00128 \| InternKon: 919 907 40 / 38
39	332 353 99	Nut	8	InternBDB: 6KTMU M 12 10 DIN 00934 \| InternKon: 919 907 40 / 39
42	621 108 40	Pin	1	InternBDB: BOLZEN ST52-3 \| InternKon: 390 199 40 / 1
43	390 600 40	Bushing	2	InternBDB: RUNDSTAHL 43 \| InternKon: 390 199 40 / 2
44	390 601 40	Bushing 63	1	InternBDB: RUNDSTAHL \| InternKon: 390 199 40 / 3
45	340 612 99	Washer	1	InternBDB: SHB 16 ST DIN 01440 \| InternKon: 390 199 40 / 4
46	342 061 99	Cotter pin	1	InternBDB: SPLINT 4 X 32 ST33 DIN 00094 \| InternKon: 390 199 40 / 5
47	350 562 99	Grease nipple	1	InternBDB: KE-SCHMIER-NIP AM10X1 5.8 A2E DIN 71412 \| InternKon: 390 199 40 / 6
