PC3000-6 S/N 46174

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Switch box	1	InternBDB: 927 549 40 \| InternKon: 931 328 40 / 20	485-2167d
?	634 009 40	Spotlight	1	InternBDB: AB-05-03 ABL \| InternKon: 926 550 40 / 1
?	440 373 40	Camswitch	1	InternBDB: T0-2-1/I20A \| InternKon: 931 328 40 / 41
?		Horn	1	InternBDB: 256 886 40 \| InternKon: 931 328 40 / 6	113-2150
?	931 380 40	Harness-Lighting	1	InternKon: 931 328 40 / 14
?		Cables - pilot control frame	-2	InternBDB: 931 361 40 \| InternKon: 931 328 40 / 48	485-2186c
?	343 108 99	Lock washer	1	InternBDB: 8 /127 \| InternKon: 931 328 40 / 40
?	319 143 99	Screw	1	InternBDB: M8x40 /912 \| InternKon: 931 328 40 / 39
?	512 181 98	Screw	2	InternBDB: M4x16 /84 \| InternKon: 931 328 40 / 44
?	340 459 99	Washer	2	InternBDB: 4,3/125 \| InternKon: 931 328 40 / 42
?	343 104 99	Lock washer	2	InternBDB: 4/127 \| InternKon: 931 328 40 / 43
?	506 729 98	Bolt	4	InternBDB: M6x20 /601 \| InternKon: 931 328 40 / 7
?	517 120 98	Lock washer	8	InternBDB: 6 WN 655 938 40 \| InternKon: 931 328 40 / 4
?	2080619170	Clip	2	InternKon: 931 328 40 / 17
?	0443452711	Clip	1	InternKon: 931 328 40 / 19
?	0443451610	Clip	10	InternKon: 931 328 40 / 18
?	317 319 40	Threaded block	1
?	308 544 99	Bolt	4	InternBDB: M6x80/931 \| InternKon: 931 328 40 / 3
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12 B \| InternKon: 931 380 40 / 7
?	907 692 40	Fitting	2	InternBDB: PMA BVIR-M162 \| InternKon: 931 380 40 / 2
?	907 703 40	Cable union	1	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 931 380 40 / 3
?	896 521 40	End pin	1	InternBDB: Pflitsch 4,0x25 \| InternKon: 931 362 40 / 5
?	515 214 40	Cable 2,5	-2	InternKon: 931 362 40 / 4
?	056 070 40	Cable sleeve 1,0 - 1,5	38	InternKon: 931 380 40 / 8
?	515 213 40	Cable 1,0	-2	InternKon: 931 380 40 / 9
?	056 292 40	Cable strap	6	InternBDB: Ty 23 11 \| InternKon: 931 380 40 / 5
?	256 514 40	Name plate	6	InternKon: 931 380 40 / 4
?	769 155 73	Seal	1	InternBDB: ABL 18-1 401
?	769 156 73	Glass, white	1	InternBDB: ABL 18-10201
?	931 362 40	Harness-Compressor	1	InternKon: 931 328 40 / 16
?	507 383 99	Halogen lamp 24V /70W	1	InternBDB: H1 24V /70W \| InternKon: 926 550 40 / 2
?	906 231 40	Circular bearing	4	InternBDB: 521 8062 11MN45 \| InternKon: 931 328 40 / 2
?	350 762 99	Washer	4	InternBDB: R 6,6 /440 \| InternKon: 931 328 40 / 5
?	795 136 73	Controller	1	InternBDB: KLTD CR 700 \| InternKon: 931 328 40 / 1
?	906 761 40	Rubber clamp	12	InternBDB: Roxtec 30/0 +12 -22 0130
?	906 760 40	Rubber clamp	3	InternBDB: Roxtec 40/0 +22 -32 0140
?	907 223 40	Rubber clamp	3	InternBDB: Roxtec 15 W 40 /3x0 +3,5 -10,5 0615
?	907 104 40	Rubber clamp	6	InternBDB: Roxtec 20/0 +4 -13,5 0120
?	907 105 40	Rail	2	InternBDB: Roxtec 0503
?	906 762 40	Compensating disc	1	InternBDB: Roxtec 10/0x12 0310
?	906 758 40	Seal	1	InternBDB: Roxtec 0500
?	931 363 40	Harness-Controller	1	InternKon: 931 328 40 / 15
?	455 756 99	Insulating tube	-2	InternBDB: B6x0,6 DIN 40621 \| InternKon: 931 380 40 / 6
?	903 422 40	Plug assy.	2	InternKon: 931 380 40 / 1
?	907 704 40	Cable union	1	InternBDB: Pflitsch 21650YNPM 3x3,5 \| InternKon: 931 362 40 / 2
?	932 530 40	Cable shoe 2,5	2	InternKon: 931 362 40 / 9
?	056 071 40	Cable sleeve 2,5	7	InternKon: 931 362 40 / 10
?	907 864 40	Plug assy.	1	InternBDB: Deutsch DRC 26-24 SA \| InternKon: 931 363 40 / 1
?	907 865 40	Plug assy.	1	InternBDB: Deutsch DRC 26-40 SA \| InternKon: 931 363 40 / 2
?	907 866 40	Plug assy.	1	InternBDB: Deutsch DRC 26-40 SB \| InternKon: 931 363 40 / 3
?	932 517 40	Contacte	54	InternBDB: Deutsch 1062-16-0144-PS 0819107610 \| InternKon: 931 363 40 / 4
?	932 561 40	Contacte	42	InternBDB: Deutsch 0413-204-2005 \| InternKon: 931 363 40 / 10
?	655 834 40	Cable protection hose DN 36	-2	InternBDB: VCSG-36B \| InternKon: 931 363 40 / 11
?	906 647 40	T-Splitter	2	InternBDB: Deutsch DT-3P-P007 \| InternKon: 931 363 40 / 12
?	913 246 40	Bushing assy.	8	InternKon: 931 363 40 / 13
?	906 577 40	Cable	-2	InternBDB: H+S 552 039.12 \| InternKon: 931 363 40 / 14
?	795 139 73	Contact	3	InternBDB: AMP 173 681 -1 \| InternKon: 931 363 40 / 15
?	906 605 40	Plug	2	InternBDB: Deutsch DT04-3P-P006 \| InternKon: 931 363 40 / 16
?	907 877 40	Cable 2,5	-2	InternKon: 931 363 40 / 18
?	635 677 40	Cable 4x1	-2	InternKon: 931 363 40 / 17
?	906 577 40	Cable UIC	-2	InternBDB: H+S 552 039.12 \| InternKon: 931 363 40 / 19
?	635 896 40	Tube protection	-2	InternBDB: 100 121 005 \| InternKon: 931 363 40 / 7
?	509 064 98	Pair of clamps	3	InternBDB: S-5-E/3015 \| InternKon: 931 328 40 / 27
?	500 398 98	Cover	3	InternBDB: S-DP-A-5/3015 \| InternKon: 931 328 40 / 29
?	516 024 98	Grommet	3	InternBDB: S-5-70/3015 \| InternKon: 931 328 40 / 28
?	343 008 99	Washer	6	InternBDB: 17/93 \| InternKon: 931 328 40 / 30
?	302 178 99	Bolt	6	InternBDB: M16x130/601 \| InternKon: 931 328 40 / 31
?	308 611 99	Bolt	4	InternBDB: M12x90/931 \| InternKon: 931 328 40 / 21
?	340 467 99	Washer	4	InternBDB: 13,0/125
?	510 745 98	Resilent sleeve	4	InternBDB: 13/25x40 WN 341 948 40 \| InternKon: 931 328 40 / 23
?	334 600 99	Nut	4	InternBDB: M12/985
?	931 321 40	Retainer	2	InternKon: 931 328 40 / 39
?	307 777 99	Bolt	16	InternBDB: M10x25/933 \| InternKon: 931 328 40 / 34
?	517 122 98	Lock washer	25	InternBDB: 10 WN 655 938 40 \| InternKon: 931 328 40 / 35
?	346 500 99	Lock washer	25
?	655 530 40	Strab	2	InternKon: 931 328 40 / 33
?	0443452110	Clip	8	InternKon: 931 328 40 / 46

Komatsu PC3000-6 S/N 46174 parts catalog PDF

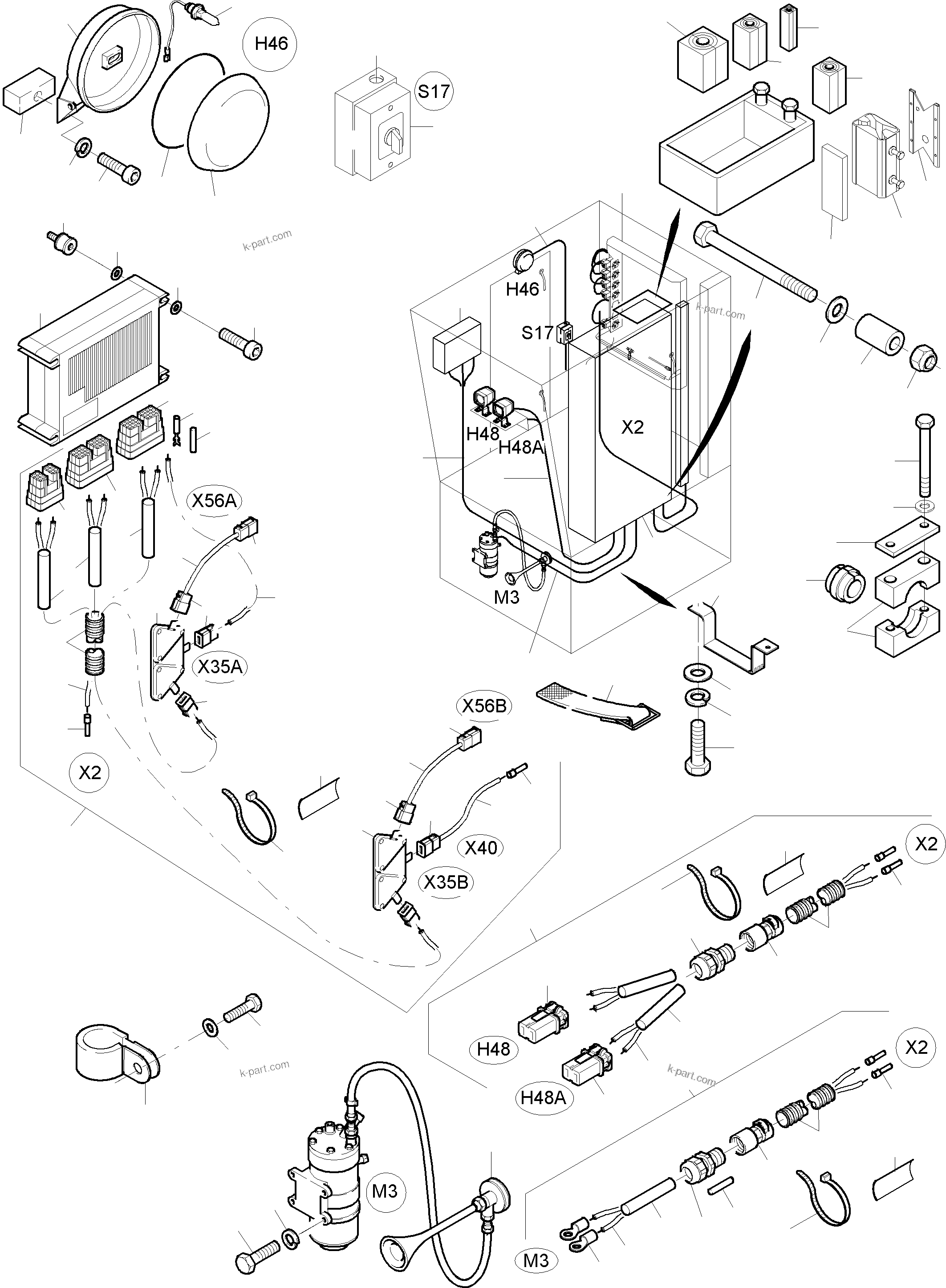

ELECTRIC - CAB SUPPORT (485-2136d) in PC3000-6 S/N 46174. Diagram image and parts list.
