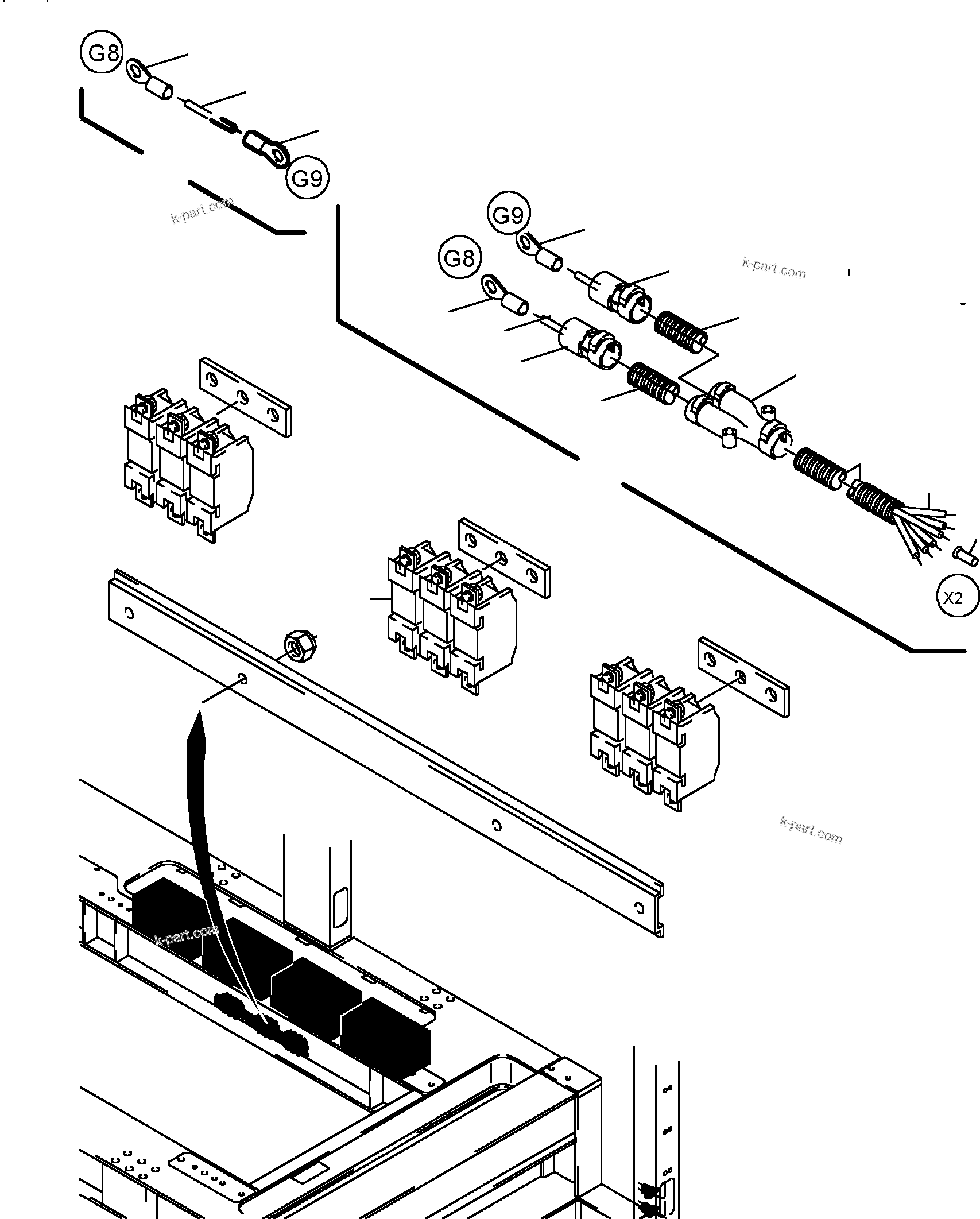

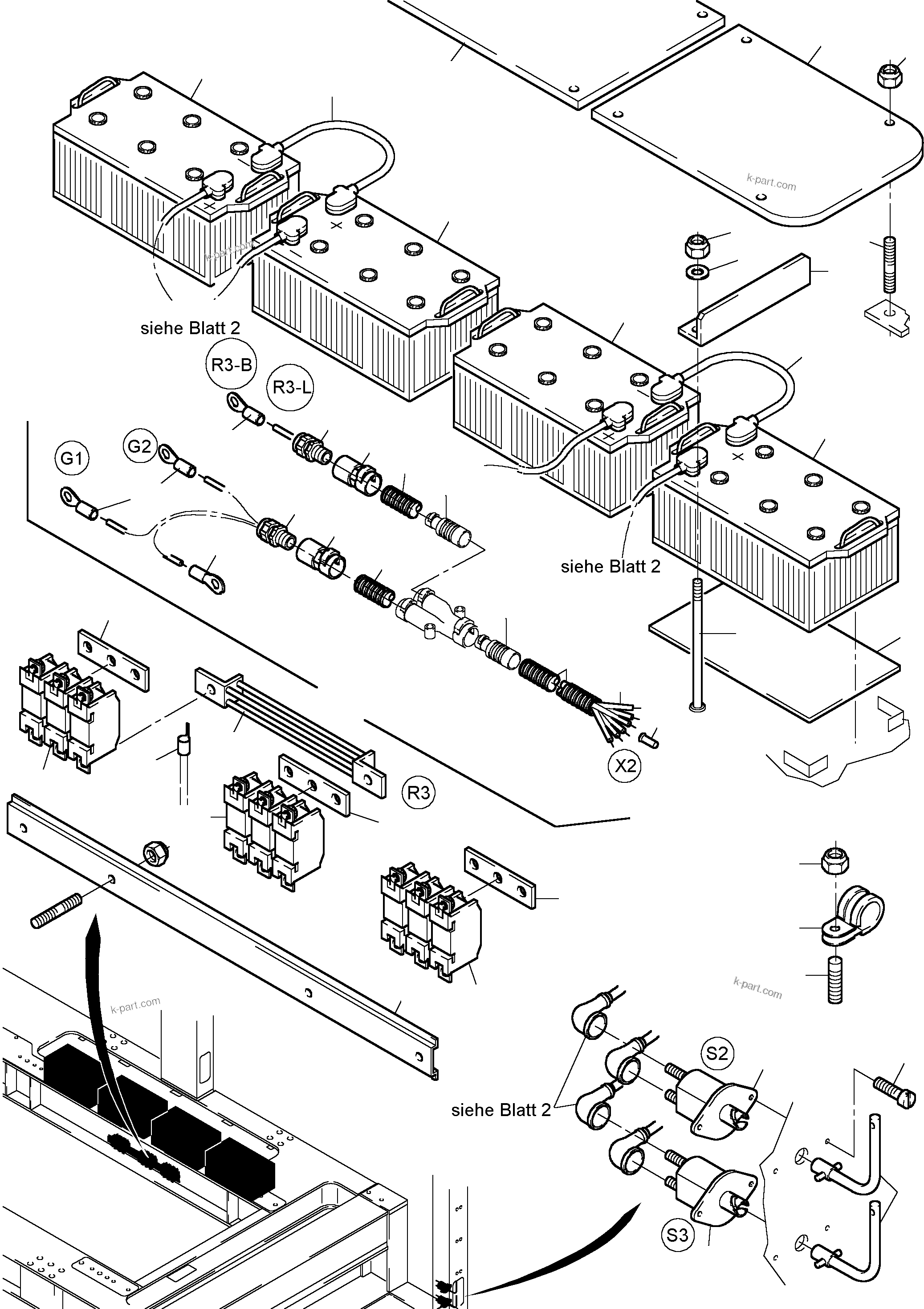

Diagram image 1 of 3

PC4000-6 S/N 08164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	309 691 40	Battery 12 V 200 Ah	4
?	159 984 40	Battery switch	2
?	321 014 99	Screw	4
?	966 673	Gear shift-lever	2
?	505 955 99	Assembly rail TS 35 Bulk ware, state length required	-2
?	906 651 40	Battery cable 95 Bulk ware, state length required	-2
?	906 658 40	Cable 120 Bulk ware, state length required	-2
?	515 214 40	Cable 2.5 Bulk ware, state length required	-2
?	906 941 40	Terminal	4
?	906 154 40	Cable lug 120	8
?	906 940 40	Terminal	4
?	906 153 40	Cable lug	4
?	600 212 99	Cable lug 12-95	3
?	654 469 40	Auxiliary resistor	1
?	910 022 40	Cross connection	3
?	461 703 40	Terminal	18
?	901 161 40	Plate	2
?	901 162 40	Plate	2
?	507 037 98	Nut	16
?	507 488 98	Thread pin	16
?	906 943 40	Pole end plate, black	4
?	056 076 40	Rubber cap	18
?	902 076 40	Angle	4
?	308 431 99	Bolt	8
?	340 652 99	Washer	8
?	334 600 99	Nut	8
?	655 516 40	Moulding material 10x270x495	4
?	510 363 98	Clamp 29/15	10
?	510 210 98	Thread pin	6
?	507 025 98	Nut	6
?	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
?	906 942 40	Pole end plate, red	1
?	600 209 99	Cable shoe 10-95	3
?	055 100 40	Cable shoe M5	2
?	056 071 40	Cable sleeve 2.5	6
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	655 632 40	Pipe adapter DN 17/10	1
?	655 634 40	Pipe adapter DN 23/17	1
?	655 808 40	Fitting PG 16	1
?	906 737 40	Cable union PG 16	1
?	896 521 40	End pin	2
?	910 053 40	Cable - starter M1-G3	1
?	910 054 40	Cable - starter M2-G3	1
?	910 065 40	Cable - starter M1-S2	1
?	910 068 40	Cable - generator G5-R3	1
?	915 280 40	Cable - battery G1-G2	1
?	915 281 40	Cable - battery G3-G4	1
?	915 282 40	Cable - battery G2-R3	1
?	915 283 40	Cable - battery G4-R3	1
?	915 284 40	Cable - battery G1-R3	1
?	915 285 40	Cable - battery G3-R3	1
?	910 076 40	Cable - battery S3-ground	1
?	910 077 40	Cable - battery R3-S3	1
?	910 078 40	Cable - battery R3-S2	1
?	910 079 40	Cable - battery X2-R3	1
?	913 218 40	Cable - battery box	1
?	915 253 40	Cable - battery G8, G9	1
?	915 254 40	Cable - battery G8-G9	1
?	655 805 40	Fitting PG 9	1
?	655 798 40	Cable union	1
?	655 649 40	Protecting hose	1
?	896 520 40	End pin	2
?	055 109 40	Cable lug 4-6 yellow	4
?	056 070 40	Cable sleeve 1.0-1.5	2
?	655 877 40	Cable 2x0,75 Bulk ware, state length required	-2
?	655 625 40	Distributor DN 12/10	1
?	655 621 40	Cable union DN 10	1
?	655 620 40	Protecting hose DN 12	1
?	055 114 40	Cable lug 2.5 blue	4
?	055 131 40	Tab 4-6	2
?	655 675 40	Cable 6,0 bl Bulk ware, state length required	-2

Komatsu PC4000-6 S/N 08164 parts catalog PDF

BATTERIES WITH CABLES (355-2130d) in PC4000-6 S/N 08164. Diagram image and parts list.
