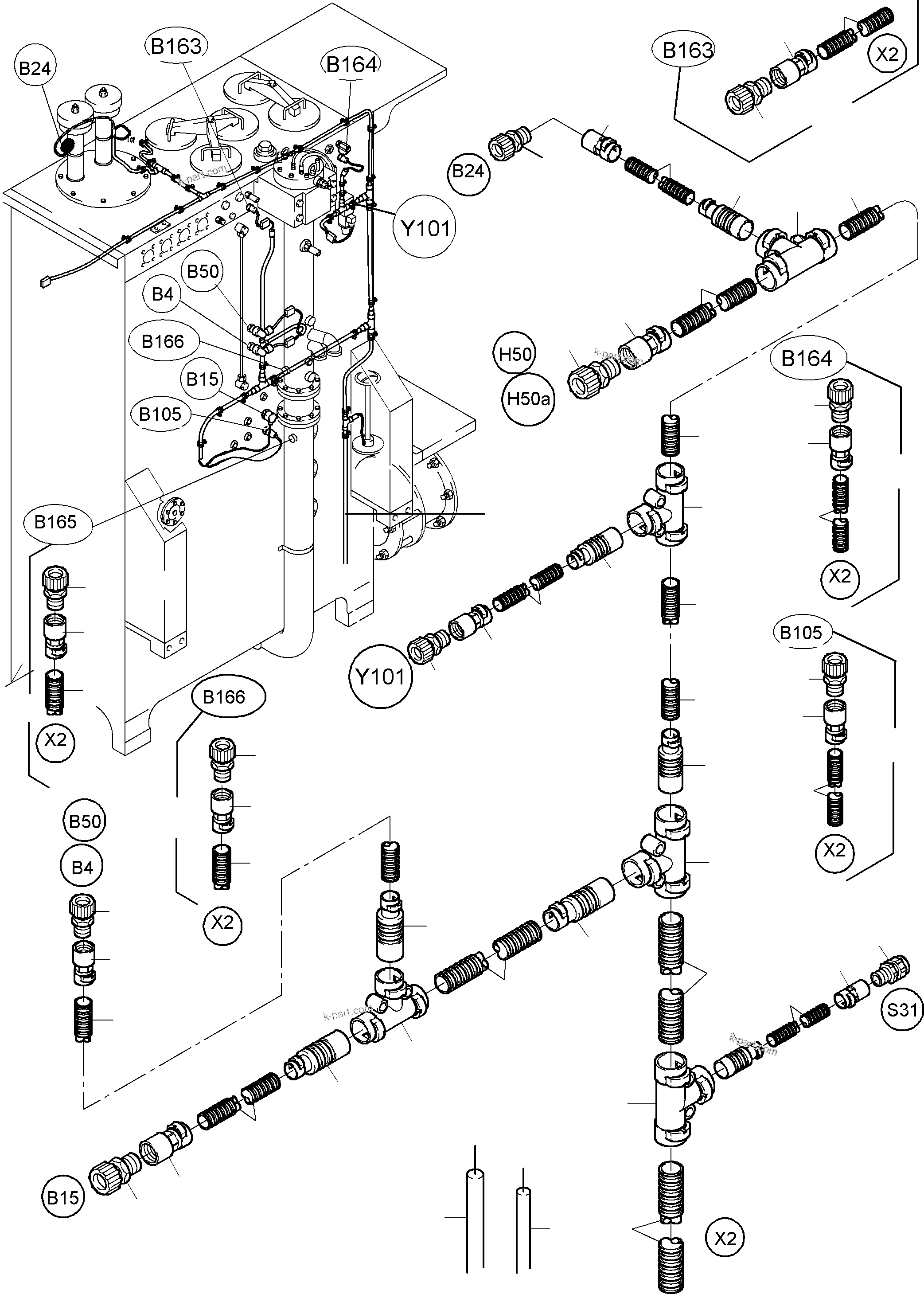

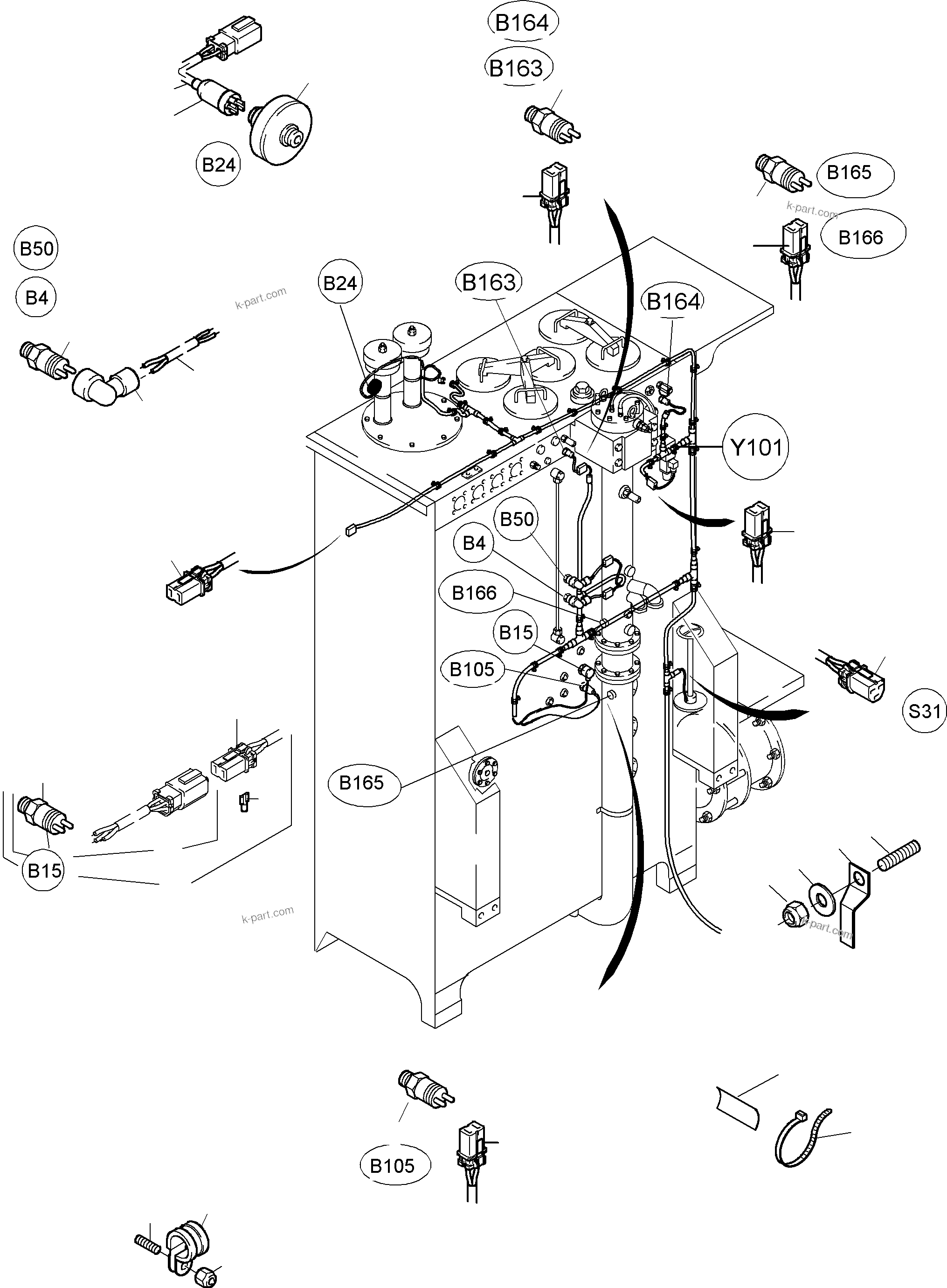

Diagram image 1 of 2

PC4000-6 S/N 08164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	901 396 40	Harness - hydraulic tank	1
?	894 583 40	Temperature sensor assy	1
?	896 669 40	Level probe	2
?	896 529 40	Pressure measuring transducer	2
?	906 419 40	Pressure switch 6 bar	2
?	654 652 40	Maintenance switch	1
?	896 582 40	Pressure transducer	1
?	006 339 98	Clamp	5
?	003 670 79	Clip	8
?	350 762 99	Washer	4
?	510 210 98	Thread pin	46
?	006 301 98	Clamp	23
?	145 831 40	Clamp	13
?	510 363 98	Clamp	5
?	006 306 98	Clamp	8
?	509 875 98	Thread pin	8
?	915 209 40	Cable - leakage oil chamber	1
?	507 025 98	Nut	36
?	334 599 99	Nut	8
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	655 696 40	Protecting hose DN 29 Bulk ware, state length required	-2
?	655 632 40	Pipe adapter DN 17/10	2
?	655 809 40	Pipe adapter DN 29/10	1
?	655 629 40	T-Distributor DN 17	3
?	655 635 40	Pipe adapter DN 29/17	2
?	906 079 40	T-Distributor DN 29	2
?	515 213 40	Cable 1 qmm Bulk ware, state length required	-2
?	515 214 40	Cable 2,5 qmm Bulk ware, state length required	-2
?	635 677 40	Cable 4x1 Bulk ware, state length required	-2
?	655 808 40	Fitting PG 16	1
?	655 805 40	Fitting PG 9	3
?	655 798 40	Cable union PG 9	3
?	915 210 40	Cable - return oil chamber	1
?	655 633 40	Pipe adapter DN 17/12	2
?	891 031 40	Plug with bushings assy.	2
?	891 032 40	Plug with bushings assy.	3
?	891 040 40	Plug with bushings assy.	5
?	655 806 40	Fitting PG 11	6
?	655 800 40	Cable union PG 11	5
?	515 908 40	Coupling 90°	2
?	455 757 99	Insulating tube B 7x0,7 Bulk ware, state length required	-2
?	903 422 40	Plug assy.	2
?	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
?	915 211 40	Cable - preload valve	1
?	915 212 40	Cable - oil cooler	1
?	915 213 40	Cable - hydr. tank	1
?	056 070 40	Cable sleeve 1,0-1,5	36
?	056 071 40	Cable sleeve 2,5	4
?	891 084 40	Plug assy.	2
?	906 737 40	Cable union PG 16	1
?	635 043 40	Name plate BS 5	14
?	056 292 40	Cable strap	14
?	651 461 40	Housing assy.	1
?	655 803 40	Pipe adapter PG 13,5	2
?	896 520 40	End pin	12
?	896 521 40	End pin	2
?	655 807 40	Fitting PG 13,5	1
?	894 576 40	Temperature sensor assy with plug	1
?	907 651 40	Temperature sensor	1

Komatsu PC4000-6 S/N 08164 parts catalog PDF

CABLES - OIL TANK AND SWITCH (355-2137d) in PC4000-6 S/N 08164. Diagram image and parts list.
