LIGHTING EQUIPMENT | PC4000-6 S/N 08164 | Komatsu parts book catalogue

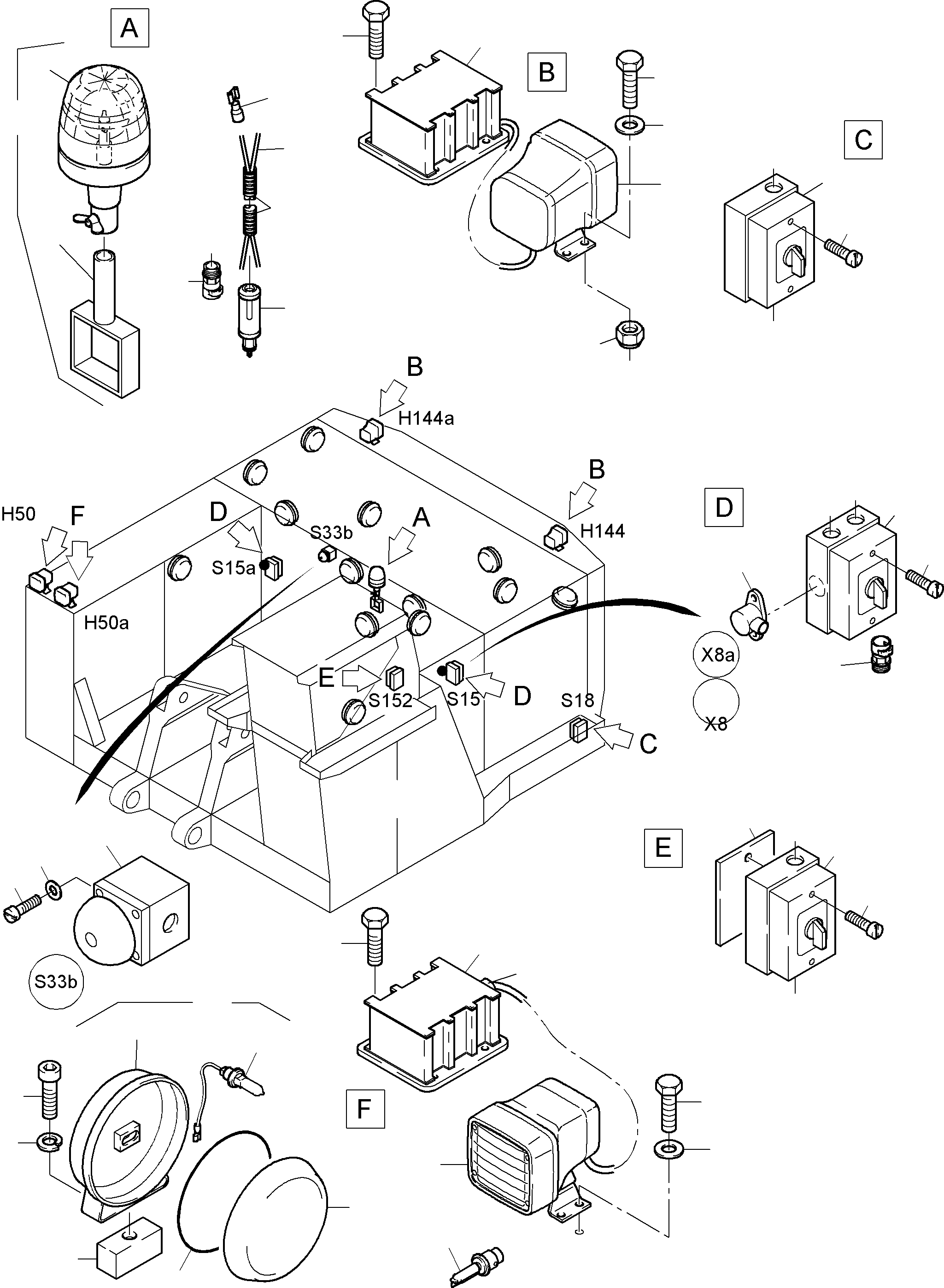

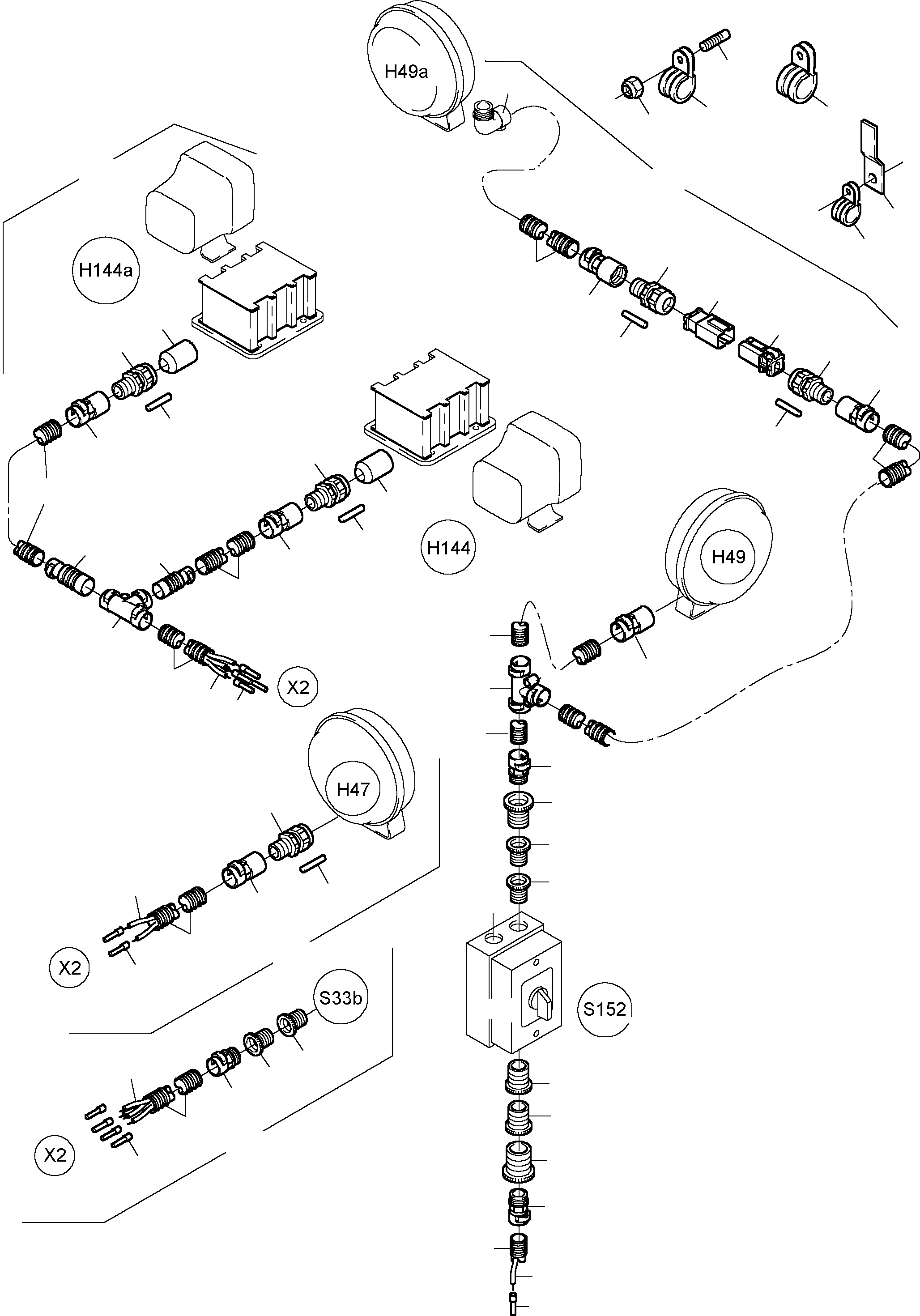

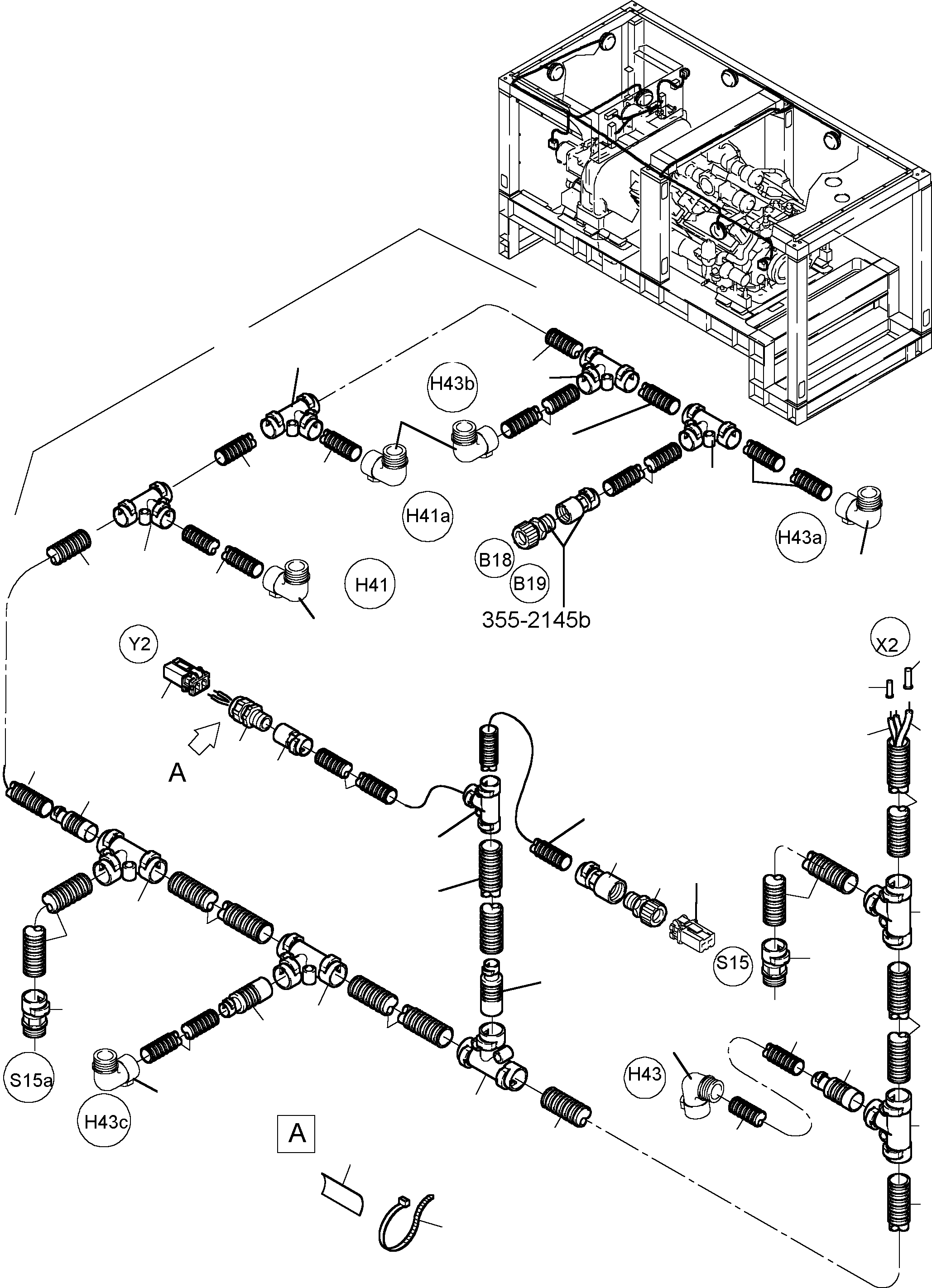

Diagram image 1 of 3

PC4000-6 S/N 08164

01 01 01 01 01 03 04 04 04 04 05 06 07 08 09 09 09 11 15 16 17 18 19 20 21 22 23 50 51 52 53 53 53 54 55 56 59 59 60 61 62 63

PC4000-6 S/N 08164

12 12 13 13 13 14 14 14 15 15 15 15 15 15 15 15 15 22 22 22 22 23 23 24 24 24 24 24 25 25 25 25 25 26 26 26 26 26 27 27 27 28 28 28 29 30 31 32 33 34 35 37 38 39 39 40 42 58 64 65 66 67 68 69

PC4000-6 S/N 08164

15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 19 24 24 25 25 26 26 27 28 34 36 37 41 42 42 42 42 42 43 43 43 43 43 44 44 44 44 45 45 46 46 46 46 46 46 46 46 47 48 49 49 49 49 49 57

#	Part Number	Partname	Quantity	Reference
01		Spread beam headlamp	4	991-0377
03	926 550 40	Spotlight assy.	9
04	504 010 98	Bolt	32
05	634 009 40	Spotlight without lamp	9
06	507 383 99	Halogen lamp	9
07	769 155 73	Seal	9
08	769 156 73	Pane, white	9
09	551 362 40	Camswitch	3
11	057 278 40	Socket	2
12	600 813 99	Reducing 16-13,5	5
13	600 812 99	Reducing 13,5-11	5
14	600 790 99	Reducing 11-9	5
15	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
16	898 629 40	Rotaflare light yellow assy.	1
17	898 612 40	Retainer	1
18	896 497 40	Rotaflare light 24 yellow	1
19	515 213 40	Cable 1,0 Bulk ware, state length required	-2
20	180 322 40	Plug	1
21	323 960 40	Tab	2
22	655 621 40	Fitting DN 10	6
23	903 422 40	Plug head light assy.	4
24	655 805 40	Fitting PG 9	16
25	655 799 40	Cable union PG 9	16
26	896 521 40	End pin	21
27	515 214 40	Cable 2,5 Bulk ware, state length required	-2
28	056 071 40	Cable sleeve 2,5	16
29	891 051 40	Plug with bushings assy.	2
30	891 079 40	Plug with pins assy.	2
31	915 225 40	Harness lighting equipment Atrium	1
32	915 227 40	Harness lighting equipment counterweight	1
33	915 226 40	Harness lighting equipment ladder	1
34	515 213 40	Cable 1.0 bl Bulk ware, state length required	-2
35	912 215 40	Harness emergency-off - engine housing	1
36	913 202 40	Harness engine housing	1
37	056 070 40	Cable sleeve 1,0-1,5	-2
38	906 420 40	T-Distributor DN 12	1
39	655 631 40	Pipe adapter	2
40	655 650 40	Cable protection hose DN 12 Bulk ware, state length required	-2
41	891 051 40	Plug with bushings assy.	1
42	655 628 40	T-Distributor DN 10	7
43	655 629 40	T-Distributor DN 17	5
44	655 632 40	Pipe adapter DN 17/10	4
45	655 623 40	Cable union DN 17	2
46	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2
47	635 043 40	Name plate	-2
48	056 292 40	Cable strap	-2
49	896 435 40	Cable union DN 10-90	10
50	906 952 40	Cable union PG 16	2
51	471 825 99	Cable 2x1,5 Bulk ware, state length required	-2
52	910 023 40	Plate	1
53	320 974 40	Screw	8
54	317 319 40	Threaded block	10
55	319 143 99	Screw	10
56	343 108 99	Lock washer	10
57	841 084 40	Plug assy.	2
58	896 410 40	Cable union DN 10-45	2
59	340 461 99	Washer	32
60	507 036 98	Nut	8
61	635 143 40	Emergency switch-off	1
62	320 976 99	Screw	2
63	340 459 99	Washer	2
64	006 302 98	Clamp	16
65	003 670 79	Clip	1
66	006 304 98	Clamp	19
67	510 210 98	Thread pin	72
68	507 025 98	Nut	72
69	006 301 98	Clamp	35
