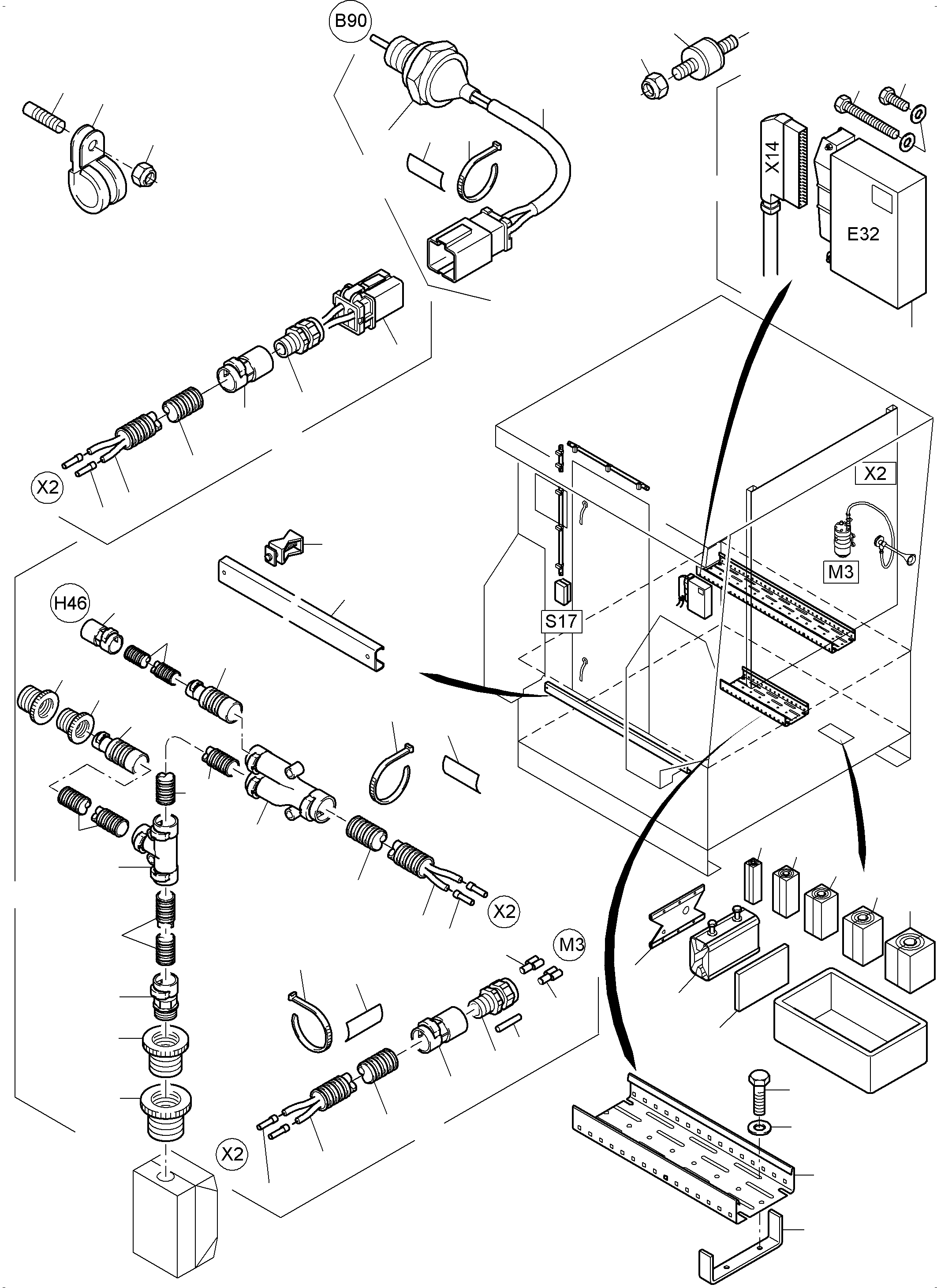

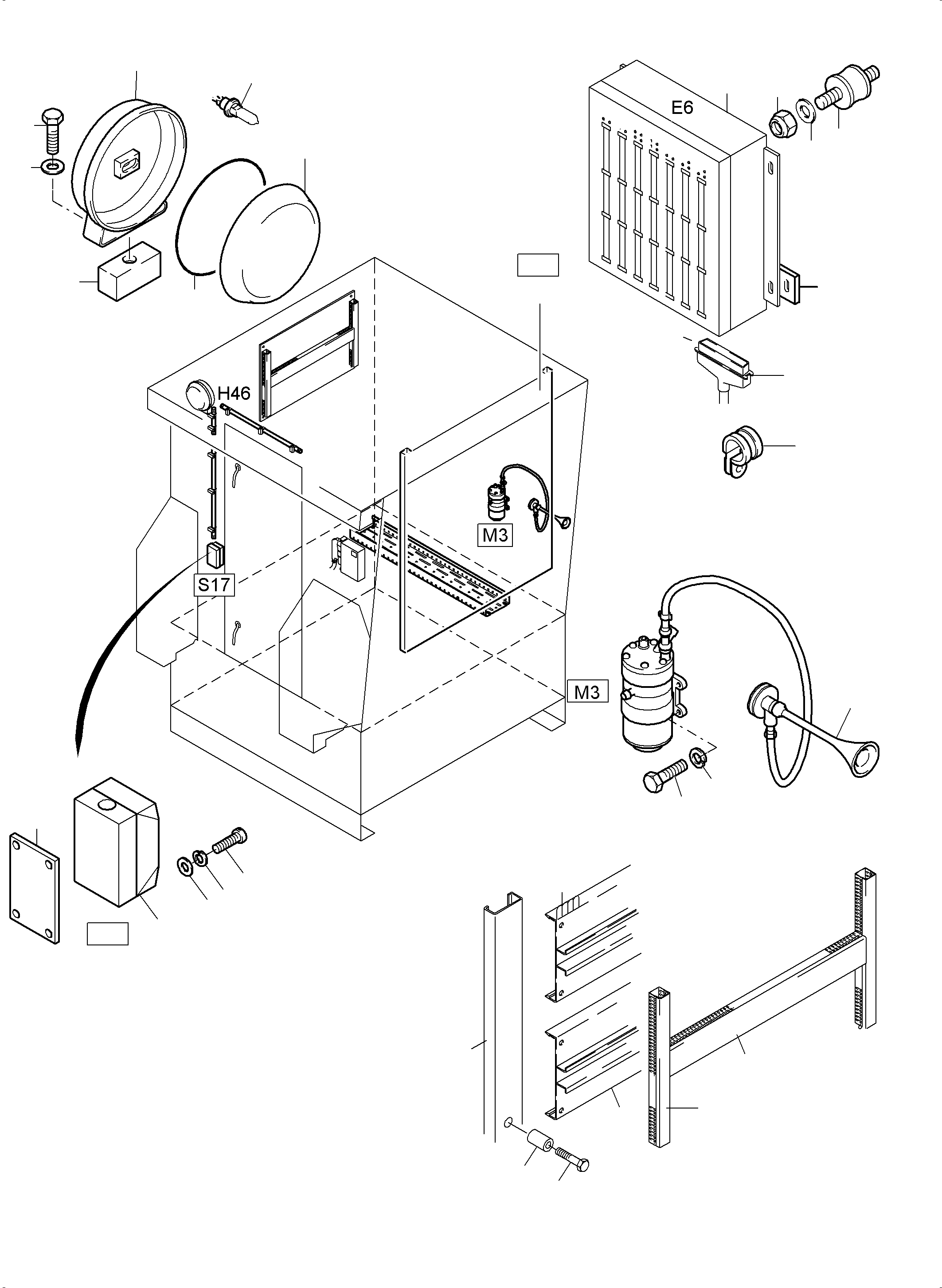

Diagram image 1 of 2

PC5500-6 S/N 15049

01 02 03 04 08 09 12 13 14 16 17 18 23 24 25 26 27 28 28 29 29 30 30 31 50 51 58 59 60 62 64 65 66 75 83 84 85

PC5500-6 S/N 15049

05 06 07 08 10 11 15 16 16 19 20 21 22 32 33 34 35 37 37 38 38 39 39 40 40 41 41 42 43 44 44 44 45 45 45 46 47 48 49 52 53 54 54 54 54 56 56 56 57 57 57 57 61 63 67 68 69 70 71 72 73 74 76 76 77 78 79 80 81 86 87 88 89 90 91 92 93 94 95 96 97 98

#	Part Number	Partname	Quantity	Options	Reference
01		Switch framing	1	InternBDB: 923 531 40 \| InternKon: 923 530 40 / 2	515-2165s
02	634 009 40	Spotlight	1	InternBDB: AB-05-03 inkl. Lampe ABL \| InternKon: 926 550 40 / 1
03	440 373 40	Camswitch	1	InternBDB: Klцckner-Mцller T02/1I 3-pol. 20A \| InternKon: 923 530 40 / 24
04		Horn	1	InternBDB: 256 886 40 \| InternKon: 923 530 40 / 15	113-2150
05	894 583 40	Temperature sensor kpl	1	InternBDB: TL \| InternKon: 923 530 40 / 17
06	006 302 98	Clamp 15/15	2	InternBDB: RSGU 1100 15/15 \| InternKon: 910 797 40 / 1
07	915 510 40	Holding device	2	InternKon: 923 530 40 / 11
08	514 072 98	Bolt	4	InternBDB: M8x12 /933 10.9 \| InternKon: 923 530 40 / 12
09	902 412 40	Thread plate	4	InternKon: 923 530 40 / 30
10	350 763 99	Washer	4	InternBDB: 9 /440 \| InternKon: 923 530 40 / 13
11	896 742 40	Cable channel	-2	InternBDB: RSV 110.300 Sievert \| InternKon: 923 530 40 / 10
12	343 108 99	Lock washer	1	InternBDB: 8 /127 \| InternKon: 923 530 40 / 33
13	319 143 99	Screw	1	InternBDB: M8x40 /912 \| InternKon: 923 530 40 / 32
14	320 975 99	Screw	2	InternBDB: M4x16 /84 \| InternKon: 923 530 40 / 41
15	006 301 98	Clamp 12/15	5	InternBDB: RSGU 1100 12/15 \| InternKon: 910 019 40 / 1
16	507 025 98	Nut	15	InternBDB: M 6 /985 \| InternKon: 910 019 40 / 3
17	302 030 99	Bolt	4	InternBDB: M6x15 /601 4.6 \| InternKon: 923 530 40 / 25
18	346 499 99	Lock washer	7	InternBDB: 6 /128 \| InternKon: 923 530 40 / 26
19	510 210 98	Thread pin	11	InternBDB: PM 6x20 /32500 \| InternKon: 910 019 40 / 2
20	006 339 98	Clamp 18/15	3	InternBDB: RSGU 1100 18/15 \| InternKon: 910 798 40 / 20
21	551 474 40	Rail	-2	InternKon: 923 530 40 / 3
22	358 273 40	Series clamping	20	InternBDB: 14-48 /2054 Sievert \| InternKon: 923 530 40 / 4
23	323 232 40	Sectional plate	2	InternBDB: SA 12x500 33331 Lьtze \| InternKon: 912 308 40 / 1
24	635 007 40	Assembly rail	2	InternBDB: CP 700 330109 Lьtze \| InternKon: 912 308 40 / 2
25	323 237 40	Wiring terminal	4	InternBDB: KP 300 33004 Lьtze \| InternKon: 912 308 40 / 3
26	323 233 40	Wiring profile	-2	InternBDB: LV 78 33002 Lьtze \| InternKon: 912 308 40 / 4
27	270 288 40	Wiring channel 40x25	-2	InternBDB: Tehalit BA 640025 \| InternKon: 912 308 40 / 5
28	655 517 40	Cover	-2	InternBDB: 300062 Lьtze \| InternKon: 912 308 40 / 6
29	317 319 40	Threaded block	9	InternKon: 912 308 40 / 7
30	340 464 99	Washer	8	InternBDB: 8,4 /125 \| InternKon: 912 308 40 / 9
31	346 510 99	Lock washer	4	InternBDB: 8 /128 \| InternKon: 912 308 40 / 10
32	923 159 40	Harness - pedestal	1	InternKon: 923 160 40 / 13
33	916 614 40	Harness - horn	1	InternKon: 923 160 40 / 14
34	916 621 40	Harness - temperature transmitter - outer temperature	1	InternKon: 923 160 40 / 21
35	655 651 40	Cable protection hose DN 17	-2	InternBDB: VCSG - 17 B \| InternKon: 923 159 40 / 12
37	907 477 40	Cable union DN 12	1	InternBDB: BVNV-M162 \| InternKon: 923 159 40 / 4
38	517 327 98	Reducing M20x1,5 - M16x1,5	1	InternBDB: DINEN 50262 \| InternKon: 923 159 40 / 11
39	517 328 98	Reducing M25x1,5 - M20x1,5	1	InternBDB: DINEN 50262 \| InternKon: 923 159 40 / 14
40	655 649 40	Cable protection hose DN 10	-2	InternBDB: PMA VCST-10 B \| InternKon: 923 159 40 / 10
41	907 692 40	Fitting M16/NW12	2	InternBDB: PMA BVIR M162 \| InternKon: 916 614 40 / 1
42	907 704 40	Cable union PG 9	2	InternBDB: Pflitsch 26150 YNPM 3x3,5 \| InternKon: 916 614 40 / 2
43	896 521 40	End pin	1	InternBDB: Pflitsch 4,0x25 \| InternKon: 916 614 40 / 3
44	515 214 40	Cable 2,5	-2	InternKon: 916 614 40 / 11
45	056 070 40	Cable sleeve 1,0 - 1,5	11	InternKon: 916 621 40 / 7
46	795 496 73	Plug assy.	1	InternBDB: 0819214020 KES 08192 \| InternKon: 916 621 40 / 1
47	940 169 40	Cable 4x1	-2	InternBDB: Kenpur 600C 4x1 \| InternKon: 916 621 40 / 6
48	906 420 40	T-Distributor DN 12	1	InternBDB: BFTL-12 12 12 TTT \| InternKon: 923 159 40 / 2
49	907 703 40	Cable union M4x3	1	InternBDB: Pflitsch 26150 YNPM 4x3 \| InternKon: 916 621 40 / 3
50	634 173 40	E/A - Cable, binear	6	InternBDB: 4306.02.008 Intercontrol \| InternKon: 923 531 40 / 63
51	907 661 40	E/A - Cable, analog	3	InternBDB: 4306.04.003 Intercontrol \| InternKon: 923 531 40 / 58
52	655 626 40	Distributor DN 17/12	1	InternBDB: BVYR-17 12 12 GTT \| InternKon: 923 159 40 / 1
53	655 631 40	Pipe adapter DN 12/10	1	InternBDB: BAVR-12 T 10 T \| InternKon: 923 159 40 / 3
54	655 650 40	Cable protection hose DN 12	-2	InternBDB: VCST-12 B \| InternKon: 923 159 40 / 8
56	056 292 40	Cable strap	10	InternBDB: Ty 23 11 \| InternKon: 923 159 40 / 6
57	256 514 40	Name plate	10	InternBDB: BS 5 55476 \| InternKon: 923 159 40 / 5
58	769 155 73	Seal	1	InternBDB: ABL 18-1 401
59	769 156 73	Glass, white	1	InternBDB: ABL 18-10201
60	507 383 99	Halogen lamp 24V /70W	1	InternBDB: H1 24V /70W \| InternKon: 926 550 40 / 2
61	906 231 40	Circular bearing	3	InternBDB: Freudenberg BD 20 H 20 M6 B 18,5 11 MN 60 5218 062 \| InternKon: 923 530 40 / 28
62	340 506 99	Washer	4	InternBDB: 6,4 /125 \| InternKon: 923 530 40 / 27
63	006 303 98	Clamp 22/15	3	InternBDB: RSGU 1100 22/15 \| InternKon: 910 799 40 / 1
64	500 486 98	Clamp 51/25	1	InternBDB: RSGU 1100 51/25 \| InternKon: 923 530 40 / 34
65		SPC-Control	1	InternBDB: E-ST /934 932 40 \| InternKon: 923 530 40 / 14
66	659 872 40	Data cable	1	InternKon: 931 360 40 / 12
67	906 759 40	Rubber clamp	2	InternBDB: Roxtec 60/0 +30 -50 0160 \| InternKon: 923 530 40 / 6
68	906 760 40	Rubber clamp	8	InternBDB: Roxtec 40/0 +22 -32 0140 \| InternKon: 923 530 40 / 7
69	906 761 40	Rubber clamp	7	InternBDB: Roxtec 30/0 +12 -22 0130 \| InternKon: 923 530 40 / 8
70	906 758 40	Key seal	8	InternBDB: Roxtec 0500 \| InternKon: 923 530 40 / 5
71	906 762 40	Shim	1	InternBDB: 10/0X12 0310 \| InternKon: 923 530 40 / 9
72	932 945 40	Load limitation valve	1	InternBDB: Bosch Rexroth RC4-4/20+LIC/KOMPC051 \| InternKon: 923 530 40 / 36
73	932 947 40	Plug housing 52-pole	1	InternBDB: AMP-TYCO MT2/JPT R902602414 \| InternKon: 946 214 40 / 1
74	940 747 40	Cable 20x0,5	-2	InternKon: 946 214 40 / 3
75	655 642 40	Circular bearing	4	InternBDB: Freudenberg AD 25 H 20 M6 B 10 11 MN 60 5218 132 \| InternKon: 923 530 40 / 35
76	056 071 40	Cable sleeve 2,5	5	InternKon: 923 159 40 / 9
77		Harness - plug RC 4	1	InternKon: 923 160 40 / 32
78	515 213 40	Cable 1,0	-2	InternKon: 946 214 40 / 4
79	940 468 40	Insulating tube 16x1	-2	InternBDB: B 16x1 Sievert \| InternKon: 946 214 40 / 5
80	500 090 98	vein end sleeve	5	InternBDB: 0,75-6 CU \| InternKon: 946 214 40 / 6
81	174 411 40	Cable strap	1	InternBDB: 200x4,8 5315/C \| InternKon: 946 214 40 / 7
83	346 508 99	Lock washer	-2	InternBDB: 4 /128 \| InternKon: 923 530 40 / 42
84	340 904 99	Washer	-2	InternBDB: 4,3 /125 \| InternKon: 923 530 40 / 43
85	910 023 40	Plate to fig-no. 03	1	InternKon: 923 530 40 / 44
86	307 631 99	Bolt	1	InternBDB: M6x10/933 \| InternKon: 923 530 40 / 37
87	307 740 99	Bolt	2	InternBDB: M6x60/933 \| InternKon: 923 530 40 / 38
88	350 762 99	Washer	3	InternBDB: R 6,6 /440 \| InternKon: 923 530 40 / 39
89	600 240 99	Cable shoe	1	InternKon: 916 614 40 / 7
90	517 487 98	Cable shoe	1	InternKon: 916 614 40 / 8
91	894 576 40	Temperature sensor with plug	1	InternBDB: TL \| InternKon: 894 583 40 / 1
92	055 140 40	Cable shoe	4	InternKon: 894 583 40 / 3
93	907 653 40	Insulating tube	-2	InternBDB: 91F3752 \| InternKon: 894 583 40 / 4
94	907 651 40	Temperature sensor	1	InternBDB: Bedia 420236 PT100-4Leiter G1/2 \| InternKon: 894 576 40 / 1
95	907 105 40	Rail	2	InternBDB: Roxtec 0503 \| InternKon: 903 480 40 / 7
96	907 223 40	Rubber clamp	3	InternBDB: Roxtec 15W40/3x0+3,5-10,5 0615 \| InternKon: 903 480 40 / 4
97	907 104 40	Rubber clamp	6	InternBDB: Roxtec 20/0 +4-13,5 0120 \| InternKon: 903 480 40 / 6
98	907 476 40	Cable union DN 10	1	InternBDB: BVNV-M120 \| InternKon: 923 159 40 / 7

Komatsu PC5500-6 S/N 15049 parts catalog PDF

ELECTRIC - CAB SUPPORT (515-2135r) in PC5500-6 S/N 15049. Diagram image and parts list.
