01 |
916 616 40
|

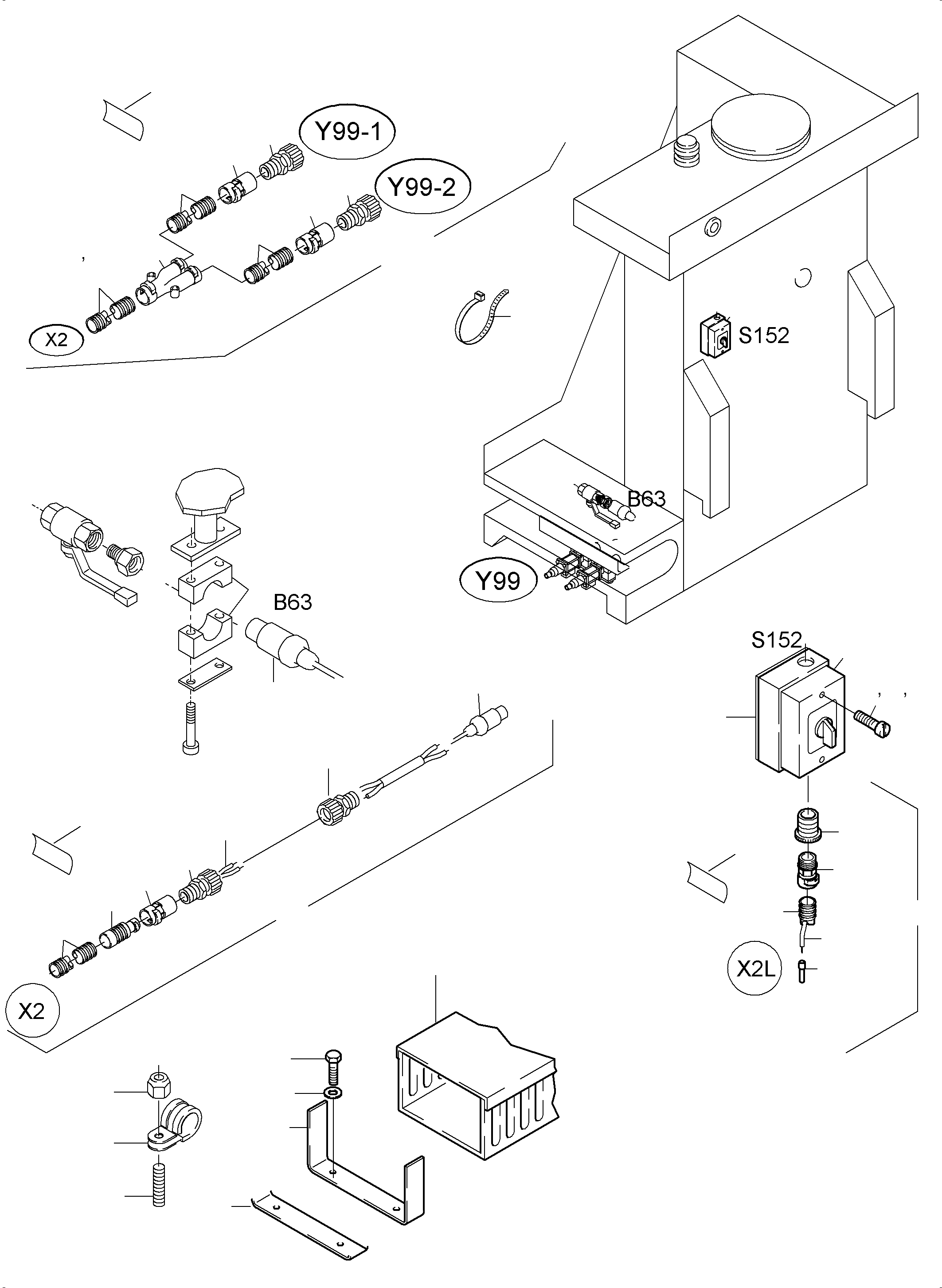

Harness - tank sensor |
1 |
InternKon: 923 539 40 / 1
|
|
|
|
02 |
896 742 40
|
Cable channel 110 |
-2 |
InternBDB: Sievert RSV 110.300 230 4968 | InternKon: 923 539 40 / 3
|
|
|
|
03 |
915 510 40
|
Holding device |
3 |
InternKon: 945 342 40 / 88
|
|
|
|
04 |
916 626 40
|
Holding device |
3 |
InternKon: 945 342 40 / 89
|
|
|
|
05 |
514 072 98
|
Bolt |
12 |
InternBDB: M8x12 /933 10.9 | InternKon: 923 539 40 / 6
|
|
|
|
06 |
350 763 99
|
Washer |
12 |
InternBDB: R 9,0 /440 | InternKon: 923 539 40 / 7
|
|
|
|
07 |
006 302 98
|
Clamp 15/15 |
5 |
InternBDB: RSGU 1100 15/15 | InternKon: 910 797 40 / 1
|
|
|
|
08 |
510 210 98
|
Thread pin |
5 |
InternBDB: PM 6x20 /32500 | InternKon: 910 797 40 / 2
|
|
|
|
09 |
507 025 98
|
Nut |
5 |
InternBDB: M 6 /985 | InternKon: 910 797 40 / 3
|
|
|
|
10 |
907 050 40
|
Pressure transducer |
1 |
InternBDB: BD-Sensor DMP 331 110-4000-1-5-9-2-1-501 | InternKon: 916 616 40 / 6
|
|
|
|
11 |
655 632 40
|
Pipe adapter NW 17/10 |
1 |
InternBDB: PMA BAVR 17 G 10 T | InternKon: 916 616 40 / 7
|
|
|
|
12 |
635 043 40
|
Name plate |
1 |
InternBDB: BS5 55476 | InternKon: 916 616 40 / 4
|
|
|
|
13 |
056 292 40
|
Cable strap |
1 |
InternBDB: TY 23 M | InternKon: 916 616 40 / 5
|
|
|
|
14 |
907 693 40
|
Fitting M20/NW17 |
1 |
InternBDB: BVIR-M207 | InternKon: 916 616 40 / 1
|
|
|
|
16 |
907 707 40
|
Cable union PG 11 |
2 |
InternBDB: Pflitsch 22052 YNPM 2x2,5 /2x6 | InternKon: 916 616 40 / 2
|
|
|
|
17 |
655 649 40
|
Cable protection hose DN 10 |
-2 |
InternBDB: PMA VCST-10 B | InternKon: 916 616 40 / 3
|
|
|
|
18 |
896 520 40
|
End pin |
2 |
InternBDB: Pflitsch BO 3,0x25 | InternKon: 916 616 40 / 12
|
|
|
|
19 |
896 522 40
|
End pin |
1 |
InternBDB: Pflitsch BO 6,0x25 | InternKon: 916 616 40 / 11
|
|
|
|
20 |
515 189 40
|
Cable |
-2 |
|
|
|
|
21 |
440 373 40
|
Camswitch |
1 |
InternBDB: Klцckner-Mцller T02/1I 3-pol. 20A | InternKon: 923 539 40 / 12
|
|
|
|
22 |
910 023 40
|
Plate |
1 |
InternKon: 923 539 40 / 8
|
|
|
|
23 |
320 975 99
|
Bolt |
2 |
InternBDB: M4x16/84 | InternKon: 923 539 40 / 11
|
|
|
|
24 |
340 904 99
|
Washer |
2 |
InternBDB: 4,3/125 | InternKon: 923 539 40 / 9
|
|
|
|
25 |
346 508 99
|
Lock washer |
2 |
InternBDB: 4/128 | InternKon: 923 539 40 / 10
|
|
|
|
26 |
923 578 40
|
Harness-lighting equipment outer |
1 |
InternKon: 923 576 40 / 1
|
|
|
|
27 |
517 322 98
|
Reducing M20x1.5 |
1 |
InternBDB: DINEN 50262 | InternKon: 923 578 40 / 2
|
|
|
|
28 |
256 514 40
|
Name plate |
1 |
InternKon: 923 578 40 / 4
|
|
|
|
29 |
940 271 40
|
Cable union DN10 |
3 |
InternBDB: PMA BVNV-M200 | InternKon: 923 578 40 / 1
|
|
|
|
30 |
515 214 40
|
Cable 2,5 |
-2 |
InternKon: 923 578 40 / 4
|
|
|
|
31 |
056 071 40
|
Cable sleeve 2,5 |
10 |
InternKon: 923 578 40 / 5
|
|
|
|
32 |
923 582 40
|
Harness check valve |
1 |
InternKon: 923 160 40 / 31
|
|
|
|
33 |
655 650 40
|
Cable protection hose DN 12 |
-2 |
InternBDB: PMA VCST-12 B | InternKon: 923 582 40 / 5
|
|
|
|
34 |
655 625 40
|
Distributor DN12/10 |
1 |
InternBDB: PMA BVYR-121010TTT | InternKon: 923 582 40 / 3
|
|
|
|
35 |
517 326 98
|
Reducing M16x1.5 - M12x1.5 |
2 |
InternBDB: DINEN 50262 | InternKon: 923 582 40 / 2
|
|
|
|
36 |
907 476 40
|
Cable union DN10 |
2 |
InternBDB: PMA BVNV-M120 | InternKon: 923 582 40 / 1
|
|
