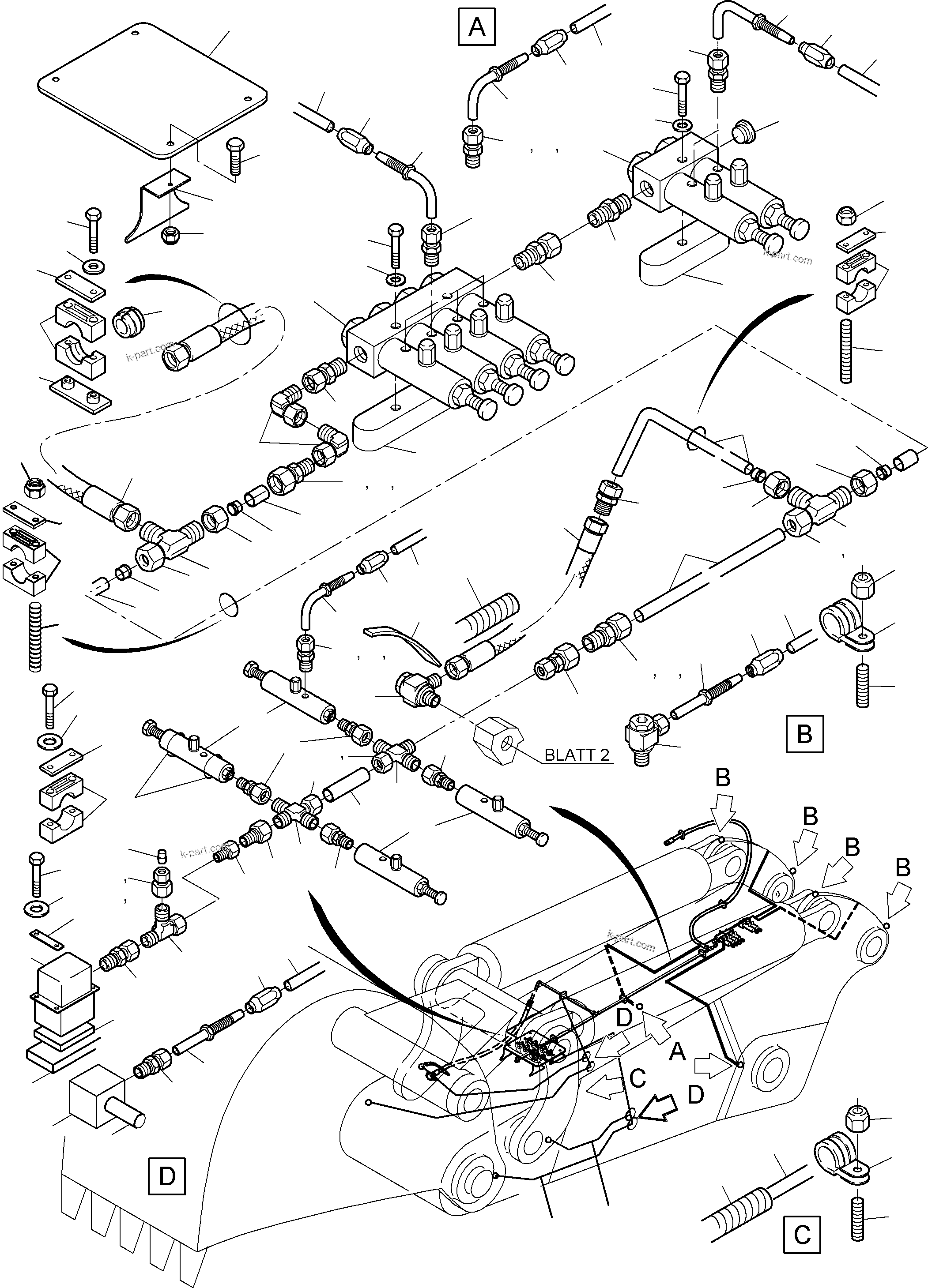

Diagram image 1 of 2

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Valve	10	InternBDB: 269 881 40 \| InternKon: 936 960 40 / 1	991-0323a
?		Valve	1	InternBDB: 269 880 40 \| InternKon: 936 960 40 / 2	991-0091
?		Metering valve	1	InternBDB: 270 131 40 \| InternKon: 936 960 40 / 3	991-0091
?	654 130 40	Protection cap	6	InternBDB: PVC 83272 M O-RING \| InternKon: 936 960 40 / 4
?	308 555 99	Bolt	3	InternBDB: M8X 45 8.8 DIN 00931 \| InternKon: 936 960 40 / 5
?	517 121 98	Lock washer	3	InternBDB: 8 WN 65593840 \| InternKon: 936 960 40 / 6
?	906 981 40	Union	6	InternBDB: GE 6 L 1/8NPT/OMD ST A3C WN 65593340 \| InternKon: 936 960 40 / 8
?	512 273 98	Socket	3	InternBDB: EVGE12-S 3/8NPT ST ZN WN 01157699 \| InternKon: 936 960 40 / 9
?	906 984 40	Union	1	InternBDB: GE12 S 3/8NPT/OMD ST A3C WN 65593340 \| InternKon: 936 960 40 / 10
?	516 741 98	Union	2	InternBDB: SWE-S 12 ST-NBR ISO 08434-4 \| InternKon: 936 960 40 / 11
?	634 481 40	Union	1	InternBDB: RED 25/12-PS/OMD ST A3C \| InternKon: 936 960 40 / 12
?	516 834 98	Union	1	InternBDB: T-S 25 ST A3C ISO 08434 \| InternKon: 936 960 40 / 13
?	374 443 99	Union	1	InternBDB: S-S 25 ST A3C ISO 08434 \| InternKon: 936 960 40 / 14
?	551 456 40	Union	1	InternBDB: RED 15/10-PL/OMD ST A3C \| InternKon: 936 960 40 / 15
?	516 173 98	Socket	1	InternBDB: L10 ST-NBR DIN 03944 \| InternKon: 936 960 40 / 17
?	516 183 98	Socket	1	InternBDB: L10-G ST-NBR DIN 03945 \| InternKon: 936 960 40 / 18
?	551 615 40	Union	1	InternBDB: RED 10/06-PL/OMD ST A3C \| InternKon: 936 960 40 / 19
?	371 861 99	Breech block	1	InternBDB: 6-L ST PHR WN 01163899 \| InternKon: 936 960 40 / 20
?	341 754 40	Ultimate pressure control	1	InternBDB: X1T-5025-180-I-GE142 \| InternKon: 936 960 40 / 21
?	652 383 40	Shackle	2	InternBDB: RST37-2 \| InternKon: 936 960 40 / 22
?	511 773 98	Thread pin	4	InternBDB: PM10X70 4.8 DIN 32500 \| InternKon: 936 960 40 / 23
?	507 037 98	Nut	4	InternBDB: M10 8 DIN 00985 \| InternKon: 936 960 40 / 24
?	324 672 40	Plug	1	InternBDB: 3/8"NPT \| InternKon: 936 960 40 / 25
?	515 028 40	Collet	32	InternBDB: 432-23031-1 \| InternKon: 936 960 40 / 26
?	515 029 40	Hose connection	18	InternBDB: 532-30739-1 (SHL- 90' KURZ \| InternKon: 936 960 40 / 27
?	515 027 40	Hose connection	14	InternBDB: 432-24162-1 (SHL- KURZ \| InternKon: 936 960 40 / 28
?	517 291 98	Union	10	InternBDB: 6 SR/OMD ST ZN WN 65593440 \| InternKon: 936 960 40 / 29
?	374 428 99	Union	6	InternBDB: SDS-S 6XG 1/4A- TYPE E ST A3C ISO 08434 \| InternKon: 936 960 40 / 30
?	576 160 40	Hose	80	InternBDB: NW 4 \| InternKon: 936 960 40 / 31
?	635 896 40	Tube protection	25	InternBDB: 12X9X1,5 100 121 005 \| InternKon: 936 960 40 / 32
?	006 303 98	Clamp	4	InternBDB: RSGU1100 22/15 ST GAL ZN WN 01166099 \| InternKon: 936 960 40 / 33
?	006 339 98	Clamp	32	InternBDB: RSGU1100 18/15 ST GAL ZN WN 01166099 \| InternKon: 936 960 40 / 34
?	006 301 98	Clamp 12/15	23	InternBDB: RSGU1100 12/15 ST GAL ZN WN 01166099 \| InternKon: 936 960 40 / 35
?	323 945 40	Thread pin	59	InternBDB: GWD-BLZ GA M 6X16 ST37 C2E DIN 32501 \| InternKon: 936 960 40 / 36
?	507 025 98	Nut	59	InternBDB: M 6 8 DIN 00985 \| InternKon: 936 960 40 / 37
?	502 618 98	Clamp Set	1	InternBDB: S-3-E PP DIN 03015 \| InternKon: 936 960 40 / 38
?	534 005 99	Weld on plate	2	InternBDB: S-AP-A-3 W1 DIN 03015 \| InternKon: 936 960 40 / 39
?	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 W1 DIN 03015 \| InternKon: 936 960 40 / 40
?	504 926 98	Grommet	2	InternBDB: S-3-32 GUMMI DIN 03015 \| InternKon: 936 960 40 / 41
?	308 581 99	Bolt	4	InternBDB: M10X 70 8.8 DIN 00931 \| InternKon: 936 960 40 / 42
?	500 801 98	Lock washer	4	InternBDB: S10 FEDST WN 24195640 \| InternKon: 936 960 40 / 43
?	651 255 40	Clamp	4	InternBDB: PP S-2-R-25 \| InternKon: 936 960 40 / 44
?	634 978 40	Cover plate	8	InternBDB: DPAL 4S STAHL BLANK \| InternKon: 936 960 40 / 45
?	512 055 98	Thread pin	8	InternBDB: PM12X80 ST37-3K DIN 32500 \| InternKon: 936 960 40 / 46
?	334 600 99	Nut	37	InternBDB: M12 8 DIN 00985 \| InternKon: 936 960 40 / 47
?	936 962 40	Pipe assy. Ш25	1	InternBDB: 25x3x130 \| InternKon: 936 960 40 / 48
?	510 319 98	Hose assy.	1	InternBDB: 350 20X 6200 DOS 25 DOS 25 WN 34195140 \| InternKon: 936 960 40 / 49
?	936 961 40	Pipe assy. Ш25	1	InternBDB: 25x3x2380 \| InternKon: 936 960 40 / 50
?	428 861 40	Pipe assy. Ш16	4	InternBDB: 16X2X 80 \| InternKon: 936 960 40 / 51
?	655 268 40	Union	4	InternBDB: K-S 16 ST A3C ISO 08434 \| InternKon: 936 960 40 / 52
?	516 700 98	Union	1	InternBDB: GZR 25/16-PS ST A3C WN 65591040 \| InternKon: 936 960 40 / 53
?	942 824 40	Angle	4	InternBDB: 194X200 \| InternKon: 936 960 40 / 54
?	931 890 40	Grease block	4	InternBDB: ST52-3 \| InternKon: 936 960 40 / 55
?	502 303 98	Socket	10	InternBDB: EVGE16-S/ 1/2NPT ST ZN WN 01157699 \| InternKon: 936 960 40 / 56
?	634 546 40	Union	1	InternBDB: RED 16PS/15-PL/OMD ST A3C \| InternKon: 936 960 40 / 57
?	371 271 99	Union nut	17	InternBDB: N-L 6 ST ZN ISO 08434 \| InternKon: 936 960 40 / 58
?	517 560 98	Union	10	InternBDB: GE 6 L 1/4NPT/OMD ST A3C WN 65593340 \| InternKon: 936 960 40 / 59
?	634 775 40	Clamp	20	InternBDB: DM 50,8 M 12 (SONDERSCHELLE) \| InternKon: 936 960 40 / 60
?	634 774 40	Cover plate	20	InternBDB: DP III \| InternKon: 936 960 40 / 61
?	308 611 99	Bolt	16	InternBDB: M12X90 8.8 DIN 00931 \| InternKon: 936 960 40 / 62
?	923 356 40	Plate	1	InternBDB: 600X700 \| InternKon: 936 960 40 / 63
?	307 805 99	Bolt	4	InternBDB: M12X35 8.8 DIN 00933 \| InternKon: 936 960 40 / 64
?	654 496 40	Protection cap	10	InternBDB: PVC 83730 \| InternKon: 936 960 40 / 65
?	909 206 40	Cover tube	6	InternBDB: ST37 \| InternKon: 936 960 40 / 66
?	634 271 40	Union	1	InternBDB: TR 25/20/25PS/OMD ST A3C \| InternKon: 936 960 40 / 67
?	942 828 40	Pipe assy. Ш25	1	InternBDB: 25x3x462 \| InternKon: 936 960 40 / 68
?	911 133 40	Pipe assy. Ш20	1	InternBDB: 20x3x1013 \| InternKon: 936 960 40 / 69
?	504 224 98	Clamp Set	2	InternBDB: S-2-R-20 AL DIN 03015 \| InternKon: 936 960 40 / 70
?	907 334 40	Hose assy.	2	InternBDB: NW 16 2755X 1500 DOS 20 DOS 20 \| InternKon: 936 960 40 / 71
?	374 442 99	Union	2	InternBDB: S-S 20 ST A3C ISO 08434 \| InternKon: 936 960 40 / 72
?	907 378 40	Swivel union	1	InternBDB: S20 G3/4A ST \| InternKon: 936 960 40 / 73
?	517 561 98	Union	1	InternBDB: 20 SR/OMD ST ZN WN 65593440 \| InternKon: 936 960 40 / 74
?	0443453412	CLIP	1	InternBDB: 77 KES 04434 NW34 \| InternKon: 936 960 40 / 75
?	507 121 98	Thread pin	1	InternBDB: PM12X25 4.8 DIN 32500 \| InternKon: 936 960 40 / 76
?	340 467 99	Washer	2	InternBDB: B 13,0 140HV DIN 00125 \| InternKon: 936 960 40 / 77
?	937 698 40	Guard Plate	1	InternBDB: 80X593 \| InternKon: 936 960 40 / 78
?	907 341 40	Straight swivel union	1	InternBDB: DG101/20S A3C \| InternKon: 936 960 40 / 79
?	936 963 40	Pipe assy. Ш20	1	InternBDB: 20x3x746 \| InternKon: 936 960 40 / 80
?	517 148 98	Socket	1	InternBDB: GZR 20/16-PS ST A3C WN 65591040 \| InternKon: 936 960 40 / 81
?	907 377 40	Hose protection DN 16x1500	2	InternBDB: KS 1500LG SHL-DA 28,2 FUER NW 16 \| InternKon: 936 960 40 / 82
?	936 957 40	Upper Plate	1	InternBDB: 10X700X820 \| InternKon: 936 960 40 / 83
?	923 359 40	Lower Plate	1	InternBDB: 700X820 \| InternKon: 936 960 40 / 84
?	923 360 40	Covering Plate	1	InternBDB: 700X820 \| InternKon: 936 960 40 / 85
?	923 361 40	Thread pin	4	InternBDB: M16X130 ST52-3 \| InternKon: 936 960 40 / 86
?	936 959 40	Pipe assy. Ш31,8	1	InternBDB: 31,8x8,8x1705 \| InternKon: 936 960 40 / 87
?	936 958 40	Pipe assy. Ш31,8	1	InternBDB: 31,8x8,8x2431 \| InternKon: 936 960 40 / 88
?	307 454 99	Bolt	4	InternBDB: M16X50 10.9 DIN 00933 \| InternKon: 936 960 40 / 89
?	517 123 98	Lock washer	4	InternBDB: 16 STZN WN 65593840 \| InternKon: 936 960 40 / 90
?	371 257 99	Union nut	33	InternBDB: N-S 6 ST ZN ISO 08434 \| InternKon: 936 960 40 / 91
?	534 001 99	Cover plate	2	InternBDB: S-DP-A-2 W1 DIN 03015 \| InternKon: 936 960 40 / 92
?	534 002 99	Weld on plate	2	InternBDB: S-AP-A-2 W1 DIN 03015 \| InternKon: 936 960 40 / 93
?	308 579 99	Bolt	8	InternBDB: M10X6 8.8 DIN 00931 \| InternKon: 936 960 40 / 94
?	308 612 99	Bolt	24	InternBDB: M12x100 8.8 DIN 00931 \| InternKon: 936 960 40 / 95
?	517 255 98	Union	1	InternBDB: T-S 16 ST A3C ISO 08434 \| InternKon: 936 960 40 / 96
?	907 080 40	Olive	32	InternBDB: ES-4 S 6 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 97
?	371 264 99	Union nut	6	InternBDB: N-S 25 ST ZN ISO 08434 \| InternKon: 936 960 40 / 99
?	906 868 40	Olive	6	InternBDB: ES-4 S25 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 100
?	371 260 99	Union nut	2	InternBDB: N-S 20 ST ZN ISO 08434 \| InternKon: 936 960 40 / 101
?	906 351 40	Olive	2	InternBDB: ES-4 S20 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 102
?	371 263 99	Union nut	7	InternBDB: N-S 16 ST ZN ISO 08434 \| InternKon: 936 960 40 / 103
?	907 151 40	Olive	7	InternBDB: ES-4 S16 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 104
?	936 978 40	Thread plate	1	InternBDB: 40X80 \| InternKon: 936 960 40 / 105
?	936 979 40	Thread plate	1	InternBDB: 40X145 \| InternKon: 936 960 40 / 106
?	517 118 98	Lock washer	16	InternBDB: 12 STZN WN 65593840 \| InternKon: 936 960 40 / 107
?	942 823 40	Lower Plate	1	InternBDB: 15x630x680 \| InternKon: 936 960 40 / 108
?	517 122 98	Lock washer	4	InternBDB: 10 STZN WN 65593840 \| InternKon: 936 960 40 / 110
?	942 851 40	Weld on plate	1	InternBDB: 12x90x90 \| InternKon: 936 960 40 / 111

Komatsu PC5500-6 S/N 15049 parts catalog PDF

STICK - LUBRICATION 5.1 M (515-2372d) in PC5500-6 S/N 15049. Diagram image and parts list.
