Diagram image 1 of 2

PC5500-6 S/N 15049

01 01 02 03 04 04 05 05 06 06 08 08 09 09 10 100 100 100 100 100 100 101 102 103 104 105 106 107 108 11 110 111 12 13 14 15 17 18 19 20 21 22 23 24 25 26 26 26 26 26 26 27 27 27 27 28 28 29 30 30 31 31 31 31 31 31 31 32 33 33 34 34 35 35 36 37 37 38 39 40 41 42 43 44 45 46 47 47 48 49 50 51 52 52 53 54 55 56 56 56 57 58 58 58 58 59 60 61 62 63 63 64 65 65 67 68 69 70 71 72 73 78 82 86 87 87 88 91 91 91 92 94 97 97 97 97 97 97 97 99 99 99 99 99 99

PC5500-6 S/N 15049

01 01 01 01 101 102 103 103 104 104 26 26 26 27 27 28 29 30 31 31 31 33 34 35 36 37 47 47 51 51 52 52 56 56 56 56 58 59 60 61 65 65 65 65 66 66 70 71 72 74 75 76 77 79 80 81 82 83 84 85 86 89 90 91 91 92 93 94 95 96 97 97 97

#	Part Number	Partname	Quantity	Options	Reference
01		Valve	10	InternBDB: 269 881 40 \| InternKon: 936 960 40 / 1	991-0323a
02		Valve	1	InternBDB: 269 880 40 \| InternKon: 936 960 40 / 2	991-0091
03		Metering valve	1	InternBDB: 270 131 40 \| InternKon: 936 960 40 / 3	991-0091
04	654 130 40	Protection cap	6	InternBDB: PVC 83272 M O-RING \| InternKon: 936 960 40 / 4
05	308 555 99	Bolt	3	InternBDB: M8X 45 8.8 DIN 00931 \| InternKon: 936 960 40 / 5
06	517 121 98	Lock washer	3	InternBDB: 8 WN 65593840 \| InternKon: 936 960 40 / 6
08	906 981 40	Union	6	InternBDB: GE 6 L 1/8NPT/OMD ST A3C WN 65593340 \| InternKon: 936 960 40 / 8
09	512 273 98	Socket	3	InternBDB: EVGE12-S 3/8NPT ST ZN WN 01157699 \| InternKon: 936 960 40 / 9
10	906 984 40	Union	1	InternBDB: GE12 S 3/8NPT/OMD ST A3C WN 65593340 \| InternKon: 936 960 40 / 10
11	516 741 98	Union	2	InternBDB: SWE-S 12 ST-NBR ISO 08434-4 \| InternKon: 936 960 40 / 11
12	634 481 40	Union	1	InternBDB: RED 25/12-PS/OMD ST A3C \| InternKon: 936 960 40 / 12
13	516 834 98	Union	1	InternBDB: T-S 25 ST A3C ISO 08434 \| InternKon: 936 960 40 / 13
14	374 443 99	Union	1	InternBDB: S-S 25 ST A3C ISO 08434 \| InternKon: 936 960 40 / 14
15	551 456 40	Union	1	InternBDB: RED 15/10-PL/OMD ST A3C \| InternKon: 936 960 40 / 15
17	516 173 98	Socket	1	InternBDB: L10 ST-NBR DIN 03944 \| InternKon: 936 960 40 / 17
18	516 183 98	Socket	1	InternBDB: L10-G ST-NBR DIN 03945 \| InternKon: 936 960 40 / 18
19	551 615 40	Union	1	InternBDB: RED 10/06-PL/OMD ST A3C \| InternKon: 936 960 40 / 19
20	371 861 99	Breech block	1	InternBDB: 6-L ST PHR WN 01163899 \| InternKon: 936 960 40 / 20
21	341 754 40	Ultimate pressure control	1	InternBDB: X1T-5025-180-I-GE142 \| InternKon: 936 960 40 / 21
22	652 383 40	Shackle	2	InternBDB: RST37-2 \| InternKon: 936 960 40 / 22
23	511 773 98	Thread pin	4	InternBDB: PM10X70 4.8 DIN 32500 \| InternKon: 936 960 40 / 23
24	507 037 98	Nut	4	InternBDB: M10 8 DIN 00985 \| InternKon: 936 960 40 / 24
25	324 672 40	Plug	1	InternBDB: 3/8"NPT \| InternKon: 936 960 40 / 25
26	515 028 40	Collet	32	InternBDB: 432-23031-1 \| InternKon: 936 960 40 / 26
27	515 029 40	Hose connection	18	InternBDB: 532-30739-1 (SHL- 90' KURZ \| InternKon: 936 960 40 / 27
28	515 027 40	Hose connection	14	InternBDB: 432-24162-1 (SHL- KURZ \| InternKon: 936 960 40 / 28
29	517 291 98	Union	10	InternBDB: 6 SR/OMD ST ZN WN 65593440 \| InternKon: 936 960 40 / 29
30	374 428 99	Union	6	InternBDB: SDS-S 6XG 1/4A- TYPE E ST A3C ISO 08434 \| InternKon: 936 960 40 / 30
31	576 160 40	Hose	80	InternBDB: NW 4 \| InternKon: 936 960 40 / 31
32	635 896 40	Tube protection	25	InternBDB: 12X9X1,5 100 121 005 \| InternKon: 936 960 40 / 32
33	006 303 98	Clamp	4	InternBDB: RSGU1100 22/15 ST GAL ZN WN 01166099 \| InternKon: 936 960 40 / 33
34	006 339 98	Clamp	32	InternBDB: RSGU1100 18/15 ST GAL ZN WN 01166099 \| InternKon: 936 960 40 / 34
35	006 301 98	Clamp 12/15	23	InternBDB: RSGU1100 12/15 ST GAL ZN WN 01166099 \| InternKon: 936 960 40 / 35
36	323 945 40	Thread pin	59	InternBDB: GWD-BLZ GA M 6X16 ST37 C2E DIN 32501 \| InternKon: 936 960 40 / 36
37	507 025 98	Nut	59	InternBDB: M 6 8 DIN 00985 \| InternKon: 936 960 40 / 37
38	502 618 98	Clamp Set	1	InternBDB: S-3-E PP DIN 03015 \| InternKon: 936 960 40 / 38
39	534 005 99	Weld on plate	2	InternBDB: S-AP-A-3 W1 DIN 03015 \| InternKon: 936 960 40 / 39
40	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 W1 DIN 03015 \| InternKon: 936 960 40 / 40
41	504 926 98	Grommet	2	InternBDB: S-3-32 GUMMI DIN 03015 \| InternKon: 936 960 40 / 41
42	308 581 99	Bolt	4	InternBDB: M10X 70 8.8 DIN 00931 \| InternKon: 936 960 40 / 42
43	500 801 98	Lock washer	4	InternBDB: S10 FEDST WN 24195640 \| InternKon: 936 960 40 / 43
44	651 255 40	Clamp	4	InternBDB: PP S-2-R-25 \| InternKon: 936 960 40 / 44
45	634 978 40	Cover plate	8	InternBDB: DPAL 4S STAHL BLANK \| InternKon: 936 960 40 / 45
46	512 055 98	Thread pin	8	InternBDB: PM12X80 ST37-3K DIN 32500 \| InternKon: 936 960 40 / 46
47	334 600 99	Nut	37	InternBDB: M12 8 DIN 00985 \| InternKon: 936 960 40 / 47
48	936 962 40	Pipe assy. Ш25	1	InternBDB: 25x3x130 \| InternKon: 936 960 40 / 48
49	510 319 98	Hose assy.	1	InternBDB: 350 20X 6200 DOS 25 DOS 25 WN 34195140 \| InternKon: 936 960 40 / 49
50	936 961 40	Pipe assy. Ш25	1	InternBDB: 25x3x2380 \| InternKon: 936 960 40 / 50
51	428 861 40	Pipe assy. Ш16	4	InternBDB: 16X2X 80 \| InternKon: 936 960 40 / 51
52	655 268 40	Union	4	InternBDB: K-S 16 ST A3C ISO 08434 \| InternKon: 936 960 40 / 52
53	516 700 98	Union	1	InternBDB: GZR 25/16-PS ST A3C WN 65591040 \| InternKon: 936 960 40 / 53
54	942 824 40	Angle	4	InternBDB: 194X200 \| InternKon: 936 960 40 / 54
55	931 890 40	Grease block	4	InternBDB: ST52-3 \| InternKon: 936 960 40 / 55
56	502 303 98	Socket	10	InternBDB: EVGE16-S/ 1/2NPT ST ZN WN 01157699 \| InternKon: 936 960 40 / 56
57	634 546 40	Union	1	InternBDB: RED 16PS/15-PL/OMD ST A3C \| InternKon: 936 960 40 / 57
58	371 271 99	Union nut	17	InternBDB: N-L 6 ST ZN ISO 08434 \| InternKon: 936 960 40 / 58
59	517 560 98	Union	10	InternBDB: GE 6 L 1/4NPT/OMD ST A3C WN 65593340 \| InternKon: 936 960 40 / 59
60	634 775 40	Clamp	20	InternBDB: DM 50,8 M 12 (SONDERSCHELLE) \| InternKon: 936 960 40 / 60
61	634 774 40	Cover plate	20	InternBDB: DP III \| InternKon: 936 960 40 / 61
62	308 611 99	Bolt	16	InternBDB: M12X90 8.8 DIN 00931 \| InternKon: 936 960 40 / 62
63	923 356 40	Plate	1	InternBDB: 600X700 \| InternKon: 936 960 40 / 63
64	307 805 99	Bolt	4	InternBDB: M12X35 8.8 DIN 00933 \| InternKon: 936 960 40 / 64
65	654 496 40	Protection cap	10	InternBDB: PVC 83730 \| InternKon: 936 960 40 / 65
66	909 206 40	Cover tube	6	InternBDB: ST37 \| InternKon: 936 960 40 / 66
67	634 271 40	Union	1	InternBDB: TR 25/20/25PS/OMD ST A3C \| InternKon: 936 960 40 / 67
68	942 828 40	Pipe assy. Ш25	1	InternBDB: 25x3x462 \| InternKon: 936 960 40 / 68
69	911 133 40	Pipe assy. Ш20	1	InternBDB: 20x3x1013 \| InternKon: 936 960 40 / 69
70	504 224 98	Clamp Set	2	InternBDB: S-2-R-20 AL DIN 03015 \| InternKon: 936 960 40 / 70
71	907 334 40	Hose assy.	2	InternBDB: NW 16 2755X 1500 DOS 20 DOS 20 \| InternKon: 936 960 40 / 71
72	374 442 99	Union	2	InternBDB: S-S 20 ST A3C ISO 08434 \| InternKon: 936 960 40 / 72
73	907 378 40	Swivel union	1	InternBDB: S20 G3/4A ST \| InternKon: 936 960 40 / 73
74	517 561 98	Union	1	InternBDB: 20 SR/OMD ST ZN WN 65593440 \| InternKon: 936 960 40 / 74
75	0443453412	CLIP	1	InternBDB: 77 KES 04434 NW34 \| InternKon: 936 960 40 / 75
76	507 121 98	Thread pin	1	InternBDB: PM12X25 4.8 DIN 32500 \| InternKon: 936 960 40 / 76
77	340 467 99	Washer	2	InternBDB: B 13,0 140HV DIN 00125 \| InternKon: 936 960 40 / 77
78	937 698 40	Guard Plate	1	InternBDB: 80X593 \| InternKon: 936 960 40 / 78
79	907 341 40	Straight swivel union	1	InternBDB: DG101/20S A3C \| InternKon: 936 960 40 / 79
80	936 963 40	Pipe assy. Ш20	1	InternBDB: 20x3x746 \| InternKon: 936 960 40 / 80
81	517 148 98	Socket	1	InternBDB: GZR 20/16-PS ST A3C WN 65591040 \| InternKon: 936 960 40 / 81
82	907 377 40	Hose protection DN 16x1500	2	InternBDB: KS 1500LG SHL-DA 28,2 FUER NW 16 \| InternKon: 936 960 40 / 82
83	936 957 40	Upper Plate	1	InternBDB: 10X700X820 \| InternKon: 936 960 40 / 83
84	923 359 40	Lower Plate	1	InternBDB: 700X820 \| InternKon: 936 960 40 / 84
85	923 360 40	Covering Plate	1	InternBDB: 700X820 \| InternKon: 936 960 40 / 85
86	923 361 40	Thread pin	4	InternBDB: M16X130 ST52-3 \| InternKon: 936 960 40 / 86
87	936 959 40	Pipe assy. Ш31,8	1	InternBDB: 31,8x8,8x1705 \| InternKon: 936 960 40 / 87
88	936 958 40	Pipe assy. Ш31,8	1	InternBDB: 31,8x8,8x2431 \| InternKon: 936 960 40 / 88
89	307 454 99	Bolt	4	InternBDB: M16X50 10.9 DIN 00933 \| InternKon: 936 960 40 / 89
90	517 123 98	Lock washer	4	InternBDB: 16 STZN WN 65593840 \| InternKon: 936 960 40 / 90
91	371 257 99	Union nut	33	InternBDB: N-S 6 ST ZN ISO 08434 \| InternKon: 936 960 40 / 91
92	534 001 99	Cover plate	2	InternBDB: S-DP-A-2 W1 DIN 03015 \| InternKon: 936 960 40 / 92
93	534 002 99	Weld on plate	2	InternBDB: S-AP-A-2 W1 DIN 03015 \| InternKon: 936 960 40 / 93
94	308 579 99	Bolt	8	InternBDB: M10X6 8.8 DIN 00931 \| InternKon: 936 960 40 / 94
95	308 612 99	Bolt	24	InternBDB: M12x100 8.8 DIN 00931 \| InternKon: 936 960 40 / 95
96	517 255 98	Union	1	InternBDB: T-S 16 ST A3C ISO 08434 \| InternKon: 936 960 40 / 96
97	907 080 40	Olive	32	InternBDB: ES-4 S 6 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 97
99	371 264 99	Union nut	6	InternBDB: N-S 25 ST ZN ISO 08434 \| InternKon: 936 960 40 / 99
100	906 868 40	Olive	6	InternBDB: ES-4 S25 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 100
101	371 260 99	Union nut	2	InternBDB: N-S 20 ST ZN ISO 08434 \| InternKon: 936 960 40 / 101
102	906 351 40	Olive	2	InternBDB: ES-4 S20 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 102
103	371 263 99	Union nut	7	InternBDB: N-S 16 ST ZN ISO 08434 \| InternKon: 936 960 40 / 103
104	907 151 40	Olive	7	InternBDB: ES-4 S16 9SMNPB28K WN 65593940 \| InternKon: 936 960 40 / 104
105	936 978 40	Thread plate	1	InternBDB: 40X80 \| InternKon: 936 960 40 / 105
106	936 979 40	Thread plate	1	InternBDB: 40X145 \| InternKon: 936 960 40 / 106
107	517 118 98	Lock washer	16	InternBDB: 12 STZN WN 65593840 \| InternKon: 936 960 40 / 107
108	942 823 40	Lower Plate	1	InternBDB: 15x630x680 \| InternKon: 936 960 40 / 108
110	517 122 98	Lock washer	4	InternBDB: 10 STZN WN 65593840 \| InternKon: 936 960 40 / 110
111	942 851 40	Weld on plate	1	InternBDB: 12x90x90 \| InternKon: 936 960 40 / 111

Komatsu PC5500-6 S/N 15049 parts catalog PDF

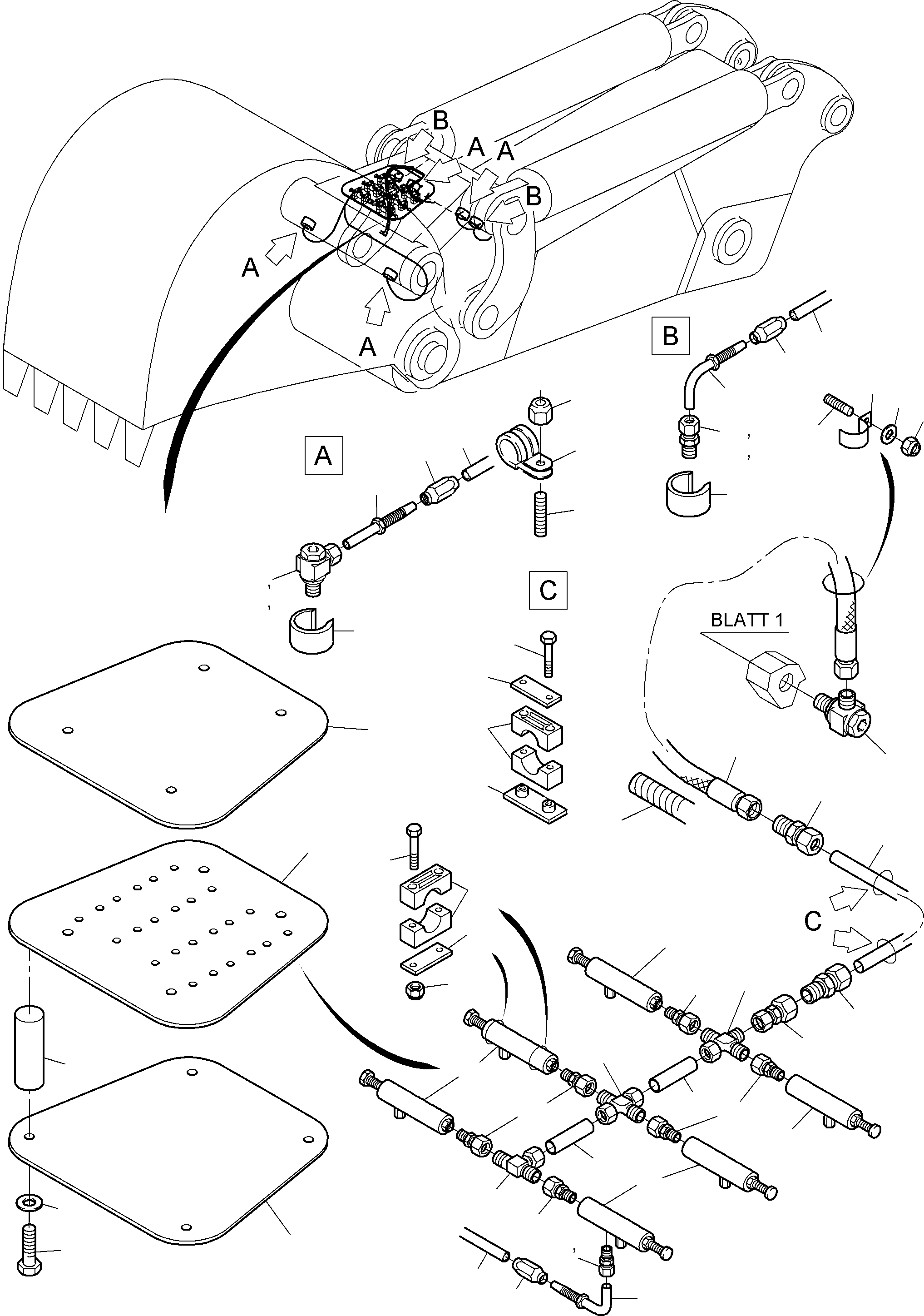

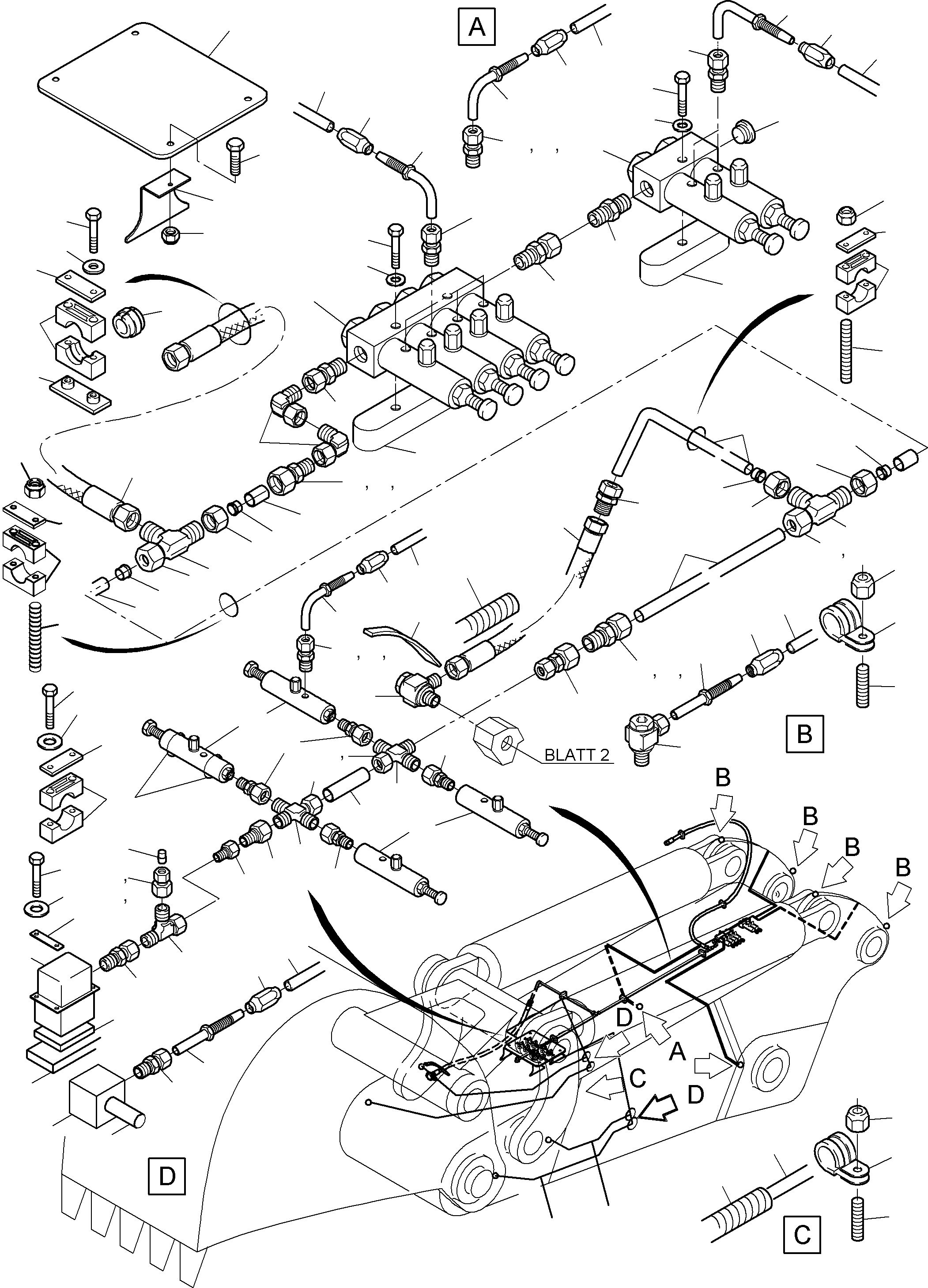

STICK - LUBRICATION 5.1 M (515-2372d) in PC5500-6 S/N 15049. Diagram image and parts list.
