#	Part Number	Partname	Quantity	Options
?	936 940 40	Boom assy.	1	InternBDB: SK 936 910 40 \| InternKon: 926 080 40 / 1
?	795 424 73	Boom with bushings	1	InternBDB: E-ST
?	795 425 73	Boom with bushings and pipes assy.	1	InternBDB: E-ST
?	935 536 40	Pin with plate	1	InternKon: 936 940 40 / 2
?	935 538 40	Pin with plate	2	InternKon: 936 940 40 / 3
?	935 540 40	Pin with plate	2	InternKon: 936 940 40 / 4
?	936 953 40	Catch	2	InternBDB: 40x440 \| InternKon: 936 940 40 / 5
?	922 170 40	Cover	1	InternBDB: 430x430 \| InternKon: 936 940 40 / 6
?	925 982 40	Stop piece	1	InternKon: 936 940 40 / 7
?	925 981 40	Safety Sleeve	1	InternKon: 936 940 40 / 8
?	932 140 40	Bushing	4	InternKon: 936 940 40 / 9
?	462 208 40	Catch	8	InternBDB: 36x160 \| InternKon: 936 940 40 / 10
?	462 209 40	Shackle	4	InternBDB: 120x307 \| InternKon: 936 940 40 / 11
?	319 442 99	Bolt	1	InternBDB: M16x40 / 8.8 / 912 \| InternKon: 936 940 40 / 12
?	907 028 40	Seal ring	4	InternBDB: 250 / 7x4 RXYD 091609T46 \| InternKon: 936 940 40 / 13
?	342 085 99	Cotter pin	1	InternBDB: 5x50 / 94 \| InternKon: 936 940 40 / 63
?	307 826 99	Bolt	17	InternBDB: M16x50 / 8.8 933 \| InternKon: 936 940 40 / 15
?	517 123 98	Washer	40	InternBDB: Ш 16 \| InternKon: 936 940 40 / 16
?	504 445 98	Pair of Climes	38	InternBDB: S-4-R-65 /3015 \| InternKon: 936 940 40 / 17
?	505 440 98	Pair of Climes	4	InternBDB: S-4-R-65 /3015 \| InternKon: 936 940 40 / 18
?	504 446 98	Pair of Climes	24	InternBDB: S-4-G-65 /3015 \| InternKon: 936 940 40 / 19
?	509 064 98	Pair of Climes	16	InternBDB: S-5-E /3015 \| InternKon: 936 940 40 / 20
?	505 212 98	Grommet	4	InternBDB: S-5-68 /3015 \| InternKon: 936 940 40 / 21
?	534 008 99	Cover plate	36	InternBDB: S-DP-A-4 /3015 \| InternKon: 936 940 40 / 22
?	500 398 98	Cover plate	2	InternBDB: S-DP-A-5 /3015 \| InternKon: 936 940 40 / 23
?	515 928 98	Catch	2	InternBDB: S-5 /3015 \| InternKon: 936 940 40 / 24
?	500 399 98	Weld-on plate	14	InternBDB: S-AP-A-5 /3015 \| InternKon: 936 940 40 / 25
?	502 961 98	Weld-on plate	4	InternBDB: S-AP-S-4 /3015 \| InternKon: 936 940 40 / 26
?	515 927 98	Screw	4	InternBDB: S-5 /3015 \| InternKon: 936 940 40 / 27
?	303 983 40	Angle	2	InternBDB: W 2/6 S /011 839 99 \| InternKon: 936 940 40 / 29
?	301 893 40	Angle	3	InternBDB: W 4/6 S /011 839 99 \| InternKon: 936 940 40 / 32
?	308 641 99	Bolt	4	InternBDB: M16x130 /931 8.8 \| InternKon: 936 940 40 / 34
?	510 151 98	Bolt	52	InternBDB: M12x100 /933 8.8 \| InternKon: 936 940 40 / 35
?	308 612 99	Bolt	80	InternBDB: M12x105 /931 8.8 \| InternKon: 936 940 40 / 36
?	332 334 99	Nut	48	InternBDB: M12 / 934 \| InternKon: 936 940 40 / 37
?	509 310 98	Locking plate	32	InternBDB: SI 6 /011 839 99 \| InternKon: 936 940 40 / 38
?	509 311 98	Locking plate	2	InternBDB: SI 7 /011 839 99 \| InternKon: 936 940 40 / 39
?	385 243 40	Flange seal	44	InternBDB: 2 NBR 90 /341 986 40 \| InternKon: 936 940 40 / 42
?	319 313 99	Bolt	160	InternBDB: M20x120 /912 10.9 \| InternKon: 936 940 40 / 43
?	319 305 99	Bolt	16	InternBDB: M20x60 /912 10.9 \| InternKon: 936 940 40 / 44
?	504 662 98	Nut	161	InternBDB: M 20 /934 \| InternKon: 936 940 40 / 45
?	940 330 40	Hose assy. DN 50x3500	4	InternBDB: 350 GH466 32x3500 / FS 2 /FS 2 /341 951 40 \| InternKon: 936 940 40 / 46
?	940 322 40	Hose assy. DN 50x2500	4	InternBDB: 350 GH466 32x2500 / FS 2 /FS 2 /341 951 40 \| InternKon: 936 940 40 / 47
?	940 318 40	Hose assy. DN 50x2100	2	InternBDB: GH466 32x2100 FS 2 / FS 2 - 45 /341 951 40 \| InternKon: 936 940 40 / 48
?	940 320 40	Hose assy. DN 50x2300	2	InternBDB: GH466 32x2300 FS 2 / FS 2 /341 951 40 \| InternKon: 936 940 40 / 49
?	940 317 40	Hose assy. DN 50x2000	2	InternBDB: GH466 32x2000 FS 2 / FS 2 /341 951 40 \| InternKon: 936 940 40 / 64
?	940 372 40	Hose assy. DN 50x2240	2	InternBDB: GH466 32x2240 FS 2 / FS 2 90 /341 951 41 \| InternKon: 936 940 40 / 65
?	905 219 40	Retainer	4	InternBDB: Rohr 65x8x160 \| InternKon: 936 940 40 / 28
?	936 949 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 50
?	936 950 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 51
?	936 945 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 58
?	936 948 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 57
?	936 943 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 54
?	936 944 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 56
?	936 941 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 52
?	936 942 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 53
?	936 952 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 59
?	936 951 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 60
?	936 946 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 61
?	936 947 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 55
?	935 546 40	Guard plate	2	InternKon: 936 940 40 / 70
?	943 158 40	Guard plate	4	InternKon: 936 940 40 / 71
?	943 155 40	Angle	1	InternKon: 936 940 40 / 72
?	943 157 40	Retainer	4	InternKon: 936 940 40 / 73
?	534 009 99	Weld on plate	2	InternBDB: S-AP-A-4 W1 DIN 03015 \| InternKon: 936 940 40 / 74
?	517 118 98	Lock washer	12	InternBDB: 12 STZN WN 65593840 \| InternKon: 936 940 40 / 75
?	504 854 98	Grommet	12	InternBDB: S-5-72 GUMMI DIN 03015 \| InternKon: 936 940 40 / 76
?	307 806 99	Bolt	8	InternBDB: M12 X 40 8.8 DIN 00933 \| InternKon: 936 940 40 / 77
?	304 352 99	Bolt	24	InternBDB: M16X 140 10.9 DIN 00931 \| InternKon: 936 940 40 / 78
?	409 329 40	Mounting cap for Bolt fig-no. 04	1	InternBDB: 155 \| InternKon: 936 940 40 / 14

Komatsu PC5500-6 S/N 15049 parts catalog PDF

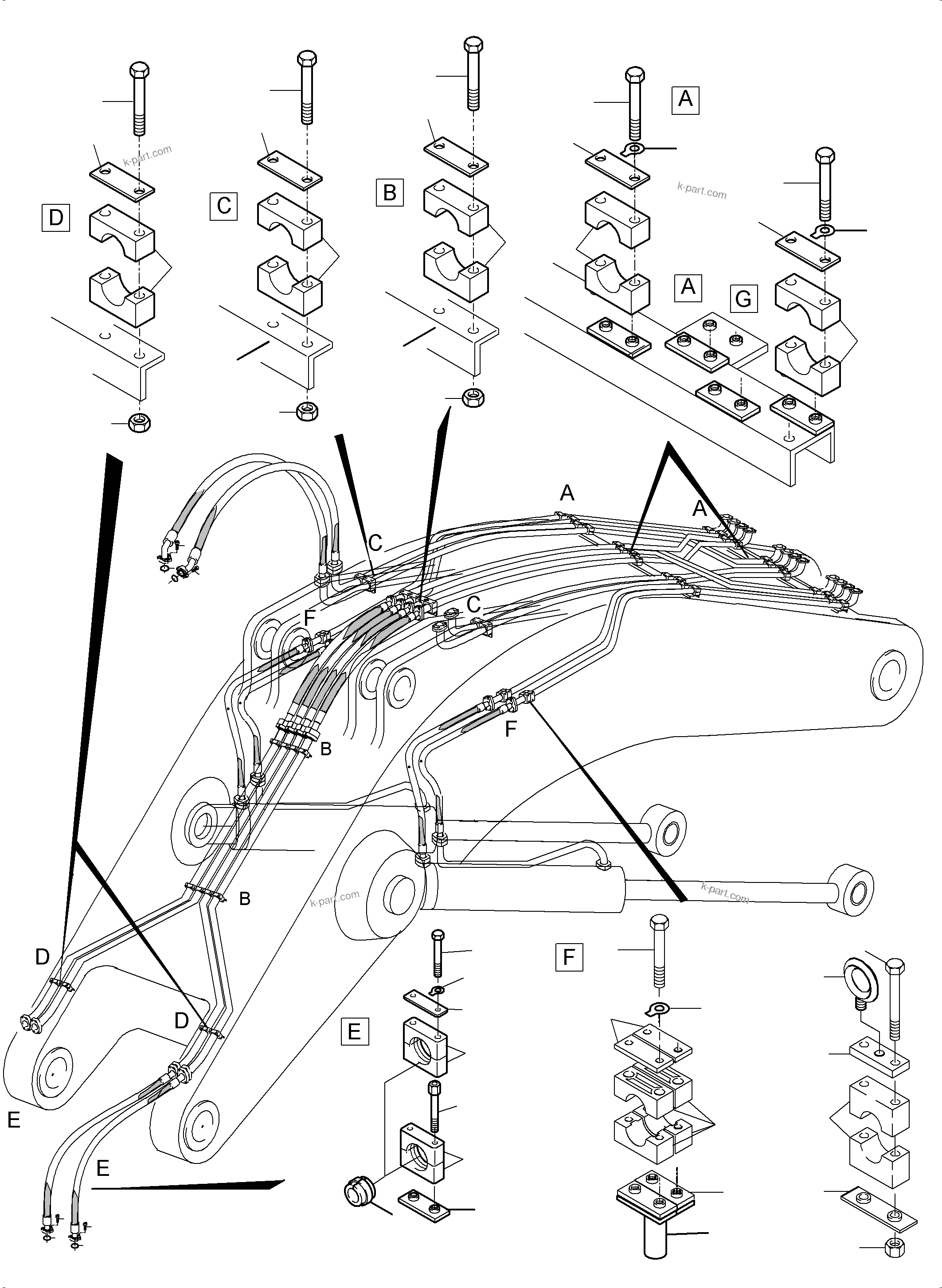

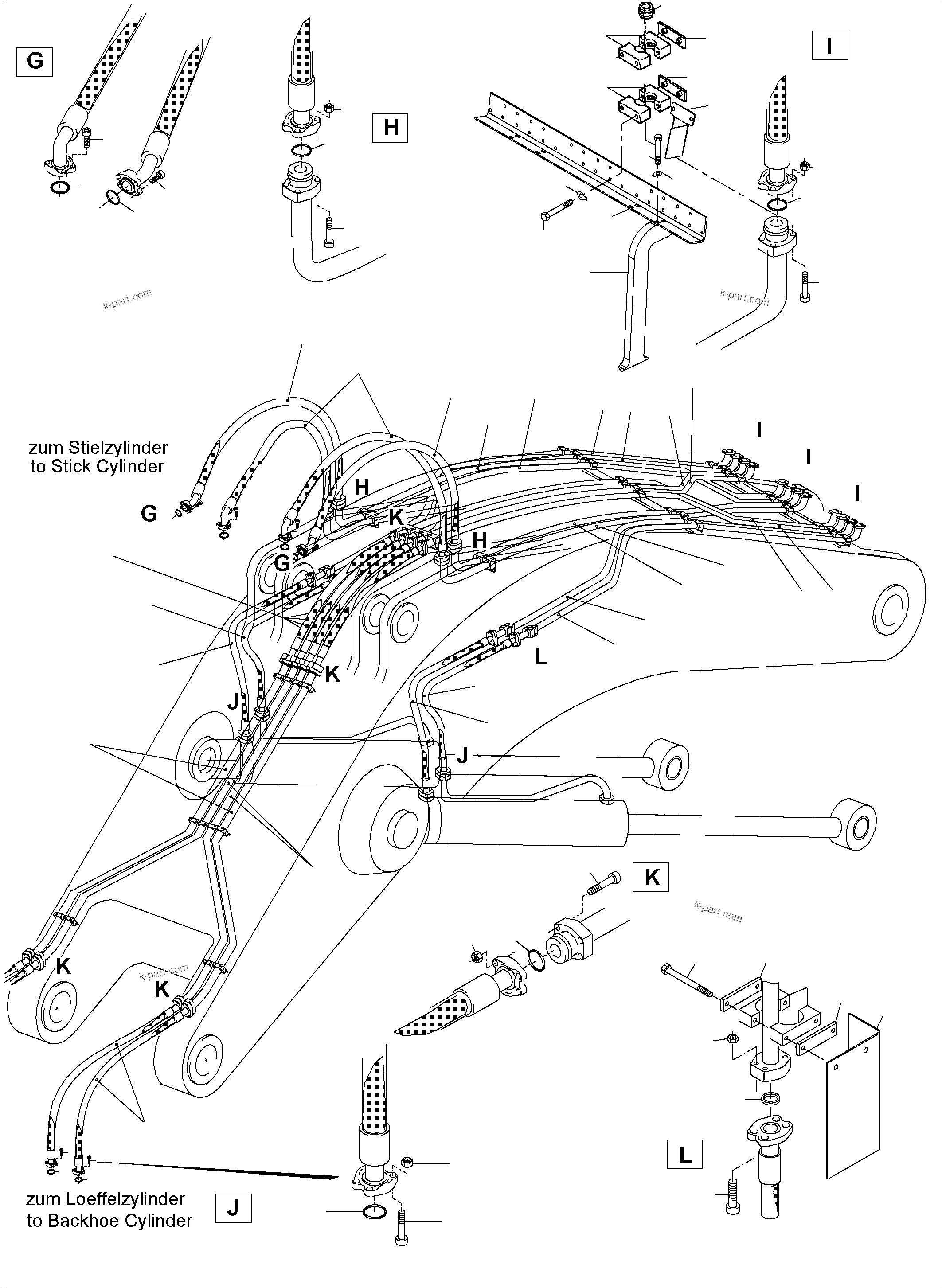

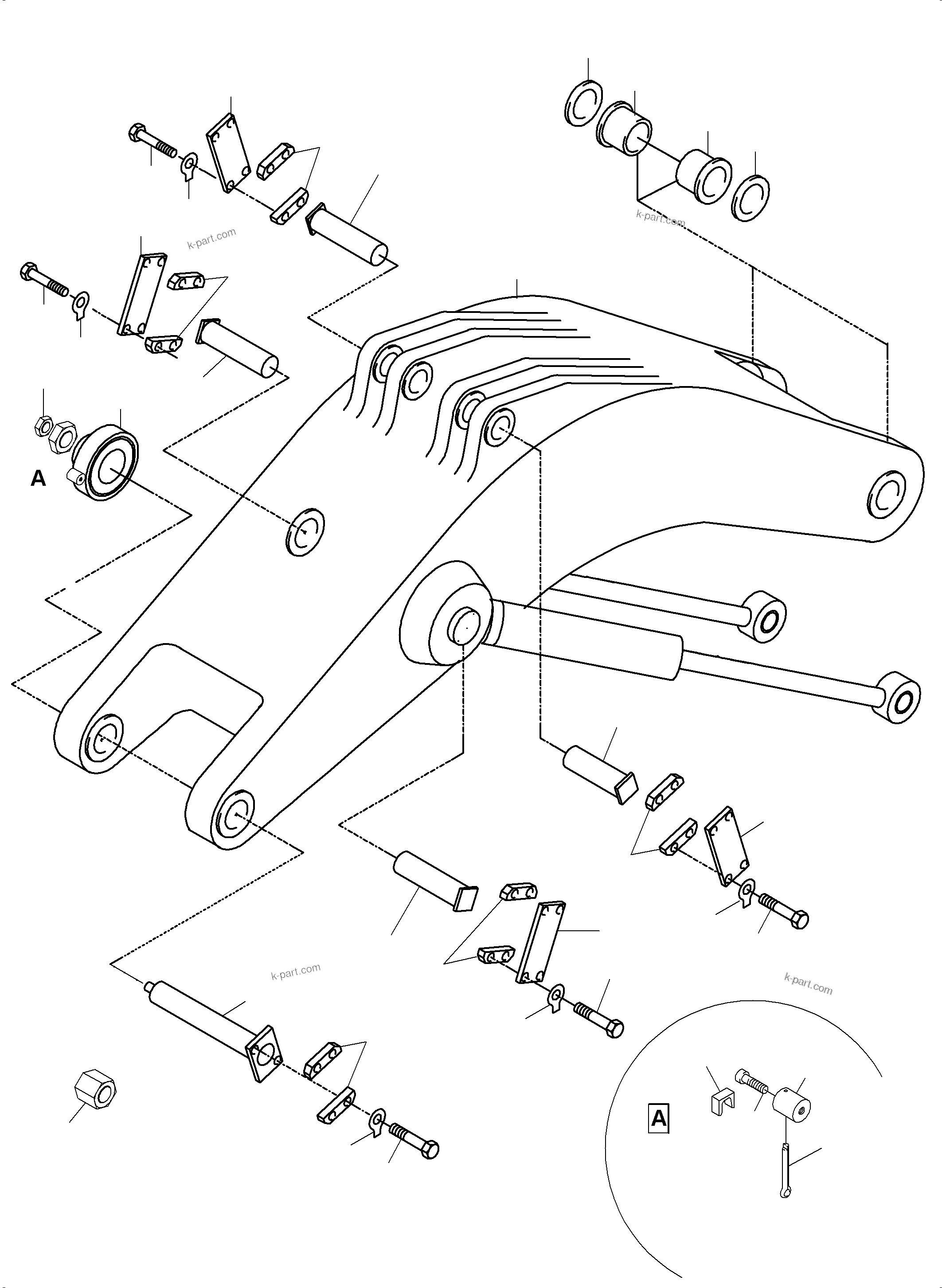

BACKHOE BOOM (515-4018g) in PC5500-6 S/N 15049. Diagram image and parts list.
