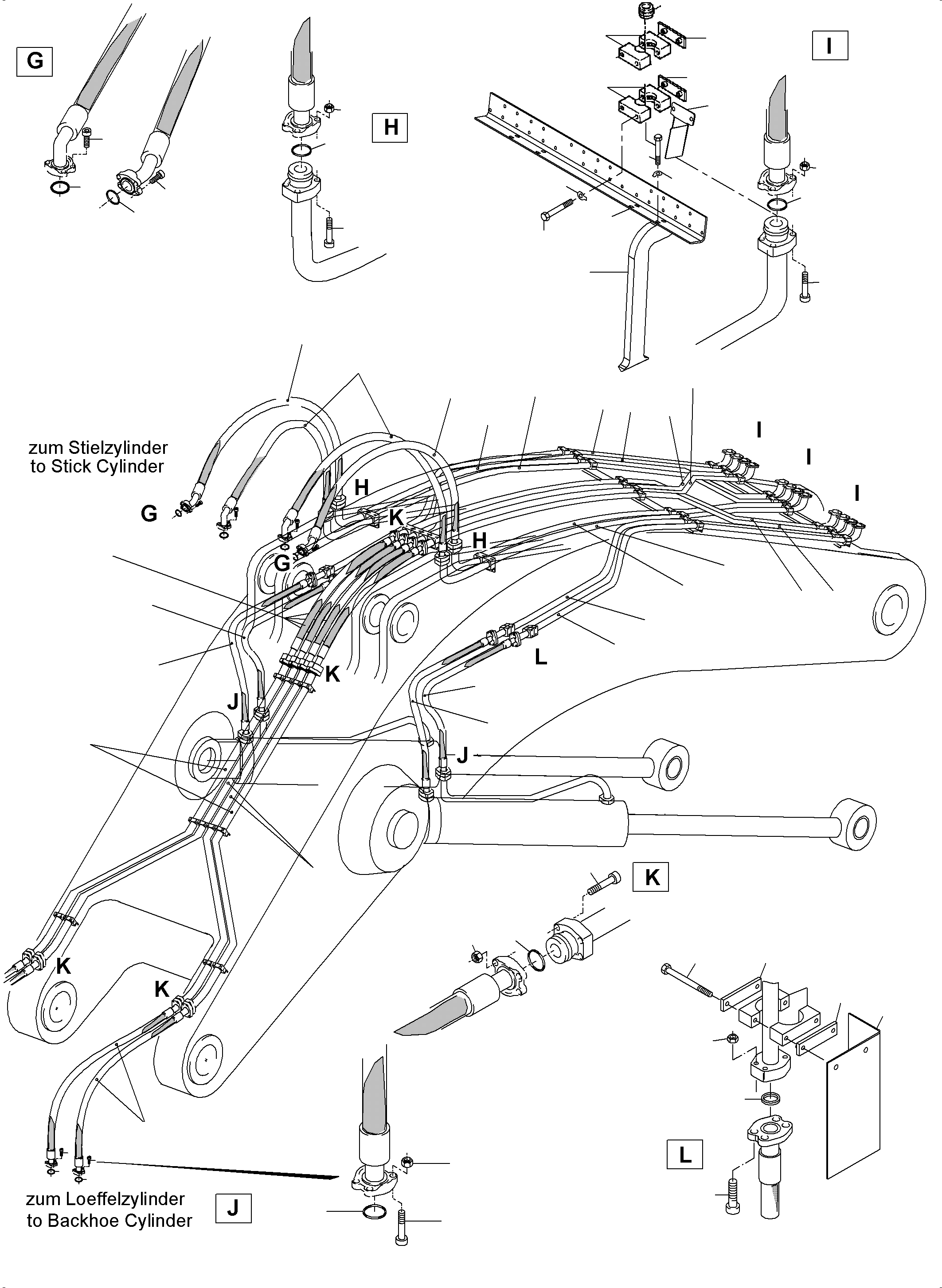

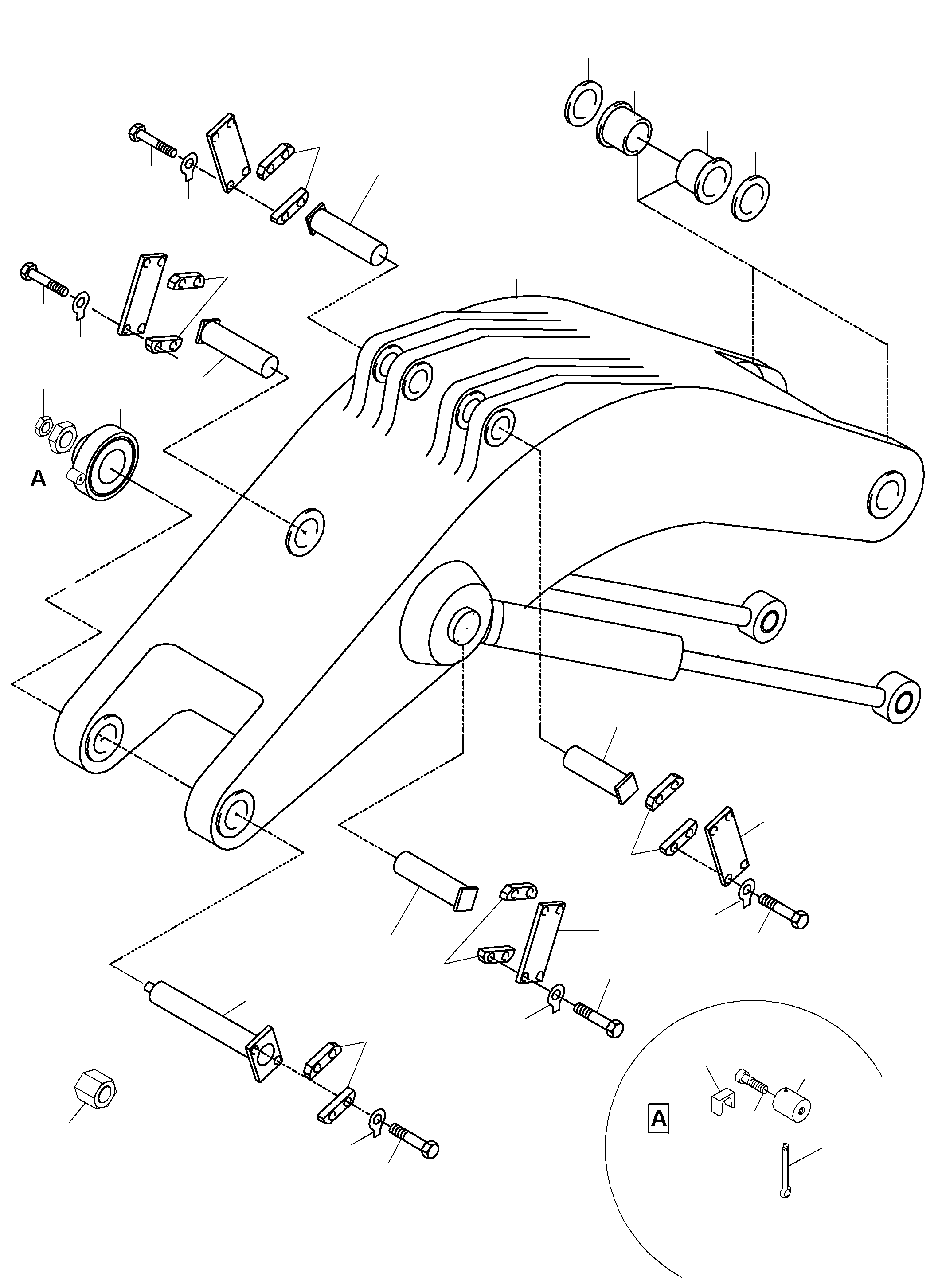

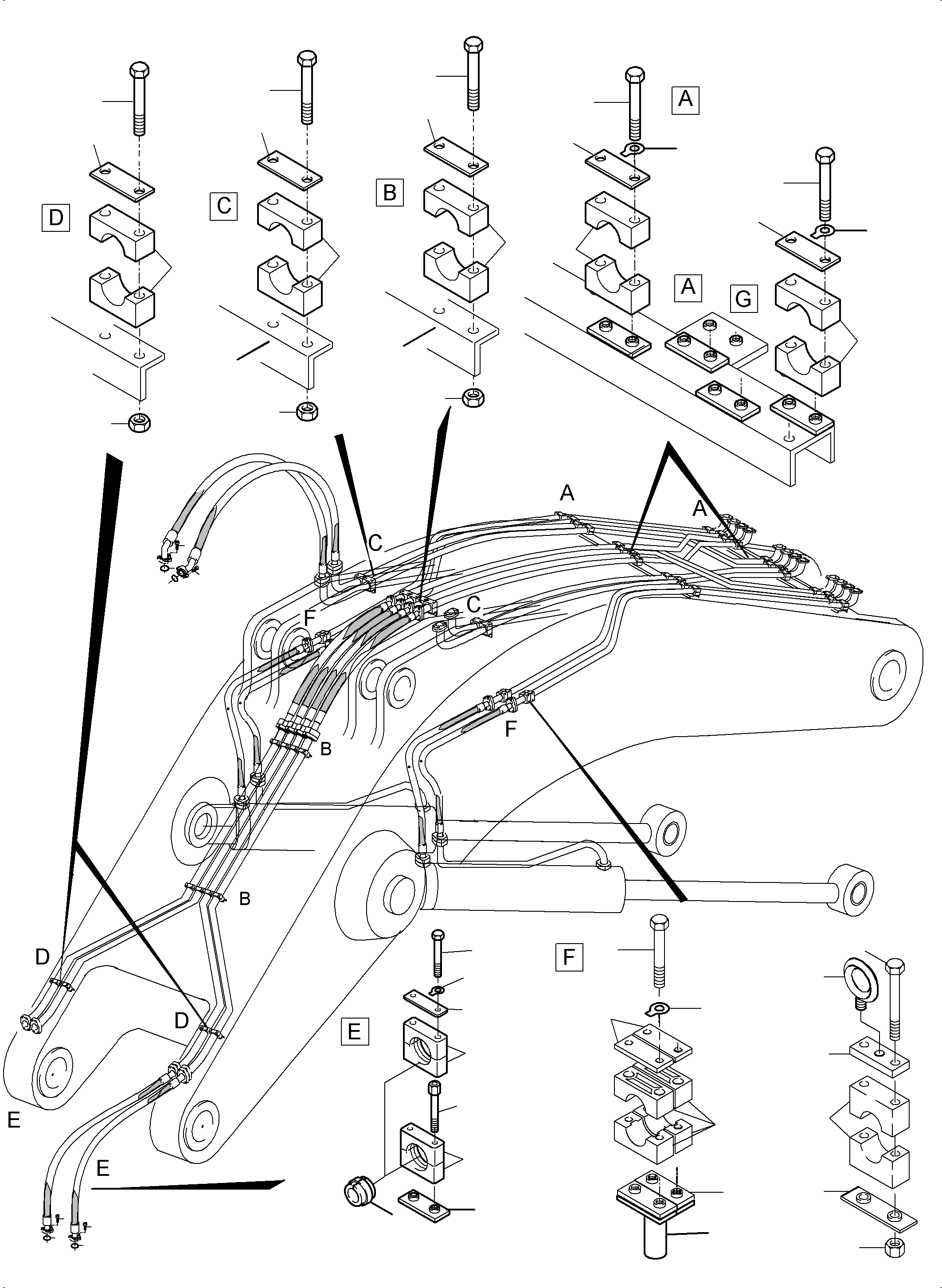

Diagram image 1 of 3

PC5500-6 S/N 15049

01 02 03 04 05 05 06 06 07 08 09 1 1 1 1 10 100 11 11 12 12 12 12 13 13 13 13 14 15 15 16 18 18 18 18 18 19 19 19 19 19 47

PC5500-6 S/N 15049

1 1 1 1 1 1 1 1 1 20 20 20 21 22 22 23 23 24 25 25 25 25 25 25 26 27 28 29 30 31 32 36 36 37 37 37 38 38 38 39 39 39 40 40 41 56

PC5500-6 S/N 15049

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11 11 11 19 20 23 23 25 28 28 37 44 44 44 44 44 44 44 45 45 45 45 45 45 46 47 47 47 47 47 48 49 50 50 51 51 52 52 53 60 61 62 63 64 64 66 67 67 68 69 70 71 72 73 74 75 76 77 78 78 79 80 81

#	Part Number	Partname	Quantity	Options
01	936 940 40	Boom assy.	1	InternBDB: SK 936 910 40 \| InternKon: 926 080 40 / 1
02	795 424 73	Boom with bushings	1	InternBDB: E-ST
03	795 425 73	Boom with bushings and pipes assy.	1	InternBDB: E-ST
04	935 536 40	Pin with plate	1	InternKon: 936 940 40 / 2
05	935 538 40	Pin with plate	2	InternKon: 936 940 40 / 3
06	935 540 40	Pin with plate	2	InternKon: 936 940 40 / 4
07	936 953 40	Catch	2	InternBDB: 40x440 \| InternKon: 936 940 40 / 5
08	922 170 40	Cover	1	InternBDB: 430x430 \| InternKon: 936 940 40 / 6
09	925 982 40	Stop piece	1	InternKon: 936 940 40 / 7
10	925 981 40	Safety Sleeve	1	InternKon: 936 940 40 / 8
11	932 140 40	Bushing	4	InternKon: 936 940 40 / 9
12	462 208 40	Catch	8	InternBDB: 36x160 \| InternKon: 936 940 40 / 10
13	462 209 40	Shackle	4	InternBDB: 120x307 \| InternKon: 936 940 40 / 11
14	319 442 99	Bolt	1	InternBDB: M16x40 / 8.8 / 912 \| InternKon: 936 940 40 / 12
15	907 028 40	Seal ring	4	InternBDB: 250 / 7x4 RXYD 091609T46 \| InternKon: 936 940 40 / 13
16	342 085 99	Cotter pin	1	InternBDB: 5x50 / 94 \| InternKon: 936 940 40 / 63
18	307 826 99	Bolt	17	InternBDB: M16x50 / 8.8 933 \| InternKon: 936 940 40 / 15
19	517 123 98	Washer	40	InternBDB: Ш 16 \| InternKon: 936 940 40 / 16
20	504 445 98	Pair of Climes	38	InternBDB: S-4-R-65 /3015 \| InternKon: 936 940 40 / 17
21	505 440 98	Pair of Climes	4	InternBDB: S-4-R-65 /3015 \| InternKon: 936 940 40 / 18
22	504 446 98	Pair of Climes	24	InternBDB: S-4-G-65 /3015 \| InternKon: 936 940 40 / 19
23	509 064 98	Pair of Climes	16	InternBDB: S-5-E /3015 \| InternKon: 936 940 40 / 20
24	505 212 98	Grommet	4	InternBDB: S-5-68 /3015 \| InternKon: 936 940 40 / 21
25	534 008 99	Cover plate	36	InternBDB: S-DP-A-4 /3015 \| InternKon: 936 940 40 / 22
26	500 398 98	Cover plate	2	InternBDB: S-DP-A-5 /3015 \| InternKon: 936 940 40 / 23
27	515 928 98	Catch	2	InternBDB: S-5 /3015 \| InternKon: 936 940 40 / 24
28	500 399 98	Weld-on plate	14	InternBDB: S-AP-A-5 /3015 \| InternKon: 936 940 40 / 25
29	502 961 98	Weld-on plate	4	InternBDB: S-AP-S-4 /3015 \| InternKon: 936 940 40 / 26
30	515 927 98	Screw	4	InternBDB: S-5 /3015 \| InternKon: 936 940 40 / 27
31	303 983 40	Angle	2	InternBDB: W 2/6 S /011 839 99 \| InternKon: 936 940 40 / 29
32	301 893 40	Angle	3	InternBDB: W 4/6 S /011 839 99 \| InternKon: 936 940 40 / 32
36	308 641 99	Bolt	4	InternBDB: M16x130 /931 8.8 \| InternKon: 936 940 40 / 34
37	510 151 98	Bolt	52	InternBDB: M12x100 /933 8.8 \| InternKon: 936 940 40 / 35
38	308 612 99	Bolt	80	InternBDB: M12x105 /931 8.8 \| InternKon: 936 940 40 / 36
39	332 334 99	Nut	48	InternBDB: M12 / 934 \| InternKon: 936 940 40 / 37
40	509 310 98	Locking plate	32	InternBDB: SI 6 /011 839 99 \| InternKon: 936 940 40 / 38
41	509 311 98	Locking plate	2	InternBDB: SI 7 /011 839 99 \| InternKon: 936 940 40 / 39
44	385 243 40	Flange seal	44	InternBDB: 2 NBR 90 /341 986 40 \| InternKon: 936 940 40 / 42
45	319 313 99	Bolt	160	InternBDB: M20x120 /912 10.9 \| InternKon: 936 940 40 / 43
46	319 305 99	Bolt	16	InternBDB: M20x60 /912 10.9 \| InternKon: 936 940 40 / 44
47	504 662 98	Nut	161	InternBDB: M 20 /934 \| InternKon: 936 940 40 / 45
48	940 330 40	Hose assy. DN 50x3500	4	InternBDB: 350 GH466 32x3500 / FS 2 /FS 2 /341 951 40 \| InternKon: 936 940 40 / 46
49	940 322 40	Hose assy. DN 50x2500	4	InternBDB: 350 GH466 32x2500 / FS 2 /FS 2 /341 951 40 \| InternKon: 936 940 40 / 47
50	940 318 40	Hose assy. DN 50x2100	2	InternBDB: GH466 32x2100 FS 2 / FS 2 - 45 /341 951 40 \| InternKon: 936 940 40 / 48
51	940 320 40	Hose assy. DN 50x2300	2	InternBDB: GH466 32x2300 FS 2 / FS 2 /341 951 40 \| InternKon: 936 940 40 / 49
52	940 317 40	Hose assy. DN 50x2000	2	InternBDB: GH466 32x2000 FS 2 / FS 2 /341 951 40 \| InternKon: 936 940 40 / 64
53	940 372 40	Hose assy. DN 50x2240	2	InternBDB: GH466 32x2240 FS 2 / FS 2 90 /341 951 41 \| InternKon: 936 940 40 / 65
56	905 219 40	Retainer	4	InternBDB: Rohr 65x8x160 \| InternKon: 936 940 40 / 28
60	936 949 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 50
61	936 950 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 51
62	936 945 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 58
63	936 948 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 57
64	936 943 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 54
66	936 944 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 56
67	936 941 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 52
68	936 942 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 53
69	936 952 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 59
70	936 951 40	Pipe assy. Ш 65	1	InternKon: 933 738 40 / 60
71	936 946 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 61
72	936 947 40	Pipe assy. Ш 65	2	InternKon: 933 738 40 / 55
73	935 546 40	Guard plate	2	InternKon: 936 940 40 / 70
74	943 158 40	Guard plate	4	InternKon: 936 940 40 / 71
75	943 155 40	Angle	1	InternKon: 936 940 40 / 72
76	943 157 40	Retainer	4	InternKon: 936 940 40 / 73
77	534 009 99	Weld on plate	2	InternBDB: S-AP-A-4 W1 DIN 03015 \| InternKon: 936 940 40 / 74
78	517 118 98	Lock washer	12	InternBDB: 12 STZN WN 65593840 \| InternKon: 936 940 40 / 75
79	504 854 98	Grommet	12	InternBDB: S-5-72 GUMMI DIN 03015 \| InternKon: 936 940 40 / 76
80	307 806 99	Bolt	8	InternBDB: M12 X 40 8.8 DIN 00933 \| InternKon: 936 940 40 / 77
81	304 352 99	Bolt	24	InternBDB: M16X 140 10.9 DIN 00931 \| InternKon: 936 940 40 / 78
100	409 329 40	Mounting cap for Bolt fig-no. 04	1	InternBDB: 155 \| InternKon: 936 940 40 / 14

Komatsu PC5500-6 S/N 15049 parts catalog PDF

BACKHOE BOOM (515-4018g) in PC5500-6 S/N 15049. Diagram image and parts list.
